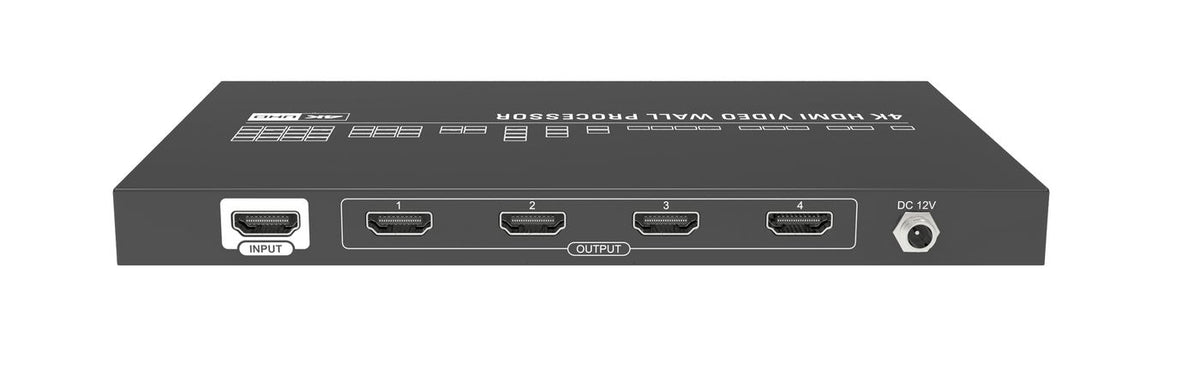

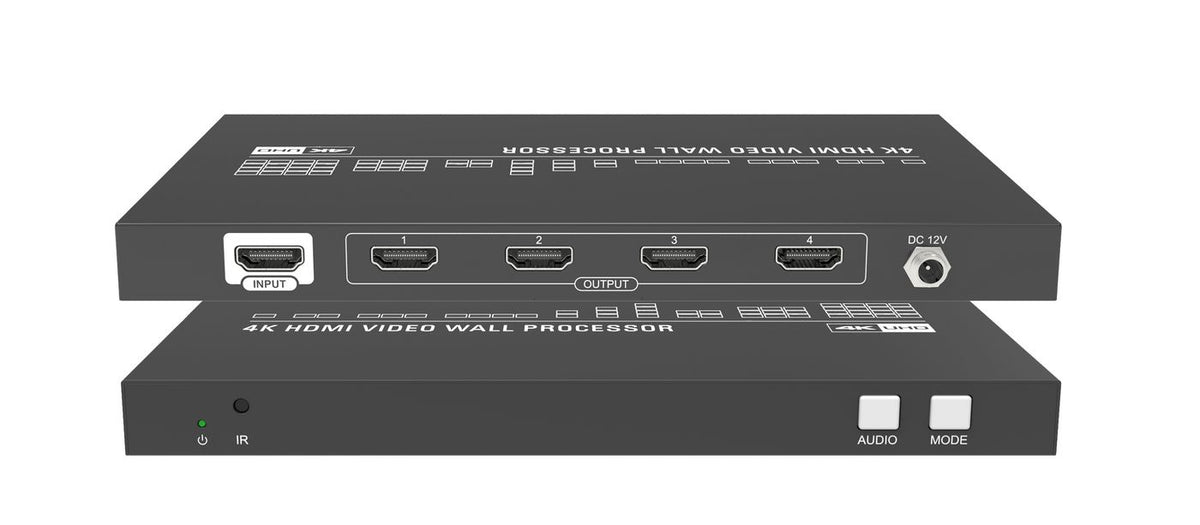

Vivolink VLVW1X4 video wall processor Black 11 W

This Vivolink VideoWall processor have 1 HDMI input and 4 HDMI outputs.
HDMI input supports resolutions up to 4Kx2K@60Hz 4:4:4 and output resolution is fixed to be 1920x1080p@60Hz.
9 diffrent video wall modes, can be selected via front panel button and IR remote.

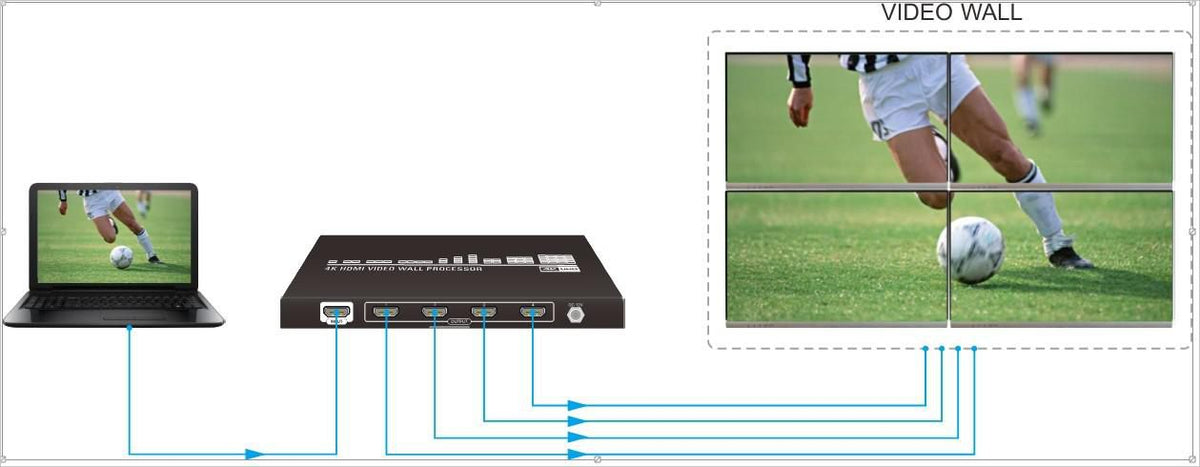

Excample:
2x2 will devide picture into 4 pictures for four screens
1x2 will strech the picture horisontal out on two screens
Video wall processor can be cascade coupled to support 16 screens

Design
Product colour	Black
Built-in display	No
Control type	Buttons
Features
Supported video modes	1080p
Scaled resolutions	1920 x 1080
HDCP	Yes
HDCP version	2.0
Audio formats supported	PCM
Maximum refresh rate	60 Hz
Number of displays supported	4
Maximum resolution	3840 x 2160 pixels
Ports & interfaces
HDMI input ports quantity	1
HDMI output ports quantity	4
HDMI version	2.0b
Power
Power consumption (max)	11 W
Input voltage	100 - 240 V
Input frequency	50/60 Hz
Power supply location	External
Operational conditions
Operating temperature (T-T)	-5 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	210 mm
Depth	110 mm
Height	18 mm
Weight	450 g
Package weight	550 g
