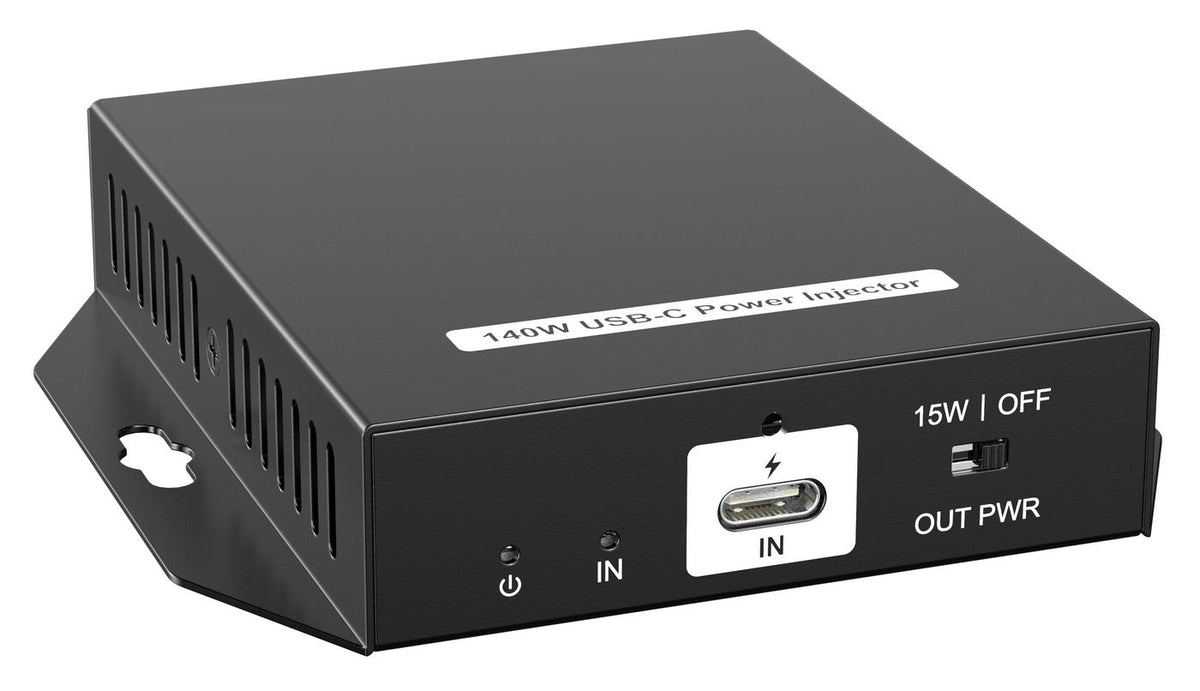

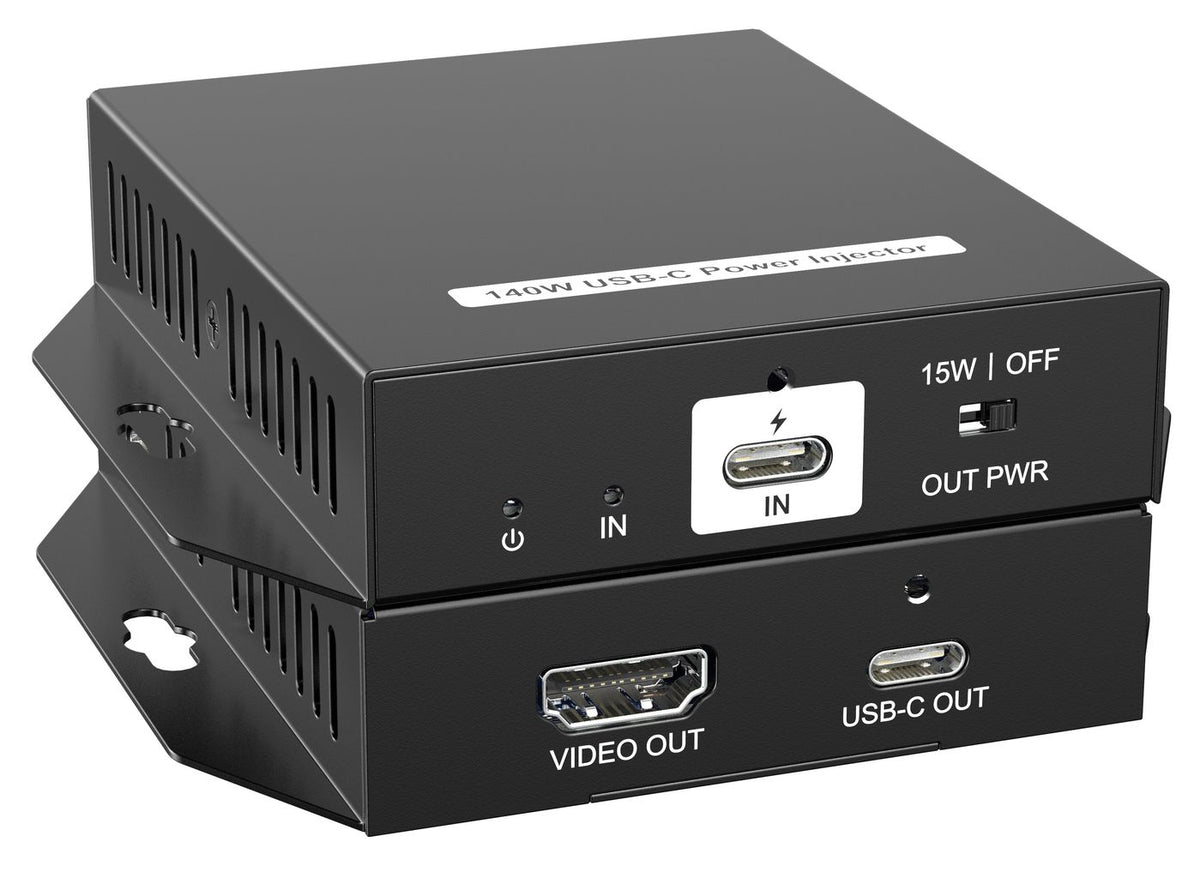

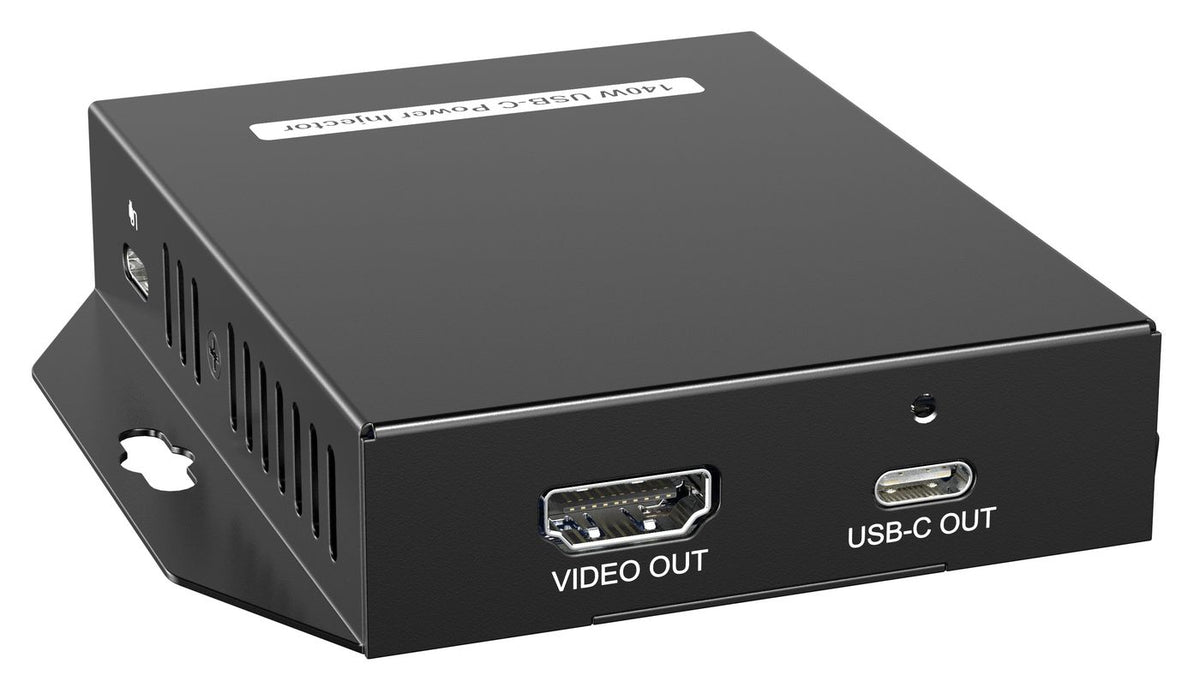

Vivolink VLUSBCPOWER-H control processor

USB-C Power Injector supports up to 140W Charging. The charging requires a USB-C PD charger (not included).

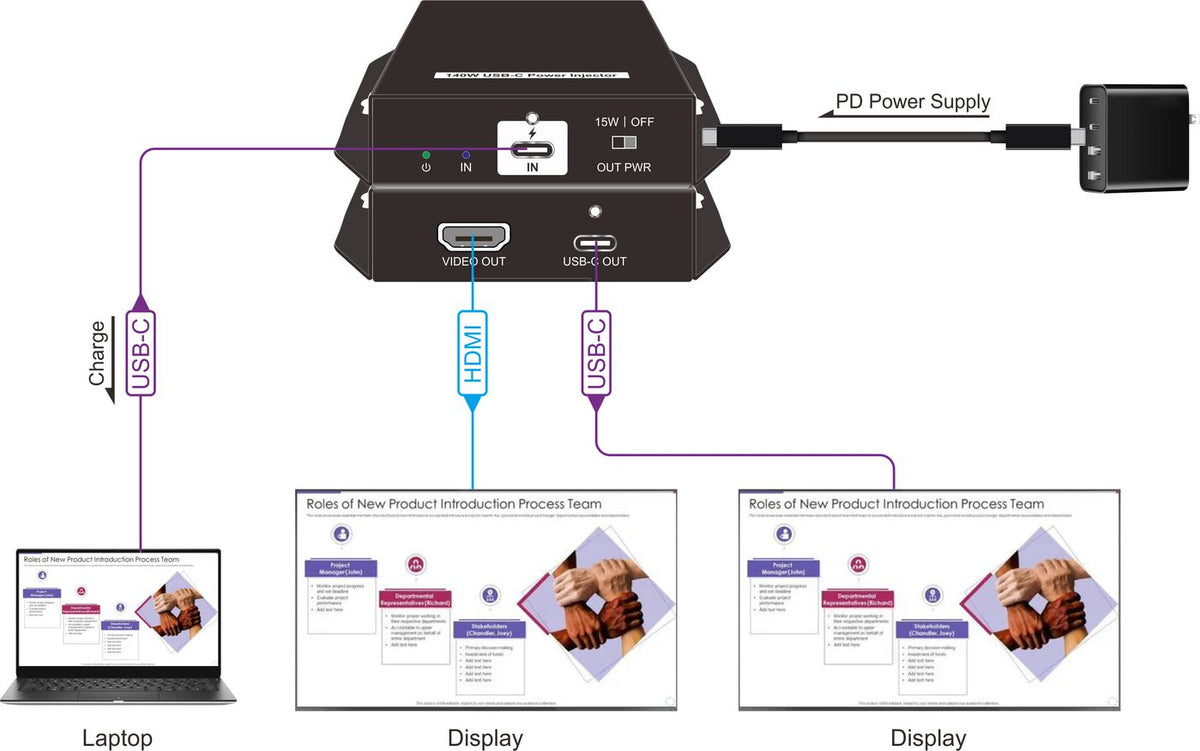

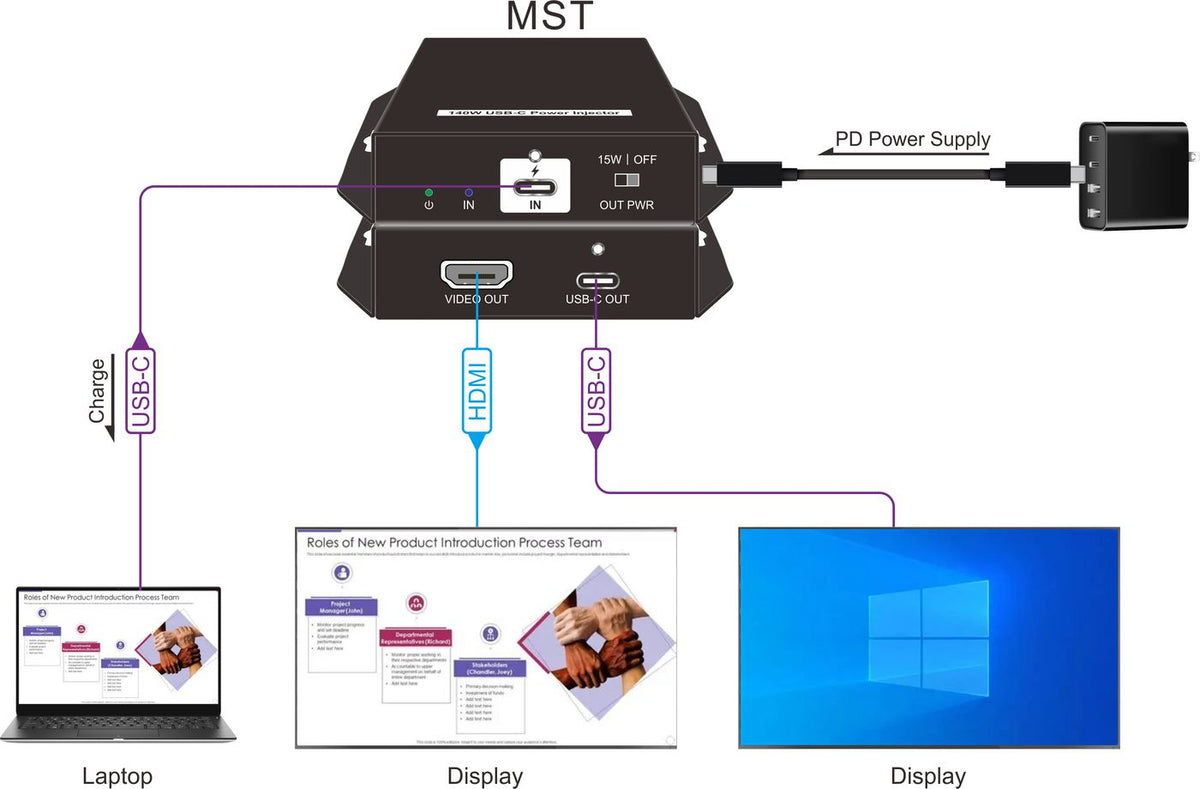

The unit supports DP Alt Mode with 4K@60Hz 4:4:4 video and enables SST/MST, allowing dual-video output via USB-C and HDMI. This makes it ideal for setups requiring a second display signal directly from the injector.
Please order PD charger separately: VLUSBCPWR100
Injects up to 140W charging for USB host. Max total cable length in + out = 7 meters
we recommend Max 2 meter on PC side and 3 meter og Device side.
The USB-C connector in and output are with hole for USB-C cables with locking screw
we recommend Vivolink PROUSBCMMS
This injector occupies only one Tier in the USB connection.

Features
Product colour	Black
On/off switch	No
Rack mounting	No
Cooling type	Passive
Reset button	No
Built-in display	No
Ports & interfaces
DC-in jack	No
USB port	Yes
USB ports quantity	2
USB port type	USB Type-C
IR connectivity	No
Power
AC input voltage	110 - 230 V
Weight & dimensions
Width	105 mm
Depth	130 mm
Height	35 mm
Weight	165 g
Packaging data
Package width	105 mm
Package depth	130 mm
Package height	35 mm
Package weight	200 g
