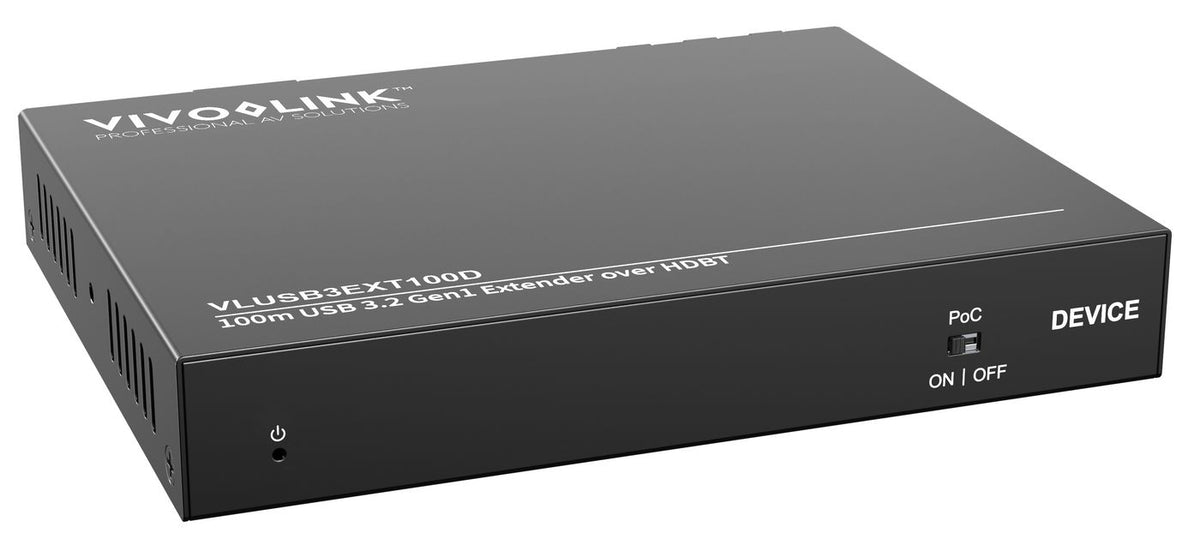

Vivolink VLUSB3EXT100D KVM extender

The VLUSB3EXT100D is a receiver (Rx) that can be used to connect up to 4 USB devices like: camera, speaker, touch screen or other USB3.0 device and signal is transfered via network cable to computer. System builts on HDBaseT 3.0 and supports data speed up to 5Gbit.

Typical installation:
Meeting rooms

It has four USB ports that can extend USB 3.0 signal up to 100 meters over a Cat5e/6/7 cable.
The transmitter is powered by the computer and the power supply is at the remote receiver that’s helps provide sufficient power to any type of USB device, such as flash drives, keyboards, mouses, cameras, or printers, etc.

Extender is build in a durable metal housing and the compact size enables space-saving installation.

Features
Connectivity technology	Wired
Maximum transfer distance	100 m
Cable types supported	Cat7
Product colour	Black
Material	Metal
Easy to install	Yes
Plug and Play	Yes
LED indicators	Power
Transmitter
RJ-45 ports quantity (transmitter)	1
Receiver
RJ-45 ports quantity (receiver)	1
Ports & interfaces
RS-232 ports	1
RJ-45 ports quantity	1
Power
AC input frequency	50 Hz
AC adapter output voltage	24 V
AC adapter output current	1.5 A
Weight & dimensions
Receiver width	13.3 cm
Receiver depth	10.5 cm
Receiver height	2.15 cm
Package weight	438 g
Packaging data
Package weight	438 g
AC adapter included	Yes
Manual	Yes
Packaging content
AC adapter included	Yes
Manual	Yes
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
Storage temperature (T-T)	-25 - 70 °C
Technical details
Weight	227 g
