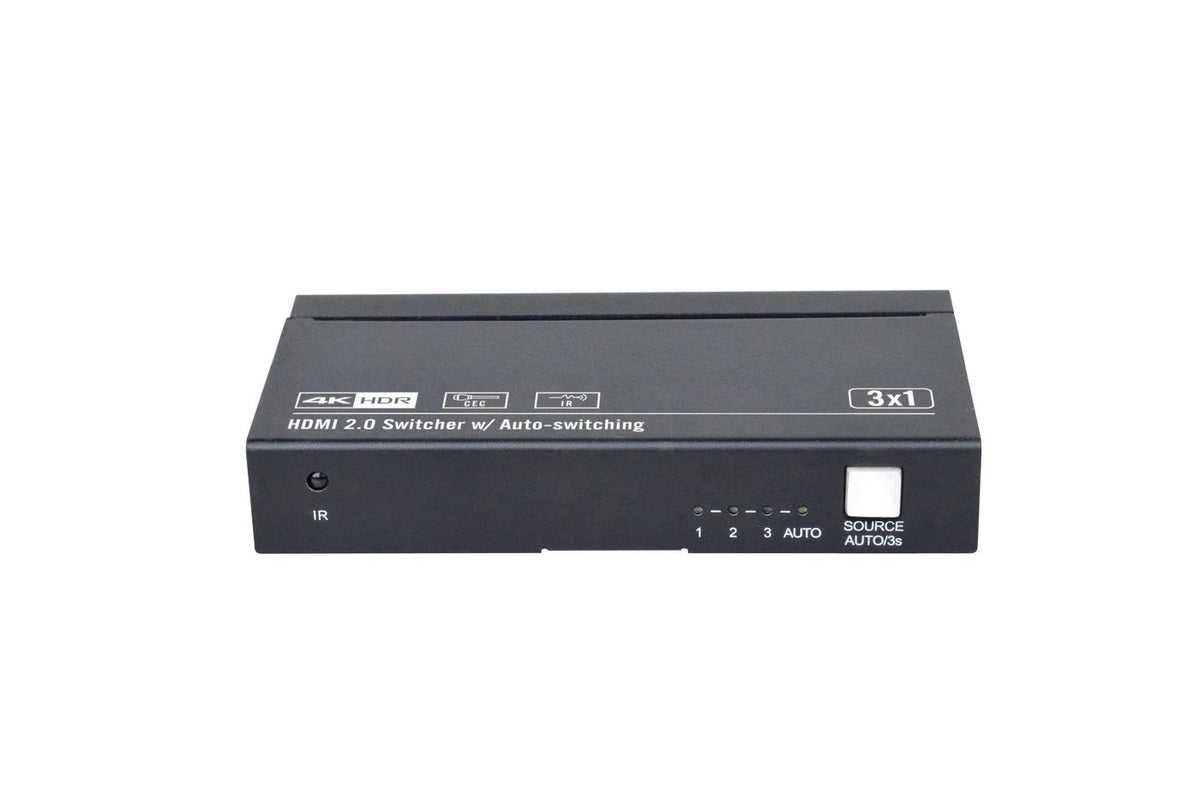

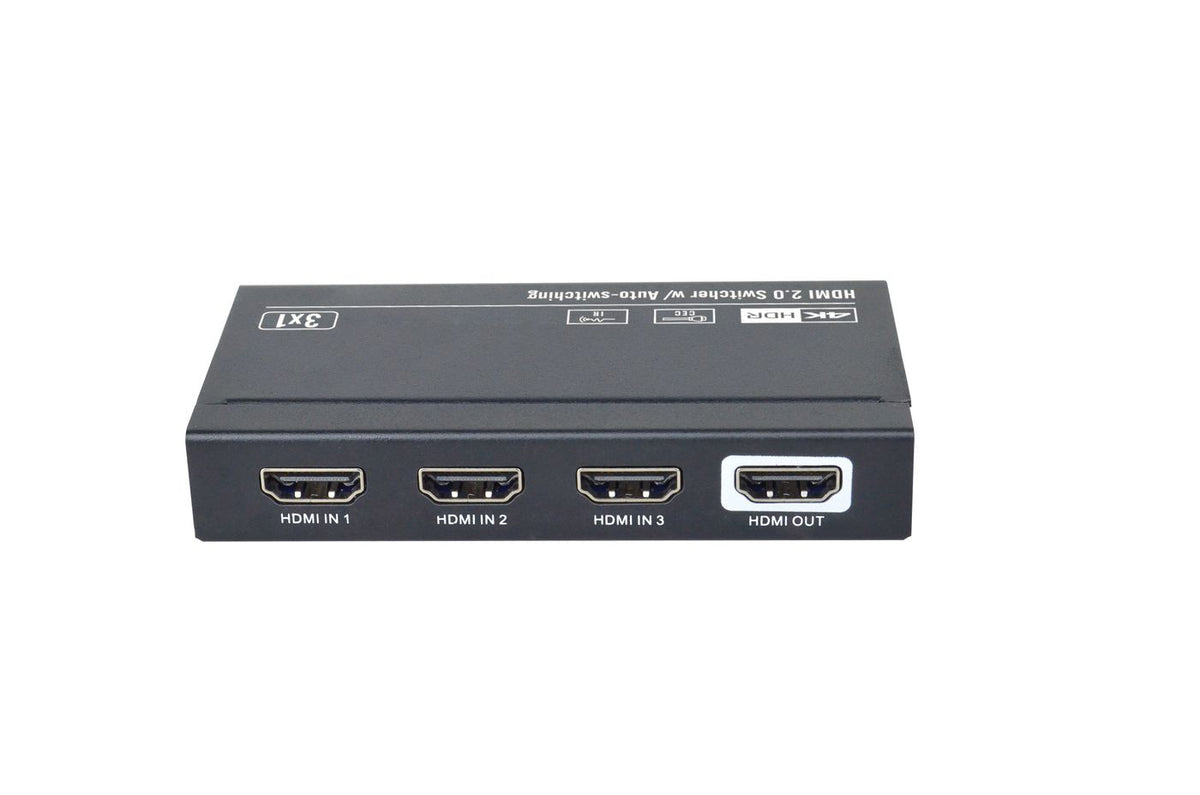

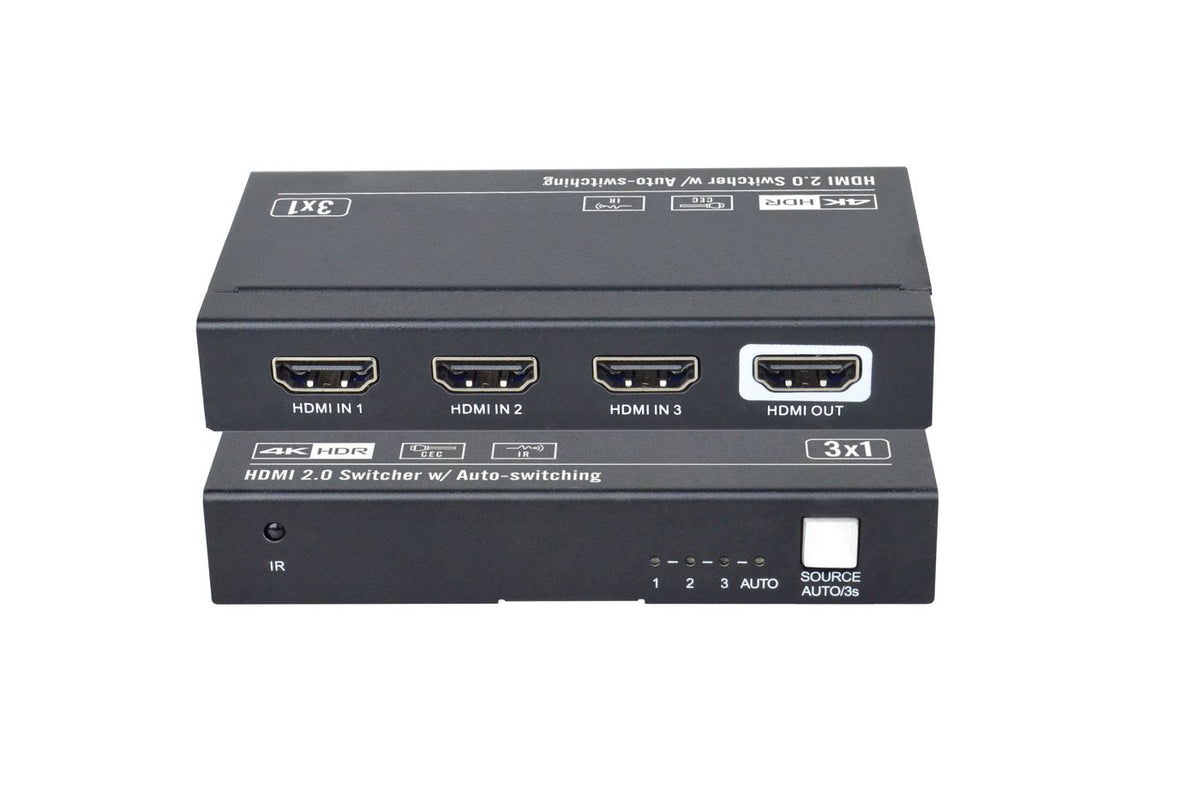

Vivolink VLSW131 video switch HDMI

The VLSW131 is a high-performance 3x1 HDMI switch, designed to seamlessly manage multiple HDMI sources. It features three HDMI inputs and one HDMI output, supporting video resolutions up to 4K@60Hz with 4:4:4 chroma subsampling, HDR, and Dolby Vision, ensuring exceptional video quality.

Key features include automatic switching between inputs, multichannel audio support, and compliance with HDMI 18Gbps and HDCP 2.2 standards, ensuring compatibility with the latest devices. The switcher is controllable via an IR remote and is powered directly by the HDMI input source, eliminating the need for an external power supply and simplifying installation. Additionally, it supports CEC pass-through and provides LED indicators to display the current operating status.
No power supply needed, it is powered via HDMI 5 volt.

Ports & interfaces
Video port type	HDMI
HDMI version	2.0
HDMI ports quantity	4
Number of HDMI outputs	1
HDMI in	3
Features
HD type	4K Ultra HD
Product colour	Black
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
LED indicators	Yes
HDCP	Yes
Maximum frame rate	60 fps
HDCP version	2.2
Consumer Electronics Control (CEC) support	Yes
Weight & dimensions
Width	155 mm
Height	60 mm
Depth	88 mm
Weight	180 g
Package width	155 mm
Package height	60 mm
Package depth	88 mm
Package weight	560 g
Technical details
HD type	4K Ultra HD
Operating temperature (T-T)	-10 - 55 °C
Width	155 mm
Height	60 mm
Depth	88 mm
Product colour	Black
Video port type	HDMI
Plug and Play	Yes
Maximum resolution	3840 x 2160 pixels
LED indicators	Yes
HDMI version	2.0
HDMI ports quantity	4
HDCP	Yes
Maximum frame rate	60 fps
Packaging data
Package width	155 mm
Package height	60 mm
Package depth	88 mm
Package weight	560 g
Packaging content
Cables included	IR sensor
Operational conditions
Operating temperature (T-T)	-10 - 55 °C
