VivoLink

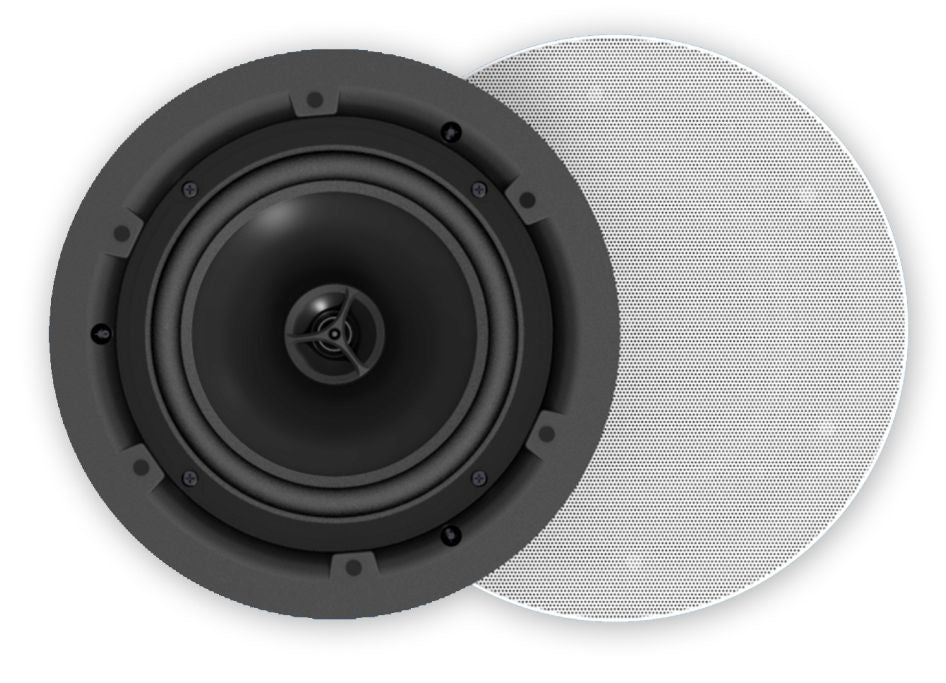

Vivolink VLSPMTC60WT loudspeaker 2-way White Wired 35 W
Vivolink VLSPMTC60WT loudspeaker 2-way White Wired 35 W
Regular price
£92.78 GBP
Regular price
Sale price
£92.78 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Speaker, White, 35W, 6.5" With Crossover, Speaker set (2pcs) RMS35W
Typical installations:
Meeting rooms for ceiling mount.

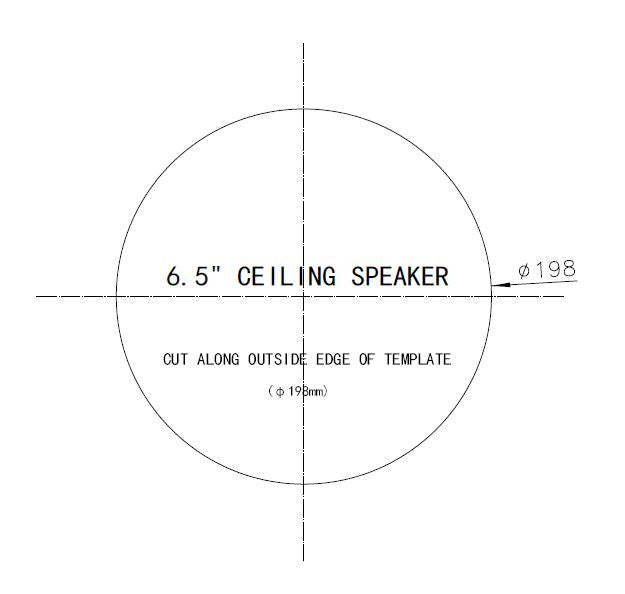

Speaker dimension: 224x92mm.
The different tappings decide how many speakers can be connected to amplifier when using 100V commercial amplifier. Different tappings is for installers to connect different speaker qty and in different amplifiers.
The power of the total speaker installed should match the power of the amplifier.
Example, the rated power of amplifier is 300 watts, if you want to install 20 pcs speaker, then you can connect to 10 Watts tappings and 15 Watts tappings. . 10 x 20 = 200 watts, 15x20=300 watts.
30 watts tapping is for speaker qty you can connect is below 10 pcs
Typical installations:
Meeting rooms for ceiling mount.
Speaker dimension: 224x92mm.
The different tappings decide how many speakers can be connected to amplifier when using 100V commercial amplifier. Different tappings is for installers to connect different speaker qty and in different amplifiers.
The power of the total speaker installed should match the power of the amplifier.
Example, the rated power of amplifier is 300 watts, if you want to install 20 pcs speaker, then you can connect to 10 Watts tappings and 15 Watts tappings. . 10 x 20 = 200 watts, 15x20=300 watts.
30 watts tapping is for speaker qty you can connect is below 10 pcs
| Loudspeakers | |
|---|---|
| Speaker type | 2-way |
| Speaker placement | Ceiling-mountable |
| Number of drivers | 1 |
| Amplifier | No |
| Tweeter | Yes |
| Woofer | Yes |
| Tweeter diameter (imperial) | 1.27 cm (0.5") |
| Woofer diameter (imperial) | 16.5 cm (6.5") |
| Recommended usage | Home |
| Audio output channels | 2.0 channels |
| Audio | |
| Impedance | 8 O |
| RMS rated power | 35 W |
| Performance | |
| Product colour | White |
| Magnetically shielded | Yes |
| Housing material | Plastic |
| Recommended usage | Home |
| Technical details | |
| Speaker type | 2-way |
| Product colour | White |
| Magnetically shielded | Yes |
| Housing colour | White |
| Input voltage | 100 V |
| Design | |
| Product colour | White |
| Housing material | Plastic |
| Amplifier | |
| Amplifier | No |
| Ports & interfaces | |
| Connector contacts plating | Bronze/Gold |
| Connectivity technology | Wired |
| Connector(s) | Speaker terminals |
| Bluetooth | No |
| Power | |
| Transformer taps | 10 W |
| AC input voltage | 100 V |
| Material | |
| Housing material | Plastic |
| Weight & dimensions | |
| Width | 225 mm |
| Depth | 225 mm |
| Height | 92 mm |
| Diameter | 22.4 cm |
| Weight | 3 kg |
| Speaker weight | 3 kg |
| Package width | 250 mm |
| Package depth | 250 mm |
| Package height | 220 mm |
| Package weight | 3.49 kg |
| Packaging data | |
| Package width | 250 mm |
| Package depth | 250 mm |
| Package height | 220 mm |
| Package weight | 3.49 kg |
| Packaging content | |
| Quick installation guide | Yes |
| Features | |
| Housing colour | White |
| Input voltage | 100 V |
| Other features | |
| Housing colour | White |
| Input voltage | 100 V |
| Connector contacts plating | Bronze/Gold |
| Speaker weight | 3 kg |
| Magnetically shielded | Yes |
| Quick installation guide | Yes |
| Bluetooth | No |
| Audio output channels | 2.0 channels |
