VivoLink

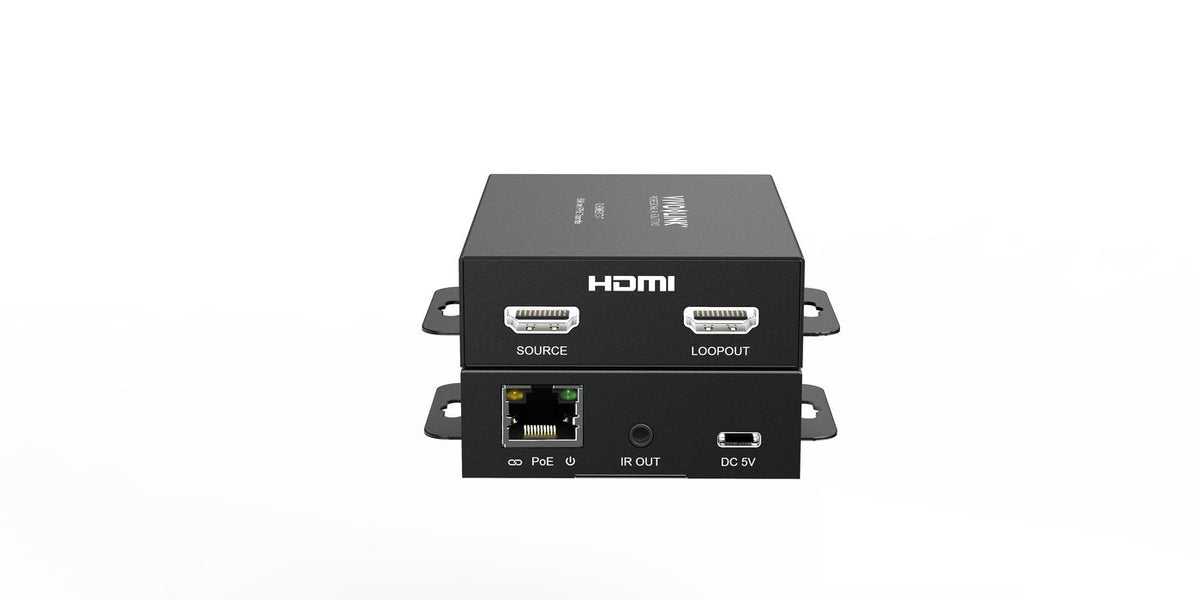

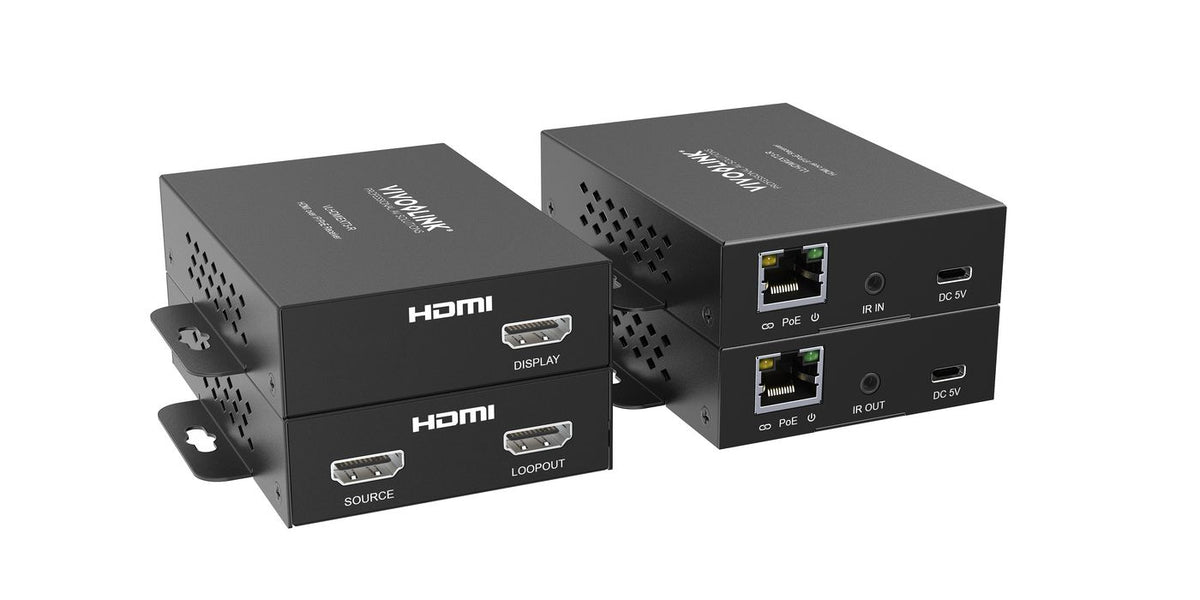

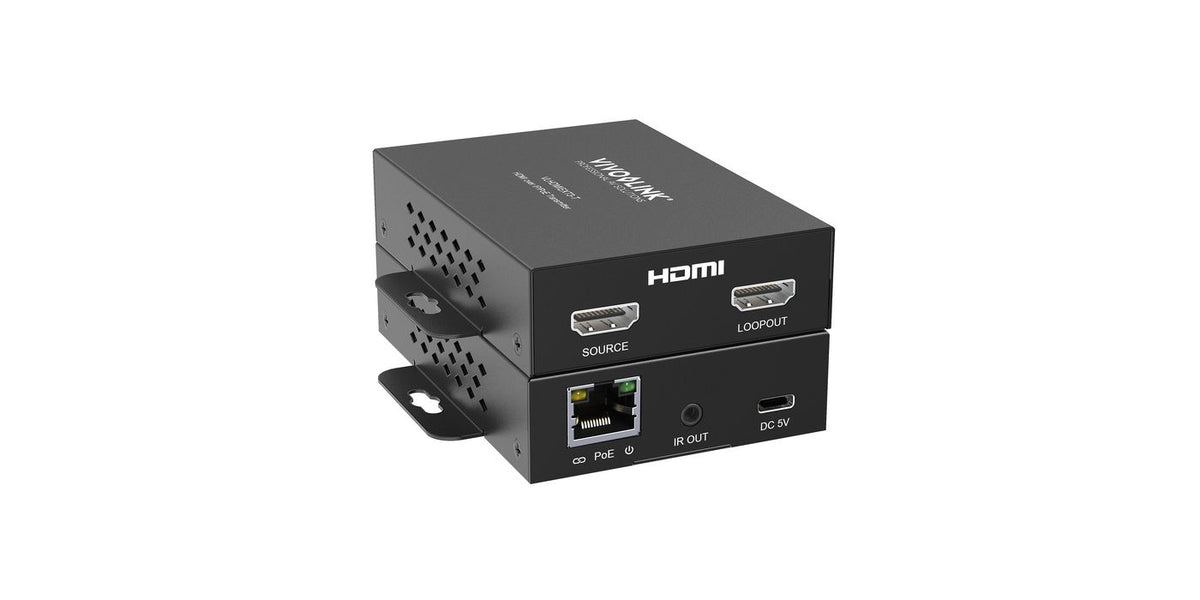

Vivolink VLHDMIEXT3-T AV extender AV transmitter Black
Vivolink VLHDMIEXT3-T AV extender AV transmitter Black
Regular price
£104.06 GBP
Regular price
Sale price
£104.06 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Transmitter unit with IR transmitter Max resolution 1080P@60hz
VLHDMIEXT3-T is transmitter for VLHDMIEXT3-R
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)
Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 150m 1080P@60Hz
Signal can be splitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
VLHDMIEXT3-T is transmitter for VLHDMIEXT3-R
It can extend video/audio/IR with a resolution of 1080P@60 Hz up to 150 meters via single network cable (Cat 6)
Up to 253 receivers can be connected to one transmitter using Gbit switch.
One receiver will occupy 18Mbit bandwith.
Note that this product is not compatible with HDBaseT receivers
Typical installation:
It can be installed anywhere to extend HDMI signal up to 150m including AV/IR control signals
E.g. Private installation, Info screens in Shops or offices
Function:
HDMI extender
Point to point,Tx to Rx for 150m 1080P@60Hz
Signal can be splitted with a GBit Switch to several receivers
One receiver device only occupy 18M bandwidth.
Key features:
Super cost-effective HDMI extender over IP network
| Features | |
|---|---|
| HDCP | Yes |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Video compression formats | H.264 |
| Remote control type | IR |
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Supported video modes | 1080p |
| LED indicators | Yes |
| Cable length | 150 m |
| Product colour | Black |
| HDCP pass-through | Yes |
| HDCP version | 1.4 |
| Technical details | |
| HDCP | Yes |
| Wall mountable | Yes |
| IR pass-through | Yes |
| HDCP & EDID bypass | Yes |
| Video compression formats | H.264 |
| Remote control type | IR |
| Ethernet LAN | Yes |
| Type | AV transmitter |
| Maximum resolution | 1920 x 1080 pixels |
| Cable types supported | Cat6 |
| Maximum transfer distance | 150 m |
| Video out | 1 |
| Video in | 1 |
| Supported video modes | 1080p |
| Cable length | 150 m |
| Product colour | Black |
| Connectivity technology | Wired |
| Audio support | Yes |
| Ports & interfaces | |
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| Ethernet LAN | Yes |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4 |
| Video out | 1 |
| Video in | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 3.5 W |
| External power adapter | No |
| Indication | |
| LED indicators | Yes |
| Operational conditions | |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 60 °C |
| Weight & dimensions | |
| Width | 152 mm |
| Package depth | 119 mm |
| Height | 79 mm |
| Depth | 119 mm |
| Package width | 152 mm |
| Package height | 79 mm |
| Weight | 206 g |
| Package weight | 320 g |
| Packaging data | |
| Package depth | 119 mm |
| Package width | 152 mm |
| Package height | 79 mm |
| Package weight | 320 g |
| Packaging content | |
| IR receiver included | Yes |
| IR blaster included | No |
| AC adapter included | Yes |
| Included power plug types | EU |
