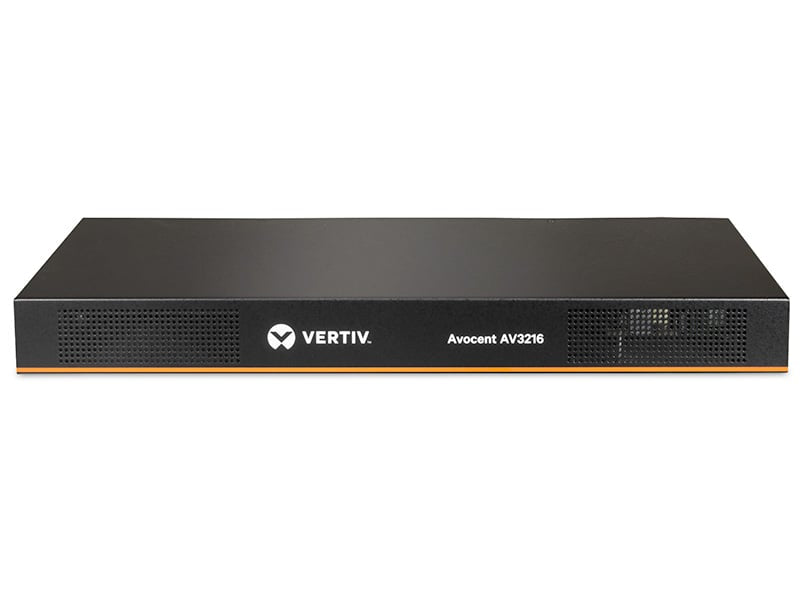

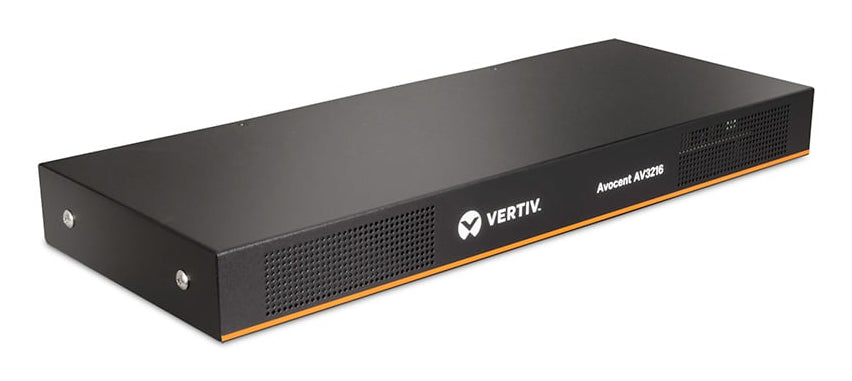

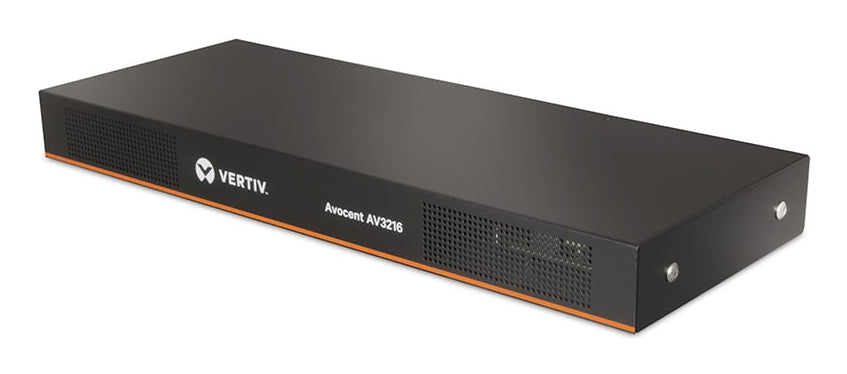

Built for small data centers and remote/branch office environments, the AV 3000 series KVM over IP switch provides consolidated, streamlined access to server resources. Centralize the management of the switches with DSView 4 Management software.

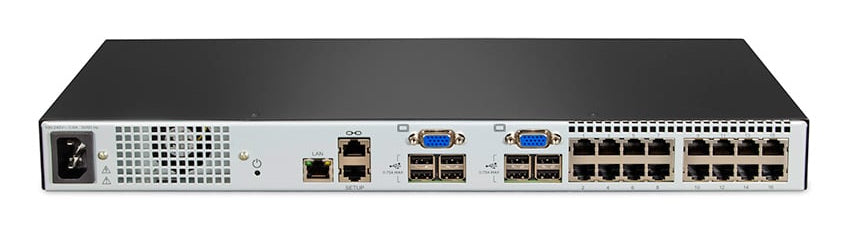

Ports & interfaces
Console ports
RJ–45
Number of computers controlled
16
Keyboard port type
USB
Mouse port type
USB
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Cabling technology
10/100Base-T(X)
Security algorithms
3DES, AES, 128-bit SSL, DES
Ethernet LAN (RJ-45) ports
1
Performance
Firmware upgradeable
Yes
Maximum resolution
1680 x 1050 pixels
Security algorithms
3DES, AES, 128-bit SSL, DES
Technical details
Product colour
Black
Rack mounting
Yes
Design
Product colour
Black
Rack mounting
Yes
Certification
UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI
Rack capacity
1U
Display
Built-in display
No
Power
Input current
5 A
Power source
AC
AC input frequency
50/60 Hz
Power consumption (typical)
18 W
Input voltage
100 - 240 V
Video
Maximum resolution
1680 x 1050 pixels
Security
Security algorithms
3DES, AES, 128-bit SSL, DES
Operational conditions
Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Weight & dimensions
Width
432 mm
Depth
165 mm
Height
43.7 mm
Weight
2 kg
Packaging content
Rack mount kit
Yes
Cables included
AC
Quick installation guide
Yes
Certificates
Certification
UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI
