Ubiquiti U7 Pro XG Wall UniFi Access Point PoE
Ubiquiti U7 Pro XG Wall UniFi Access Point PoE
Regular price
£283.23 GBP
Regular price
Sale price
£283.23 GBP
Taxes included.
Quantity
Couldn't load pickup availability

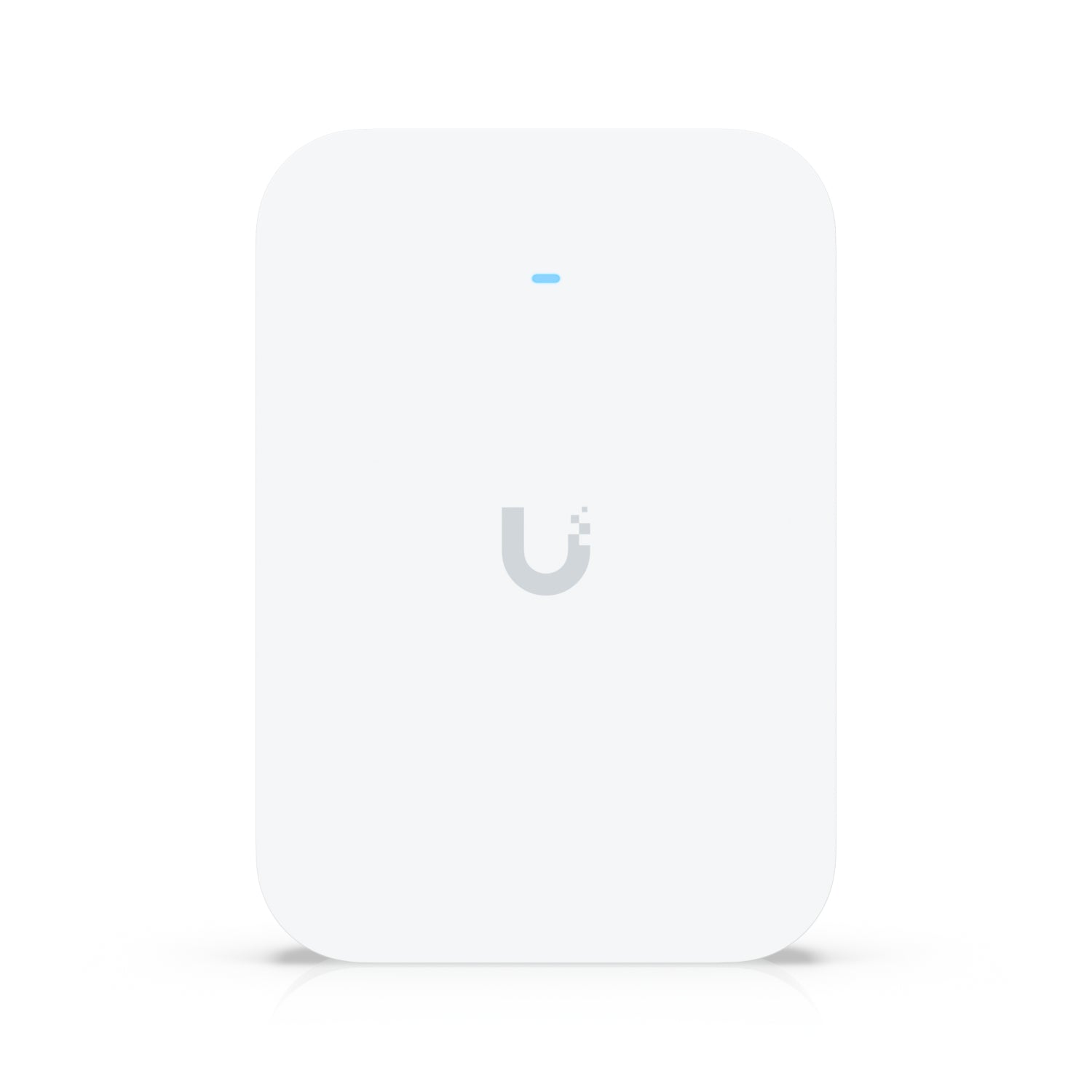

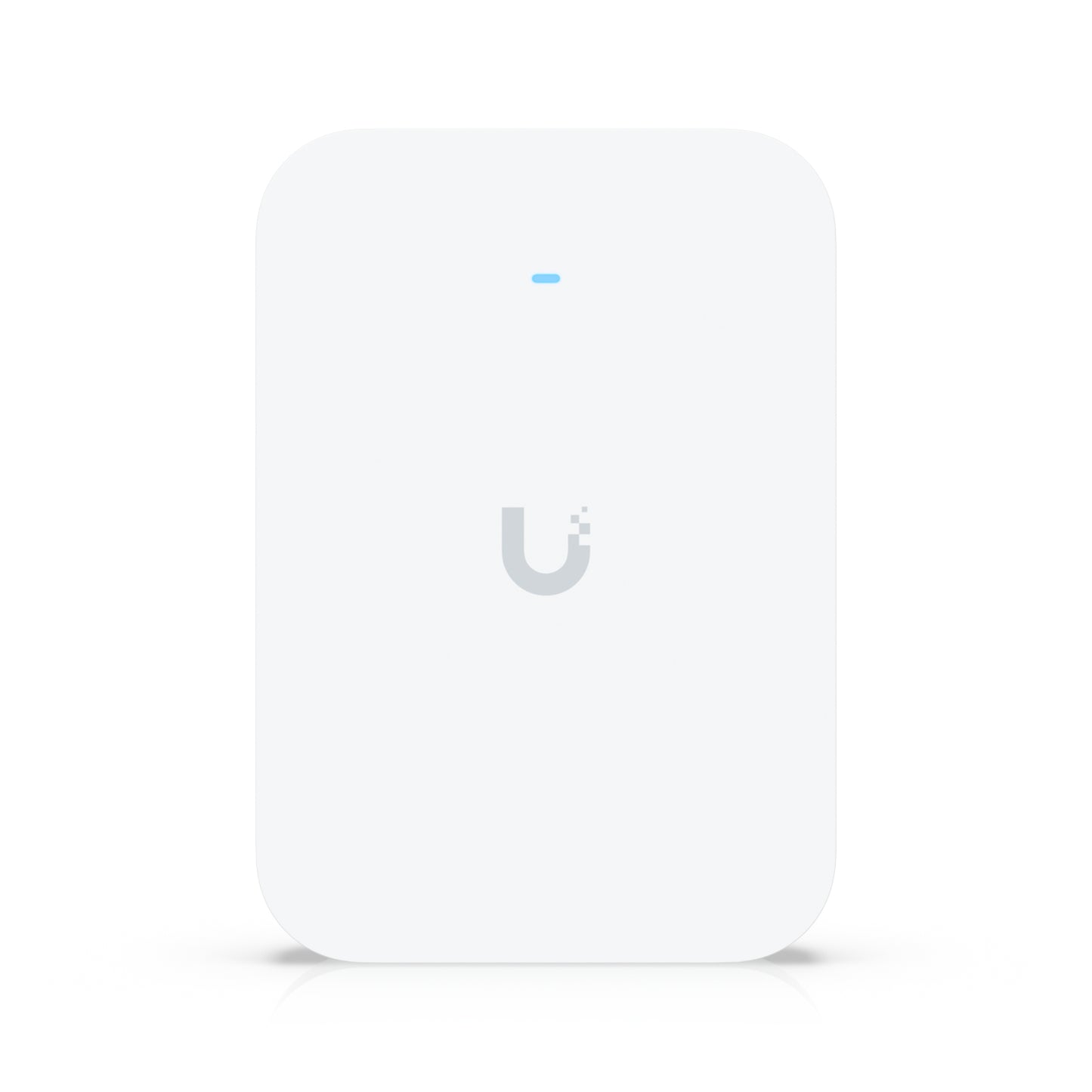

The Ubiquiti U7 Pro XG Wall blankets your space in fast wireless over a single PoE cable — managed from the UniFi platform.
Wall-mounted 6 GHz-ready WiFi 7 AP with 1/2.5/10 GbE support.
U7 Pro XG Wall
Specifications
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Reset button | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Wireless LAN features | |
| Frequency band | 2.4, 5, 6 GHz |
| Network | |
| Number of users | 300 user(s) |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Management features | |
| VLAN support | Yes |
| Rate limiting | Yes |
| Access point management | Wi-Fi schedule |
| Features | |
| 6 GHz | Yes |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Frequency band | 2.4, 5, 6 GHz |
| Number of users | 300 user(s) |
| VLAN support | Yes |
| Rate limiting | Yes |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v |
| Ethernet LAN data rates | 1000,2500,5000,10000 Mbit/s |
| Maximum data transfer rate | 5800 Mbit/s |
| Fast roaming | Yes |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Band steering | Yes |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4300 Mbit/s |
| Fit AP mode features | Hotspot 2.0 |
| Maximum data transfer rate (6 GHz) | 5800 Mbit/s |
| Spatial streams | 6 |
| Coverage area | 140 m² |
| Wireless meshing | Yes |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Maximum Tx power (6 GHz) | 24 dBmW |
| Security | |
| Security algorithms | PPSK |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
| Power consumption (max) | 22 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | PoE+ |
| DC voltage range | 42.5 - 57 V |
| Design | |
| Housing material | Metal, Polycarbonate (PC) |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Status |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Technical details | |
| Reset button | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Certificates | |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Indication | |
| LED indicators | Status |
| Software | |
| Fast roaming | Yes |
| Weight & dimensions | |
| Width | 155 mm |
| Depth | 108 mm |
| Weight | 505 g |
| Height | 33.5 mm |
| Packaging data | |
| Mounting kit | Yes |
| Packaging content | |
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 40 °C |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
