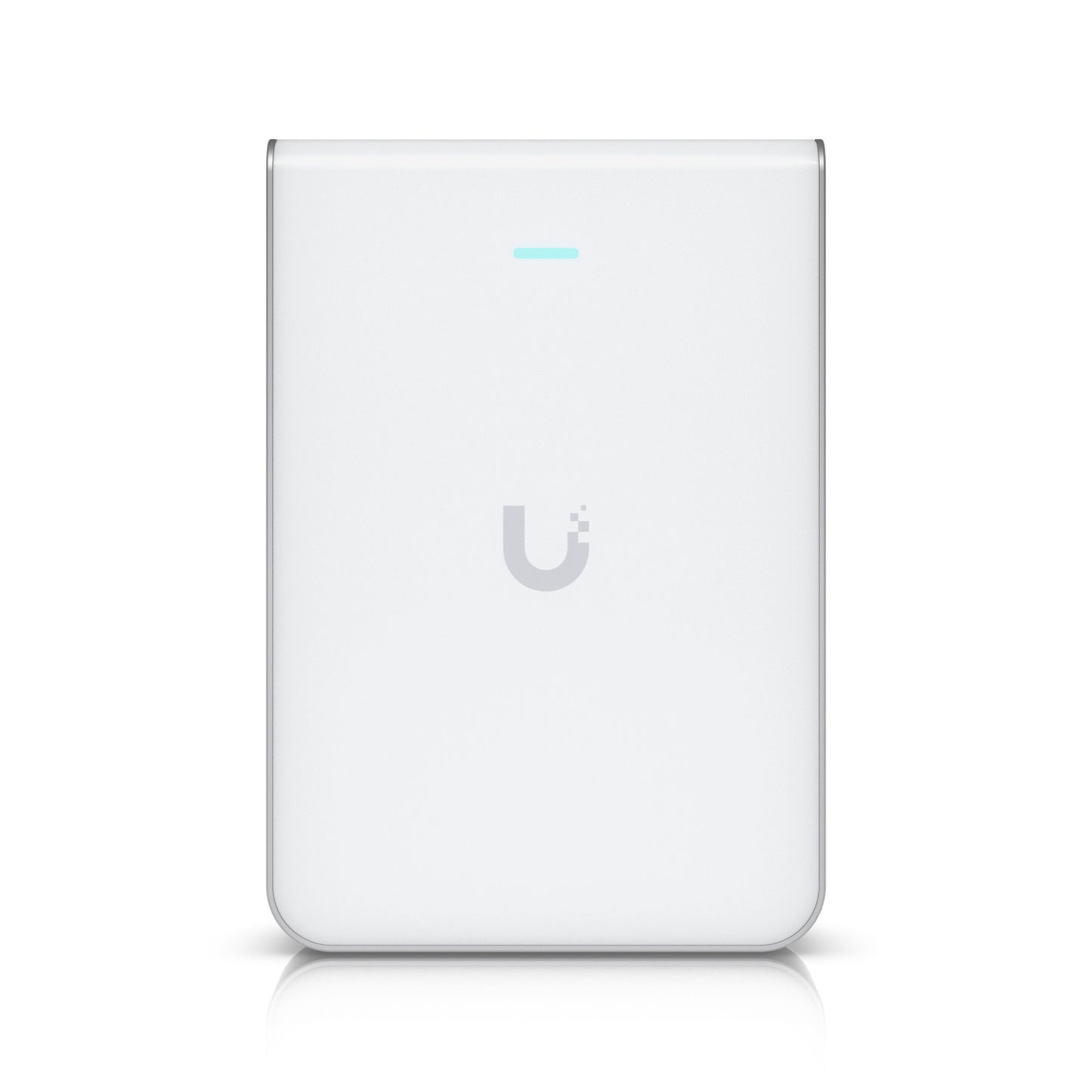

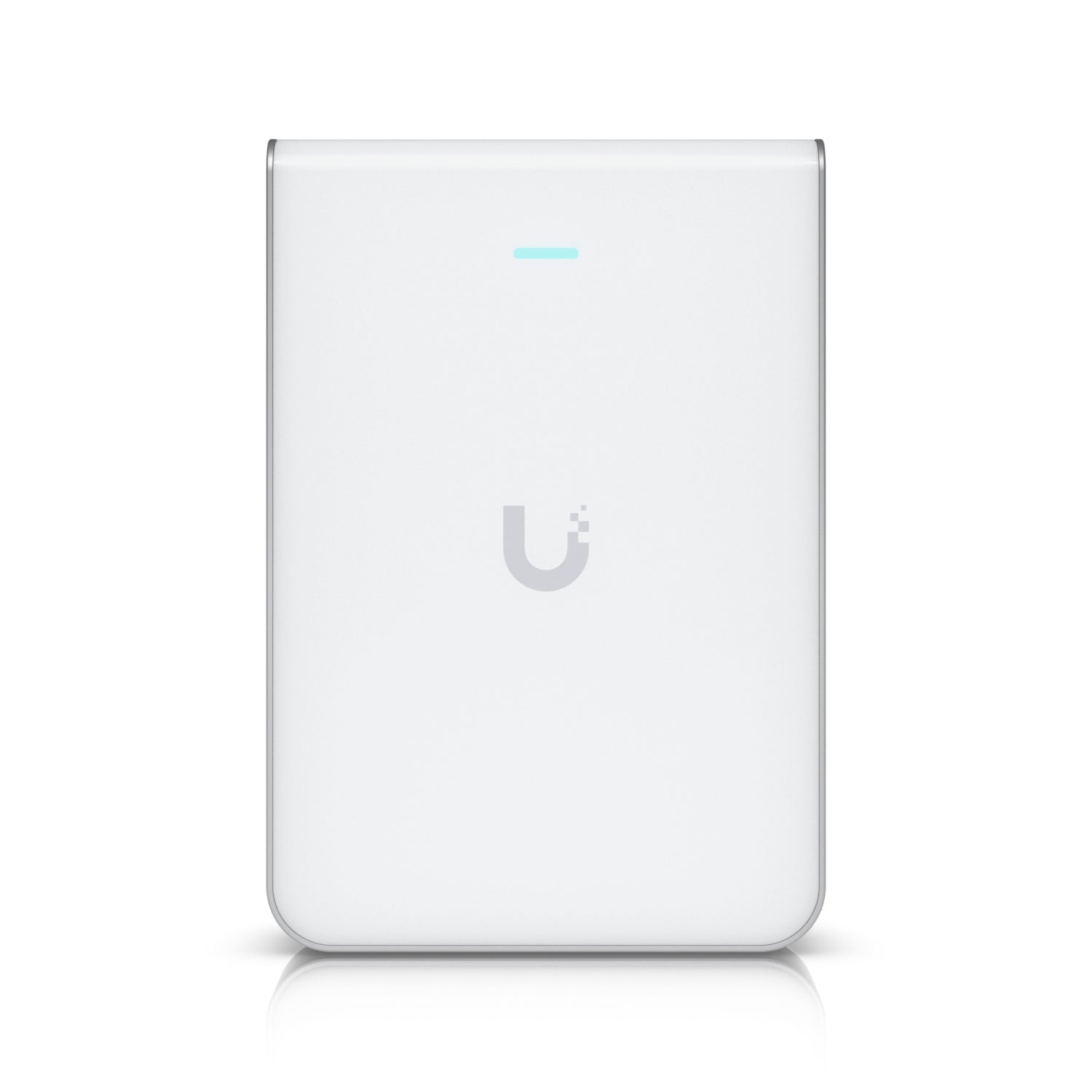

Ubiquiti U7 Pro Wall WiFi 7 UniFi Access Point PoE

The Ubiquiti U7 Pro Wall blankets your space in fast WiFi 7 wireless over a single PoE cable — managed from the UniFi platform.

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point

Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile deployment

Introducing the Ubiquiti UniFi U7-Pro-Wall, a high-performance wall-mounted WiFi 7 access point designed to deliver exceptional wireless coverage and speed.

This sleek, compact device is perfect for high-density environments, offering tri-band connectivity with support for 2.4 GHz, 5 GHz, and the new 6 GHz band. With a maximum aggregate throughput of 10.2 Gbps, the U7-Pro-Wall ensures seamless connectivity for all your devices.

UniFi U7-Pro-Wall features advanced technologies such as OFDMA and MU-MIMO, enhancing network efficiency and performance. U7-Pro-Wall includes advanced security protocols to protect your network and is deal for both enterprise and residential deployments, the U7-Pro-Wall combines aesthetic design with powerful performance.

Specifications

Technical Specifications

Mechanical

Dimensions
150 x 103 x 36 mm (5.9 x 4.1 x 1.4")

Weight
580 g (1.3 lb)

Enclosure Material
Polycarbonate, aluminum

Mount Material
Aluminum

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power Method
PoE+

Power Supply
UniFi PoE switch

Supported Voltage Range
44—57V DC

Max. Power Consumption
22W

Max. TX Power
2.4 GHz - 22 dBm
5 GHz - 26 dBm
6 GHz - 23 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - 2 x 2

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 4324 Mbps
6 GHz - 5764 Mbps

Antenna Gain
2.4 GHz - 4 dBi
5 GHz - 5dBi
6 GHz - 6 dBi

LEDs
White/Blue

Button
Factory reset

Mounting
Wall (Included)
Table stand, flush mount (Optional)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
300+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 8.1 and later

UniFi OS
Version 3.2 and later

Box Contents
1 x U7-Pro-Wall access point
1 x Mounting plate template level
1 x Wall mount plate
All mounting hardware

Specifications

Data transmission
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	5700 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 6 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	5700 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Wireless LAN features
Frequency band	2.4 - 6 GHz
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Features
6 GHz	Yes
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 6 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	5700 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Throughput data rate	5764 Mbit/s
Spatial streams	6
Security
Security algorithms	PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	22 W
Power over Ethernet (PoE)	Yes
DC voltage range	44 - 57 V
Design
Housing material	Aluminium, Polycarbonate (PC)
Placement	Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Recommended usage	Indoor
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Reset button	Yes
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	Yes
Weight & dimensions
Width	103 mm
Depth	150 mm
Weight	580 g
Height	36 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
Sustainability
Sustainability compliance	Yes
Logistics data
Quantity per pack	1 pc(s)
