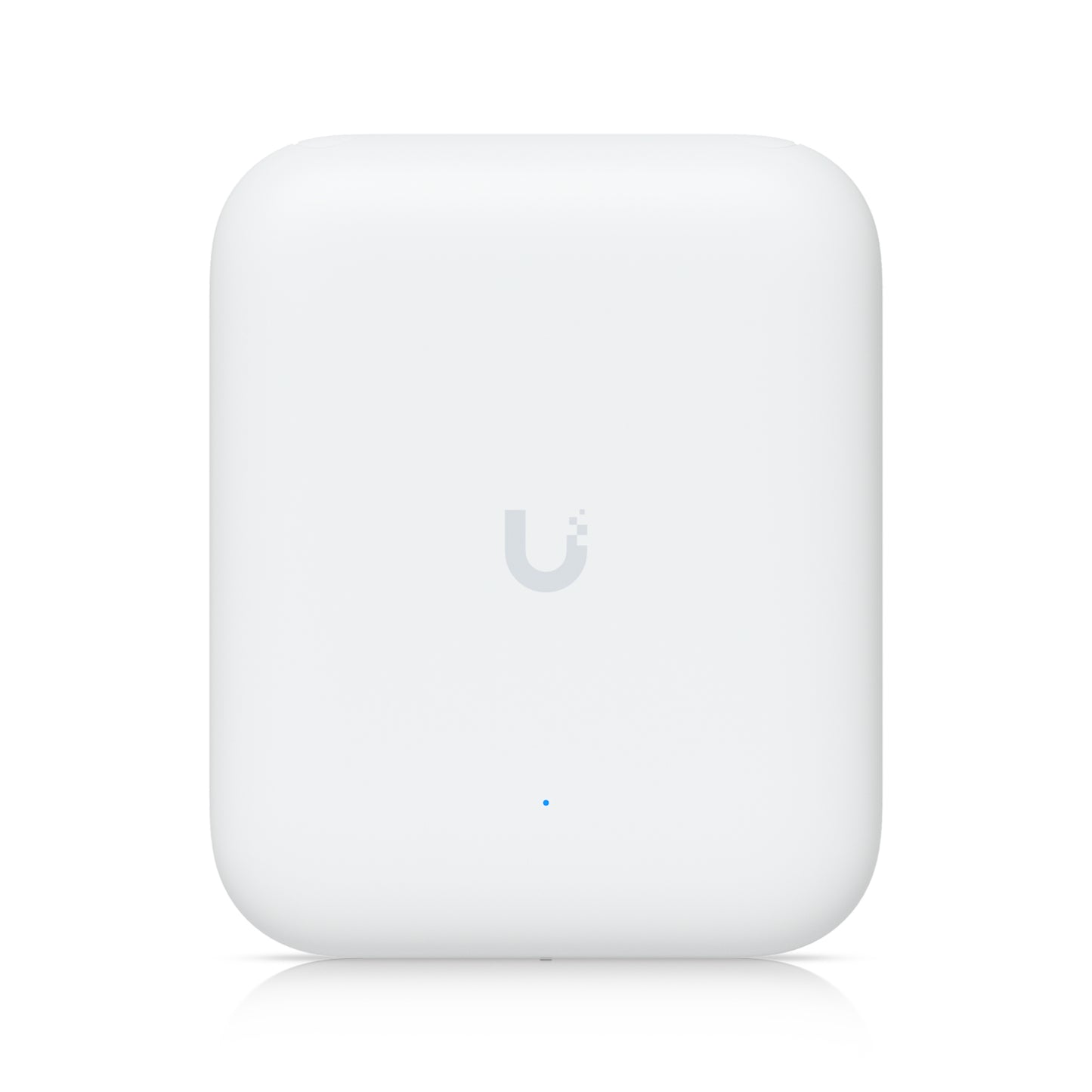

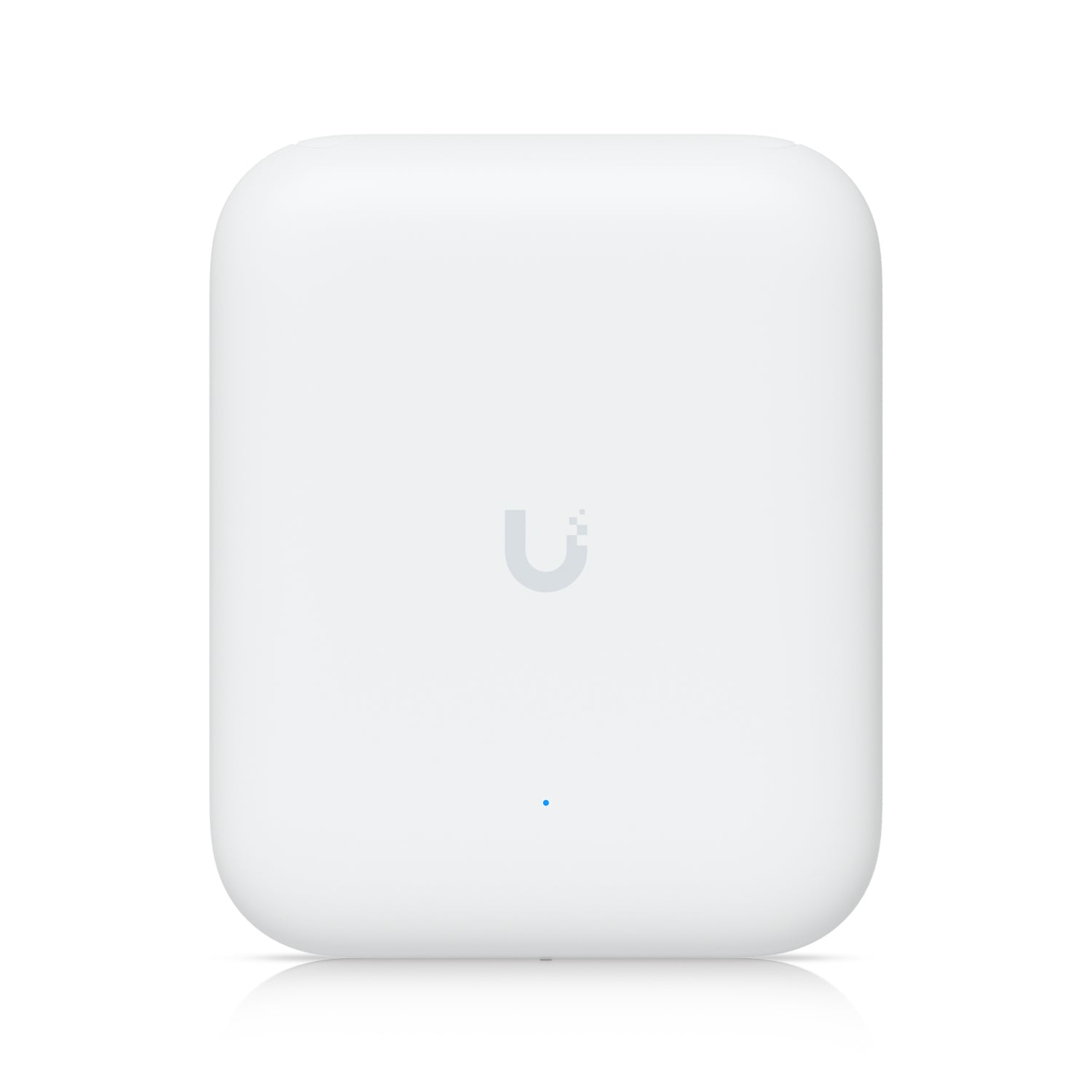

Ubiquiti U7 Outdoor WiFi 7 UniFi Access Point PoE

The Ubiquiti U7 Outdoor blankets your space in fast WiFi 7 wireless over a single PoE cable — managed from the UniFi platform.

Ubiquiti U7 Outdoor WiFi 7 Access Point

Key Features
WiFi 7
4 spatial streams
465 m² (5,000 ft²) open space coverage
Integrated directional super antenna
Software-adjustable antenna beamwidth
200+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile wall and pole mounting
IPX6 Weatherproof (outdoor exposed)

Introducing the Ubiquiti UniFi U7-Outdoor, the ultimate solution for reliable outdoor WiFi 7 connectivity. Designed to withstand the elements, this access point features a durable, weather-resistant enclosure and delivers tri-band performance across the 2.4 GHz, 5 GHz, and 6 GHz bands.

The UniFi U7-Outdoor ensures seamless, high-speed connectivity in outdoor environments. Advanced technologies like OFDMA and MU-MIMO enhance network efficiency, making it ideal for campuses, parks, and large outdoor events. Easy to install and manage, the U7-Outdoor is the perfect choice for extending your network outdoors.

Specifications

Mechanical

Dimensions
170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")

Weight
1.2 kg (2.6 lb)

Enclosure Material
UV-stabilized polycarbonate, aluminum alloy

Mount Material
Polycarbonate, SGCC steel

Pole Mount Diameter
25–60 mm (1–2.36") on pipe outer diameter

Wind Survivability#
74.6 N at 200 km/h (16.8 lbf at 125 mph)

Weatherproofing
IPX6

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power method
PoE+

Power Supply
UniFi PoE Switch

Supported Voltage Range
42.5—57V DC

Max. Power Consumption
19W

Max. TX Power
2.4 GHz - 23 dBm
5 GHz - 26 dBm
6 GHz - No

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - No

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 4324 Mbps

Antenna Gain
2.4 GHz - Directional internal: 8 dBi / External omni: 3 dBi
5 GHz - Directional internal: 12.5 dBi / External omni: 4 dBi
6 GHz - No

Antenna Beamwidth
2.4 GHz - 90 degrees
5 GHz - 45 degrees
6 GHz - No

Antennas
(1) Directional internal antenna
(2) External omni antennas
(2) RP-SMA connectors for external antenna

LEDs
(1) Power: white/blue
(4) Mesh signal: blue

Button
Factory reset

Mounting
Wall, ceiling, pole (Included)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
200+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

Box Contents
1 x U7-Pro-Wall
2 x External antennas
1 x Wall plate template level
1 x Wall plate mount
1 x Multipurpose mount
2 x Jubilee clips
All mounting hardware

Specifications

Data transmission
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Wireless LAN features
Frequency band	2.4 - 5 GHz
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Throughput data rate	4324 Mbit/s
Spatial streams	4
Security
Security algorithms	PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	19 W
Power over Ethernet (PoE)	Yes
DC voltage range	44 - 57 V
Design
International Protection (IP) code	IPX6
Housing material	Aluminium, Polycarbonate (PC)
Placement	Ceiling, Pole, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Recommended usage	Outdoor
Antenna
Number of connectors	2
Antenna type	External
Antennas quantity	2
Antenna gain level (max)	12.5 dBi
Antenna connector type	RP-SMA
Antenna direction type	Omni-directional
Antenna features	Detachable antenna
Technical details
Reset button	Yes
Sustainability compliance	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	Yes
Weight & dimensions
Width	170 mm
Depth	54.5 mm
Weight	1.2 kg
Height	208 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
Sustainability
Sustainability compliance	Yes
Logistics data
Quantity per pack	1 pc(s)
