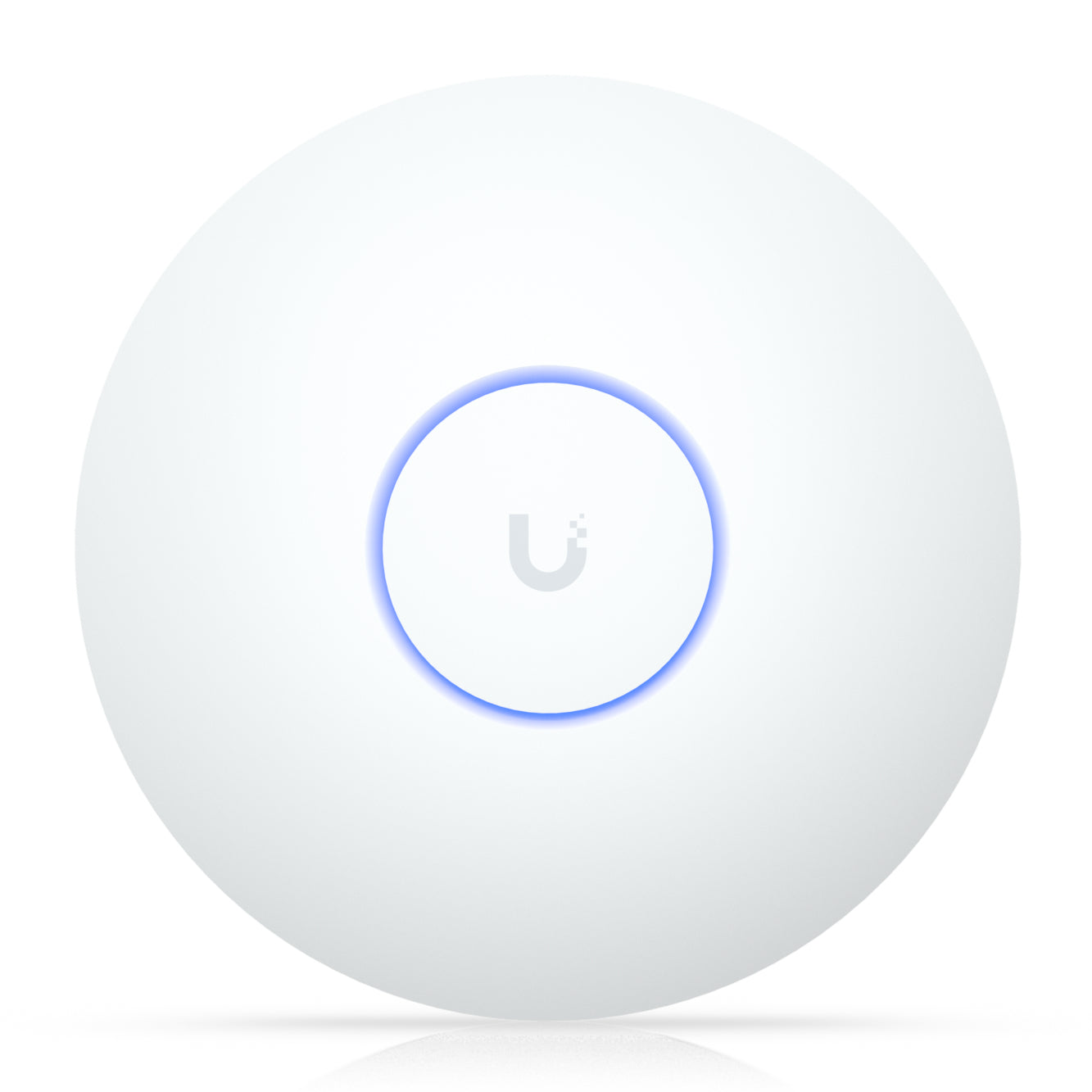

Ubiquiti U7 Long-Range WiFi 7 UniFi Access Point PoE

The Ubiquiti U7 Long-Range blankets your space in fast WiFi 7 wireless over a single PoE cable — managed from the UniFi platform.

U7 Long-Range

Overview

Dimensions
d175.7 x 43 mm
(d6.9 x 1.7")

WiFi Standard
WiFi 7

Spatial Streams
5

Coverage Area
160 m² (1,750 ft²)

Max. Client Count
300+

Uplink
2.5 GbE

Mounting
Ceiling, Wall
(Plastic Mounting Plate included)

Power Method
PoE

MIMO

5 GHz
3 x 3 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz
4.3 Gbps (BW160)

2.4 GHz
688 Mbps (BW40)

Antenna Gain

5 GHz
6 dBi

2.4 GHz
4 dBi

Max. TX Power

5 GHz
27 dBm

2.4 GHz
26 dBm

Supported Data Rates

802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)

802.11ax (WiFi 6)
7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)

802.11n
6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)

Features

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal

Custom Branding Landing Page
Yes

Voucher Authentication
Yes

Payment-Based Authentication
Yes

External Portal Server Support
Yes

Password Authentication
Yes

Guest Network Isolation
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Hardware

Max. Power Consumption
14W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
448 g (15.8 oz)

Management
Ethernet

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Polycarbonate, galvanized steel (SGCC)

LEDs

System
White/Blue

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)

NDAA Compliant
Yes

Certifications
CE, FCC, IC

Ambient Operating Temperature
-30 to 50° C (-22 to 122° F)

Ambient Operating Humidity
5 to 95% noncondensing

Software

Application Requirements

UniFi Network
Version 9.1.120 and later

Mobile App
iOS version 10.20.2 and later
Android version 10.21.7 and later

Specifications

Data transmission
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	7300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
Number of users	300 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	7300 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Remote Authentication Dial-In User Service (RADIUS)	Yes
Wireless LAN features
Frequency band	2.4 - 5 GHz
Network
Number of users	300 user(s)
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support	Yes
Rate limiting	Yes
Access point management	Wi-Fi schedule
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Number of users	300 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	7300 Mbit/s
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
Spatial streams	5
Coverage area	160 m²
Wireless meshing	Yes
Maximum Tx power (2.4 GHz)	26 dBmW
Maximum Tx power (5 GHz)	27 dBmW
Security
Security algorithms	PPSK, TLS
Remote Authentication Dial-In User Service (RADIUS)	Yes
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	14 W
Power over Ethernet (PoE)	Yes
DC voltage range	42.5 - 57 V
Design
Housing material	Aluminium, Polycarbonate (PC)
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Reset button	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC), National Defense Authorization Act (NDAA)
Indication
LED indicators	Yes
Software
Fast roaming	Yes
Weight & dimensions
Width	175.7 mm
Depth	175.7 mm
Weight	448 g
Height	43 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 50 °C
Logistics data
Quantity per pack	1 pc(s)
