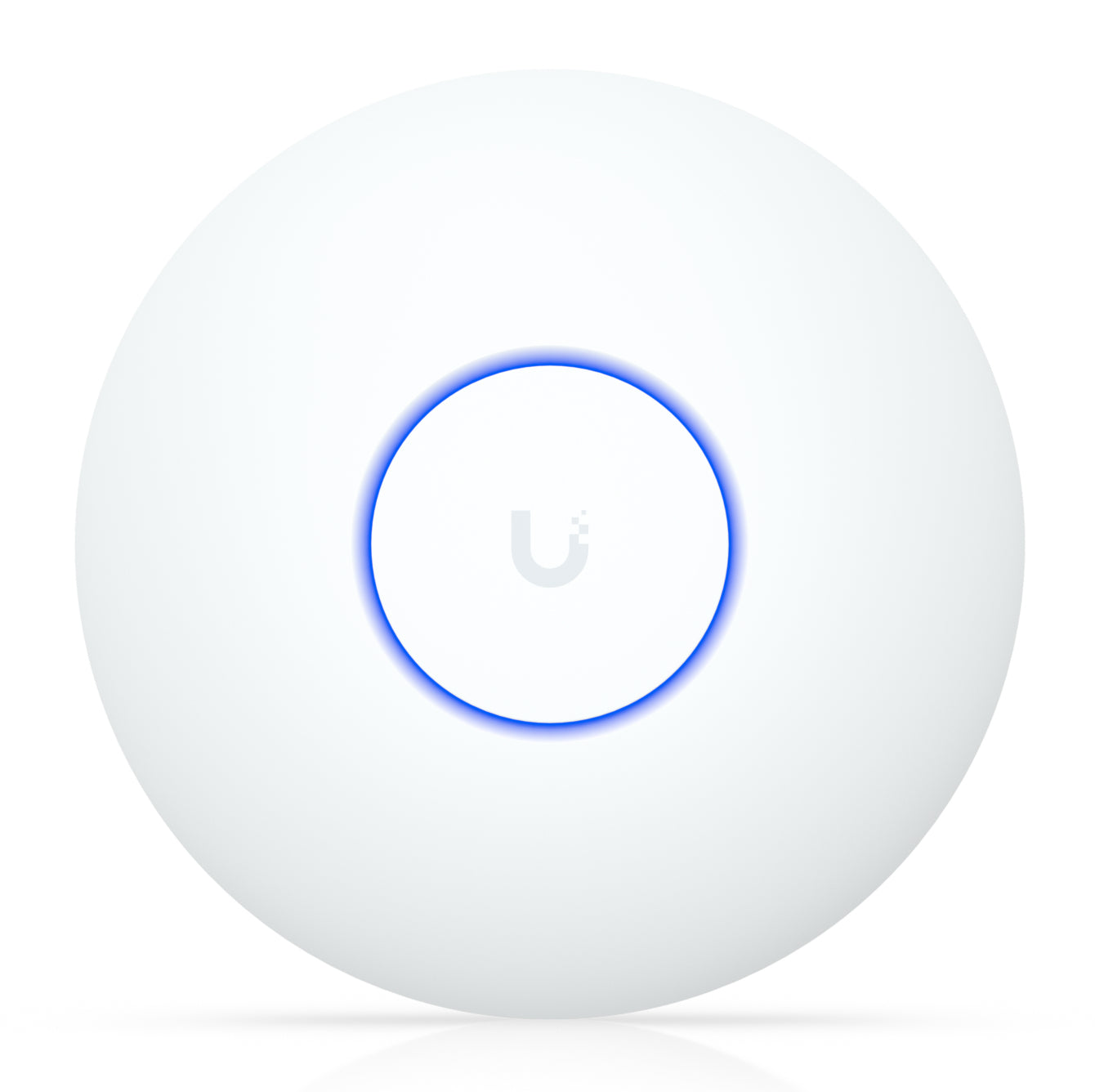

Ubiquiti U7 Lite WiFi 7 UniFi Access Point PoE

The Ubiquiti U7 Lite blankets your space in fast WiFi 7 wireless over a single PoE cable — managed from the UniFi platform.

Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

Dimensions
d171.5 x 33 mm
(d6.8 x 1.3")

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
115 m2 (1,250 ft2)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting
Ceiling, Wall
(Lite Mount Included)

Power Method
POE

MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
5 GHz
5 dBi

2.4 GHz
4 dBi

Max. TX Power
5 GHz
24 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
13W

Supported Voltage Range
42.5—57V DC

Networking Interface
(1) 2.5 GbE RJ45 port

Weight
313 g (11 oz)

Management
Ethernet

Enclosure Material
UV-stabilized polycarbonate

Mount Material
UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs
System

Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications
CE, FCC, IC

Specifications

Data transmission
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Wireless LAN features
Frequency band	2.4 - 5 GHz
Network
Number of users	200 user(s)
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support	Yes
Rate limiting	Yes
Access point management	Wi-Fi schedule
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
VLAN support	Yes
Rate limiting	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	1000,2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
Spatial streams	4
Coverage area	115 m²
Wireless meshing	Yes
Maximum Tx power (2.4 GHz)	23 dBmW
Maximum Tx power (5 GHz)	24 dBmW
Security
Security algorithms	PPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (max)	13 W
Power over Ethernet (PoE)	Yes
DC voltage range	44 - 57 V
Design
Housing material	Polycarbonate (PC)
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
LED indicators	System
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	5 dBi
Technical details
Reset button	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	System
Software
Fast roaming	Yes
Weight & dimensions
Width	171.5 mm
Depth	33 mm
Weight	313 g
Height	171.5 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 40 °C
Logistics data
Quantity per pack	1 pc(s)
Export Control Classification Number (ECCN)	EAR99
