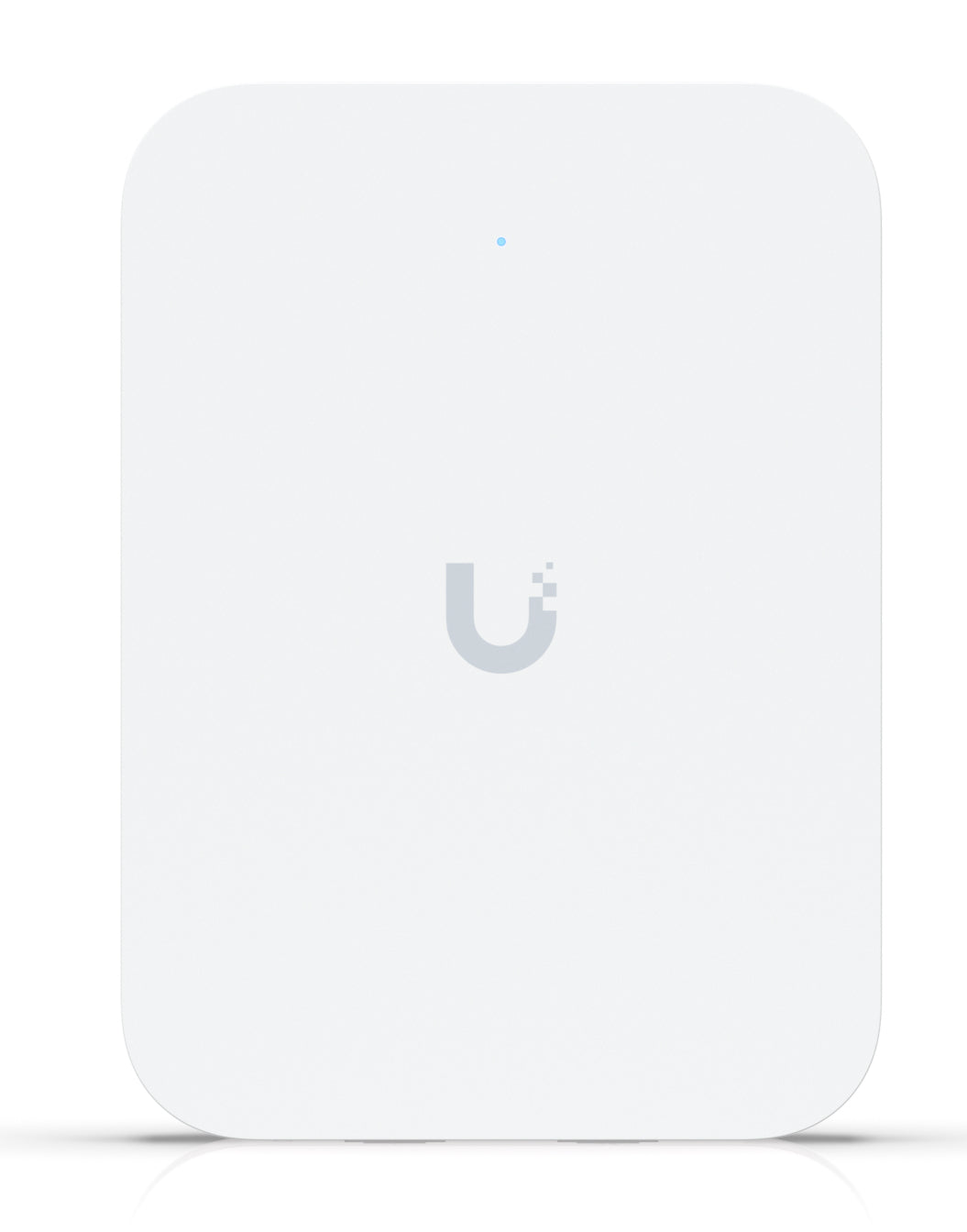

Ubiquiti U7 In-Wall UniFi Access Point PoE

The Ubiquiti U7 In-Wall blankets your space in fast wireless over a single PoE cable — managed from the UniFi platform.

Wall-mounted WiFi 7 AP with 4 spatial streams and an integrated 2.5 GbE PoE switch designed for hospitality environments.

Note. PoE+ input required for single-port PoE output.

Dimensions
137 x 98.7 x 30.2 mm
(5.4 x 3.9 x 1.2")

WiFi Standard
WiFi 7

Spatial Streams
4

Coverage Area
115 m2 (1,250 ft2)

Max. Client Count
200+

Uplink
2.5 GbE

Mounting
Wall
(Metal Wall Mount Included)

Power Method
PoE
PoE+ (Required for PoE output)

MIMO
5 GHz
2 x 2 (DL/UL MU-MIMO)

2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Max. Data Rate
5 GHz
4.3 Gbps (BW240)

2.4 GHz
688 Mbps (BW40)

Antenna Gain
5 GHz
8 dBi

2.4 GHz
4 dBi

Max. TX Power
5 GHz
24 dBm

2.4 GHz
23 dBm

Max. BSSIDs
8 per Radio

Supported Data Rates
802.11be (WiFi 7)
7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11ac (WiFi 5)
6.5 Mbps to 1.7Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
Yes

Band Steering
Yes

802.11v BSS Transition Management
Yes

802.11r Fast Roaming
Yes

802.11k Radio Resource Management (RRM)
Yes

Advanced Radio Management
Yes

Passpoint (Hotspot 2.0)
Yes

Captive Hotspot Portal
Yes

Private Pre-Shared Key (PPSK)
Yes

WiFi Speed Limiting
Yes

Client Device Isolation
Yes

WiFi Schedules
Yes

RADIUS over TLS (RadSec)
Yes

Dynamic RADIUS-assigned VLAN
Yes

Max. Power Consumption
13W (Excluding PoE output)

Supported Voltage Range
42.5—57V DC

Networking Interface
(3) 2.5 GbE RJ45 ports

Weight
400 g (14.1 oz)

Management
Ethernet

Built-In Switch
(1) PoE+ input and
(1) PoE output

Enclosure Material
Polycarbonate, aluminum alloy

Mount Material
Aluminum alloy

LEDs
White/Blue

Certifications
CE, FCC, IC

Specifications

Data transmission
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
VLAN support	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Wireless LAN features
Frequency band	2.4 - 5 GHz
Network
Number of users	200 user(s)
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Management features
VLAN support	Yes
Access point management	Wi-Fi schedule
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
Number of users	200 user(s)
VLAN support	Yes
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v
Ethernet LAN data rates	2500 Mbit/s
Maximum data transfer rate	4300 Mbit/s
Fast roaming	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Band steering	Yes
Maximum data transfer rate (2.4 GHz)	688 Mbit/s
Maximum data transfer rate (5 GHz)	4300 Mbit/s
Fit AP mode features	Hotspot 2.0
Spatial streams	4
Coverage area	115 m²
Wireless meshing	Yes
Maximum Tx power (2.4 GHz)	23 dBmW
Maximum Tx power (5 GHz)	24 dBmW
Security
Security algorithms	PPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports	3
Power
Power consumption (max)	13 W
Power over Ethernet (PoE)	Yes
DC voltage range	42.5 - 57 V
Design
Housing material	Aluminium, Polycarbonate (PC)
Placement	Wall
Product colour	White
Reset button	Yes
LED indicators	Status
Antenna
Antenna type	Internal
Antennas quantity	4
Antenna gain level (max)	8 dBi
Technical details
Reset button	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Certificates
Compliance certificates	CE, Federal Communications Commission (FCC), Industry Canada (IC)
Indication
LED indicators	Status
Software
Fast roaming	Yes
Weight & dimensions
Width	98.7 mm
Depth	30.2 mm
Weight	400 g
Height	137 mm
Packaging data
Mounting kit	Yes
Packaging content
Mounting kit	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 40 °C
Logistics data
Quantity per pack	1 pc(s)
