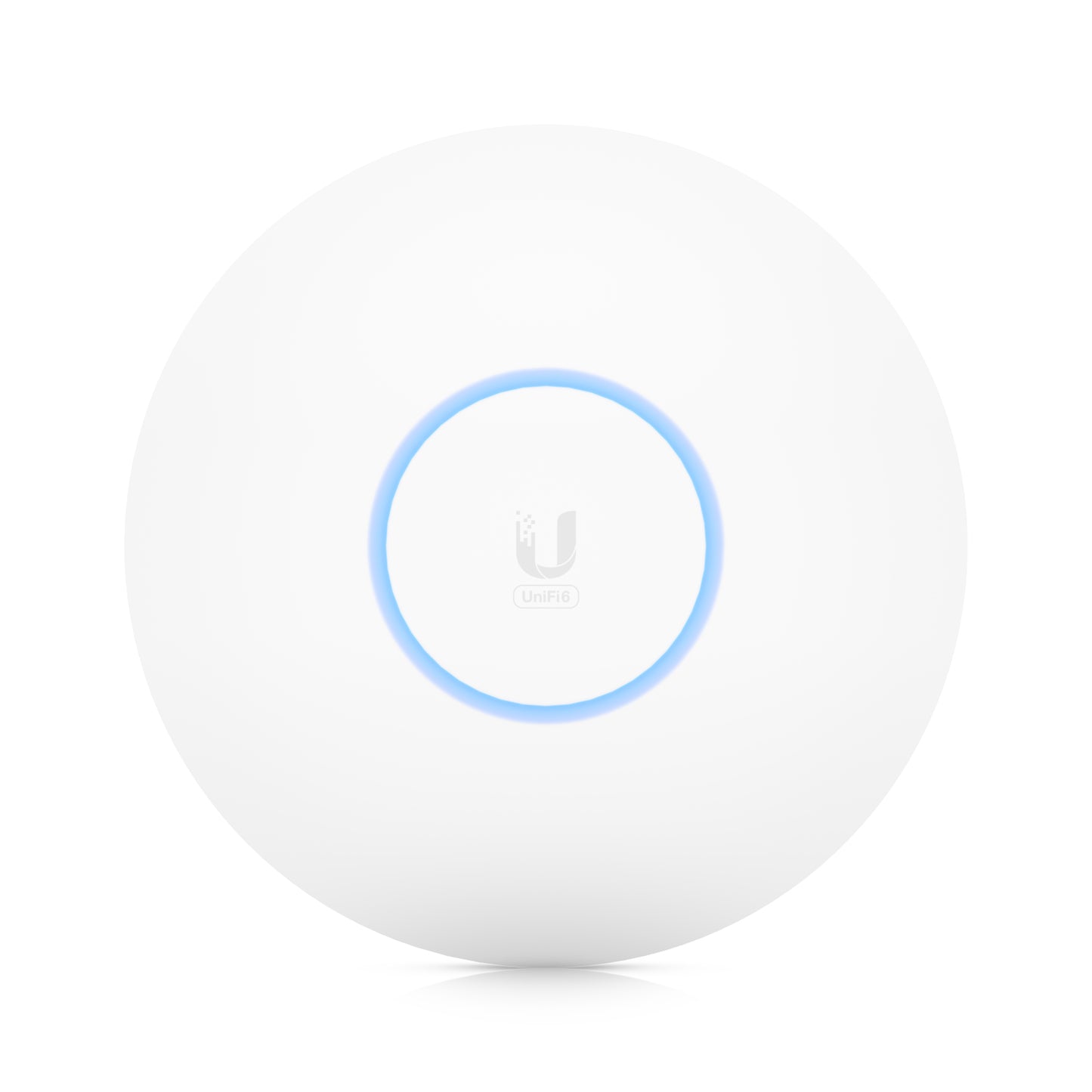

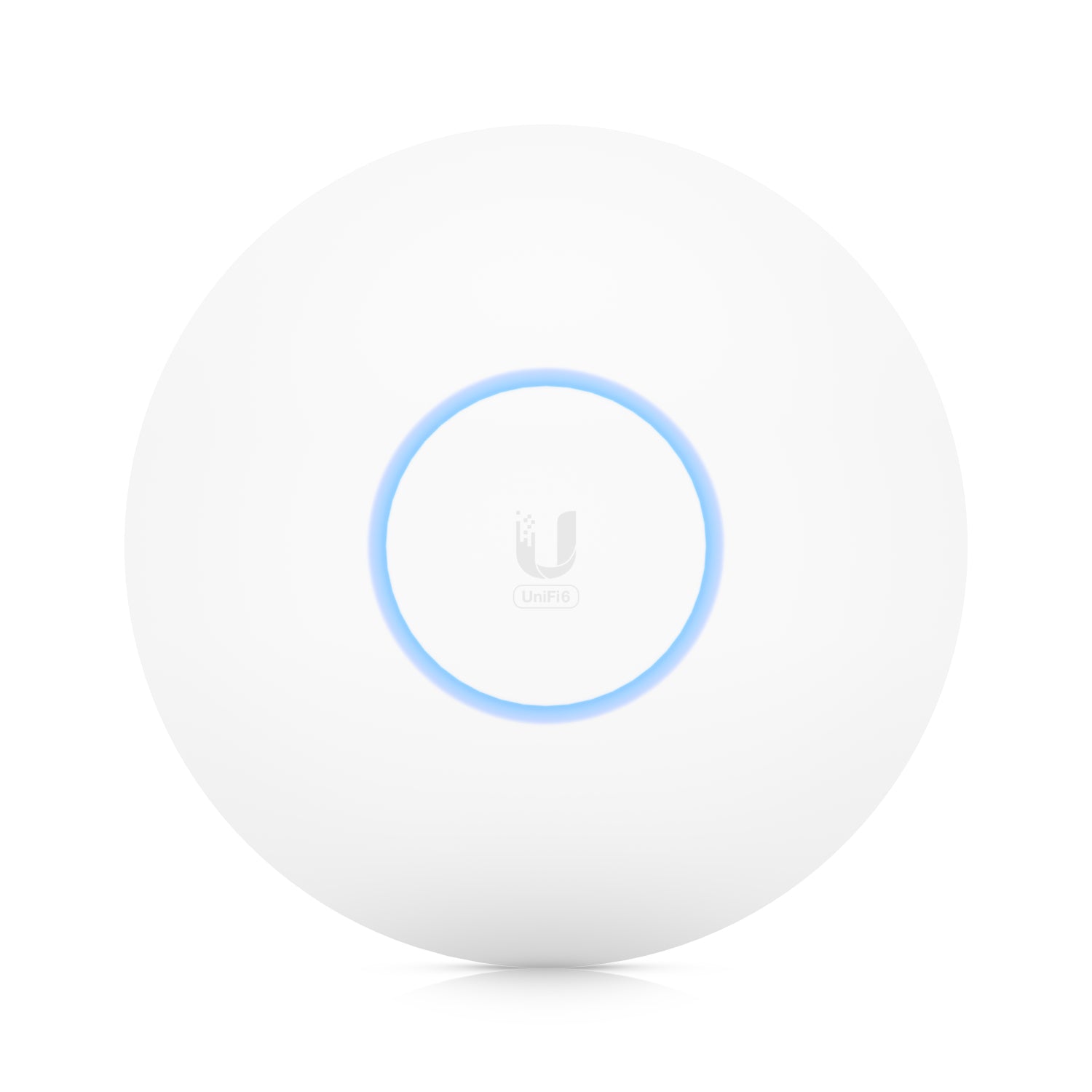

Ubiquiti U6-PRO UniFi Access Point PoE

The Ubiquiti U6-PRO blankets your space in fast wireless over a single PoE cable — managed from the UniFi platform.

Indoor, dual-band WiFi 6 access point that can support over 300 clients with its 5.3 Gbps aggregate throughput rate.

POE Injector not included, requires 48V, 0.5A PoE adapter NPUBI-U-POE-AT


The UniFi6 Pro (U6 Pro) is a high-performance, dual-band WiFi 6 access point ideal for home and office use. The U6 Pro is capable of reaching an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MU-MIMO and OFDMA) bands, which allows it to support over 300 concurrently connected clients while maintaining an even, reliable wireless experience across your entire network. It can also isolate your guest traffic to ensure optimal security and speed. The U6 Pro also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. It can be set up in minutes and fully managed with the UniFi Network application.

Features
Dual-band WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO and OFDMA) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MU-MIMO and OFDMA) band with a 573.5 Mbps throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
300+ concurrent client capacity
Guest Traffic Isolation, which enhances wireless network security and lowers traffic congestion
Included universal mounting plate, backing plate, and screw kit

Specifications

Dimensions
197 x 35 mm

Weight
Without mount: 460 g (1.01 lb)
With mount: 600 g (1.32 lb)

Enclosure Material
Plastic

Mounting Material
SGCC Steel

Weatherproofing
IP54

Management Interfaces
Ethernet
Bluetooth

Networking Interface
(1) GbE RJ45 port

Button
Factory Reset

Power Method
POE+

Power Supply
UniFi PoE switch
48V, 0.5A PoE adapter (not included)

Supported Voltage Range
44 to 57VDC

Max. Power Consumption
13W

Specifications

Data transmission
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	4800 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates	1000 Mbit/s
Certification	CE, FCC, IC
Maximum data transfer rate	4800 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Management features
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Features
2.4 GHz	Yes
5 GHz	Yes
VLAN support	Yes
Rate limiting	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3at
Ethernet LAN data rates	1000 Mbit/s
Maximum data transfer rate	4800 Mbit/s
Bluetooth	Yes
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Maximum data transfer rate (5 GHz)	4800 Mbit/s
Throughput data rate	5300 Mbit/s
Security
Security algorithms	WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Power
Power consumption (typical)	13 W
Power over Ethernet (PoE)	Yes
Design
International Protection (IP) code	IP54
Housing material	Plastic
Placement	Ceiling, Wall
Product colour	White
Reset button	Yes
Certification	CE, FCC, IC
Antenna
Antenna type	Internal
Antenna gain level (max)	6 dBi
Technical details
Reset button	Yes
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, IC
Weight & dimensions
Width	197 mm
Depth	197 mm
Weight	460 g
Height	35 mm
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
Logistics data
Harmonized System (HS) code	85176990
