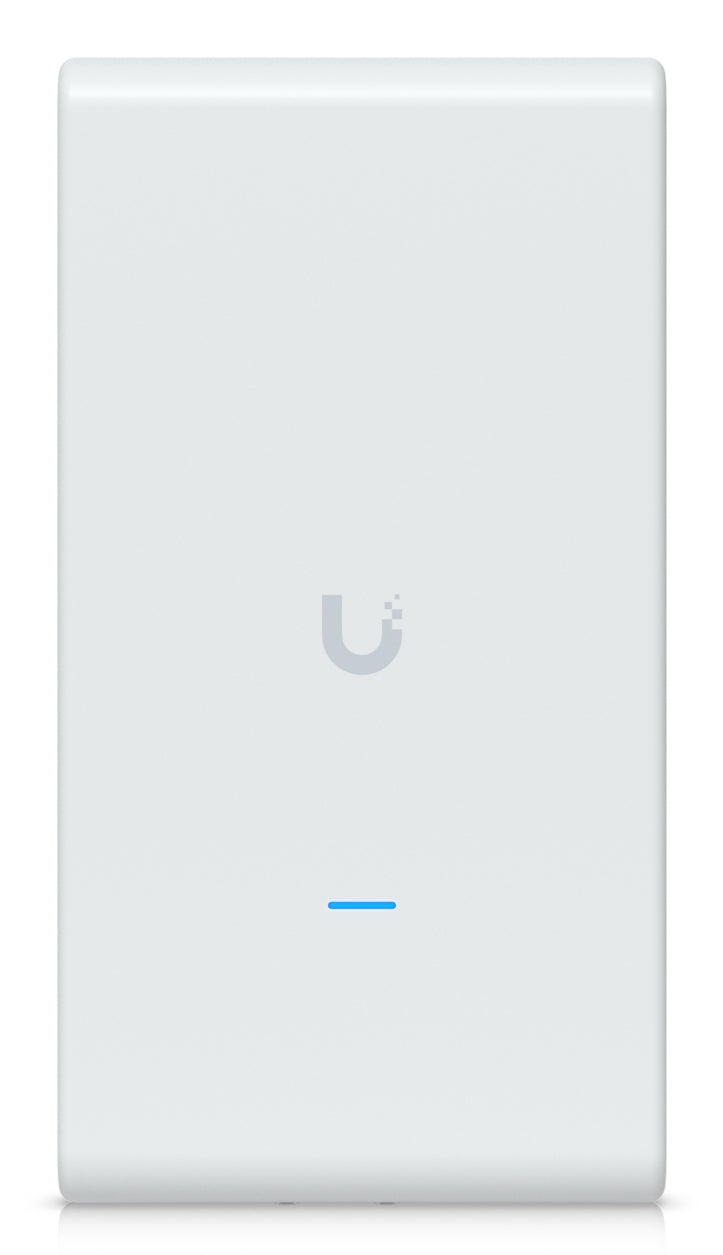

Ubiquiti U6 Mesh Pro UniFi Access Point PoE

The Ubiquiti U6 Mesh Pro blankets your space in fast wireless over a single PoE cable — managed from the UniFi platform.

Indoor/outdoor WiFi 6 AP with 4 spatial streams, an integrated super antenna, and a gigabit passthrough port.

WiFi 6
4 spatial streams
185 m² (2,000 ft²) coverage with the integrated omnidirectional super antenna
350+ connected devices
Powered using PoE
GbE uplink with (1) GbE passthrough port
Versatile wall and pole mounting
Weatherproof (outdoor exposed)

Dimensions
343.2 x 181.2 x 60.2 mm (13.5 x 7.1 x 2.4")

Weight
819 g (1.8 lb)

Enclosure Material
UV-stabilized polycarbonate

Mount Material
Aluminum alloy, steel

Pole Diameter
1~2.5" on pipe outer diameter

Weatherproofing
IPX6

Networking Interface
(2) GbE RJ45 ports

Management Interface
Ethernet
WiFi

Power Method
POE

Power Supply
UniFi PoE switch
48V, 0.5A PoE adapter (Included)

Supported Voltage Range
42.5—57V DC

Max. Power Consumption
9W

Max. TX Power
2.4GHz : 22 dBm
5GHz : 27 dBm

MIMO
2.4GHz : 2 x 2 (DL/UL MU MIMO)
5GHz : 2 x 2 (DL/UL MU MIMO)

Max. Data Rate
2.4GHz : 573.5 Mbps (BW40)
5GHz : 2.4 Gbps (BW160)

Antenna Gain
2.4GHz : 8 dBi
5GHz : 8 dBi

LEDs
White/Blue

Button
Factory Reset

Mounting
Wall, pole (Included)

WiFi Standards
802.11a/b/g/n/ac/ax (WiFi 6)

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)

BSSID
8 Per Radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
350+

Specifications

Data transmission
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	2400 Mbit/s
Performance
2.4 GHz	Yes
5 GHz	Yes
Reset button	Yes
Frequency band	2.4 - 5 GHz
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	2400 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Wireless LAN features
Frequency band	2.4 - 5 GHz
Network
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Management features
VLAN support	Yes
Quality of Service (QoS) support	Yes
Features
6 GHz	No
2.4 GHz	Yes
5 GHz	Yes
Frequency band	2.4 - 5 GHz
VLAN support	Yes
Quality of Service (QoS) support	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q
Ethernet LAN data rates	10,100,1000 Mbit/s
Maximum data transfer rate	2400 Mbit/s
MIMO type	Multi User MIMO
MIMO	Yes
Maximum data transfer rate (2.4 GHz)	573.5 Mbit/s
Maximum data transfer rate (5 GHz)	2400 Mbit/s
Security
Security algorithms	WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
Ethernet LAN (RJ-45) ports	2
Power
Power consumption (max)	9 W
Power over Ethernet (PoE)	Yes
DC voltage range	42.5 - 57 V
Design
International Protection (IP) code	IPX6
Housing material	Polycarbonate (PC)
Placement	Pole, Wall
Product colour	White
Reset button	Yes
LED indicators	Yes
Recommended usage	Indoor/outdoor
Antenna
Antenna type	Internal
Antenna gain level (max)	8 dBi
Antenna direction type	Omni-directional
Technical details
Reset button	Yes
Sustainability compliance	Yes
Indication
LED indicators	Yes
Weight & dimensions
Width	181.2 mm
Depth	60.2 mm
Weight	819 g
Height	343.2 mm
Packaging data
Quick start guide	Yes
Mounting kit	Yes
PoE adapter included	Yes
AC adapter included	Yes
Packaging content
Quick start guide	Yes
Mounting kit	Yes
PoE adapter included	Yes
AC adapter included	Yes
Quantity per pack	1 pc(s)
Operational conditions
Operating relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	-30 - 60 °C
Sustainability
Sustainability compliance	Yes
Logistics data
Quantity per pack	1 pc(s)
