Ubiquiti
Ubiquiti PBE-M5-400 Range Extender
Ubiquiti PBE-M5-400 Range Extender
Regular price
£111.01 GBP
Regular price
Sale price
£111.01 GBP
Taxes included.
SKU:PBE-M5-400
Quantity
Couldn't load pickup availability
with simple central management.

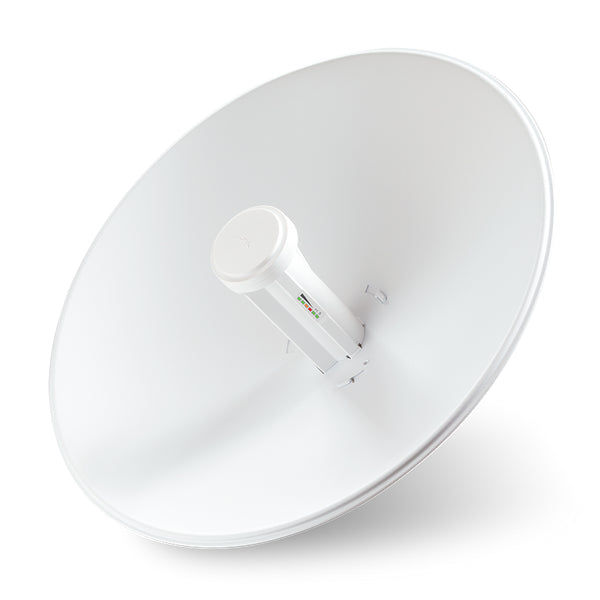

High-Performance airMAX BridgeIncorporating a dish reflector design with advanced technology, the PowerBeam is the latest generation of Ubiquiti airMAX® CPE for customer locations.
Integrated Radio Design
Ubiquiti’s InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
Plug and Play Installation
The PowerBeam™ requires no tools for assembly; only a single wrench is required for pole-mounting.
Incredible Antenna “Beam” Performance
The form factor of the PowerBeam features the highest gain for its size. The PowerBeam’s excellent beam directivity provides the best performance in high-noise environments.
Advanced Software Technology
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Protective Radome
The PBE-RAD-400 is a protective radome that shields the radio from the elements; it is available as an optional accessory for the PowerBeam PBE-M2-400 and PBE-M5-400.
Frequency
5 GHz
Throughput
150+ Mbps
Range
25+ km
Specifications
| Data transmission | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Antenna | |
| Antenna gain level (max) | 25 dBi |
| Wireless LAN features | |
| Frequency band | 5 GHz |
| Antenna gain level (max) | 25 dBi |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Frequency band | 5 GHz |
| Ports & interfaces | |
| Ethernet LAN | Yes |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Features | |
| Product type | Network bridge |
| Material | Plastic |
| Product colour | White |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| RAM type | DDR2 |
| Processor frequency | 560 MHz |
| LED indicators | LAN, Power, WLAN |
| Internal memory | 64 MB |
| Mounting type | Pole |
| Power | |
| Power source type | PoE |
| Power consumption (24V) | 500 mA |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 8 W |
| Power over Ethernet (PoE) voltage | 24 V |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Management features | |
| LED indicators | LAN, Power, WLAN |
| Certificates | |
| Certification | FCC, IC, CE, RoHS |
| Technical details | |
| Material | Plastic |
| Product colour | White |
| Internal memory | 64 MB |
| Harmonized System (HS) code | 85176990 |
| Weight & dimensions | |
| Weight | 1.75 kg |
| Depth | 275 mm |
| Antenna diameter | 42 cm |
| Processor | |
| Processor family | Atheros |
| Processor model | MIPS 74Kc |
| Processor frequency | 560 MHz |
| Memory | |
| Flash memory | 8 MB |
| RAM type | DDR2 |
| Packaging content | |
| Mounting bracket(s) included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
