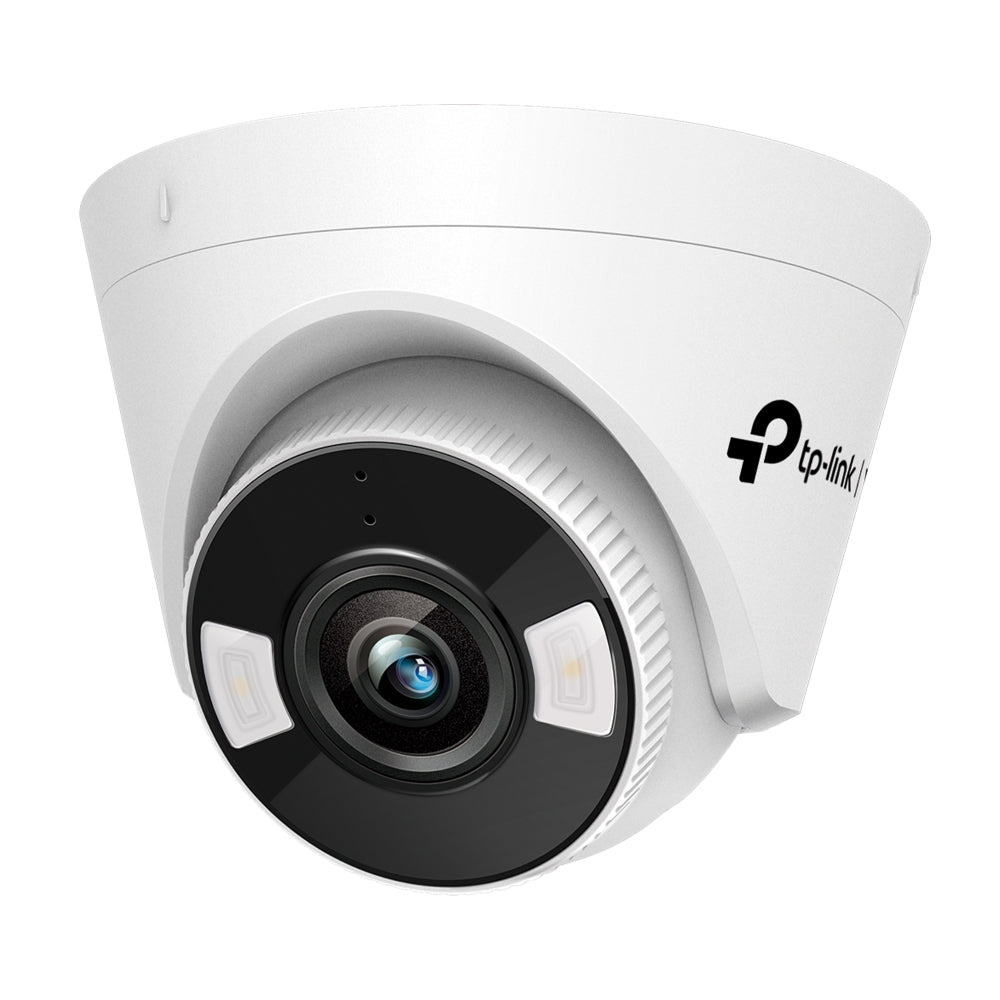

TP-Link VIGI C440(4mm) Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

All The Colors, All The Time

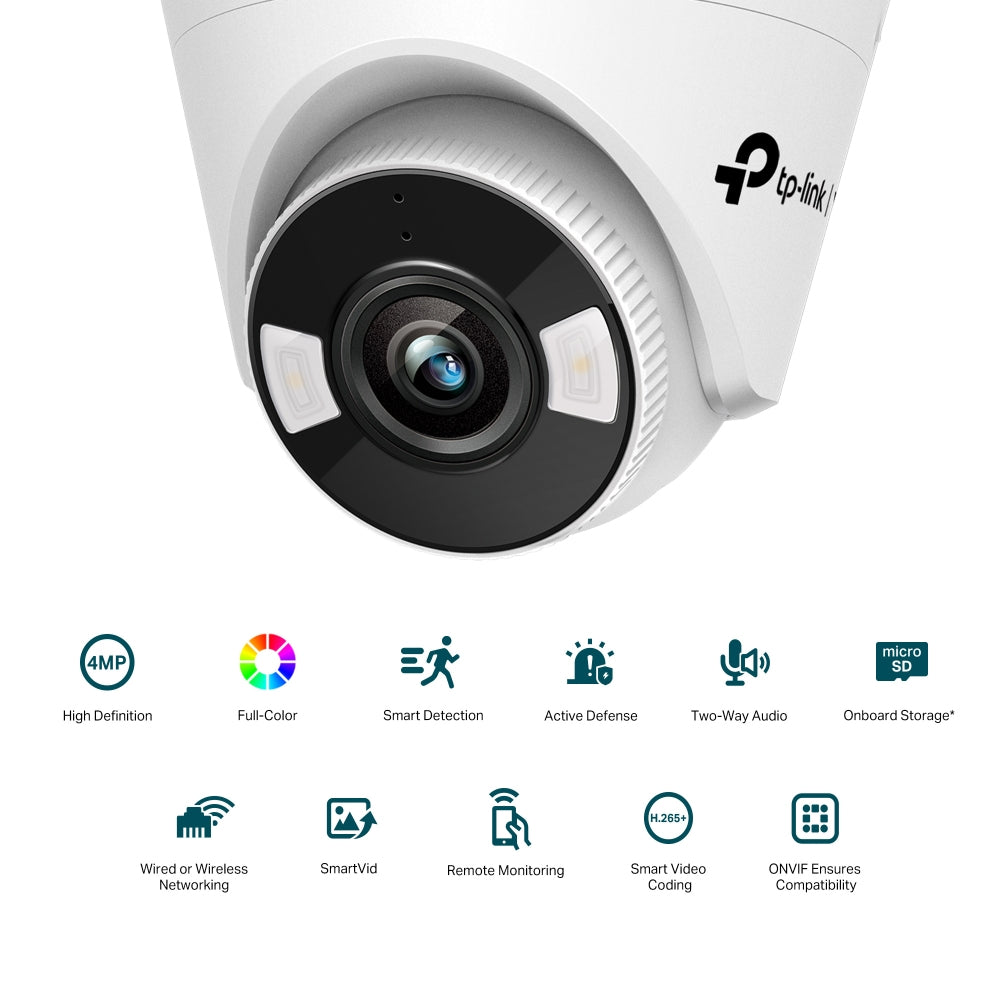

4MP Full-Color Turret Network Camera

Plug & Play with
One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Motion Detection
Get instant notifications when your camera detects motion.

Area Intrusion
Set customized activity zones around key areas for more focused monitoring.

Line-Crossing
Set a boundary and receive an alert anytime a person crosses it from either or both directions.

Camera Tampering
Receive alerts when someone obstructs the camera.

Active Defense
Warn and expel potential intruders instantly with sound and light alarms when abnormal events are detected.

Every Event is Under Your Control.
VIGI cameras intelligently detect activities, inform you instantly and respond automatically by smart detection and two-way audio.

Never miss a detail.
SmartVid-Smart Video Enhancement

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage

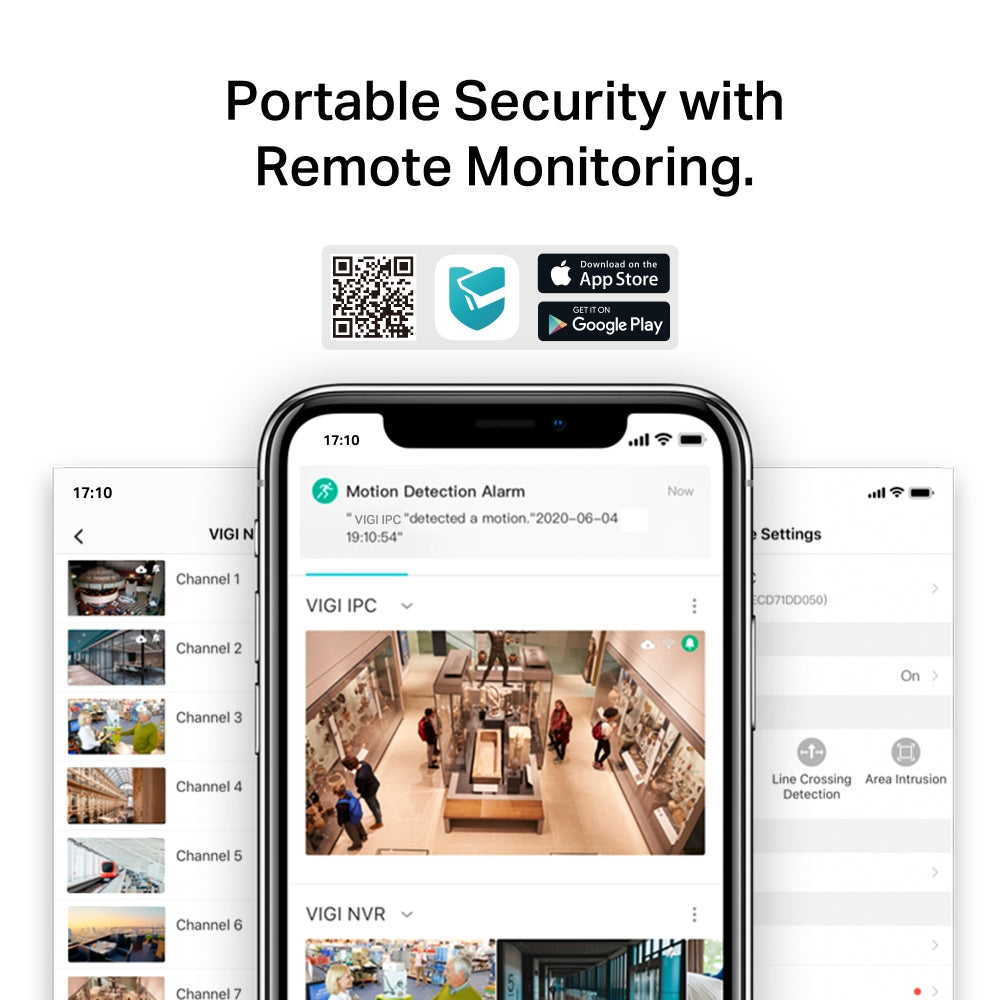

Take full control over your security via three management methods, VIGI NVR, App, and Security Manager. Local storage is available for each method, as well as onboard storage with an SD card slot.

Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Performance
Infrared (IR) cut-off filter	Yes
Type	IP security camera
Connectivity technology	Wired
Placement supported	Indoor & outdoor
Day/night mode	Yes
Certification	RCM, BSMI, VCCI
Design
Form factor	Turret
Product colour	White
Mounting type	Ceiling
Housing material	Plastic
Camera
Minimum illumination	0 lx
Tilt angle range	0 - 85°
Pan range	0 - 360°
Angle of rotation	360°
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	79°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	93°
Progressive scan	Yes
Image sensor
Sensor type	CMOS
Progressive scan	Yes
Optical sensor size	25.4 / 3 mm (1 / 3")
Lens system
Number of lenses	1
Maximum aperture number	1.6
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Identify distance	8 m
Focal length range	4 mm
Night vision
Night vision	Yes
Night vision distance	30 m
LED type	IR
Infra-red wavelength	850 nm
Video
Noise reduction	Yes
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Bit rate	64 Kbps - 4 Mbps
Back Light Compensation (BLC)	Yes
Noise reduction technology	3D noise reduction
Video compression formats	H.264, H.264+, H.265, H.265+
Maximum resolution	2560 x 1440 pixels
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Total megapixels	4 MP
Audio
Built-in speaker(s)	Yes
Built-in microphone	Yes
Audio system	2-way
Network
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.3af, IEEE 802.3at
Number of users	21 user(s)
Streaming method	Multicast
Ethernet LAN	Yes
Wi-Fi	No
Supported network protocols	ONVIF, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Storage
Card reader integrated	Yes
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash)
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Connectivity technology	Wired
Security
Intelligent Video Surveillance (IVS) system features	Crossing line, Human detection, Intrusion
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Active tampering alarm	Yes
Password protection	Yes
Mirror	Yes
Password reset via email	Yes
Digest authentication	Yes
Management features
Reset button	Yes
Power
Power source type	DC, PoE
Power consumption (max)	5.5 W
DC-in jack	Yes
DC output voltage	12
Certificates
Certification	RCM, BSMI, VCCI
Operational conditions
Operating temperature (T-T)	-30 - 60 °C
Weight & dimensions
Height	84 mm
Diameter	12.3 cm
Package width	163 mm
Package height	116 mm
Package depth	163 mm
Package weight	400 g
Packaging data
Package width	163 mm
Package height	116 mm
Package depth	163 mm
Package weight	400 g
Sustainability
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Packaging content
Number of cameras	1
Screws included	Yes
Manual	Yes
Anchors included	Yes
Mounting template	Yes
Technical details
Sustainability compliance	Yes
Compliance certificates	CE, RoHS
Other features
Video compression formats	H.264, H.264+, H.265, H.265+
