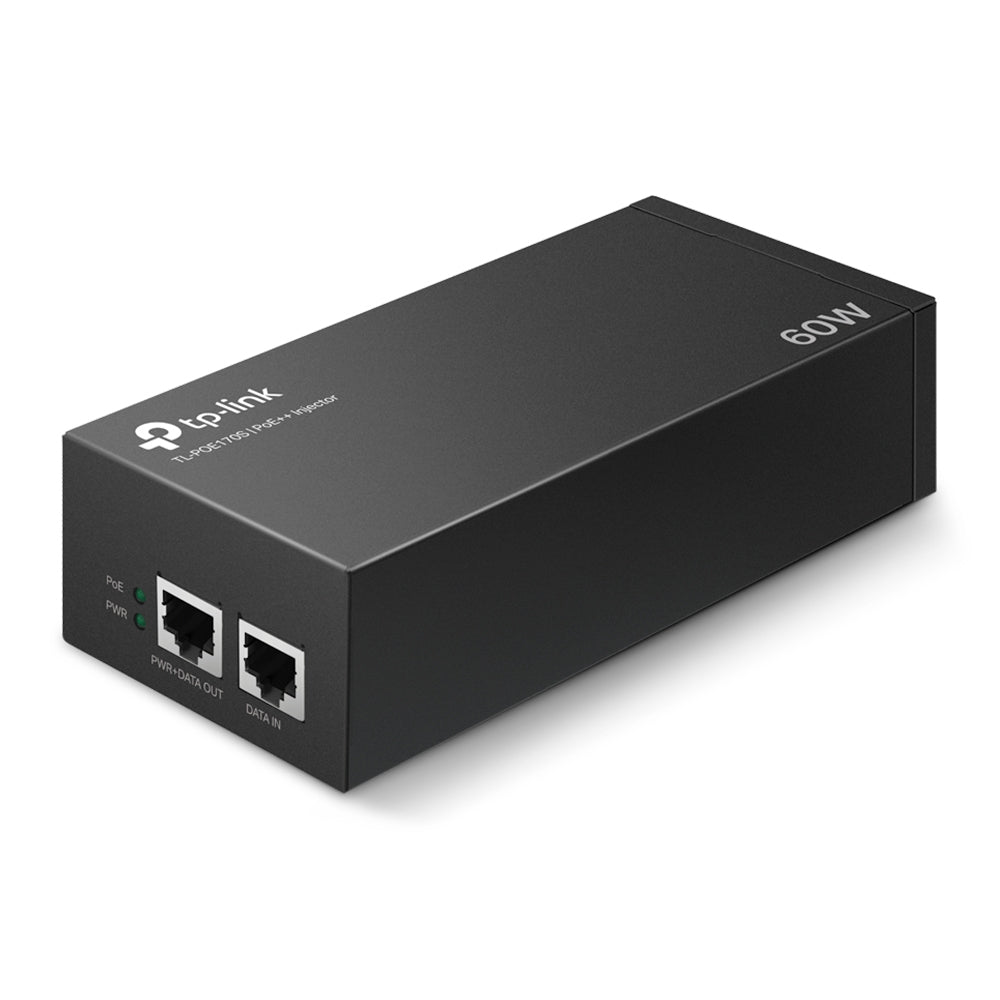

TP-Link Omada PoE++ Injector Adapter

What This Product Does

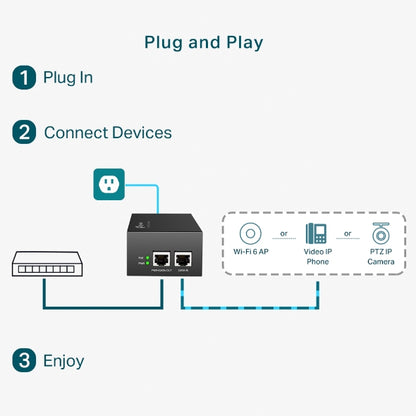

The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power lines or outlets, where you wish to fix devices such as PTZ IP Cameras, LED, etc.

Network
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000
Cable types supported	Cat3, Cat4, Cat5, Cat5e, Cat6
Features
Wall mountable	Yes
Plug and Play	Yes
Product colour	Black
Housing material	Metal
Networking standards	IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u
Package type	Box
Certification	FCC, CE, RoHS
Ports & interfaces
RJ-45 input ports	1
RJ-45 output ports	1
Power
Output power	60 W
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Certificates
Certification	FCC, CE, RoHS
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 90%

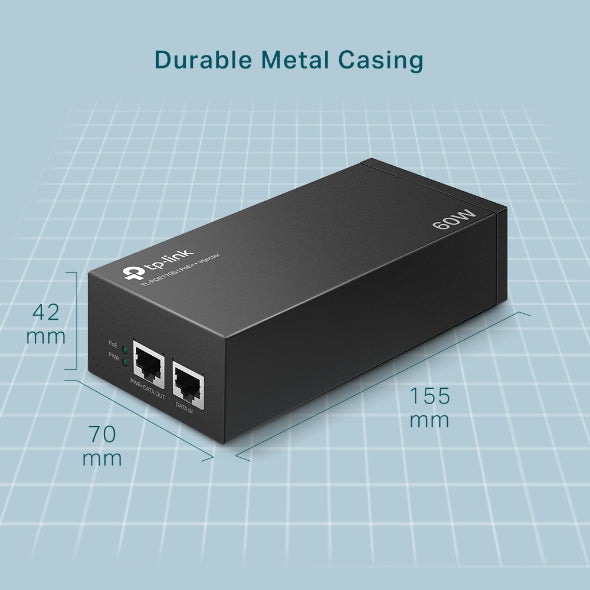

Weight & dimensions
Width	155 mm
Depth	70 mm
Height	42 mm
Package weight	920 g
Package depth	250 mm
Package width	190 mm
Package height	95 mm
Packaging content
Quick installation guide	Yes
Number of products included	1 pc(s)
Package type	Box
Packaging data
Package weight	920 g
Package type	Box
Package depth	250 mm
Package width	190 mm
Package height	95 mm
Technical details
Number of products included	1 pc(s)
Package width	190 mm
Package height	95 mm
Power over Ethernet (PoE)	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Harmonized System (HS) code	85044095
Logistics data
Harmonized System (HS) code	85044095
