StarTech.com Wall Mount Workstation, VESA Mount For 32" Monitor (22lb/10kg), Fully Articulating Monitor Mount & Keyboard Tray - TAA

Mount workstation components to a wall, using this fully adjustable mounting system

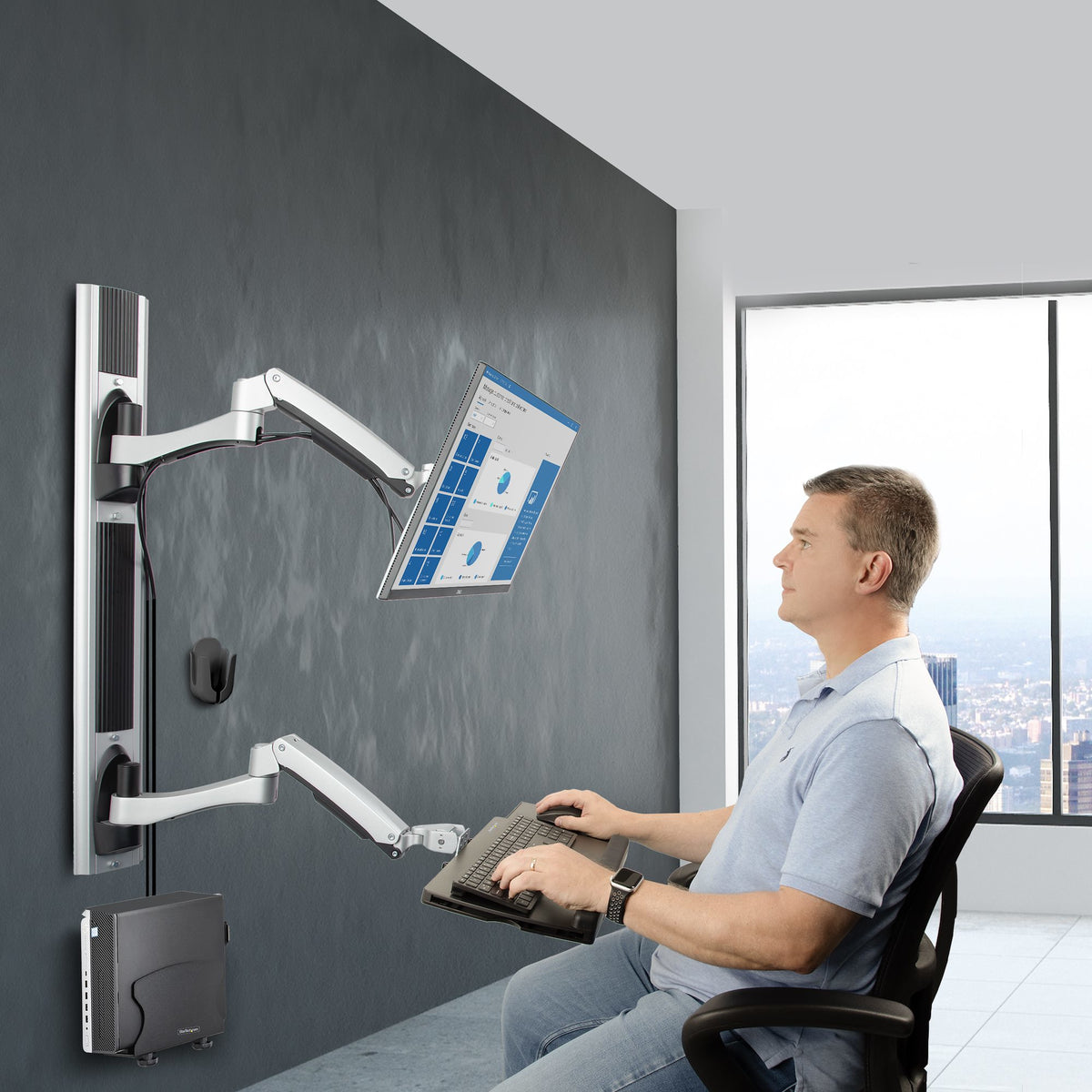

Mount this Wall Mount Workstation to create an ergonomic sit-stand desk setup for areas with limited space for a traditional desk. Use in offices, warehouses, (animal) clinics, or other limited space locations. The spring-assisted arms allow height adjustment to suit different users and maximize ergonomic positioning.

Height Adjustment with One Smooth Motion

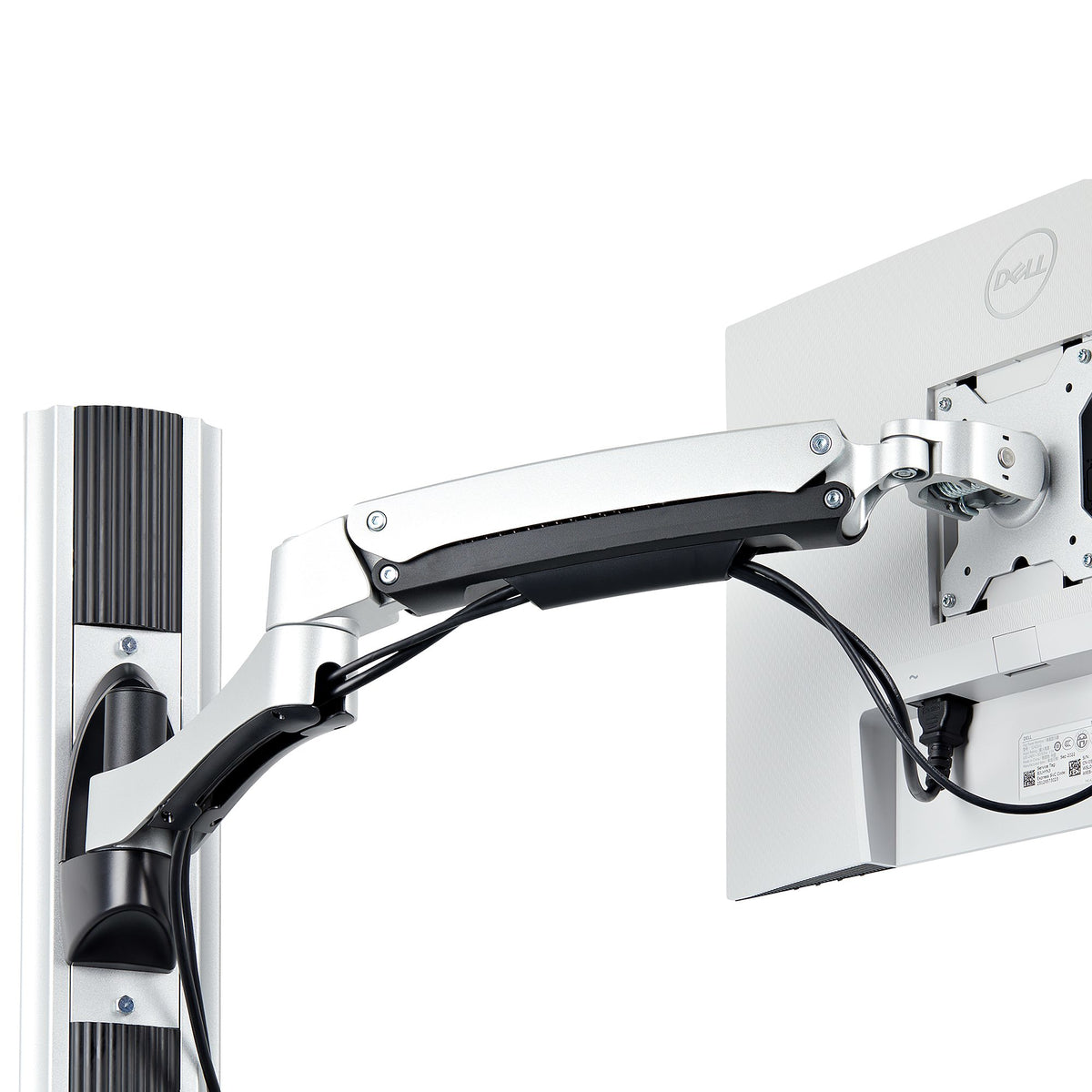

The mechanical springs in the monitor and keyboard arms enable independent toolless height adjustment of up to 12.4in (31.5cm) with effortless one-touch motion. For additional adjustments, reposition the arms along the wall track (2.8ft / 88cm) for a different height range.

Optimal Adjustability

The VESA monitor mount supports a single standard 27" or 32" ultrawide monitor weighing up to 22lb (10kg) with 75x75 or 100x100 VESA mounting patterns. The monitor mount tilts +90°/ -20°; +/-90° swivels, and rotates up to 360° to accommodate vertical and horizontal monitor orientations.

The monitor arm extends 24.1in (61.3cm) from the wall, while the keyboard tray extends 33.5in (85.3cm) away from the wall.

Keyboard and Mouse Trays

The workstation features a large keyboard tray (17.6x8.1in / 44.9x20.7cm) and a retractable ambidextrous mouse tray (8.5x8.4in / 21.7x21.3cm) that slides in and out of the keyboard tray to suit right and left-handed users. The mouse tray and wrist rest are removable enabling for frequent cleaning of all high-touch surfaces making it ideal for a shared workstation.

Free up additional floor space when the workstation is not in use by folding the workstation flush with the wall. Use the hook-and-loop strips to secure the keyboard to its tray and store the mouse in the dedicated holder.

Desktop Computer Wall Mount

Optimize the workspace by mounting the desktop computer case to the wall under the keyboard tray with the included bracket (part 2NS-CPU-WALL-MOUNT). Enjoy unobstructed access to drive bays, peripheral ports, and wiring with the open design of the PC holder.

Included spacers ensure a snug fit with different CPU tower sizes ranging from 1.9 to 7.8in (50 to 20cm) for most Small Form Factor (SFF) computers.

For a neat and organized setup consider a wall cable management solution, part CBMWD3816 (sold separately).

Features
Number of displays supported	1
Mounting type	Wall
Maximum weight capacity	10 kg
Product colour	Black
Maximum weight per keyboard tray	3.5 kg
Frame material	Aluminium, Steel
Maximum screen size	81.3 cm (32")
Minimum screen size	68.6 cm (27")
Panel mounting interface	75 x 75,100 x 100 mm
Tilt angle range	-20 - 90°
Swivel arm	Yes
Swivel angle	90°
Screen rotation	Yes
Angle of rotation	360°
Adjustable height (max)	88 cm
Wall mountable	Yes
Cable management	Yes
Tilt adjustment	Yes
Technical details
Mounting type	Wall
Distance to the wall (min)	9.7 cm
Distance to the wall (max)	61.3 cm
Number of displays supported	1
Maximum weight capacity	10 kg
Product colour	Black
Ergonomics
Distance to the wall (min)	9.7 cm
Distance to the wall (max)	61.3 cm
Tilt angle range	-20 - 90°
Swivel arm	Yes
Swivel angle	90°
Screen rotation	Yes
Angle of rotation	360°
Adjustable height (max)	88 cm
Tilt adjustment	Yes
Weight & dimensions
Width	880 mm
Weight	10.5 kg
Height	156 mm
Depth	548 mm
Packaging data
Package width	965 mm
Package weight	15.2 kg
Package height	163 mm
Package depth	508 mm
Spacer included	Yes
Screws included	Yes

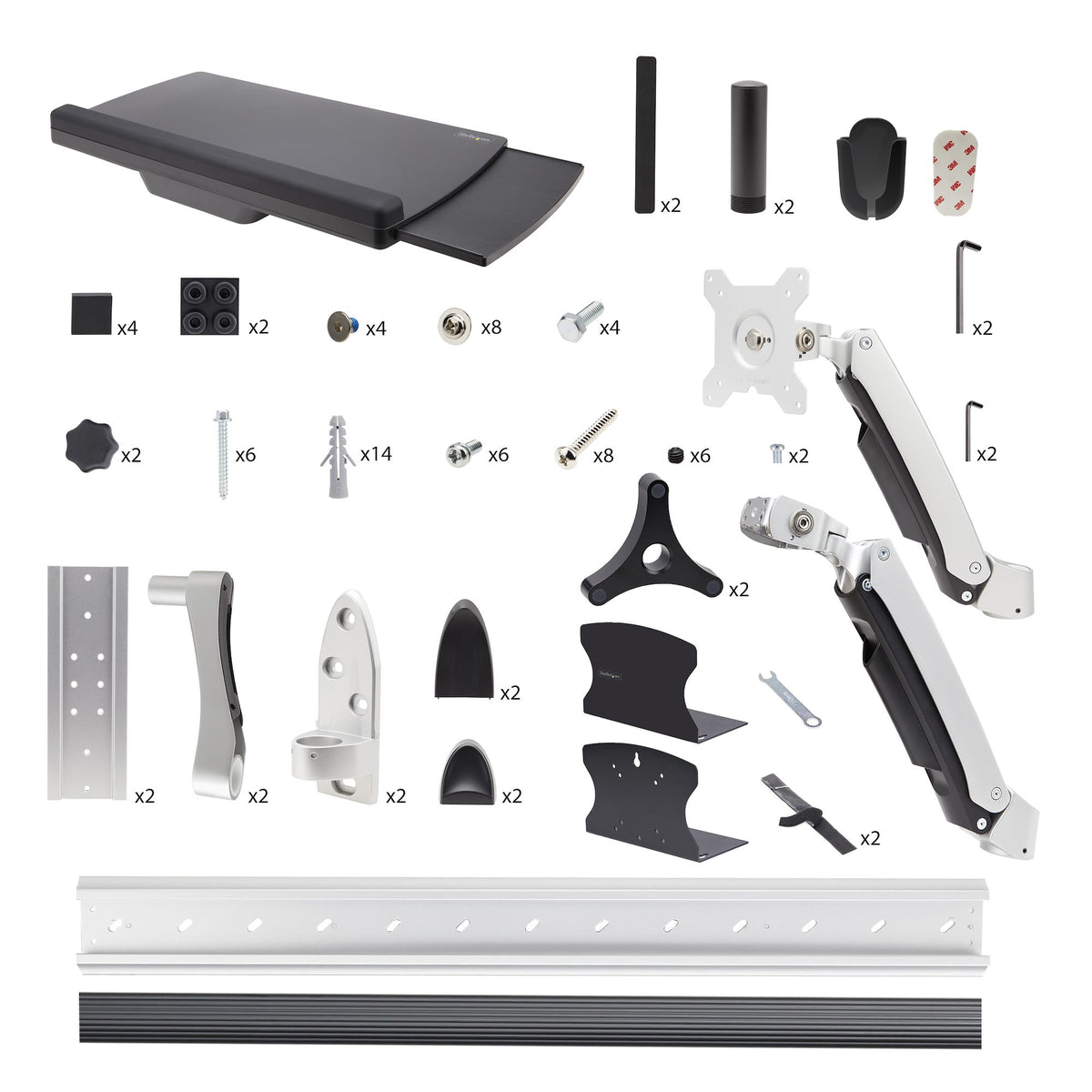

Packaging content
Spacer included	Yes
Screws included	Yes
Number of screws	44
Number of anchors included	14
Number of base pads	4 pc(s)
Logistics data
Products per master (outer) case	1 pc(s)
Master (outer) case width	965 mm
Master (outer) case length	510 mm
Master (outer) case height	163 mm
