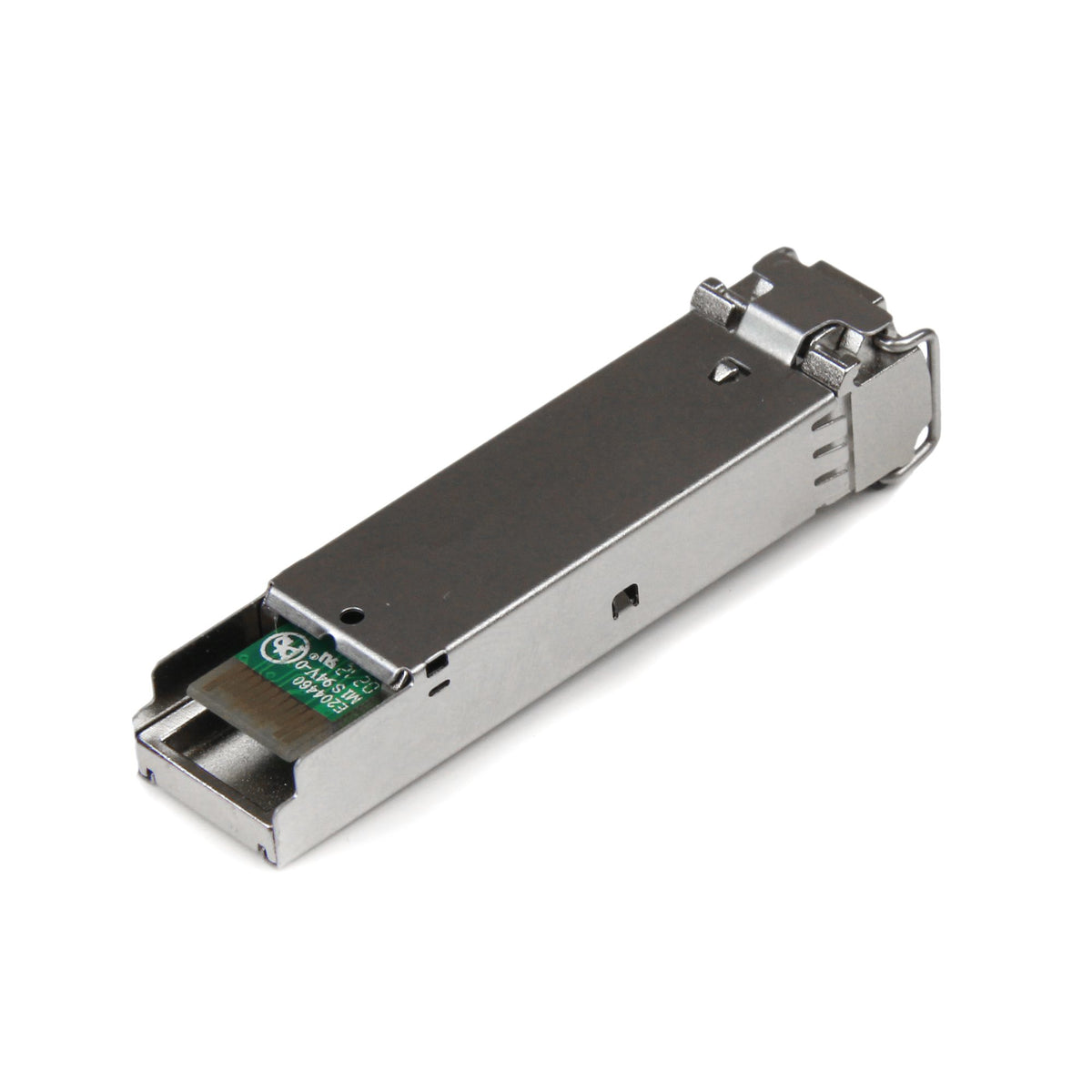

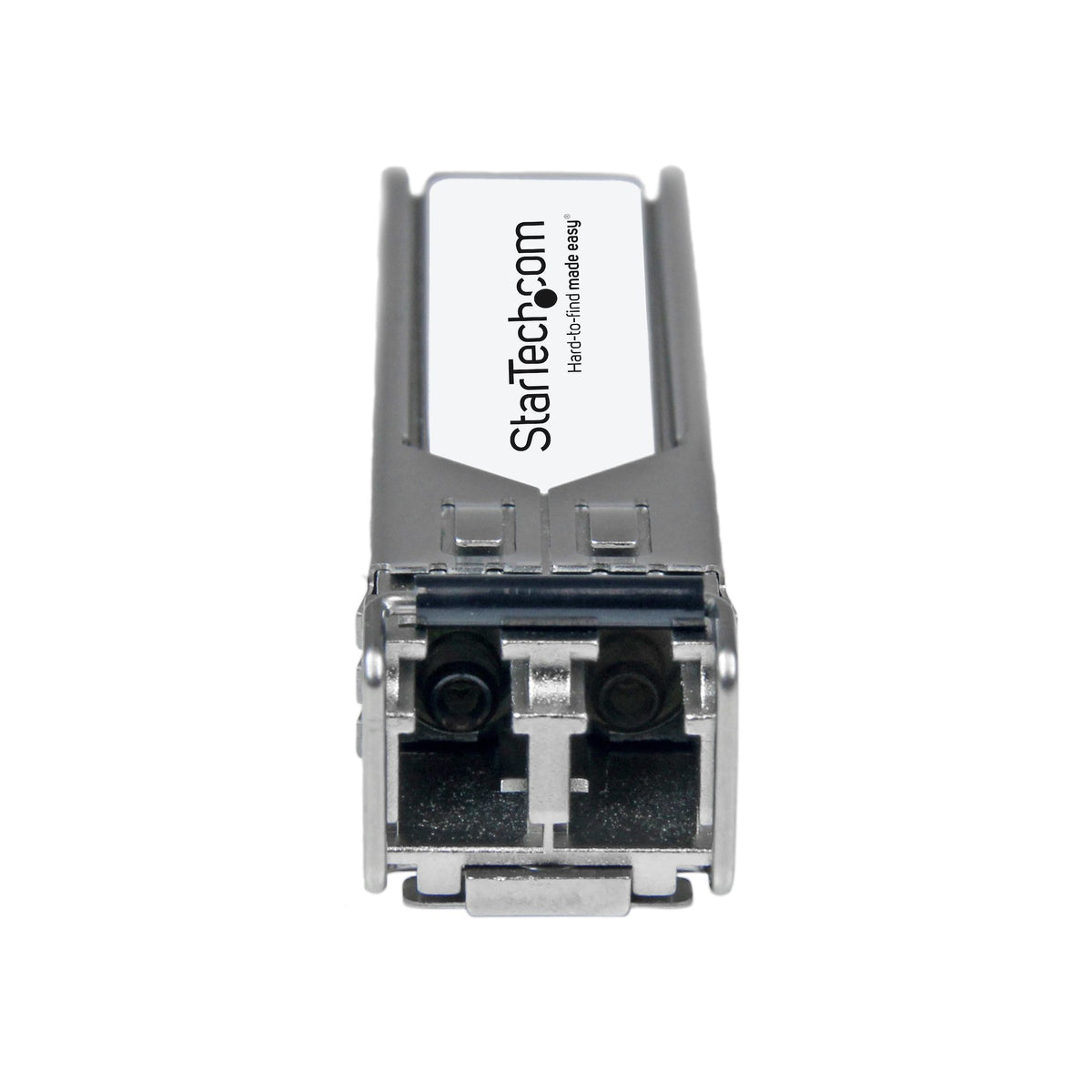

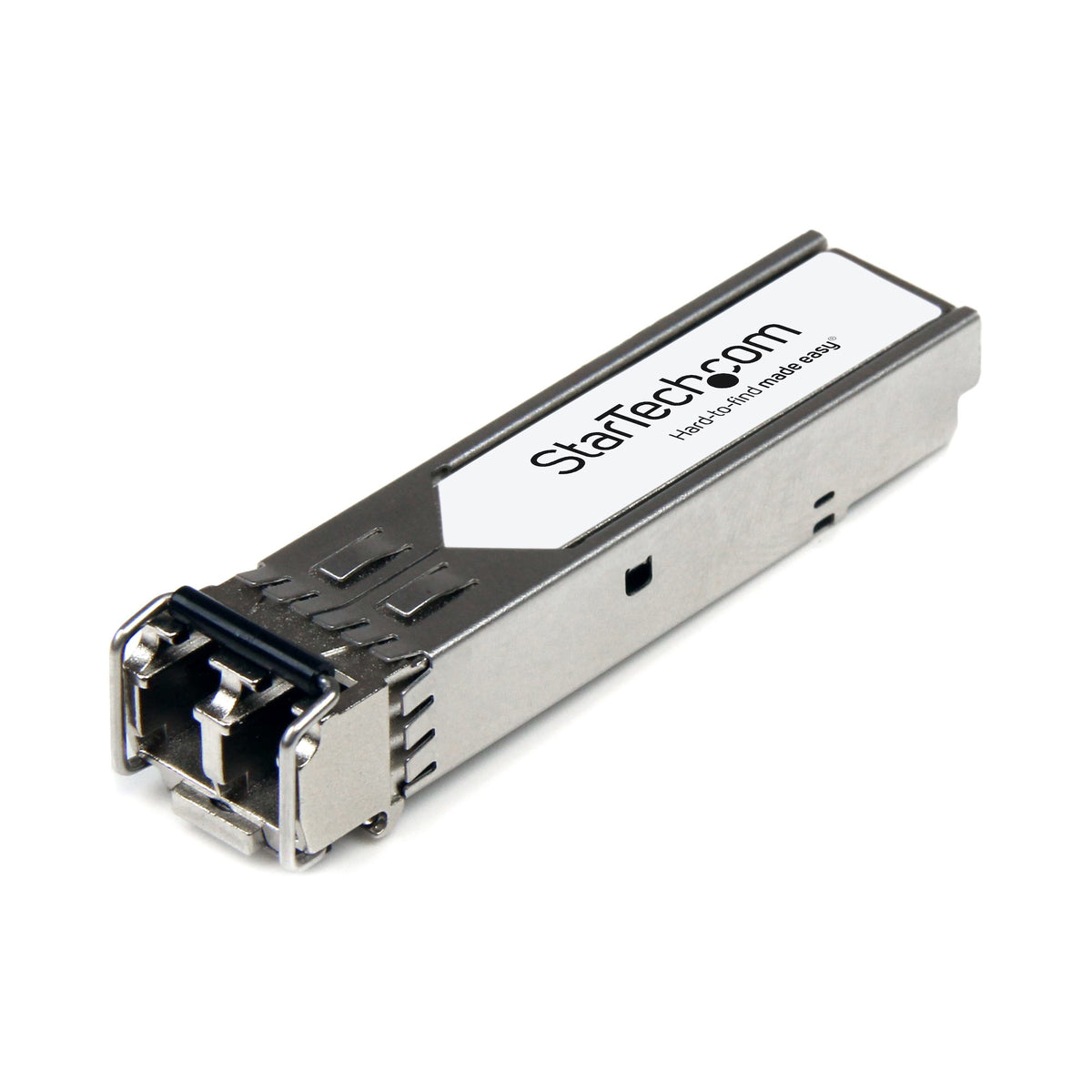

StarTech.com HPE JD092B Compatible SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM HPE 5120, 5500, 5810

10 Gbps | Multi Mode Fiber | LC | 300 m (984 ft) | Lifetime Warranty

The JD092B-ST is a HPE JD092B compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Multi Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 145,858,878 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance
SFP transceiver type	Fiber optic
Digital Diagnostics Monitoring (DDM)	Yes
Fiber optic connector	LC
Maximum transfer distance	200 m
Wavelength	1310 nm
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
SFP transceiver standard	SR
Fiber ethernet cabling technology	10GBASE
Product colour	Silver
Hot-swap	Yes
Compatible products	HPE: A5830AF; HPE 12504, 5120, 5500, 5810, 5900AF, 5920AF; HP A10500, 6127XLG, 6125XLG; FlexFabric 1.92, 11908, 12902
Mean time between failures (MTBF)	145858878 h
Brand compatibility	Any brand
Harmonized System (HS) code	85369010
Features
Product colour	Silver
Hot-swap	Yes
Compatible products	HPE: A5830AF; HPE 12504, 5120, 5500, 5810, 5900AF, 5920AF; HP A10500, 6127XLG, 6125XLG; FlexFabric 1.92, 11908, 12902
Mean time between failures (MTBF)	145858878 h
Brand compatibility	Any brand
Power
Power consumption (typical)	1.3 W
Certificates
Compliance certificates	CE, RoHS
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	58.4 mm
Depth	14 mm
Height	13.7 mm
Weight	20 g
Package depth	114 mm
Package width	91 mm
Package height	33 mm
Package weight	50 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	91 mm
Package height	33 mm
Hot-swap	Yes
Maximum transfer distance	200 m
Wavelength	1310 nm
Compatible products	HPE: A5830AF; HPE 12504, 5120, 5500, 5810, 5900AF, 5920AF; HP A10500, 6127XLG, 6125XLG; FlexFabric 1.92, 11908, 12902
Compliance certificates	CE, RoHS
Packaging data
Package depth	114 mm
Package width	91 mm
Package height	33 mm
Package weight	50 g
Logistics data
Quantity per pack	1 pc(s)
Master (outer) case width	91 mm
Master (outer) case length	115 mm
Master (outer) case height	33 mm
Products per master (outer) case	1 pc(s)
Harmonized System (HS) code	85369010
