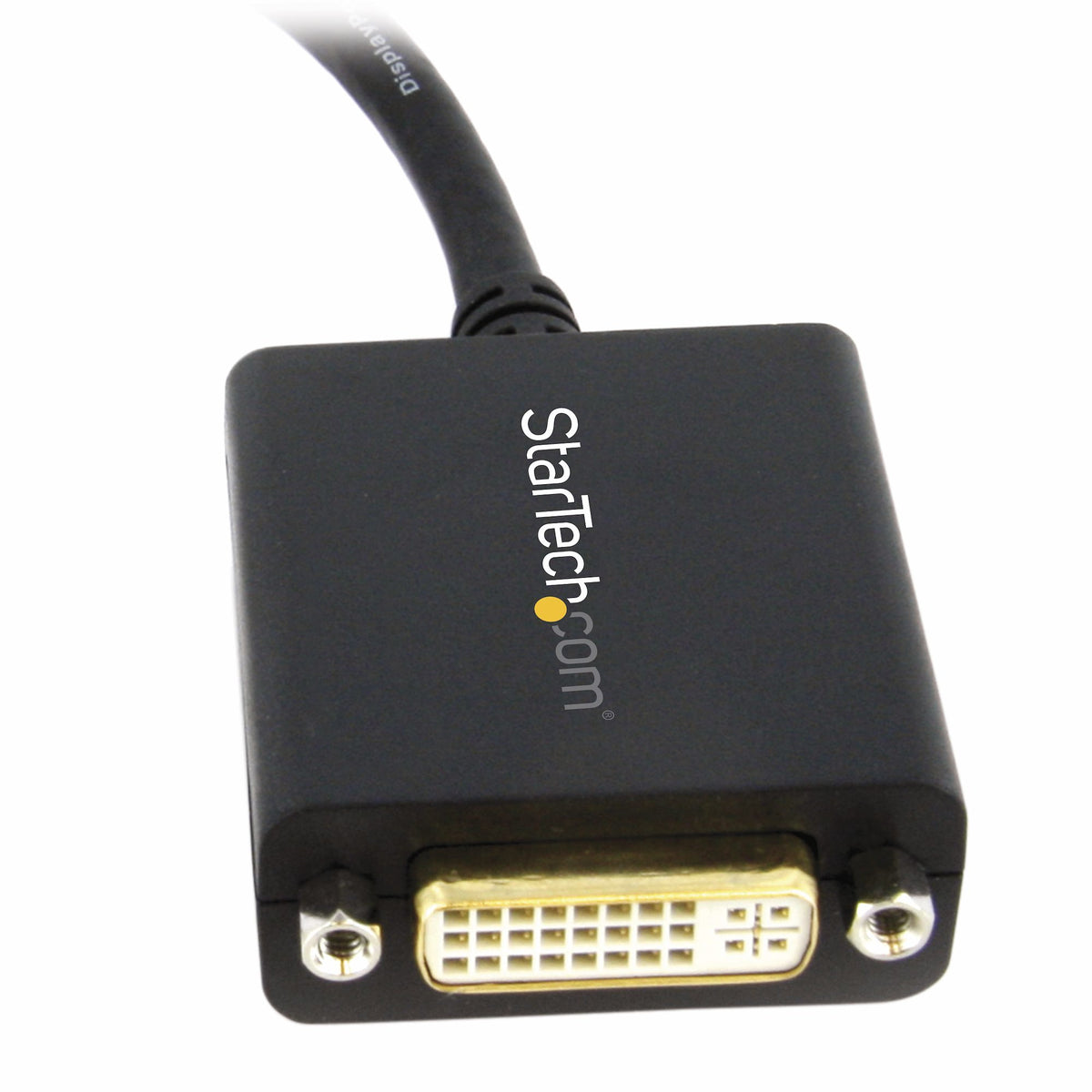

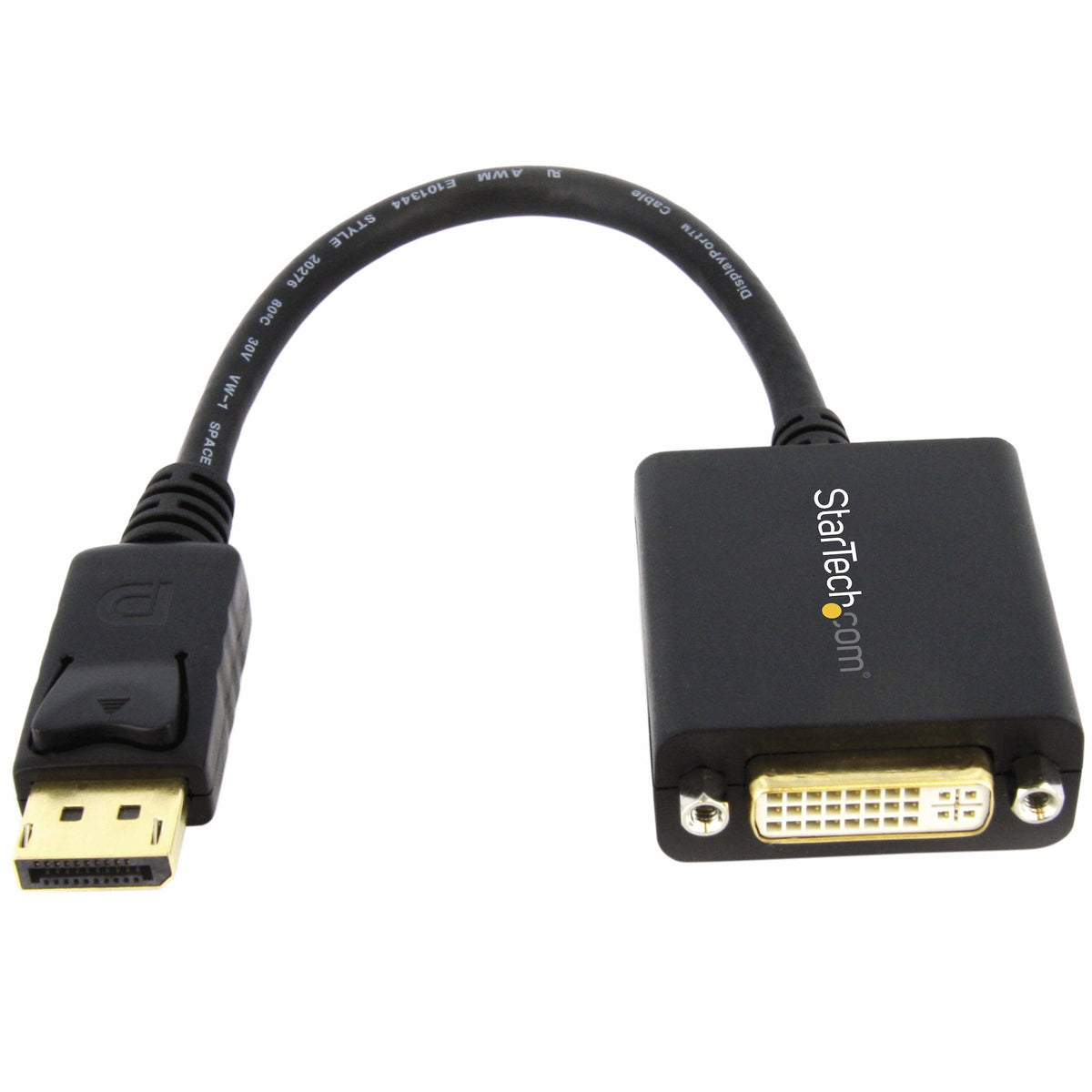

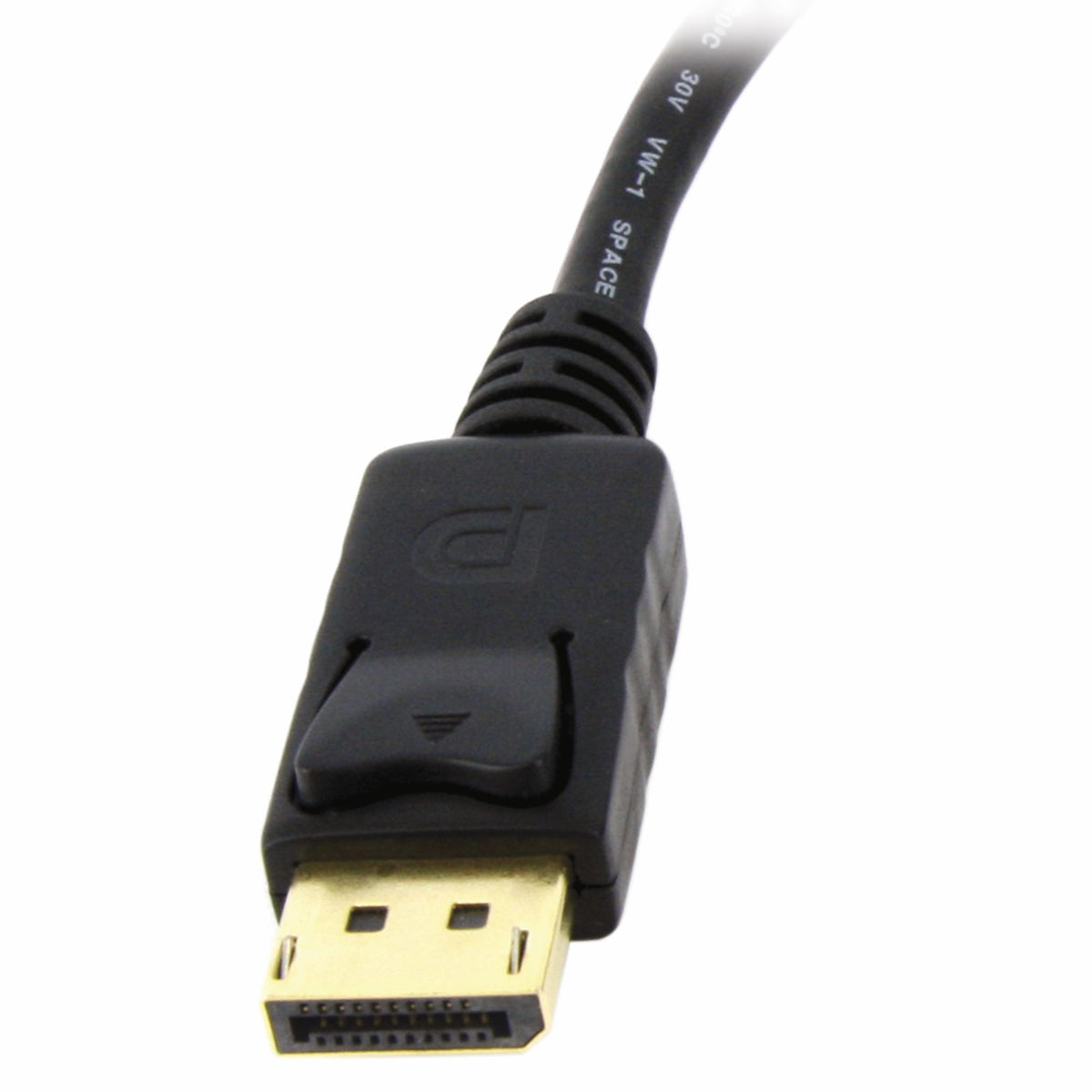

StarTech.com DisplayPort to DVI Adapter - DisplayPort to DVI-D Adapter Video Converter 1080p - DP 1.2 to DVI Monitor/Display Cable Adapter Dongle - DP to DVI Adapter - Latching DP Connector

Connect your DVI monitor to a DisplayPort equipped computer

The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.

Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.

StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Features
Converter type	Passive video converter
DisplayPort version	1.2
Product colour	Black
Cable length	0.152 m
Connector 1	DisplayPort
Connector 2	DVI-I
Connector 1 gender	Male
Connector 2 gender	Female
Maximum resolution	1920 x 1200 pixels
Supported graphics resolutions	640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1366 x 768, 1400 x 1050 (SXGA+), 1440 x 900, 1600 x 600, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
Supported video modes	480p, 720p, 1080p
HDCP	Yes
Plug and Play	Yes
Certification	CE, FCC, REACH
Connector 1 form factor	Straight
Connector 2 form factor	Straight
Dual Link DVI	No
Maximum refresh rate	60 Hz
HDCP version	1.4
HBR2 support	Yes
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-10 - 80 °C
Operating relative humidity (H-H)	5 - 90%
Certificates
Certification	CE, FCC, REACH
Compliance certificates	RoHS
Other features
Width	42 mm
Height	17 mm
Depth	254 mm
Weight & dimensions
Width	42 mm
Height	17 mm
Depth	254 mm
Weight	43 g
Package width	196 mm
Package depth	197 mm
Package height	25 mm
Package weight	52 g
Packaging data
Package width	196 mm
Package depth	197 mm
Package height	25 mm
Package weight	52 g
Quantity per pack	1 pc(s)
Packaging content
Quantity per pack	1 pc(s)
Technical details
Harmonized System (HS) code	84733080
Compliance certificates	RoHS
Logistics data
Master (outer) case width	516 mm
Master (outer) case length	336 mm
Master (outer) case height	226 mm
Products per master (outer) case	140 pc(s)
Harmonized System (HS) code	84733080
