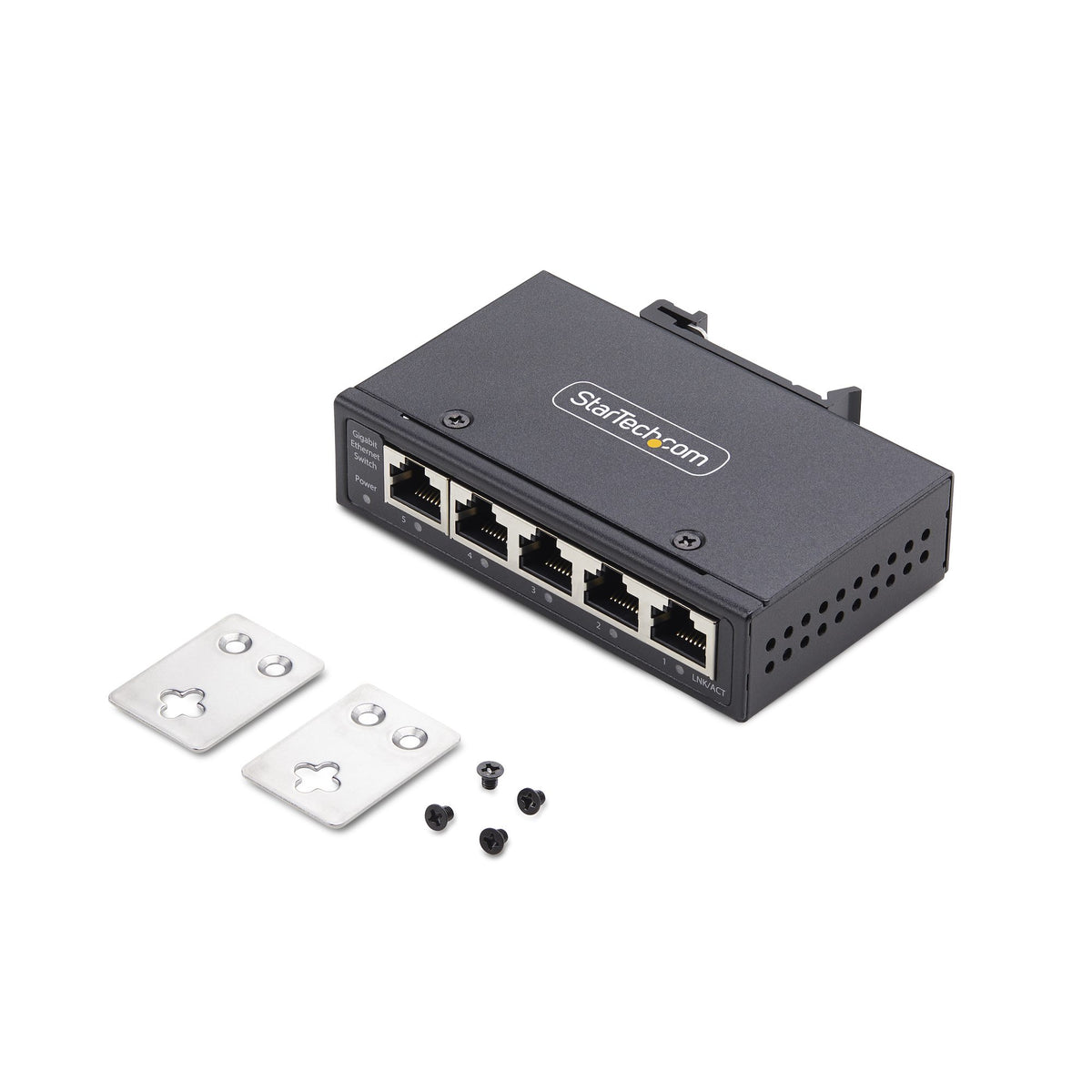

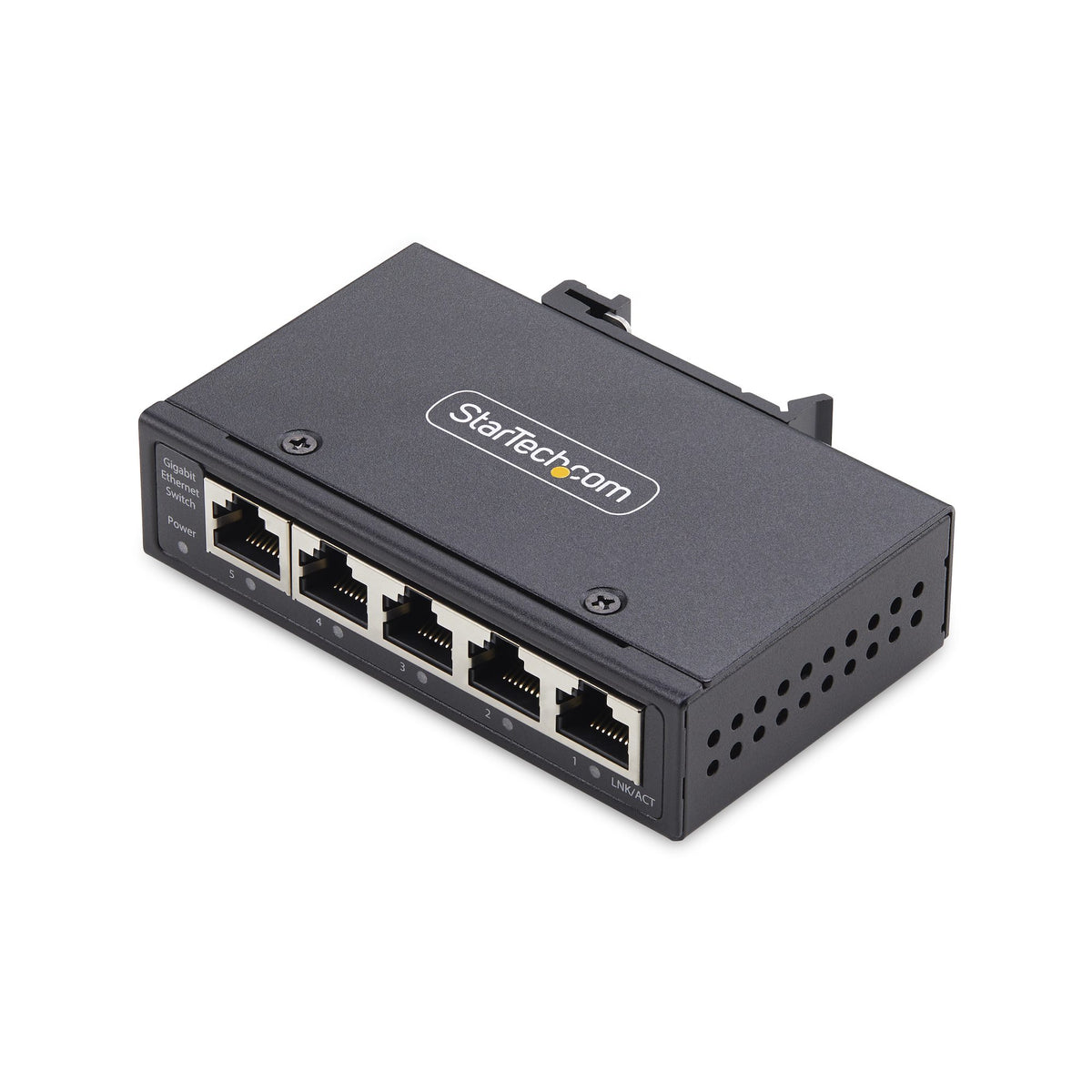

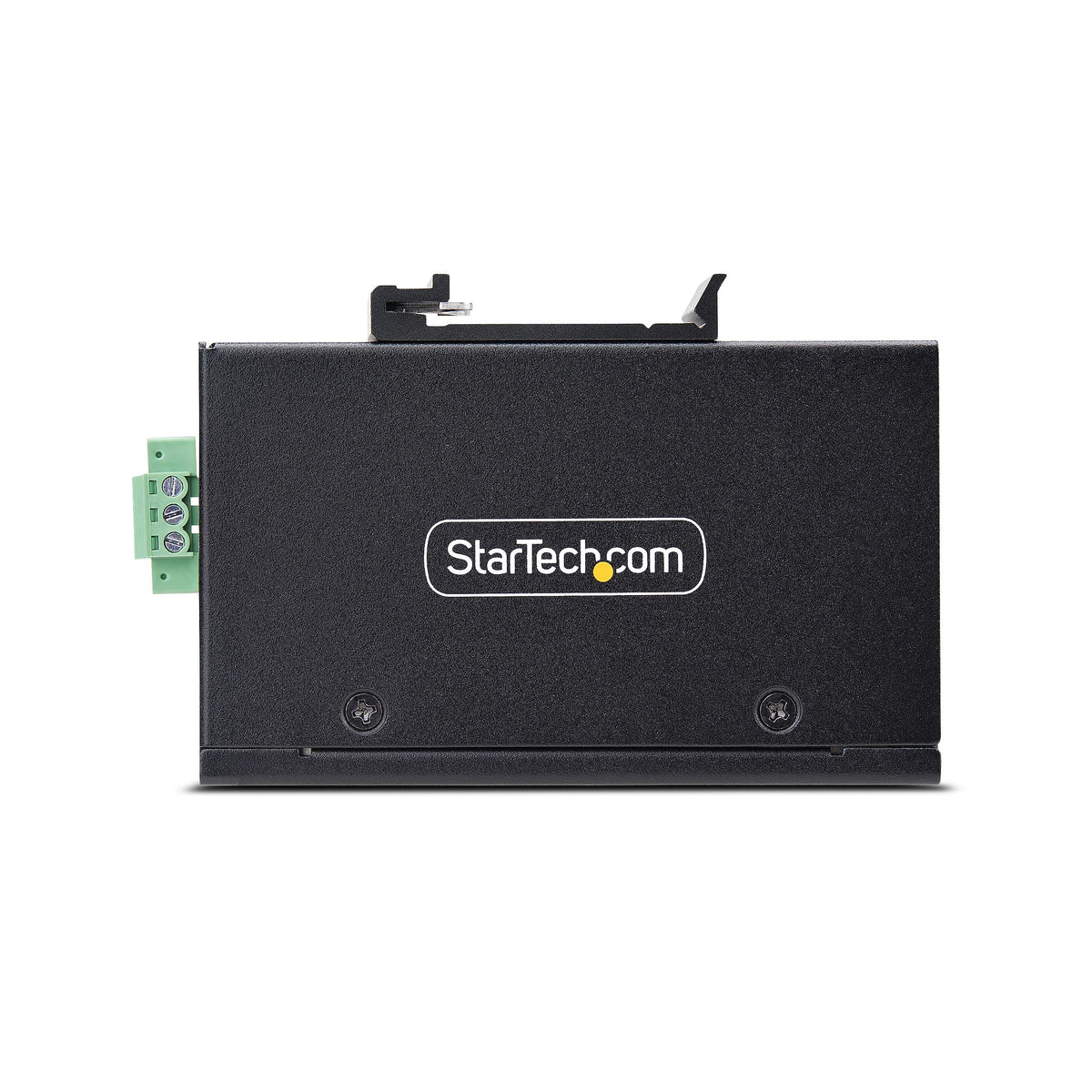

StarTech.com 5-Port Unmanaged Industrial Network Switch, 100/1000 Ethernet, DIN Rail/Wall-Mountable, Rugged IP30 Gigabit Switch, -40F-167F, 9~60V DC, TAA Compliant

Expand your network connectivity with simple plug-and-play setup

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.

Enhance Your Network

Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.

Rugged TAA Switch

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (-40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.

Designed for Demanding Environments

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.

Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Gigabit Ethernet (copper) ports quantity	5

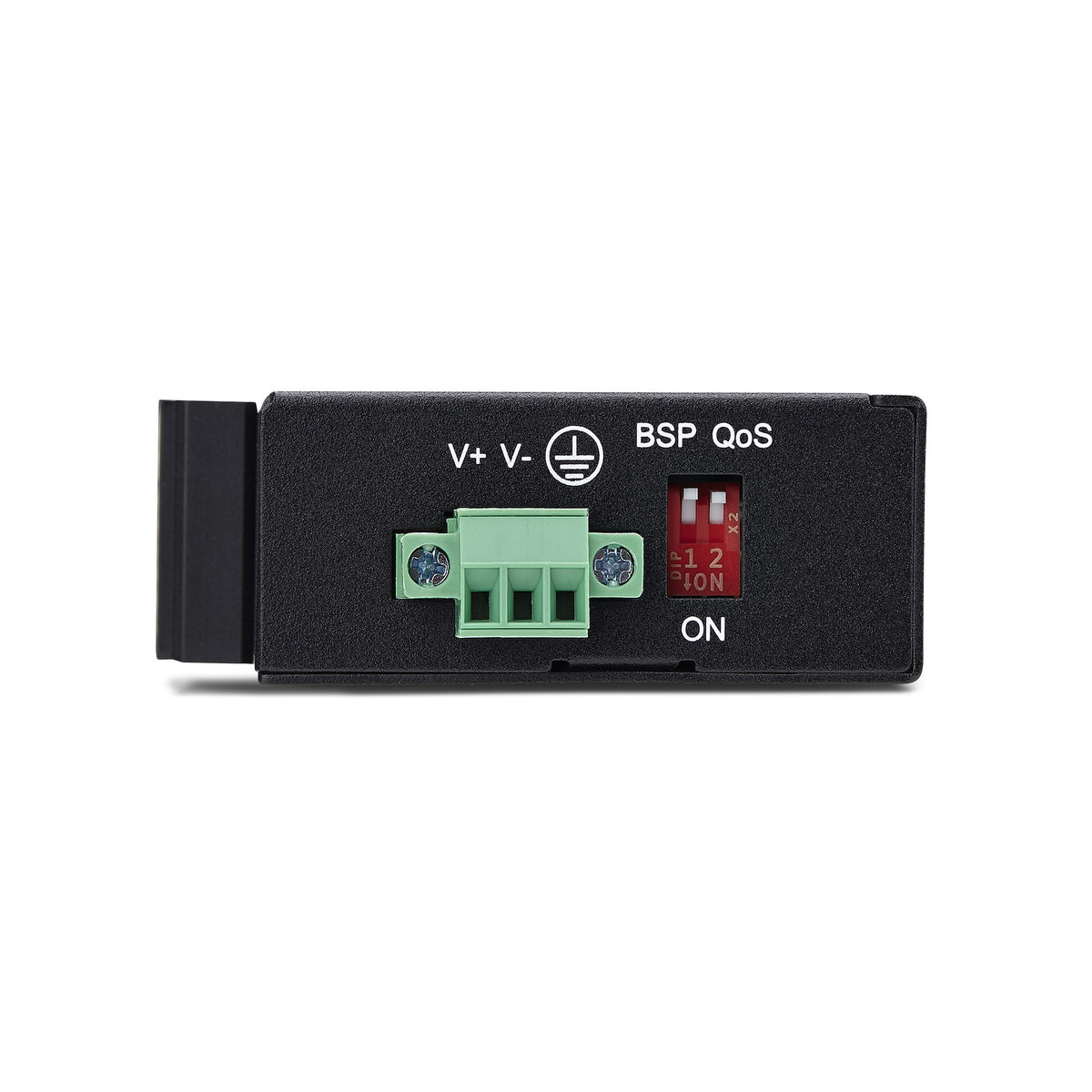

Power connector	Terminal block (3-pin)
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Network
Copper ethernet cabling technology	100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.1p, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Full duplex	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Auto MDI/MDI-X	Yes
10G support	No
Data transmission
Jumbo frames	9000
Store-and-forward	Yes
Jumbo frames support	Yes
Design
Wall mountable	Yes
International Protection (IP) code	IP30

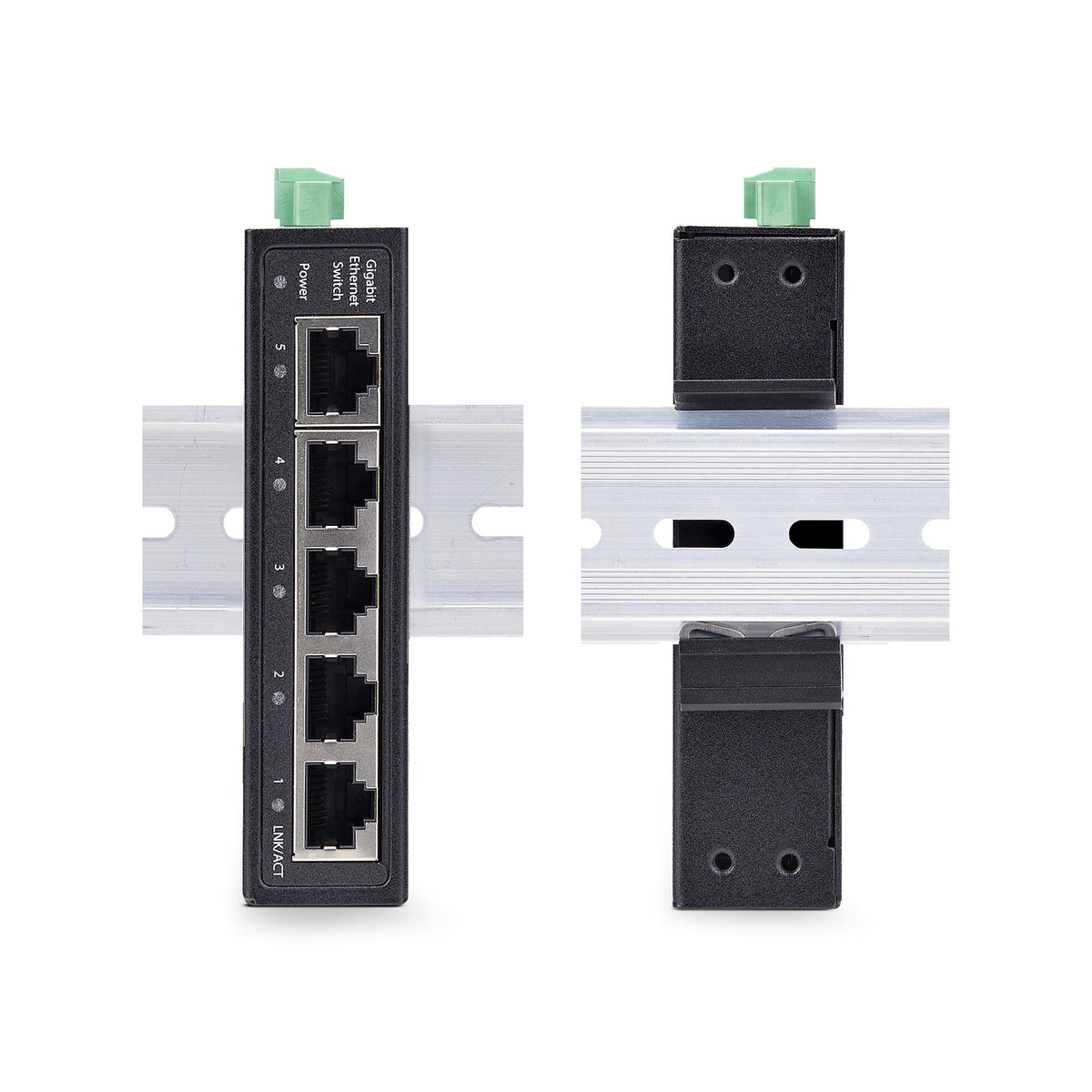

DIN rail mounting	Yes
Product colour	Black
LED indicators	Yes
Housing material	Metal
Performance
Mean time between failures (MTBF)	556710 h
Power
Power supply included	Yes
Input voltage	9 - 60 V
Power connector	Terminal block (3-pin)
Operational conditions
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	60 mm
Depth	100 mm
Height	26 mm
Weight	221.7 g
Packaging content
Quick start guide	Yes
Terminal block included	Yes
Mounting brackets included	Yes
DIN rail included	Yes
Packaging data
Terminal block included	Yes
Mounting brackets included	Yes
DIN rail included	Yes
Package width	111 mm
Package depth	159 mm
Package height	58 mm
Package weight	293.7 g
Quick start guide	Yes
Technical details
Product colour	Black
Mean time between failures (MTBF)	556710 h
Housing material	Metal
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Certificates
Compliance certificates	RoHS, Trade Agreements Act (TAA)
Indication
LED indicators	Yes
Other features
Input voltage	9 - 60 V
Ethernet LAN data rates	10,100,1000 Mbit/s
Logistics data
Master (outer) case width	355 mm
Master (outer) case length	295 mm
Master (outer) case height	335 mm
Products per master (outer) case	30 pc(s)
