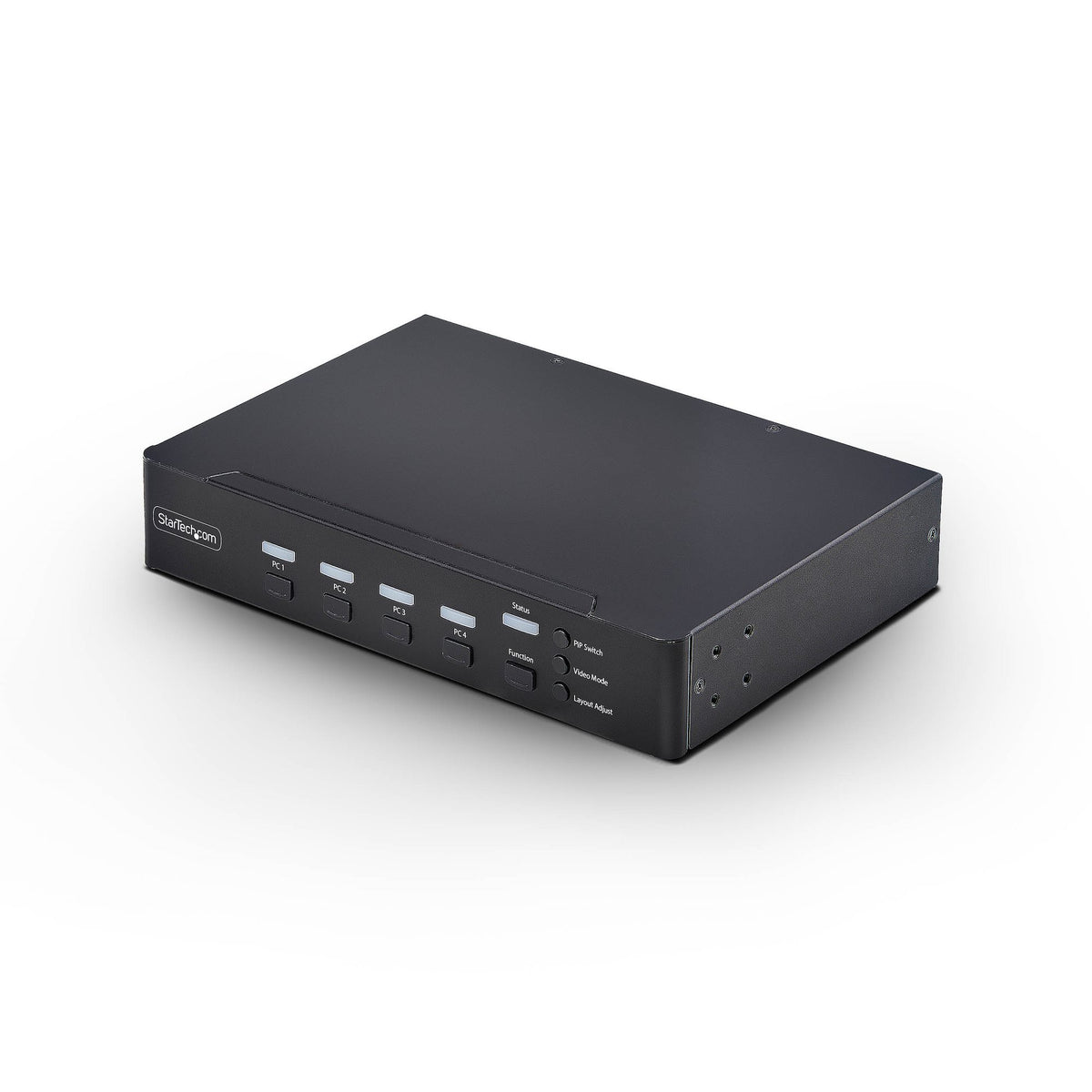

StarTech.com 4-Port DisplayPort KVM Switch with Mouse Roaming and Multi-View / Picture-in-Picture, 4K 60Hz, USB 3.0 (5Gbps) Hub, Hotkey Control, TAA Compliant

Control up to four DisplayPort computers with mouse roaming, quad view, and picture-in-picture support

Streamline complex workflows by managing up to four DisplayPort computers from a single keyboard, mouse, and display. With support for true 4K 60 Hz (4:4:4) resolution, this multiview KVM delivers crisp text and precise visuals across Windows, macOS, and Linux workstations.

Multiview Monitoring

Maintain full awareness and react faster by viewing multiple systems at once. Flexible display modes including Quad-View, Picture-in-Picture (PiP), and Picture-by-Picture (PbP) let you monitor and compare the four sources.

Instant Switching With Continuous Video

Move seamlessly between systems using mouse roaming with zero latency and no screen blackout. Continuous video output keeps every system visible at all times, eliminating delays caused by switching or waiting for auto-scan cycles, reducing disruption in control rooms, industrial environments, and other time-sensitive operations.

Switch Your Way

Adapt the KVM to your environment with multiple switching methods. Use front-panel buttons, keyboard hotkeys, mouse roaming, mouse side buttons, or serial control via RJ-11 or USB-C to support hands-on use, remote management, or automated workflows.

Built-In Dual Display Output

Mirror the KVM output to two displays simultaneously using DisplayPort and HDMI. Use a local desktop monitor for hands-on control while displaying the same view on a larger wall-mounted TV for monitoring or team visibility. This dual console output improves visibility, collaboration, and redundancy without requiring external splitters or additional hardware.

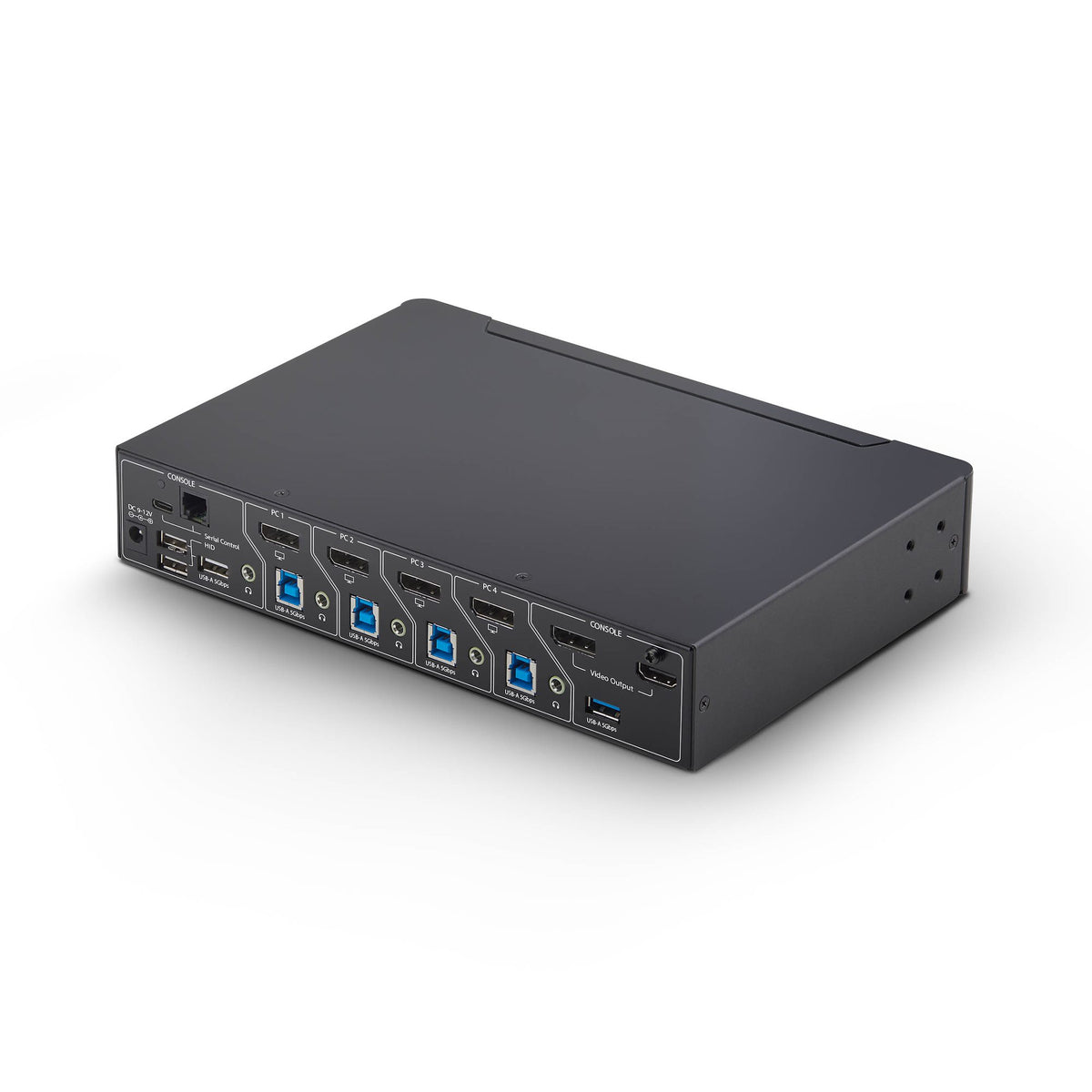

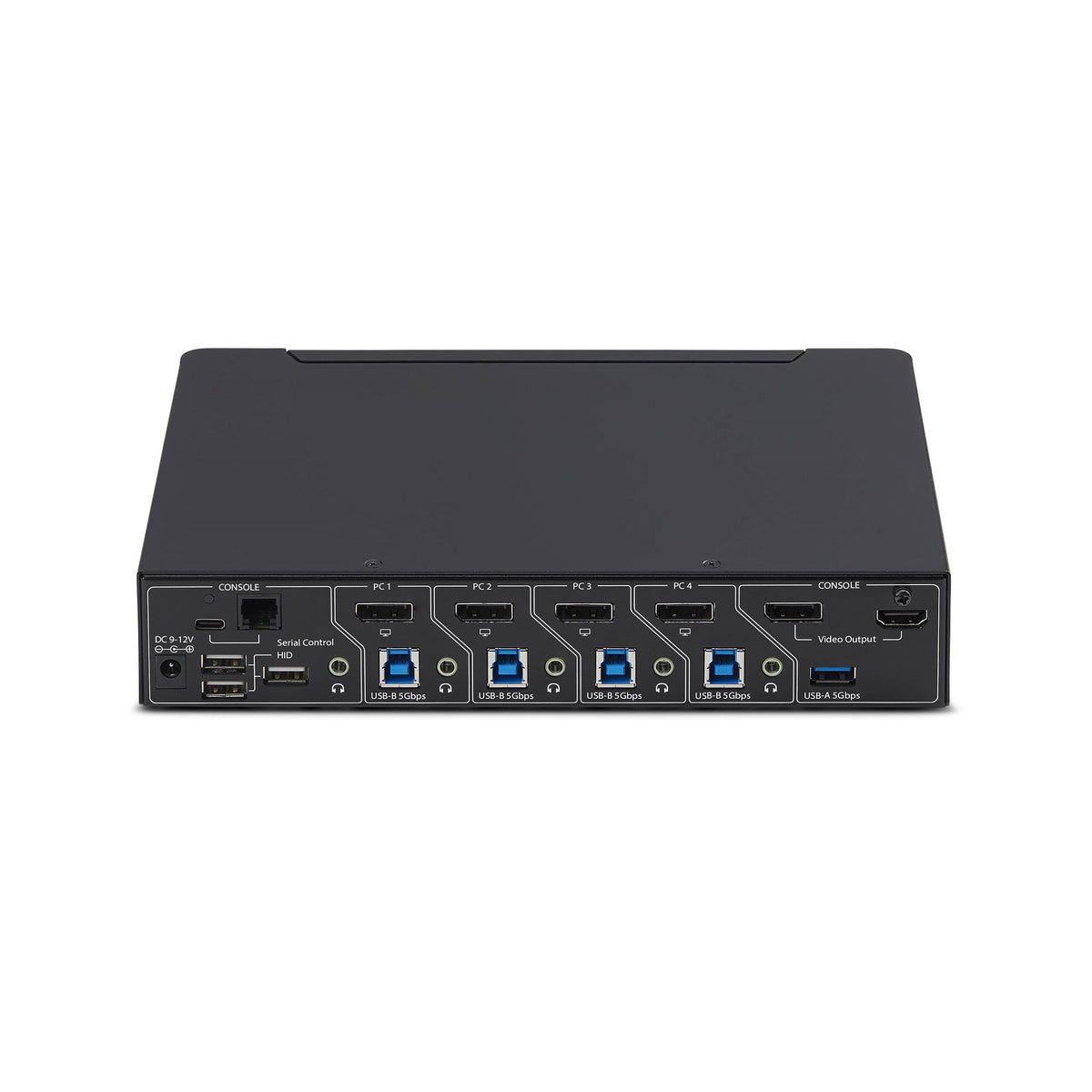

Ports & interfaces
Console USB ports quantity	4
Console ports	DisplayPort, USB A, USB C
DisplayPorts quantity	4
DisplayPort version	1.2
Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Audio connections	Yes
Headphone outputs	5
DC-in jack	Yes
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	1
Console DisplayPorts ports quantity	1
Console HDMI ports quantity	1
RJ-11 ports quantity	1
Performance
Daisy chain	No
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Technical details
Product colour	Black
Rack mounting	No
Push button	Yes
On Screen Display (OSD)	No
LED indicators	Yes
Hot keys	Yes
IP control	No
USB hub	Yes
Compliance certificates	Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
Design
Mean time between failures (MTBF)	130000 h
Product colour	Black
Rack mounting	No
Push button	Yes
LED indicators	Yes
Hot keys	Yes
Housing material	Steel, Aluminium
Display
Built-in display	No
On Screen Display (OSD)	No
Power
Input current	1 A
Output current	3 A
Compatible power plug types	EU, UK, US, AU
Output voltage	12 V
Power source	DC
Power consumption (typical)	36 W
External power adapter	Yes
Input voltage	100 - 240 V
Video
HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Sustainability
Compliance certificates	Trade Agreements Act (TAA), Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%
Weight & dimensions
Width	130 mm
Depth	220 mm
Height	40 mm
Weight	1.05 kg
Package width	365 mm
Package depth	235 mm
Package height	75 mm
Package weight	195 g
Packaging data
Package width	365 mm
Package depth	235 mm
Package height	75 mm
Package weight	195 g
Packaging content
Rubber feet	Yes
Manual	Yes
Other features
IP control	No
Push button	Yes
Hot keys	Yes
Logistics data
Master (outer) case width	495 mm
Master (outer) case length	385 mm
Master (outer) case height	265 mm
Products per master (outer) case	6 pc(s)
