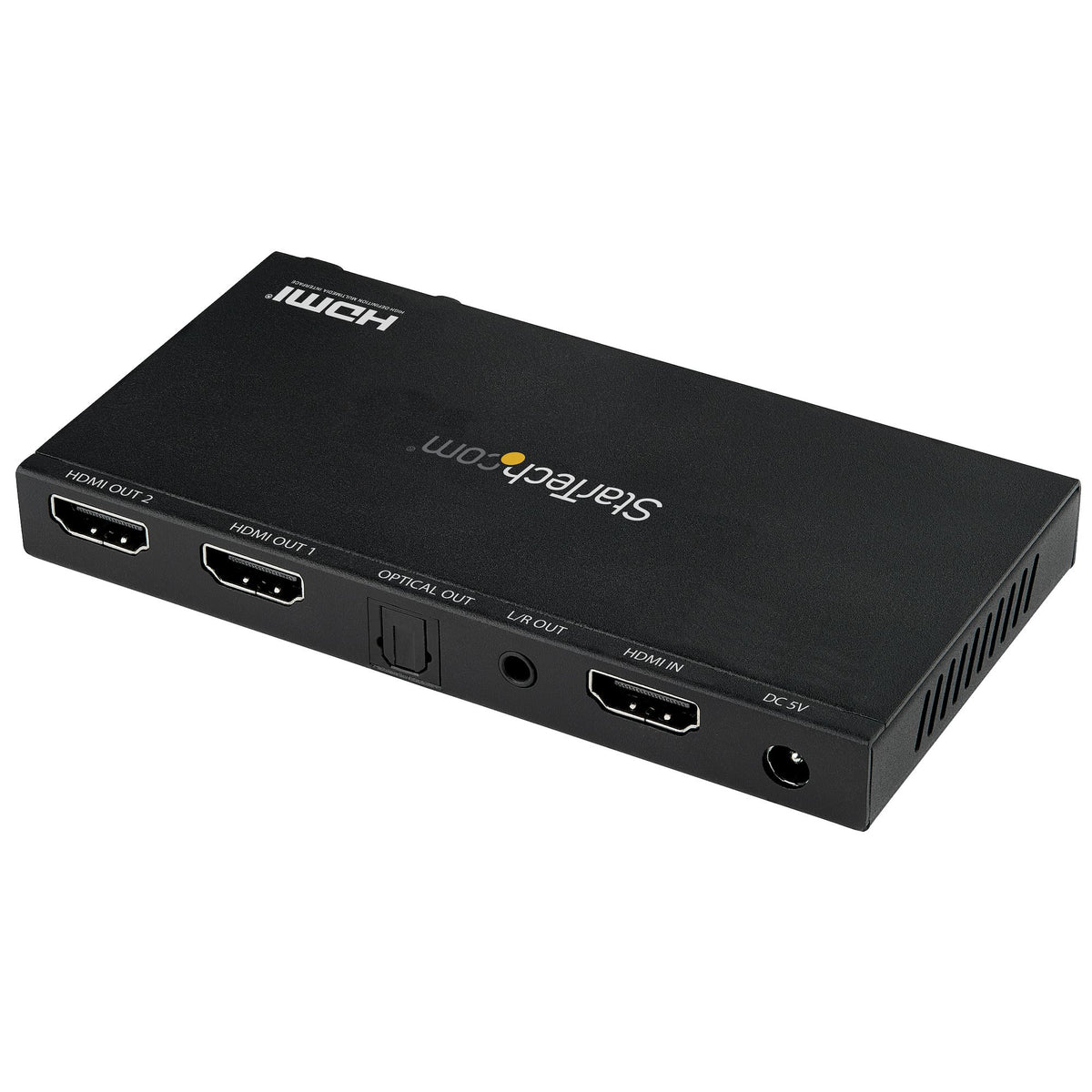

StarTech.com 2-Port HDMI Splitter (1x2) - 4K 60Hz UHD HDMI 2.0 Audio Video Splitter w/ Scaler & Audio Extractor (3.5mm/SPDIF) - Dual HDMI Splitter (1-In 2-Out) - EDID Copy - TV/Projector

HDMI 2.0 Splitter | HDCP 2.2 | EDID Emulation | 7.1 Surround Sound | 2 Year Warranty

This 2-port HDMI splitter lets you connect your HDMI video source to two HDMI displays, with support for Ultra HD resolutions and HDR (High Dynamic Range) as well as 7.1 surround sound audio.

Supports True 4K at 60Hz

This 2 way HDMI splitter offers full support for your HDMI 2.0b equipment, including true 4K resolution at 60Hz. For smoother video and color transitions, the splitter offers 4:4:4 chroma subsampling, meaning every pixel gets its own unique color.

Widely Compatible

The HDMI 2.0 splitter supports HDCP 2.2 and is backward compatible with 4K 30Hz, 1080p and 720p displays. This ensures that it will work with lower resolution displays such as TVs or projectors around your site or in your digital signage application. With the built-in scaling function, the HDMI 1 in 2 out splitter can output to two displays at different resolutions simultaneously.

The Choice of IT Pros Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

The ST122HD20 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Features
Product colour	Black
Housing material	Metal
LED indicators	Yes
Video
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Maximum refresh rate	60 Hz
Audio
Supported audio channels	7.1
Ports & interfaces
HDMI in	1
Number of HDMI outputs	2
Audio output	3.5 mm
HDMI version	2.0b
Digital audio optical out	1
Power
AC adapter input voltage	100 - 240 V
Power consumption (typical)	5 W
Weight & dimensions
Width	115 mm
Depth	205 mm
Height	65 mm
Weight	355 g
Technical details
Compliance certificates	RoHS
Logistics data
Products per master (outer) case	30 pc(s)
Master (outer) case width	348 mm
Master (outer) case length	428 mm
Master (outer) case height	376 mm
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 90%
Certificates
Certification	CE, FCC, REACH
Packaging data
Package width	116 mm
Package depth	202 mm
Package height	66 mm
