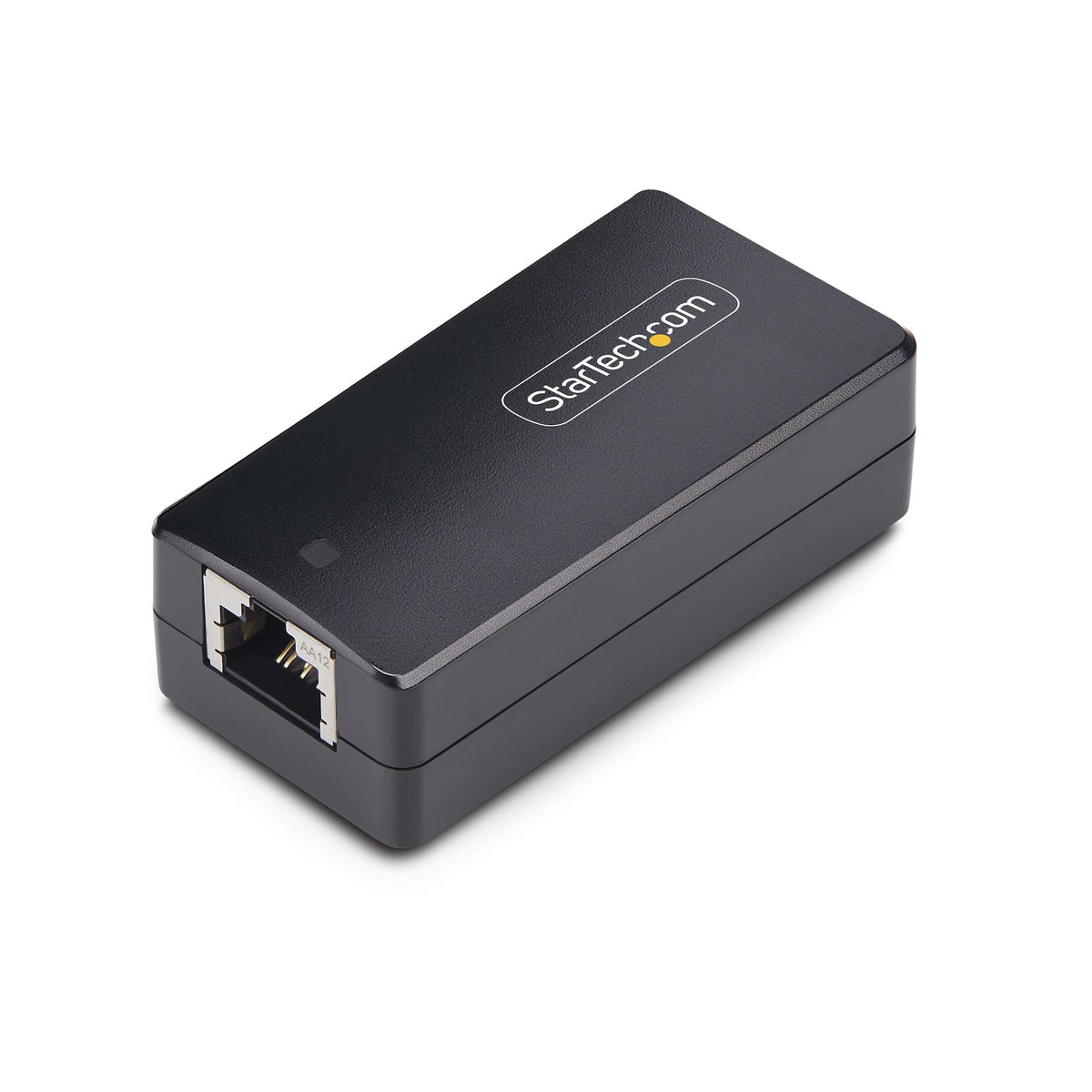

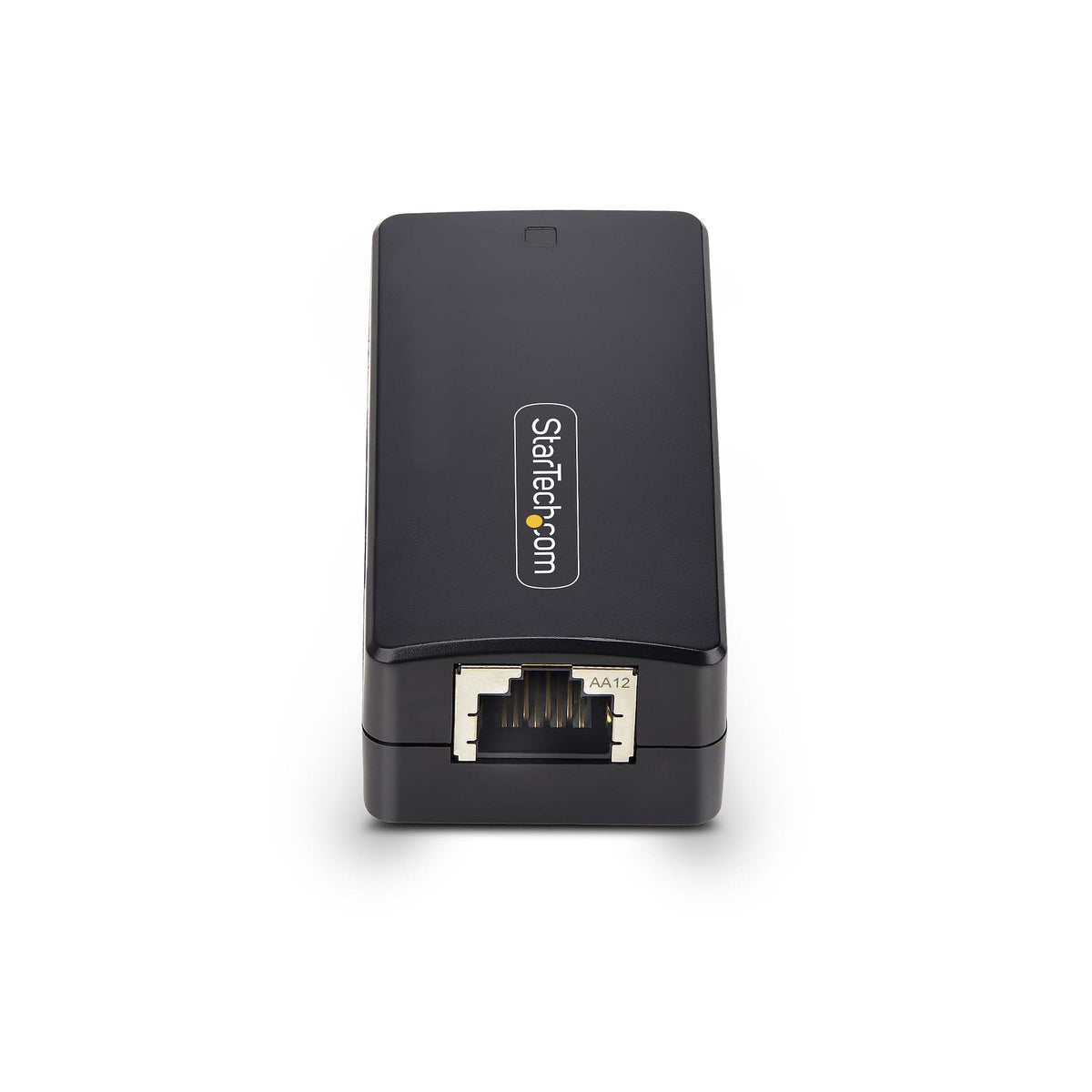

StarTech.com 1-Port Gigabit Network Isolator, Compact In-line RJ45 Ethernet Coupler with 4kV Galvanic Isolation, IP40, DIN Rail Mountable, TAA Compliant

Protect network devices from harmful power surges with this Network Isolator

This TAA-Compliant 1G Network Isolator with 4kV isolation is bus-powered and provides a separation of all conductive connections between devices connected via an Ethernet cable. The isolator helps prevent ground loops in audio and video equipment.

Ready to Use

This isolator features simple plug-and-play setup with no software, drivers, power supply, or grounding wire required. The isolator acts as a coupler, with two RJ45 ports for two Cat5 or Cat6 cables to connect compatible equipment to a computer or data network. It is compact, universally compatible and OS independent.

Safe, Reliable, & Efficient

This isolator provides full transparency on the network it is part of. With no IP, it does not route or alter traffic or affect equipment or network performance. Safeguard equipment and operators by blocking stray electrical currents, surges, and ground faults in your network. This device is ETL Safety Listed (IEC 62368-1) and CE: EN55032/EN55035 Certified.

Versatile Mounting Options & Applications

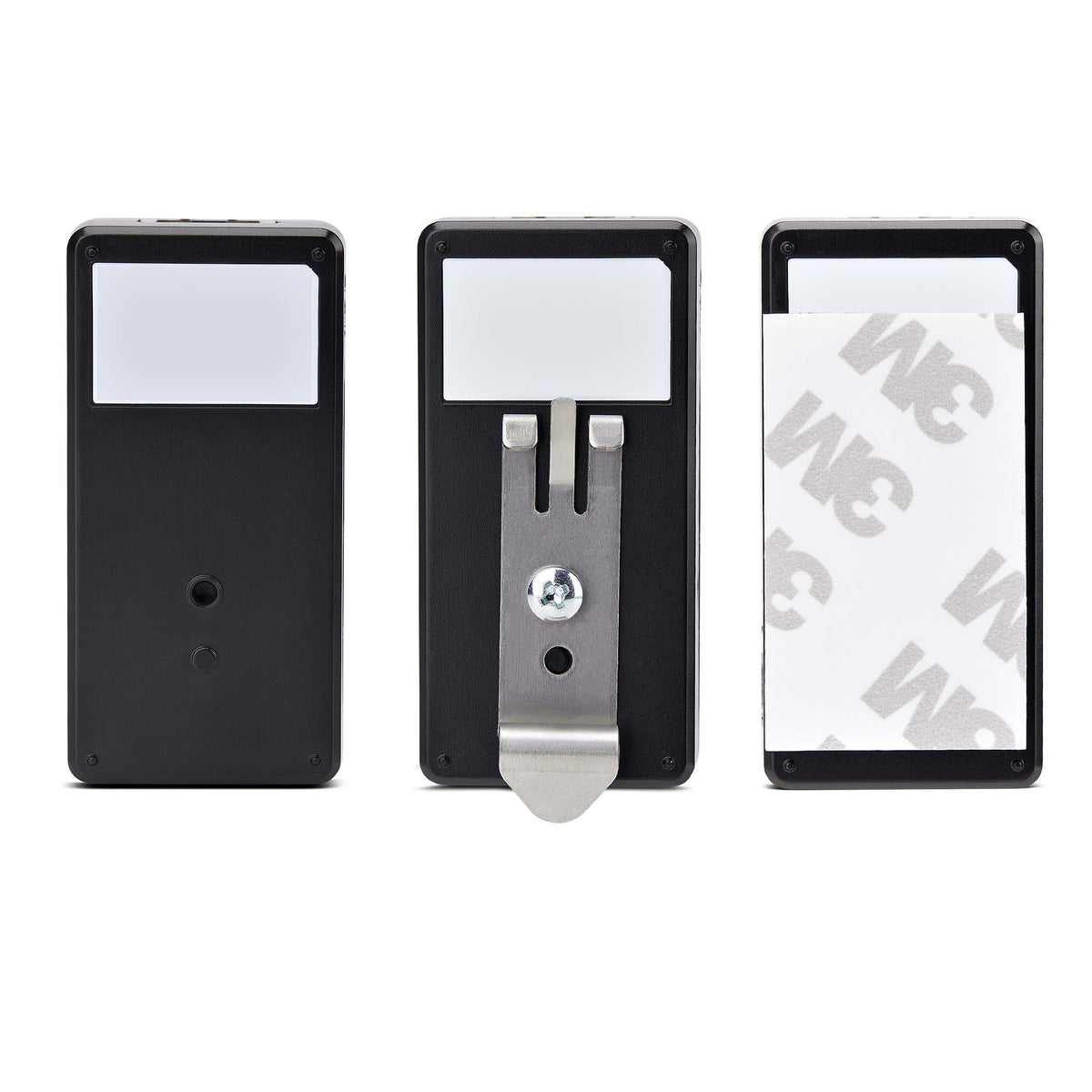

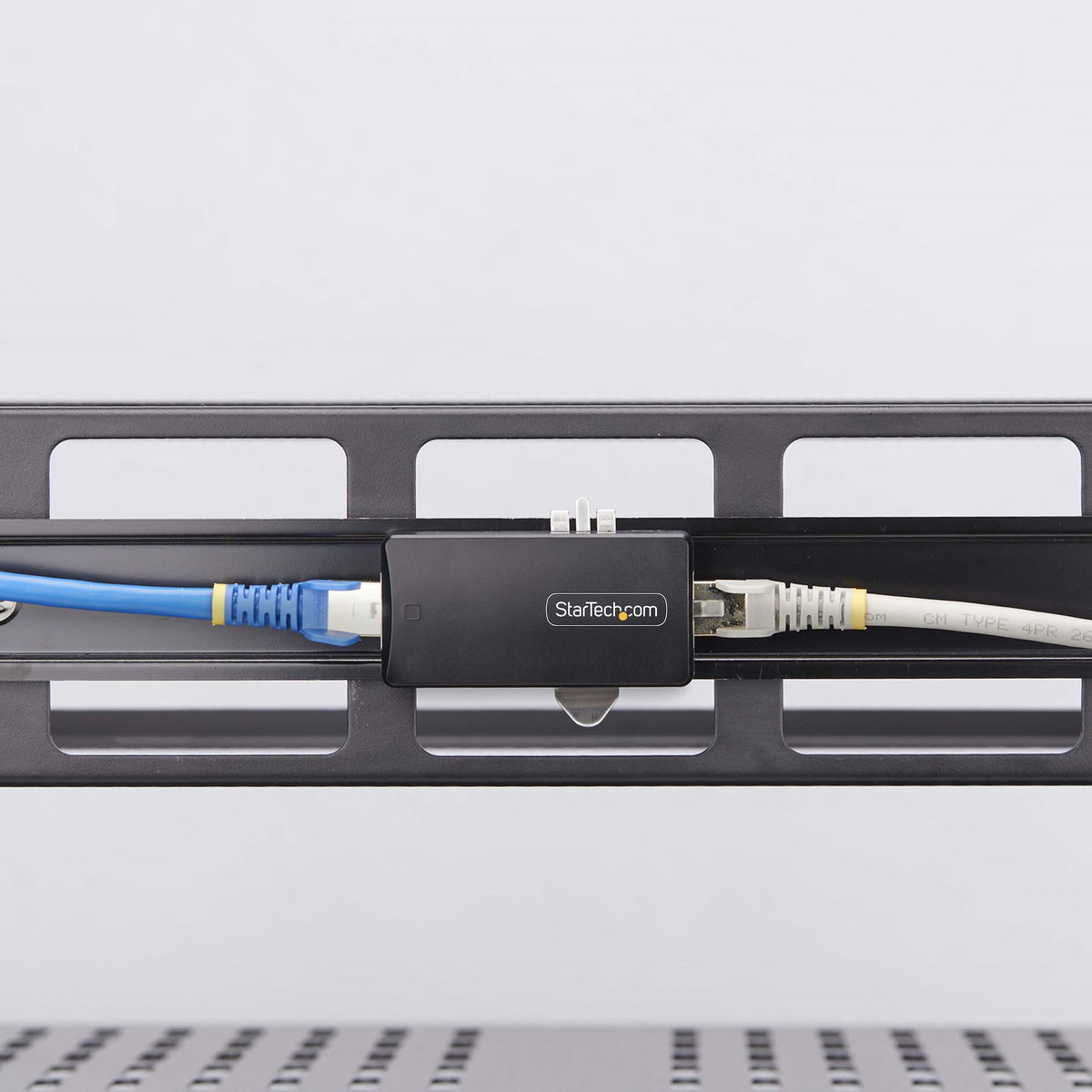

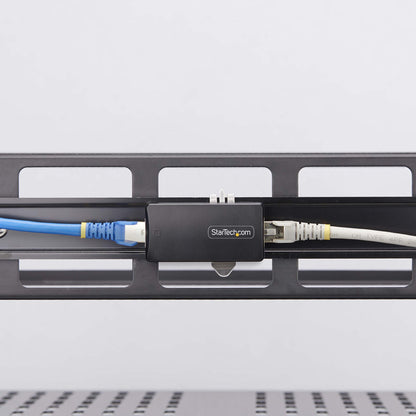

The compact and durable IP40 rated plastic housing supports multiple installation methods, including DIN rail mounting (kit included) or adhesive mounting for versatile placement on various surfaces. Designed for IT professionals to protect network infrastructure in labs and manufacturing facilities. This device is ideal for ensuring safe operation and reducing risks during network maintenance or upgrades.

Performance
Electrostatic Discharge (ESD) protection (contact)	4 kV
Ethernet LAN data rates	10,100,1000 Mbit/s
International Protection (IP) code	IP40
Ports & interfaces
RJ-45 ports quantity	1
Design
Product colour	Black
Housing material	Plastic
Technical details
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA)
Operational conditions
Operating temperature (T-T)	-10 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 90%
Logistics data
Products per master (outer) case	100 pc(s)
Master (outer) case width	532 mm
Master (outer) case length	462 mm
Master (outer) case height	196 mm
Weight & dimensions
Width	67 mm
Depth	33 mm
Height	24 mm
Weight	31 g
Packaging data
Package width	446 mm
Package depth	133 mm
Package height	33 mm
Package weight	40 g

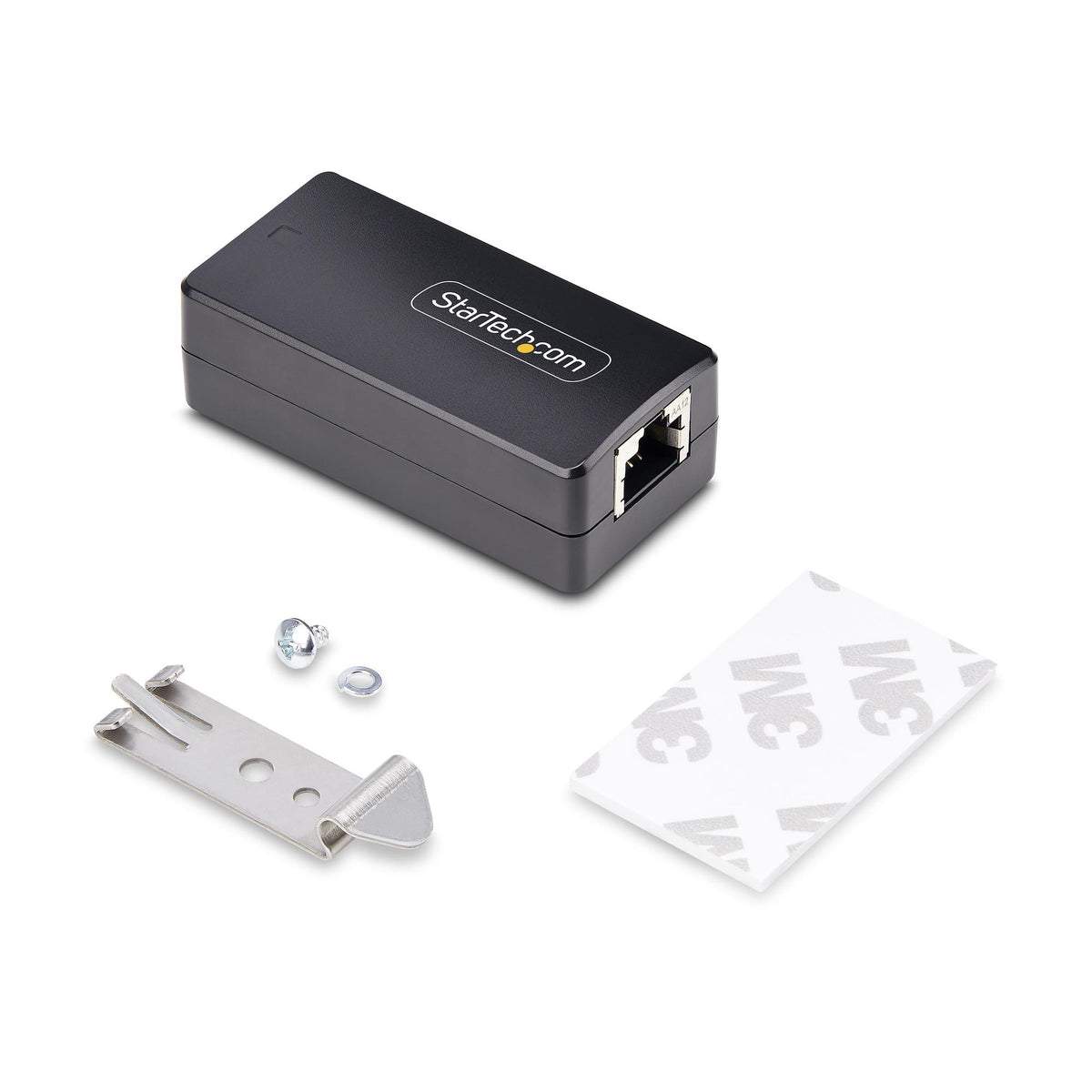

Packaging content
Quantity	1
Manual	Yes
DIN rail kit included	Yes
Adhesive strip included	Yes
