To ensure the SIL 73101P can withstand harsh environments, the enclosure plays a crucial role in meeting industrial-grade standards. Unlike steel or iron, aluminium has several advantages that make it a widely used metal material.

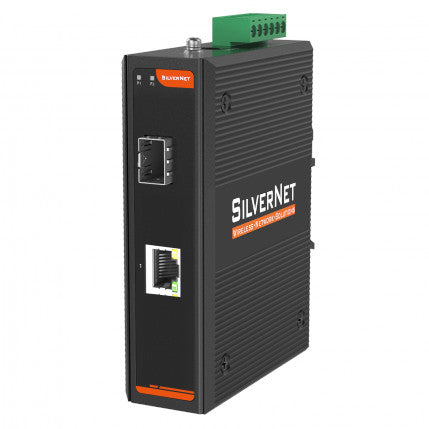

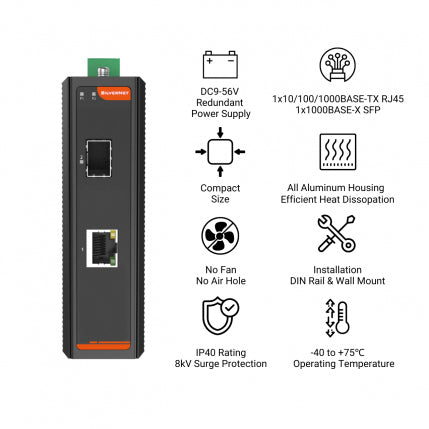

The SIL 73101P is a rugged Industrial Fibre Media Converter designed to operate reliably in harsh environments. It features a fanless design and low power consumption, which eliminates the need for maintenance. Additionally, mature technology and open network standards enable the SIL 73101P to operate efficiently at both low and high temperatures. Moreover, it is resistant to electric interference, salt fog, vibration, and shocks, making it suitable for various applications. The SIL 73101P also includes redundant dual power supplies, which enhances its reliability for always-on connections.
The SIL 73101P supports fibre-optic link capacity, which allows network deployment to extend from 550 meters to 2 kilometres for multi-mode fibre and up to 10/20/40/60/80/120 kilometres for single-mode or WDM fibre. Video surveillance administrators can select a suitable SFP transceiver based on the transmission distance and speed requirements, making it ideal for applications within enterprise data centres and distributed systems.
The SIL 73101P is a rugged Industrial Fibre Media Converter designed to operate reliably in harsh environments. It features a fanless design and low power consumption, which eliminates the need for maintenance. Additionally, mature technology and open network standards enable the SIL 73101P to operate efficiently at both low and high temperatures. Moreover, it is resistant to electric interference, salt fog, vibration, and shocks, making it suitable for various applications. The SIL 73101P also includes redundant dual power supplies, which enhances its reliability for always-on connections.
The SIL 73101P supports fibre-optic link capacity, which allows network deployment to extend from 550 meters to 2 kilometres for multi-mode fibre and up to 10/20/40/60/80/120 kilometres for single-mode or WDM fibre. Video surveillance administrators can select a suitable SFP transceiver based on the transmission distance and speed requirements, making it ideal for applications within enterprise data centres and distributed systems.
| Network | |
|---|---|
| Data transfer rate | 1000 Mbit/s |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Fiber ethernet cabling technology | 1000BASE-X |
| Converter input interface | 1000Base-TX, 1000Base-X |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3az, IEEE 802.3ab |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Wavelength-division multiplexing (WDM) | Yes |
| Maximum transfer distance | 160000 m |
| Flow control support | Yes |
| Auto-negotiation | Yes |
| Plug and Play | Yes |
| Features | |

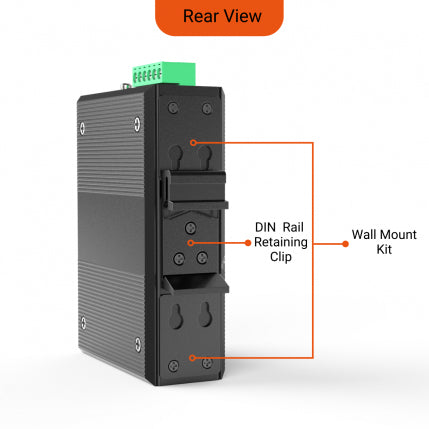

| DIN rail mounting | Yes |
| International Protection (IP) code | IP40 |
| Housing material | Aluminium |
| Plug and Play | Yes |
| LED indicators | Link, Power |
| Product colour | Black |
| Internal | Yes |
| Ports & interfaces | |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |

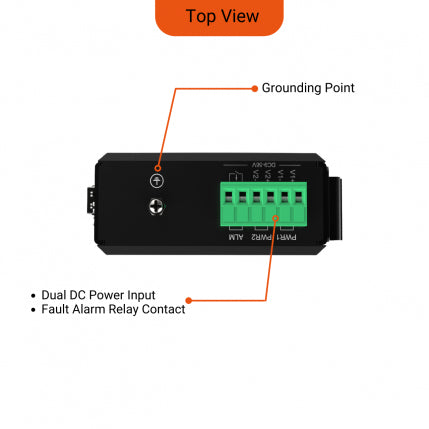

| Terminal block port | Yes |
| Terminal block included | Yes |
| Power | |
| Power plug type | Type C |
| Power consumption (max) | 4 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Input voltage | 48 - 56 V |
| Output voltage | 48 V |
| Power consumption (typical) | 2 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 90 mm |
| Weight | 350 g |
| Height | 120 mm |
| Package depth | 168 mm |
| Package width | 150 mm |
| Package height | 50 mm |
| Package weight | 52 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package depth | 168 mm |
| Package width | 150 mm |
| Package height | 50 mm |
| Package weight | 52 g |
| Technical details | |
| International Protection (IP) code | IP40 |
| Housing material | Aluminium |
| Maximum transfer distance | 160000 m |
| Plug and Play | Yes |
| Internal | Yes |
| Data transfer rate | 1000 Mbit/s |
| Indication | |
| LED indicators | Link, Power |
| Design | |
| DIN rail mounting | Yes |
| Country of origin | United Kingdom |
| International Protection (IP) code | IP40 |
| Housing material | Aluminium |
| Safety | EN 60950 1, UL 60950 1, CSA C22.2 No.60950 1, UL 508 |
| LED indicators | Link, Power |
| Product colour | Black |
| Certification | FCC Part15 Class A CE EMC/LVD RoHS EN61000 4 2 (ESD):LEVEL 4 IEC 6100 4 2 (EFT):LEVEL 4 IEC 6100 4 2 (Surge): LEVEL 4 IEC 6100 4 2 (CS) LEVEL 3 IEC 61000 4 2(PFMP) : LEVEL 5 EN61000 4 3 (RS):LEVEL 4 IEC60068 2 27 IEC60068 2 6 IEC60068 2 31 |
| Internal | Yes |
| Management features | |
| Plug and Play | Yes |
| Colour | |
| Product colour | Black |
| Certificates | |
| Safety | EN 60950 1, UL 60950 1, CSA C22.2 No.60950 1, UL 508 |
| Certification | FCC Part15 Class A CE EMC/LVD RoHS EN61000 4 2 (ESD):LEVEL 4 IEC 6100 4 2 (EFT):LEVEL 4 IEC 6100 4 2 (Surge): LEVEL 4 IEC 6100 4 2 (CS) LEVEL 3 IEC 61000 4 2(PFMP) : LEVEL 5 EN61000 4 3 (RS):LEVEL 4 IEC60068 2 27 IEC60068 2 6 IEC60068 2 31 |
| Logistics data | |
| Country of origin | United Kingdom |
