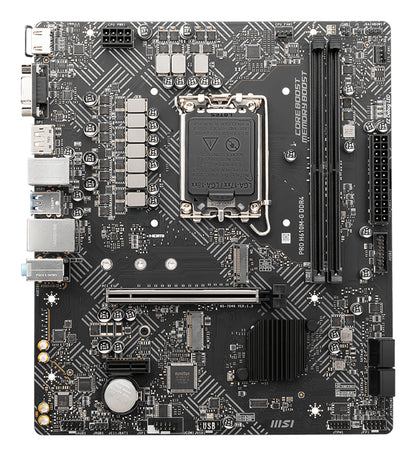

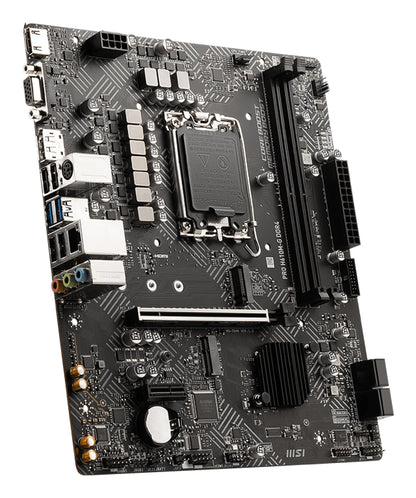

MSI PRO H610M-G DDR4 motherboard Intel H610 LGA 1700 micro ATX

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.

Internal I/O
Number of M.2 (M) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
12V power connector	Yes
Supported storage drive interfaces	M.2, SATA III
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
TPM connector	Yes
Number of SATA III connectors	4
Front panel audio connector	Yes
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Technical details
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
Parallel processing technology support	Not supported
Motherboard form factor	micro ATX
Component for	PC
Audio
Audio output channels	7.1 channels
Performance
Supported storage drive types	SSD
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Processor
Processor manufacturer	Intel
Compatible processor series	Intel® Core™ i9
Supported processor sockets	LGA 1700
Processor socket	LGA 1700
Memory
Number of memory slots	2
Memory slots type	DIMM
Supported memory types	DDR4-SDRAM
Memory channels	Dual-channel
Supported memory clock speeds	2133,2666,2933,3200 MHz
Maximum internal memory	64 GB
ECC ?ompatibility	Non-ECC
Storage controllers
Supported storage drive types	SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	5
Graphics
Parallel processing technology support	Not supported
DirectX version	12.0

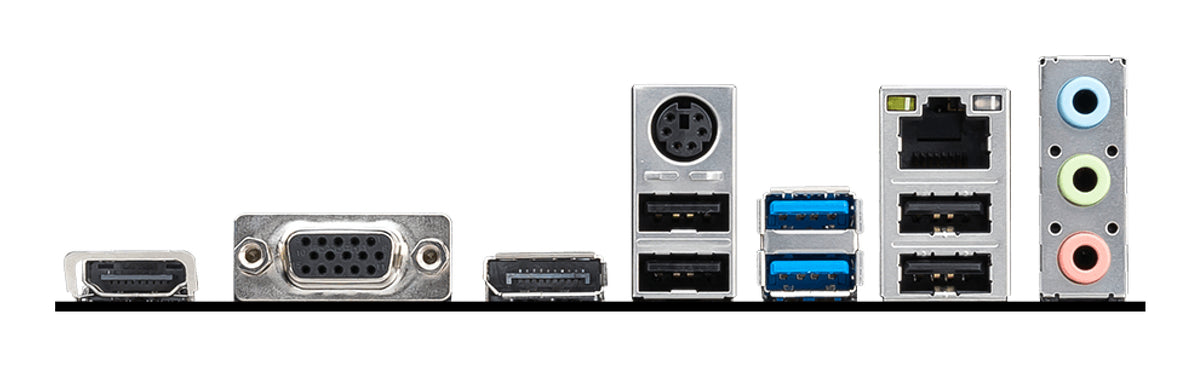

Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 2.0 ports quantity	4
VGA (D-Sub) ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
DVI-D ports quantity	0
DisplayPorts quantity	1
Network
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Top Wi-Fi standard	Not available
Features
Windows operating systems supported	Windows 10, Windows 11
Motherboard chipset family	Intel
Motherboard chipset	Intel H610
Supported processor sockets	LGA 1700
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Component for	PC
Audio chip	Realtek ALC897
Harmonized System (HS) code	84733020
Expansion slots
Number of M.2 (M) slots	1
PCI Express x16 (Gen 4.x) slots	1
BIOS
BIOS type	UEFI AMI
Video
DirectX version	12.0
Software
Windows operating systems supported	Windows 10, Windows 11
Drivers included	Yes
Logistics data
Harmonized System (HS) code	84733020
Weight & dimensions
Height	65 mm
Weight	764 g
Width	211 mm
Depth	244 mm
Packaging content
Drivers included	Yes
Cables included	SATA
Other features
Height	65 mm
Weight	764 g
