Lindy

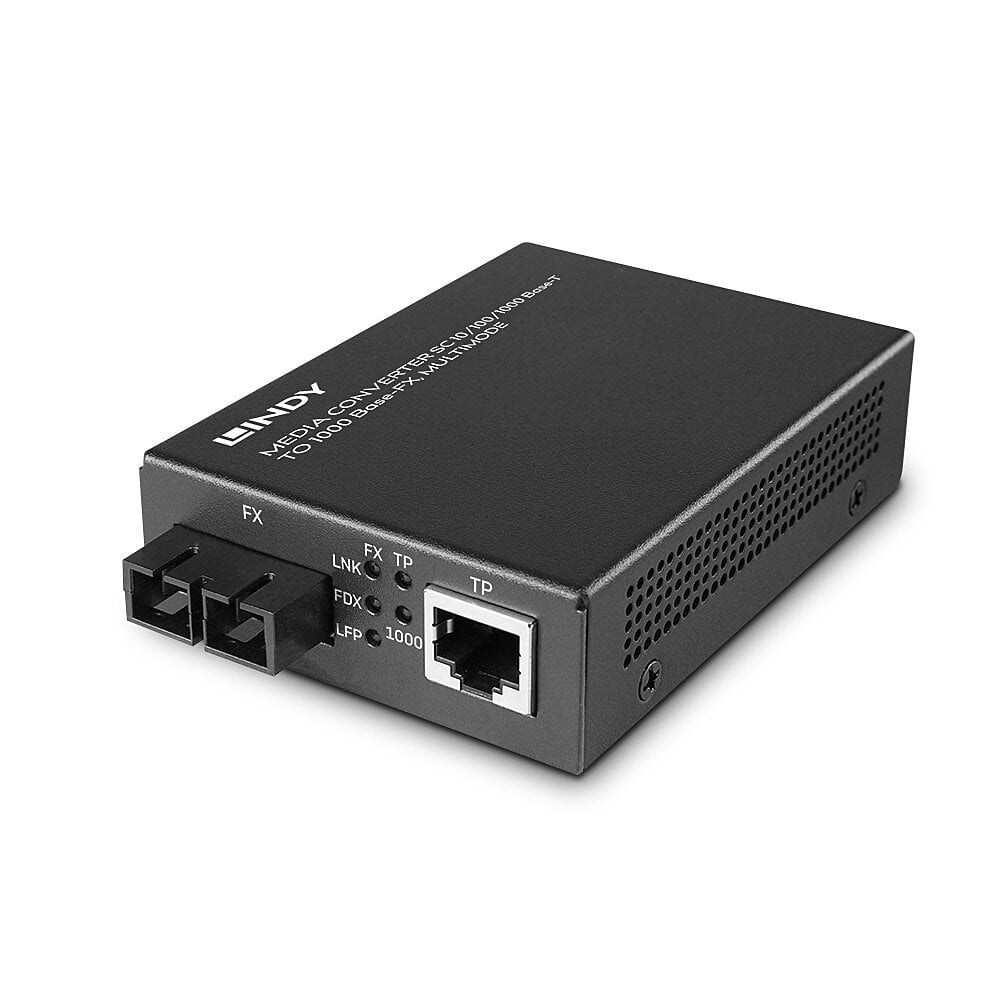

Lindy 25119 network media converter 850 nm Multi-mode Black
Lindy 25119 network media converter 850 nm Multi-mode Black
Regular price
£60.45 GBP
Regular price
Sale price
£60.45 GBP
Taxes included.
Quantity
Couldn't load pickup availability
This Lindy Media Converter extends the connection between two network devices at distances up to 550m using multimode fibre optic cables. The installation is plug-and-play and the user only has to connect to the RJ45 port with a Cat.5e or above Ethernet cable and the fibre port with a SC Multimode 50/125 or 62.5/125 Duplex fibre optic cable. No configuration needed, easily integrated into any existing Ethernet network and supports Full/Half duplex mode and auto-negotiation on both ports.

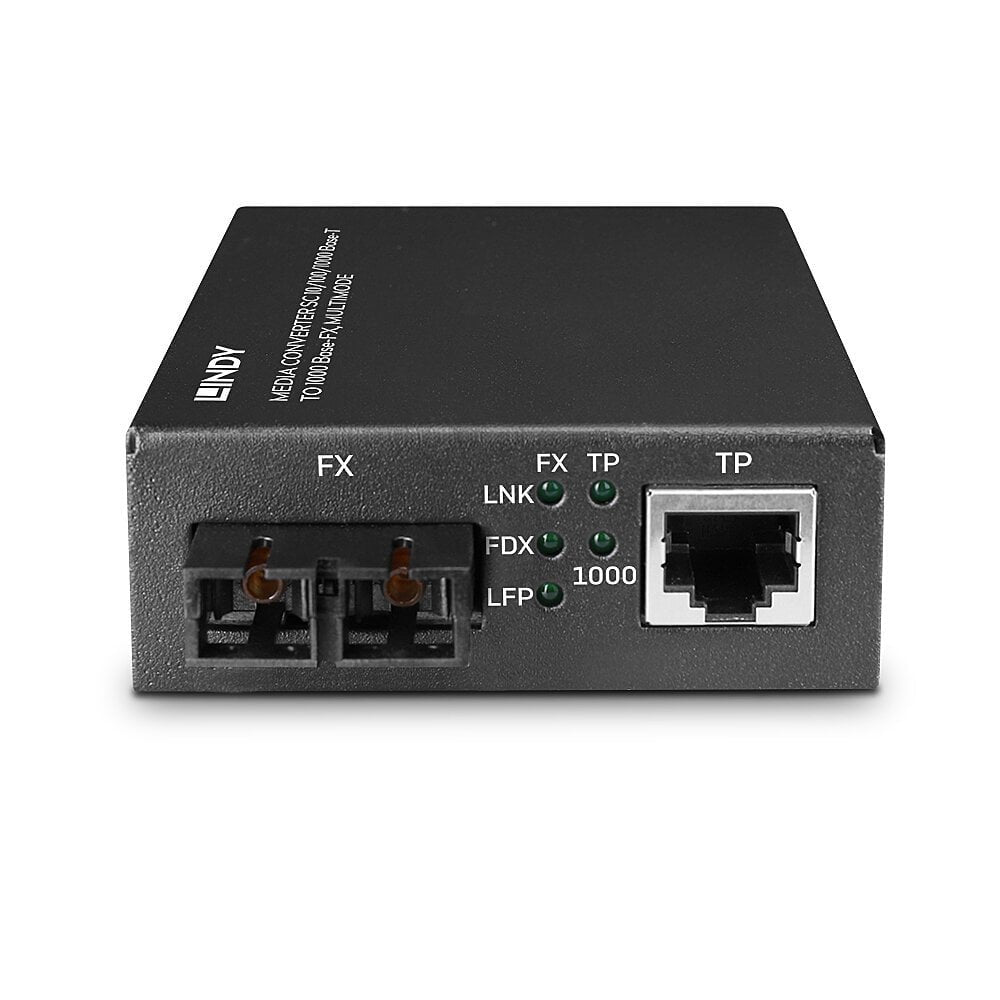

The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
The Media Converter can operate with 100 or 1000Mbps network speed, it also provides status LEDs to indicate data link, speed, Full/Half Duplex and link failure. Supports IEEE 802.3 standard and Jumbo frames up to 9K.
| Network | |
|---|---|
| Networking standards | IEEE 802.3 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Duplex system | Full, Half |
| Fiber optic connector | SC |
| Performance | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SC |
| Power | |
| Output voltage | 5 V |
| Output current | 1 A |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 70 mm |
| Weight | 540 g |
| Height | 25 mm |
| Package depth | 155 mm |
| Package width | 165 mm |
| Package height | 45 mm |
| Package weight | 650 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging data | |
| Package depth | 155 mm |
| Package width | 165 mm |
| Package height | 45 mm |
| Package weight | 650 g |
| Technical details | |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Fiber cable diameters supported (core/cladding) | 50/125,62.5/125 µm |
| Internal | No |
| Indication | |
| LED indicators | Yes |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
| Internal | No |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, UKCA, FCC, RoHS, REACH & California Proposition 65 |
