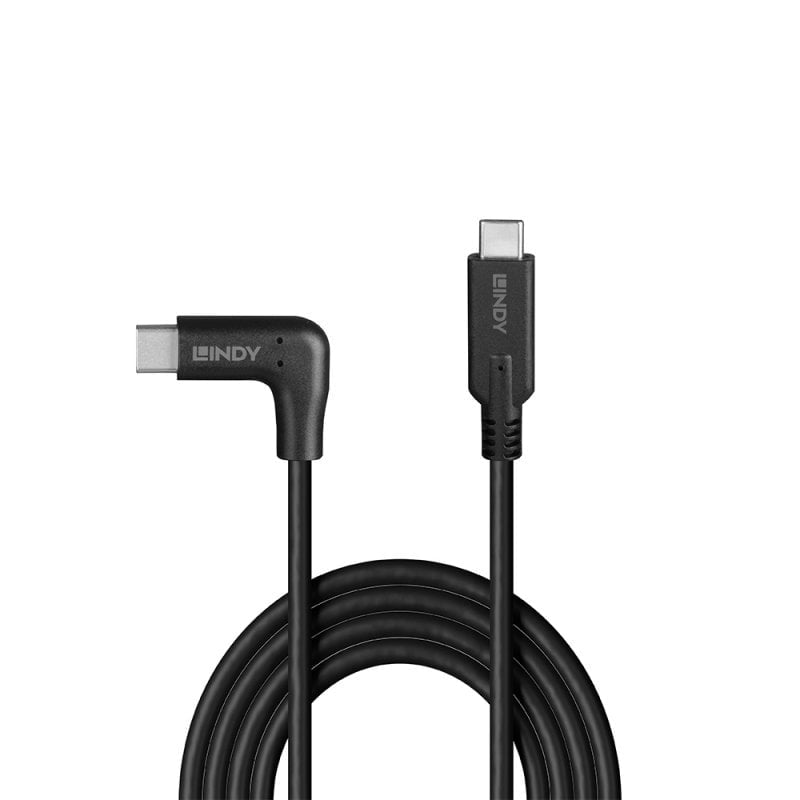

Lindy 1m USB 3.2 Type C Cable, 90° Right Angle, 10Gbps
Lindy 1m USB 3.2 Type C Cable, 90° Right Angle, 10Gbps
Regular price
£19.18 GBP
Regular price
Sale price
£19.18 GBP
Taxes included.
Quantity
Couldn't load pickup availability
LINDY USB 3.2 Type C cables feature double shielded construction with copper conductors for premium performance and corrosion resistance. Nickel connectors and gold plated contacts maintain signal integrity and reliability.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
USB cables with angled plugs protect the USB ports of your devices by reducing pressure and preventing cable breakage, making them ideal for confined spaces and hard-to-reach ports.
Data transfer speeds up to 10Gbps are supported for the quick and effortless transfer of large data volumes.
USB Type C features a reversible connector, so no matter which orientation the cable is inserted, a connection will always be found. This connector allows a fully bi-directional cable with automatic host and device negotiation.
USB 3.2 Type C, 90° Right Angle cables are available in the following lengths: 0.5m, 1m, 1.5m.
| Features | |
|---|---|
| Connector 1 form factor | Straight |
| Connector 2 form factor | Angled |
| AWG wire size | 22/28 |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Cable length | 1 m |
| Connector contacts plating | Nickel |
| Product colour | Black |
| Certification | RoHS, REACH, California Proposition 65 |
| Cable type | Round cable |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Conductor material | Copper |
| USB Power Delivery (USB PD) | Yes |
| Cable jacket material | Nylon/Polyvinyl Chloride (PVC) |
| USB Power Delivery up to | 60 W |
| USB Power Delivery revision | 2.0 |
| Connector material | Gold |
| Connector shielding | Yes |
| Connector shield material | Aluminium |
| Nominal attenuation | 0.5Mhz- 400Mhz < 5.8db |
| Maximum data transfer rate | 10 Gbit/s |
| Cable diameter | 5 mm |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Cable diameter | 5 mm |
| Cable length | 1 m |
| Bend radius (min) | 5 cm |
| Connector 1 dimensions (WxDxH) | 6.4 x 38 x 12.3 mm |
| Connector 2 dimensions (WxDxH) | 11.1 x 25.8 x 24.2 mm |
| Package type | Polybag |
| Packaging data | |
| Package type | Polybag |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Ports & interfaces | |
| USB version | USB 3.2 Gen 2 (3.1 Gen 2) |
| Connector 1 | USB C |
| Connector 2 | USB C |
| Connector contacts plating | Nickel |
| Technical details | |
| Product colour | Black |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS |
| Certificates | |
| Certification | RoHS, REACH, California Proposition 65 |
| Compliance certificates | REACH, RoHS |
| Other features | |
| Package type | Polybag |
| Product colour | Black |
| Cable type | Round cable |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Warranty period | 10 year(s) |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Warranty period | 10 year(s) |
