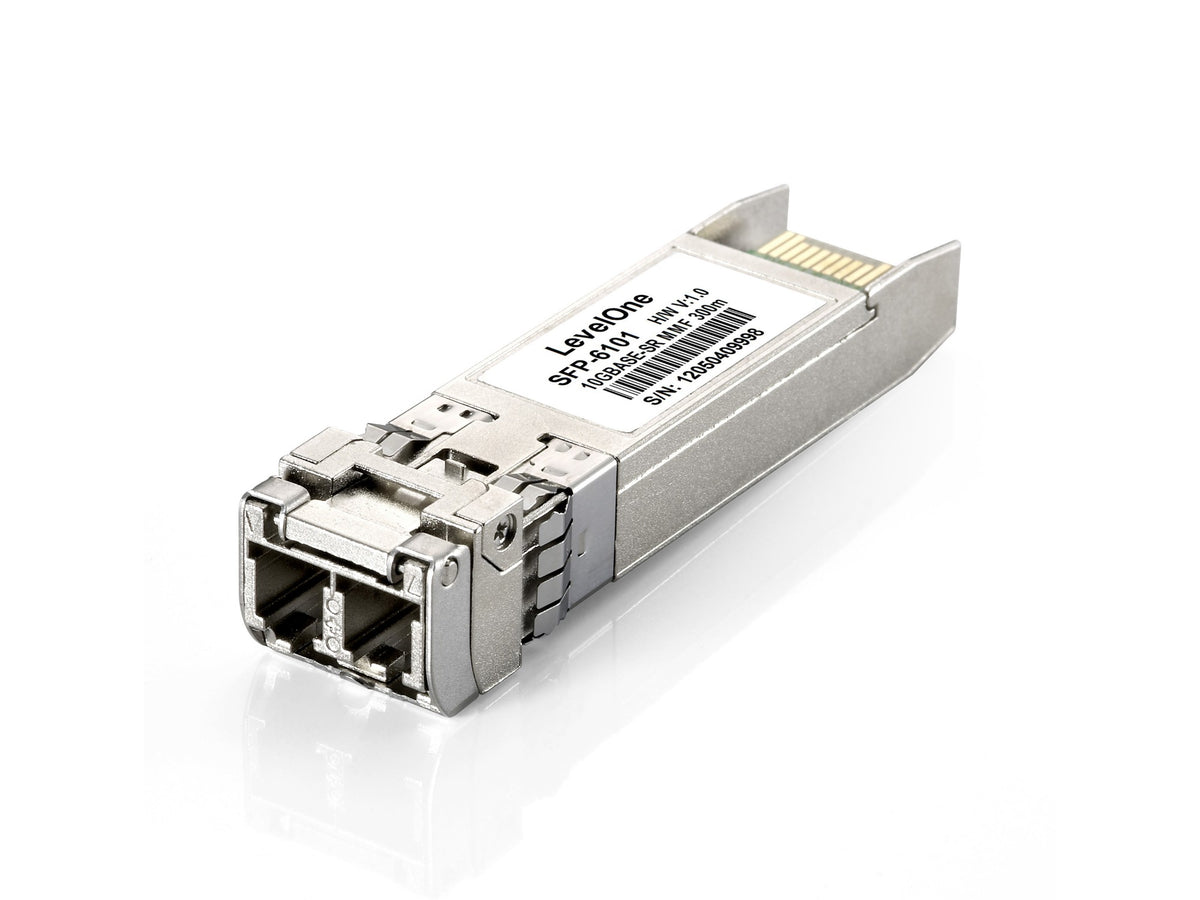

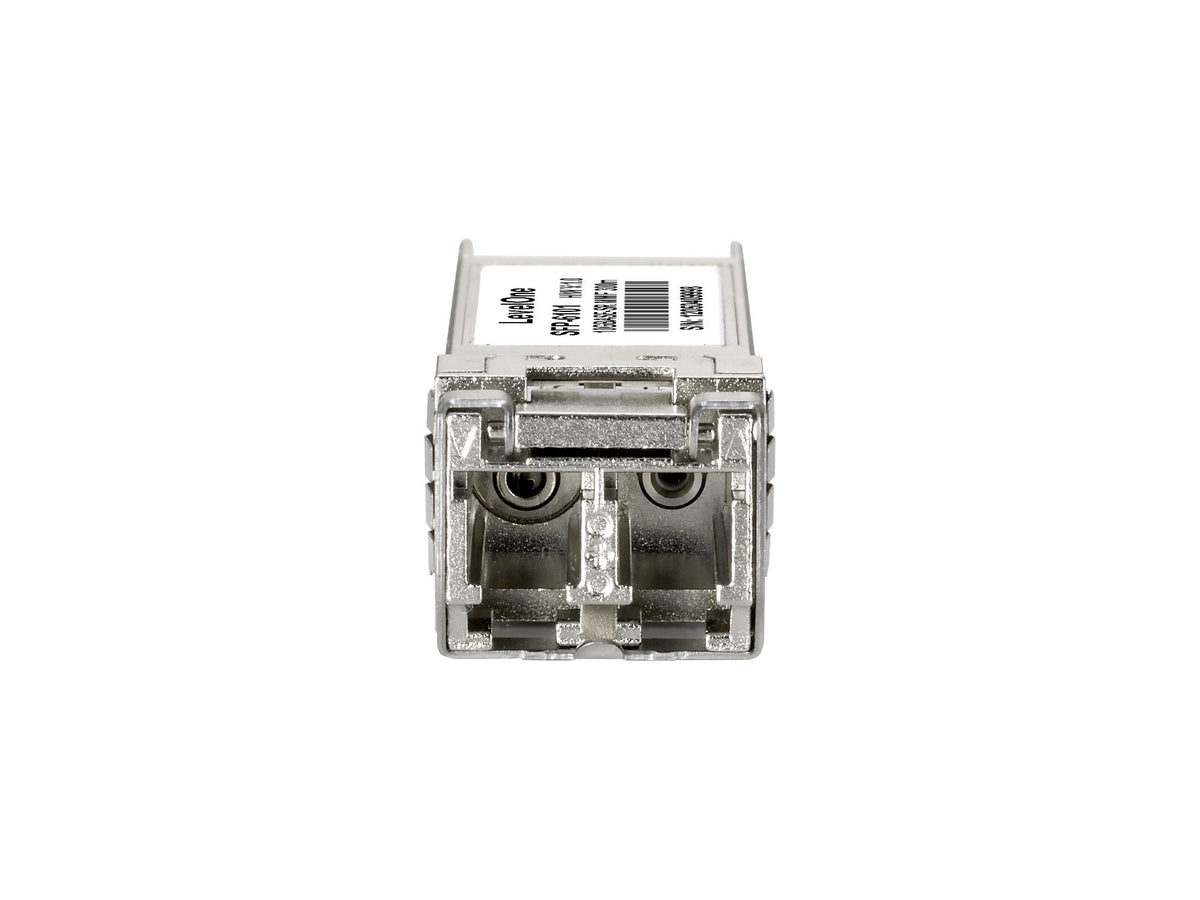

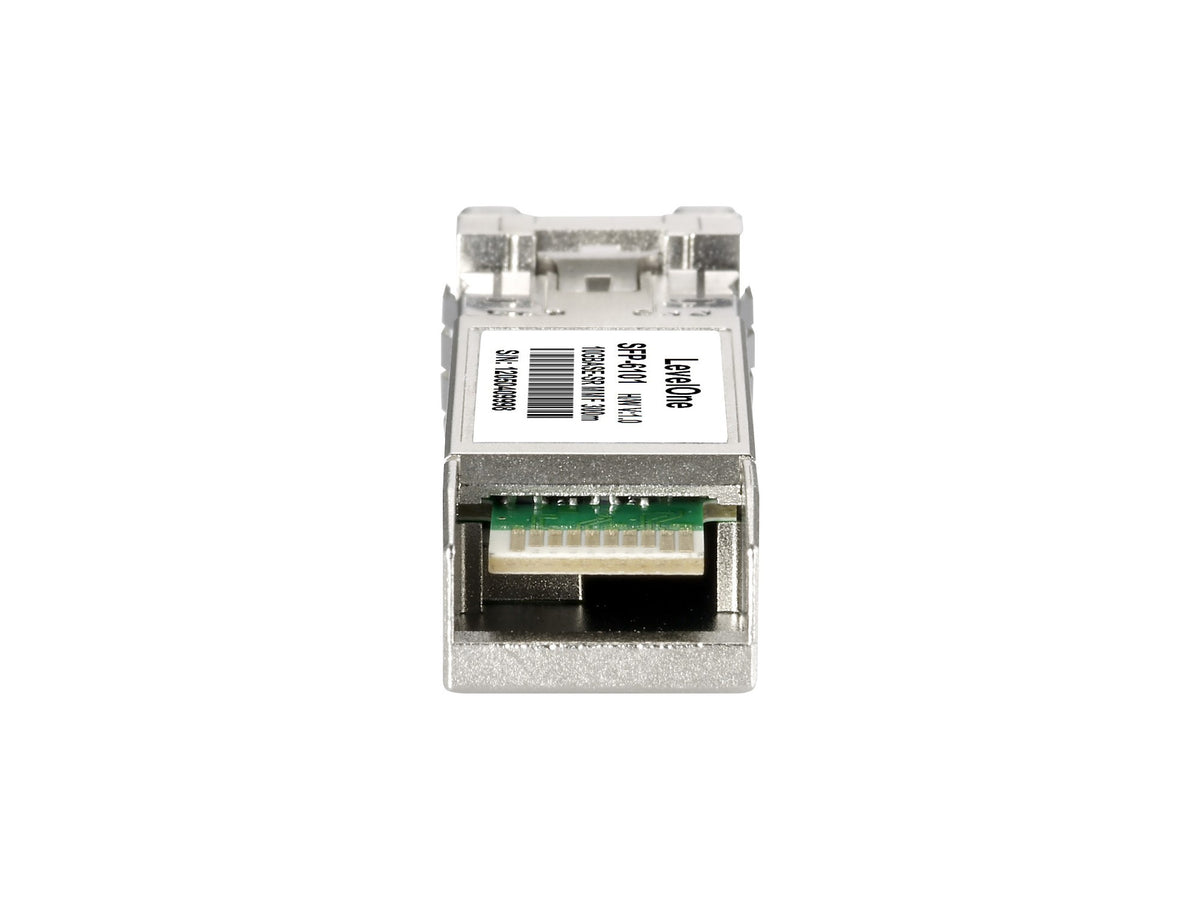

LevelOne 10Gbps Multi-mode SFP+ Transceiver, 300m, 850nm

LevelOne's SFP-Plus Transceivers are hot-swappable multi-purpose optical modules support 10Gigabit Ethernet applications across most switching and routing platforms. The transceivers support to operate at 10Gbps serial optical data transfer rates on a single duplex fiber core with a length of up to 40km (SMF) or 300m (MMF), ideally suited for data centers, enterprise and storage area networks. In addition, the LevelOne SFP-Plus transceivers adopt the most advanced technology to minimize the power consumption in ultra-high speed.

- High-quality 10Gbase short range SFP-Plus transceiver
- Comply with SFP Multi-Sourcing Agreement (MSA) to work in MSA compliant devices
- Supports Digital Optical Monitoring (DOM) and Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring
- Hot-swappable providing non-stop service
- Provides duplex LC connector
- Operating temperature: 0°C ~ 70°C

Performance
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Maximum transfer distance	300 m
Wavelength	850 nm
Fiber ports quantity	1
Tx power (min)	-6.5 dBmW
Tx power (max)	-1 dBmW
Duplex system	Full
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Multi-mode fiber (MMF) supported	Yes
Hot-swap	Yes
Harmonized System (HS) code	85369010
Features
Hot-swap	Yes
Certification	CE, FCC
Safety	EN 60825-1
Power
Maximum voltage	3.6 V
Maximum current	0.18 A
Input voltage	3.3 V
Certificates
Certification	CE, FCC
Safety	EN 60825-1
Compliance certificates	RoHS
Operational conditions
Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%
Network
SFP transceiver type	Fiber optic
Fiber optic connector	LC
Networking standards	IEEE 802.3ae
Fiber ports quantity	1
Maximum data transfer rate	10000 Mbit/s
Interface type	SFP+
Weight & dimensions
Width	57 mm
Depth	12 mm
Height	13.7 mm
Weight	20 g
Package depth	20 mm
Package width	106 mm
Package height	65 mm
Package weight	35 g
Packaging content
Quantity per pack	1 pc(s)
Technical details
Package width	106 mm
Package height	65 mm
Hot-swap	Yes
Maximum transfer distance	300 m
Wavelength	850 nm
Tx power (min)	-6.5 dBmW
Tx power (max)	-1 dBmW
Duplex system	Full
Compliance certificates	RoHS
Ports & interfaces
Fiber ports quantity	1
Packaging data
Package depth	20 mm
Package width	106 mm
Package height	65 mm
Package weight	35 g
Logistics data
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85369010
