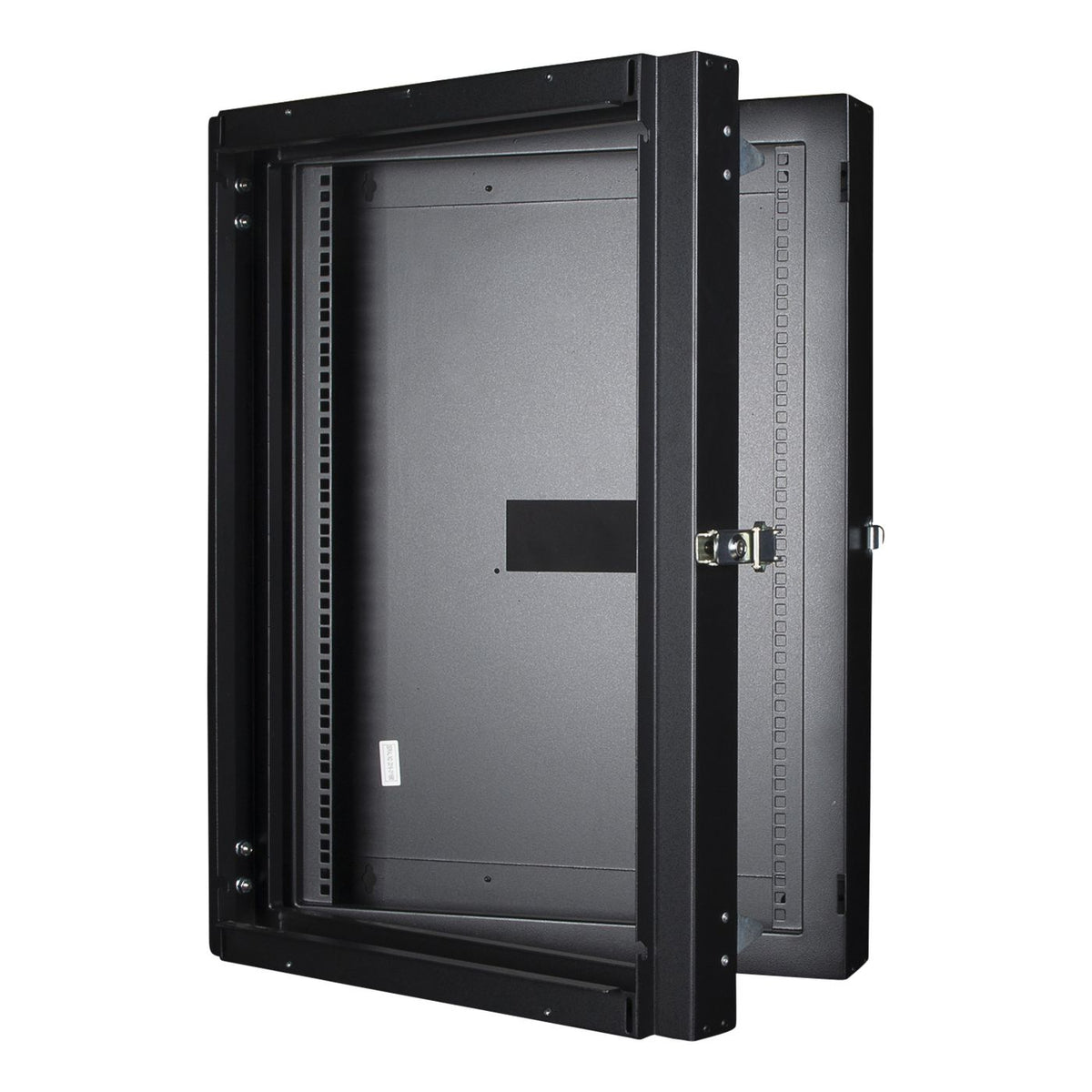

Lanview RWMD16UBL rack cabinet Black

LOGON PROFESSIONAL DOUBLE SECTION FOR RWM CABINET 16U

Weight(kg): 19
Product dimensions WxDxH(mm): 600x150x809
Ah Wall mounting hole gaps(mm): 700
RAL: 9005

Additional depth capacity 150mm provided by the Network Series Wall Type Cabinets allows housing of cable harness.

Equipments, conforming with 19" installation and of 70mm depth, may be attached inside.

By means of 2 brushed cable entry modules of W=145mm x D=70 mm found on the top and bottom, and 1 cable inlet hole of W=145mm x D=70mm found at the back, it allows multi directional cable inlet.

While Network Wall Type Cabinets provide access from the front and sides at its standard use, Additional Compartment applications provide 4 directional access by an extra access point at theback.

By this means ease of installation and maintenance is provided.

Package dimensions(mm): 655x200x835

Features
Size (imperial)	48.3 cm (19")
Frame type	Closed
International Protection (IP) code	IP20
Castor wheels	No
Mounting hole shape	Round
Maximum weight capacity	80 kg
Product colour	Black
Preassembled	Yes
Weight & dimensions
Package depth	150 mm
Package width	640 mm
Package height	890 mm
Package weight	19.5 kg
Width	640 mm
Depth	150 mm
Height	890 mm
Weight	19 kg
Size (imperial)	48.3 cm (19")
Maximum weight capacity	80 kg
Packaging data
Package depth	150 mm
Package width	640 mm
Package height	890 mm
Package weight	19.5 kg
Technical details
Package width	640 mm
Package height	890 mm
Size (imperial)	48.3 cm (19")
Dimensions (WxDxH)	600 x 150 x 809 mm
International Protection (IP) code	IP20
Colour
Product colour	Black
Other features
Dimensions (WxDxH)	600 x 150 x 809 mm
