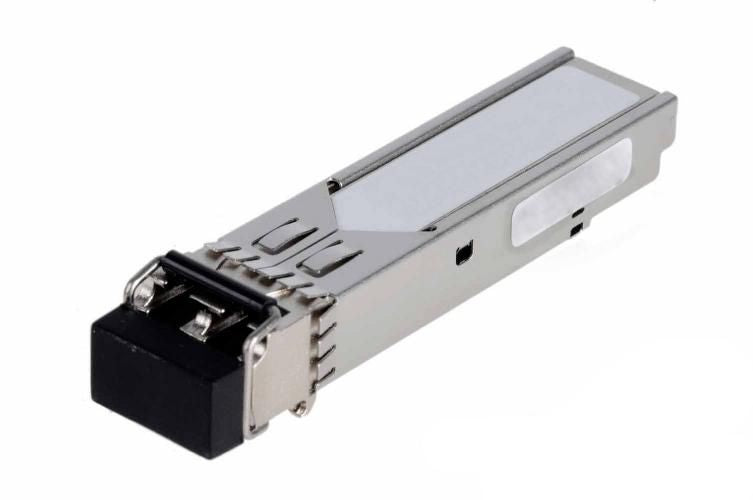

Lanview MO-P-S85123-3CLM network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Lanview MO-P-S85123-3CLM network transceiver module Fiber optic 1000 Mbit/s SFP 850 nm
Regular price
£34.15 GBP
Regular price
Sale price
£34.15 GBP
Taxes included.
Quantity
Couldn't load pickup availability
Micro-Optics products provide seamless connectivity for all your current and future network hardware needs.
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber ports quantity | 1 |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Duplex system | Full |
| Cabling technology | 10/100/1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | No |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SX |
| Easy to install | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | HP/Compaq J4858A, J4858C, J4858-61201, MO-SFP2134H |
| Features | |
| Easy to install | Yes |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Compatible products | HP/Compaq J4858A, J4858C, J4858-61201, MO-SFP2134H |
| Certification | MSA |
| Certificates | |
| Certification | MSA |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage relative humidity (H-H) | 10 - 85% |
| Network | |
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| Cabling technology | 10/100/1000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 56.5 mm |
| Height | 8.5 mm |
| Weight | 10 g |
| Package depth | 65 mm |
| Package width | 105 mm |
| Package height | 23 mm |
| Package weight | 34 g |
| Technical details | |
| Package width | 105 mm |
| Package height | 23 mm |
| Plug and Play | Yes |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Fiber cable diameters supported (core/cladding) | 50/125 µm |
| Duplex system | Full |
| Compatible products | HP/Compaq J4858A, J4858C, J4858-61201, MO-SFP2134H |
| Cabling technology | 10/100/1000 |
| Ports & interfaces | |
| Fiber ports quantity | 1 |
| Packaging data | |
| Package type | Window box |
| Package depth | 65 mm |
| Package width | 105 mm |
| Package height | 23 mm |
| Package weight | 34 g |
| Packaging content | |
| Package type | Window box |
