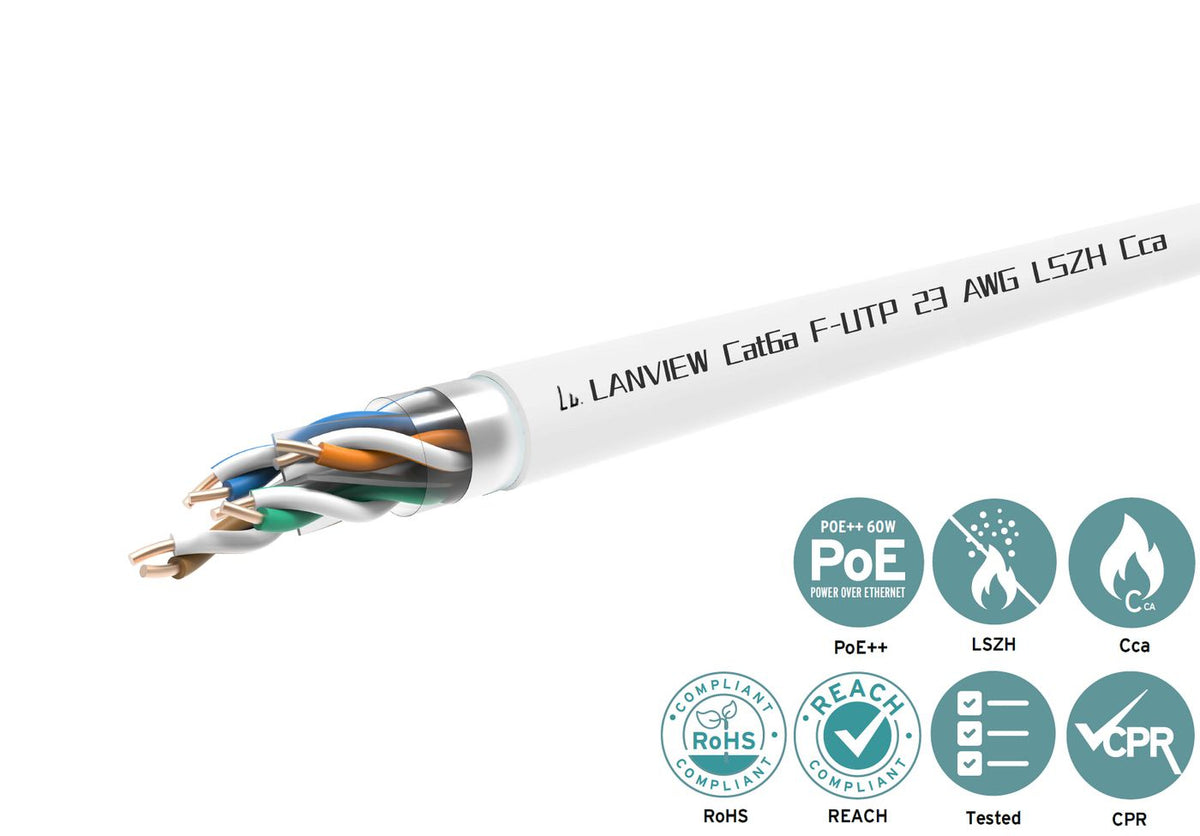

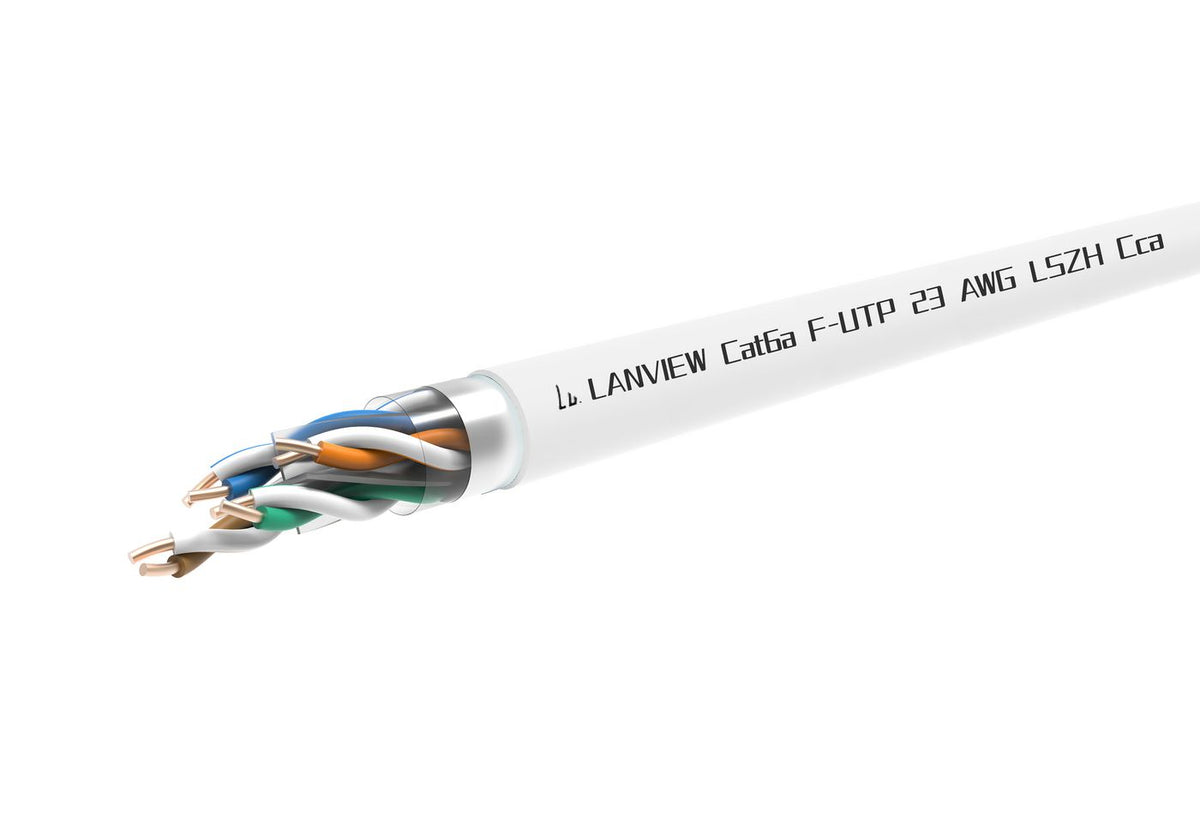

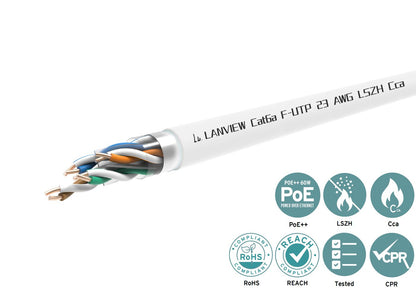

Lanview Cat6a U-FTP LSZH cables are manufactured and tested to the ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards. Each cable consists of 4x2 color coded PE insulated conductors. Suited for high speed cabling systems where there is a need for large data traffic. Especially suited for noisy environments or where there is limited space in the cable routes.
Features
Product colour
White
Conductor material
Copper
Frequency
500 MHz
AWG wire size
23
Cable standard
Cat6a
Cable shielding
F/UTP (FTP)
Connector 1
No
Connector 2
No
Cabling technology
10GBase-T
Data transfer rate
10000 Mbit/s
Jacket material
Low smoke zero halogen (LSZH)
Conductor type
Solid

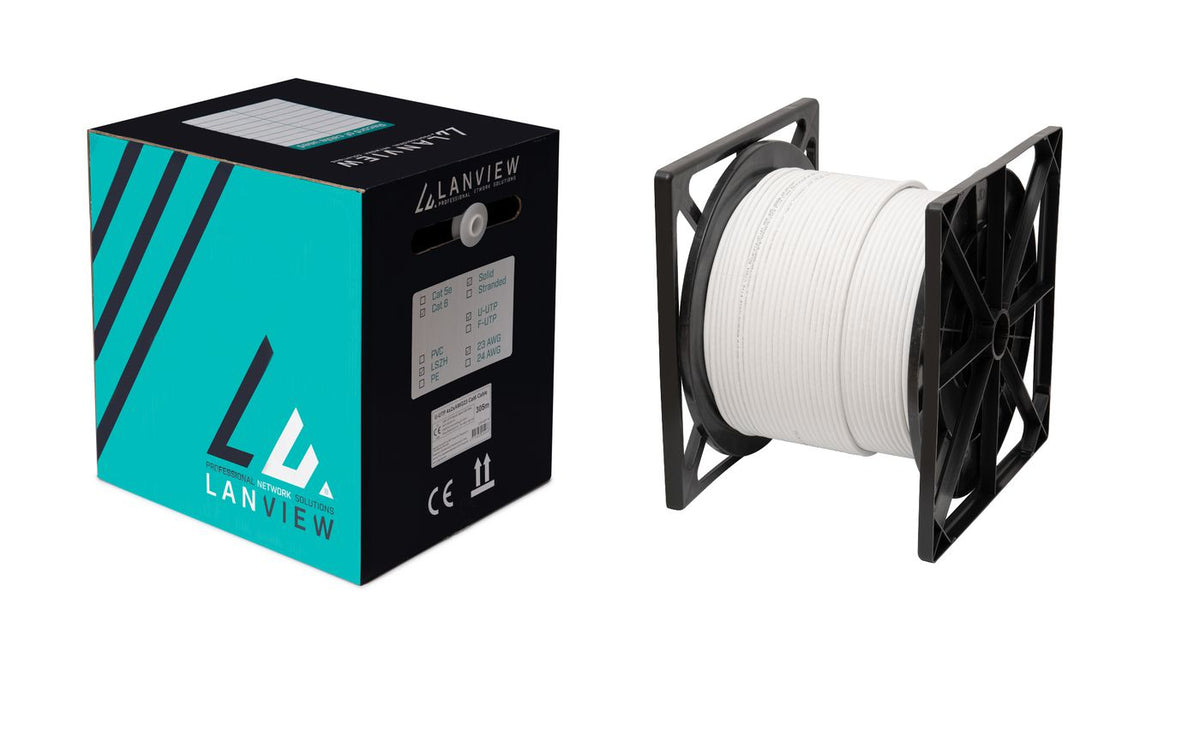

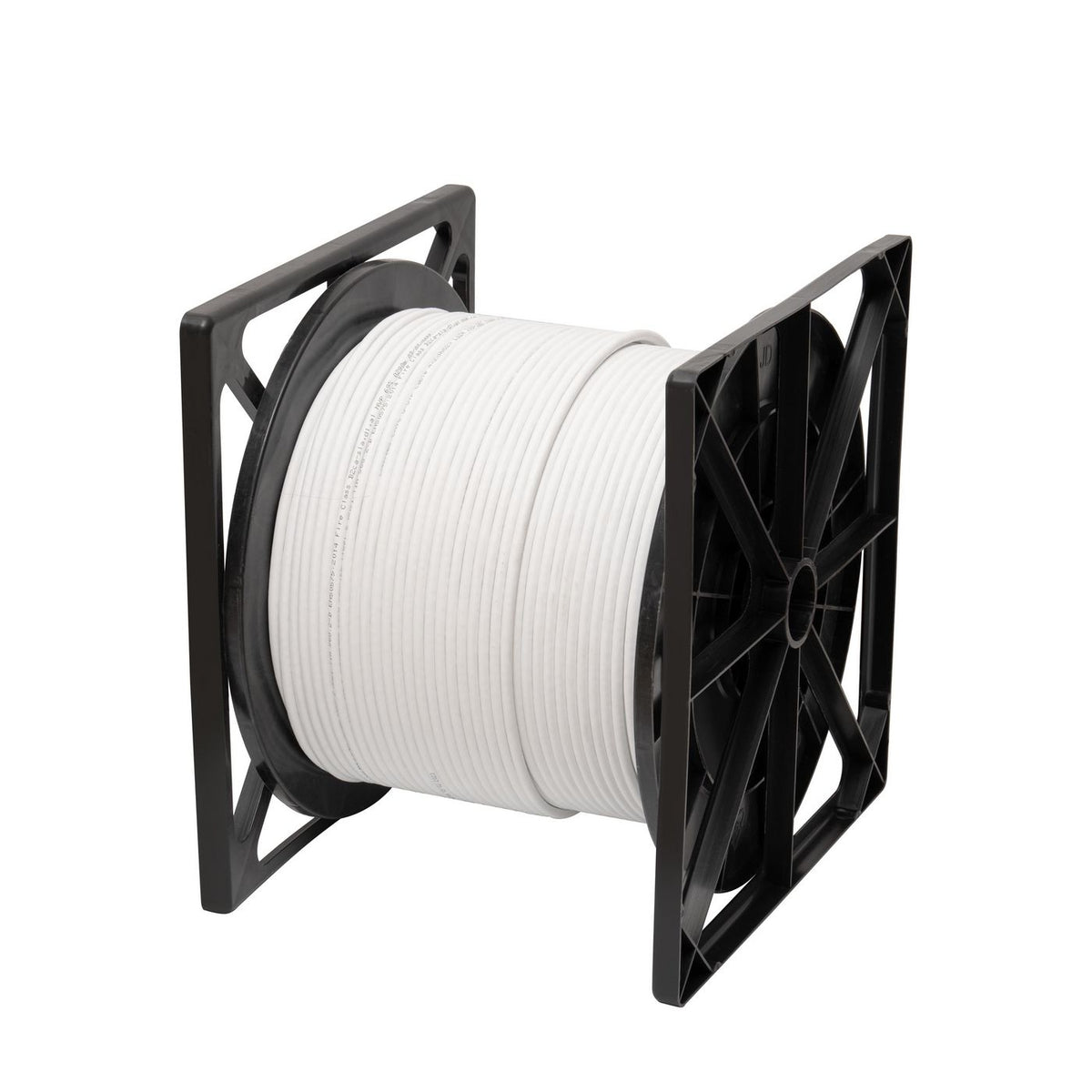

Cable length
305 m
Ethernet interface type
10 Gigabit Ethernet
Cable shape
Round
Cable fire class
Cca
Certification
ANSI/TIA-568.2-D, EN 50173-1, EN 50173-2, EN 50288-10-1, IEC 61156-6, ISO/IEC 11801-1
Certificates
Certification
ANSI/TIA-568.2-D, EN 50173-1, EN 50173-2, EN 50288-10-1, IEC 61156-6, ISO/IEC 11801-1
