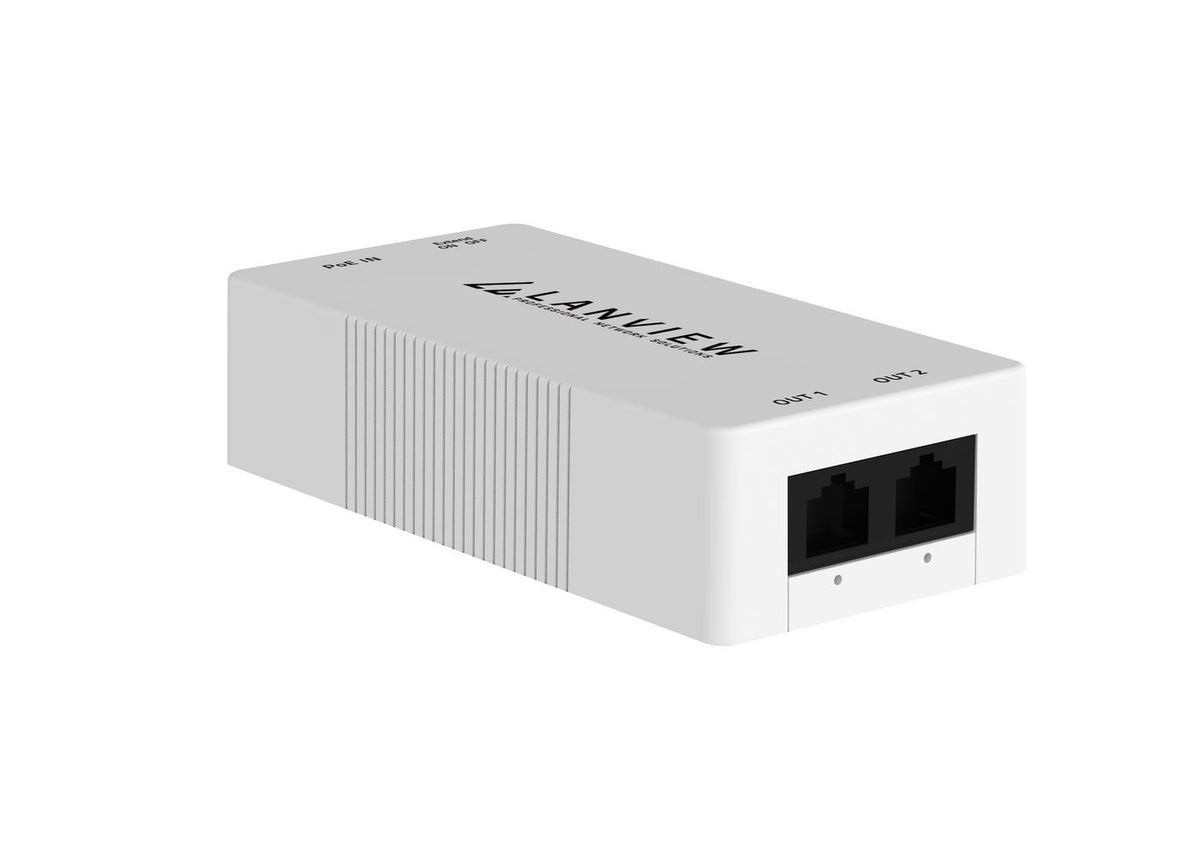

Lanview LVN-100MB-POE30W-EXTENDER network extender White 100 Mbit/s

The Lanview 2-Port PoE Extender leverages advanced network cabling and power delivery technologies to extend Ethernet transmission distances well beyond the standard 100 meters—reaching up to 250 meters.
Fully compatible with IEEE802.3af/at-compliant PoE switches and injectors, it is an excellent solution for PoE-based security monitoring systems and network installations.
Built with high-performance network ICs and industry-leading PoE chipsets, this extender ensures reliable, safe, and stable network operation in demanding environments.

Performance
Packet forwarding rate (100 Mbps)	0.446 pps
Flow control support	Yes
International Protection (IP) code	IP20
Plug and Play	Yes
Ethernet LAN data rates	100 Mbit/s
Maximum transfer distance	250 m
Power over Ethernet (PoE)	Yes
Network
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3
Ports & interfaces
RJ-45 ports quantity (transmitter)	2
RJ-45 ports quantity (receiver)	1
Ethernet LAN (RJ-45) ports	3
Design
On/off switch	Yes
Product colour	White
Rack mounting	No
Rack capacity	0U
Quantity per pack	1 pc(s)
Power
Power over Ethernet (PoE)	Yes
Output voltage	44-57 V
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	50 mm
Depth	27 mm
Height	102 mm
Weight	60 g
Packaging data
Package width	50 mm
Package depth	27 mm
Package height	102 mm
Package weight	65 g
Technical details
Packet forwarding rate (100 Mbps)	0.446 pps
Flow control support	Yes
International Protection (IP) code	IP20
Plug and Play	Yes
Ethernet LAN data rates	100 Mbit/s
On/off switch	Yes
Maximum transfer distance	250 m
Power over Ethernet (PoE)	Yes
Colour
Product colour	White
Logistics data
Master (outer) case width	295 mm
Master (outer) case length	425 mm
Master (outer) case height	275 mm
Master (outer) case gross weight	14 kg
Products per master (outer) case	200 pc(s)
