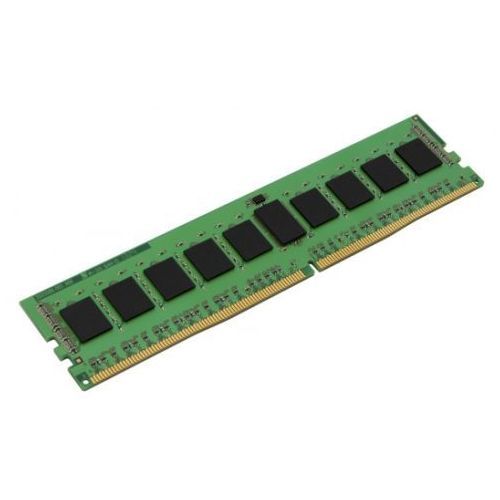

Kingston 16GB, DDR4, 2666MHz (PC4-21330), CL19, DIMM Memory

Kingston 16GB, DDR4, 2666MHz (PC4-21330), CL19, DIMM Memory

£27.73 GBP
£27.73 GBP
Sold out
Tax included.
ValueRAM's KVR26N19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC...
25 people are viewing this right now

Availability: Low stock: 10 left
SKU: KVR26N19D8/16
Vendor: KINGSTON
Category: Unknown Type
Tags:

Shipping & Returns

Free shipping and returns available on all orders!

We ship all US domestic orders within 5-10 business days

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Size Chart

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details


ValueRAM's KVR26N19D8/16 is a 2G x 64-bit (16GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers.



Features

  • Power Supply: VDD=1.2V Typical
  • VDDQ = 1.2V Typical
  • VPP - 2.5V Typical
  • VDDSPD=2.2V to 3.6V
  • Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
  • Low-power auto self refresh (LPASR)
  • Data bus inversion (DBI) for data bus
  • On-die VREFDQ generation and calibration
  • Dual-rank
  • On-board I2 serial presence-detect (SPD) EEPROM
  • 16 internal banks; 4 groups of 4 banks each
  • Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
  • Selectable BC4 or BL8 on-the-fly (OTF)
  • Fly-by topology
  • Terminated control command and address bus
  • PCB: Height 1.23” (31.25mm)
  • RoHS Compliant and Halogen-Free


Description

Specification

  • Series: Kingston ValueRAM
  • DDR Type: DDR4
  • Size: 1 x 16GB
  • #Hide#Individual Module Size: 16GB
  • #Hide#Total Capacity: 16GB Total
  • Speed: 2666 MHz
  • Compliance: PC4-21330
  • Pins: 288-pin
  • CAS Latency: CL19
  • Data Integrity Check: Non-ECC
  • Low Voltage: No
  • Voltage: 1.2V Typical
  • Timings: 19-19-19
  • Heatsink: No
  • #Hide#LED Lighting: No
  • Additional Information: See Overview
  • Package Type: Blister Pack
  • Package Weight: 0.0225 kg
  • Warranty: Lifetime
