J5CREATE

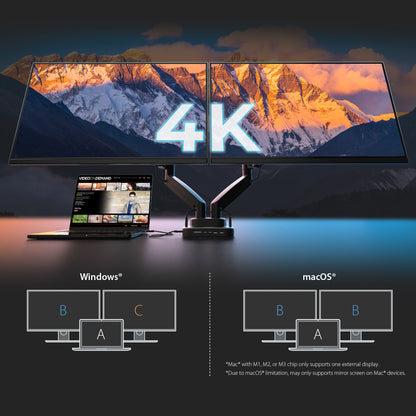

j5create JTSA302 Ergonomic Dual-Monitor Mount with Docking Station, Black

£190.29 GBP

Sale Sold out

Taxes included.

Condition New

Pairing dual adjustable monitor arms with an integrated docking station, the j5create JTSA302 is a complete desk upgrade. USB-C, HDMI and Ethernet in the base mean two screens and wired networking from a single laptop cable.

j5create JTSA302 Ergonomic Dual-Monitor Mount with Docking Station, Black. Mounting: Clamp/Grommet, Maximum weight capacity: 16 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -45 - 90°. Product colour: Black

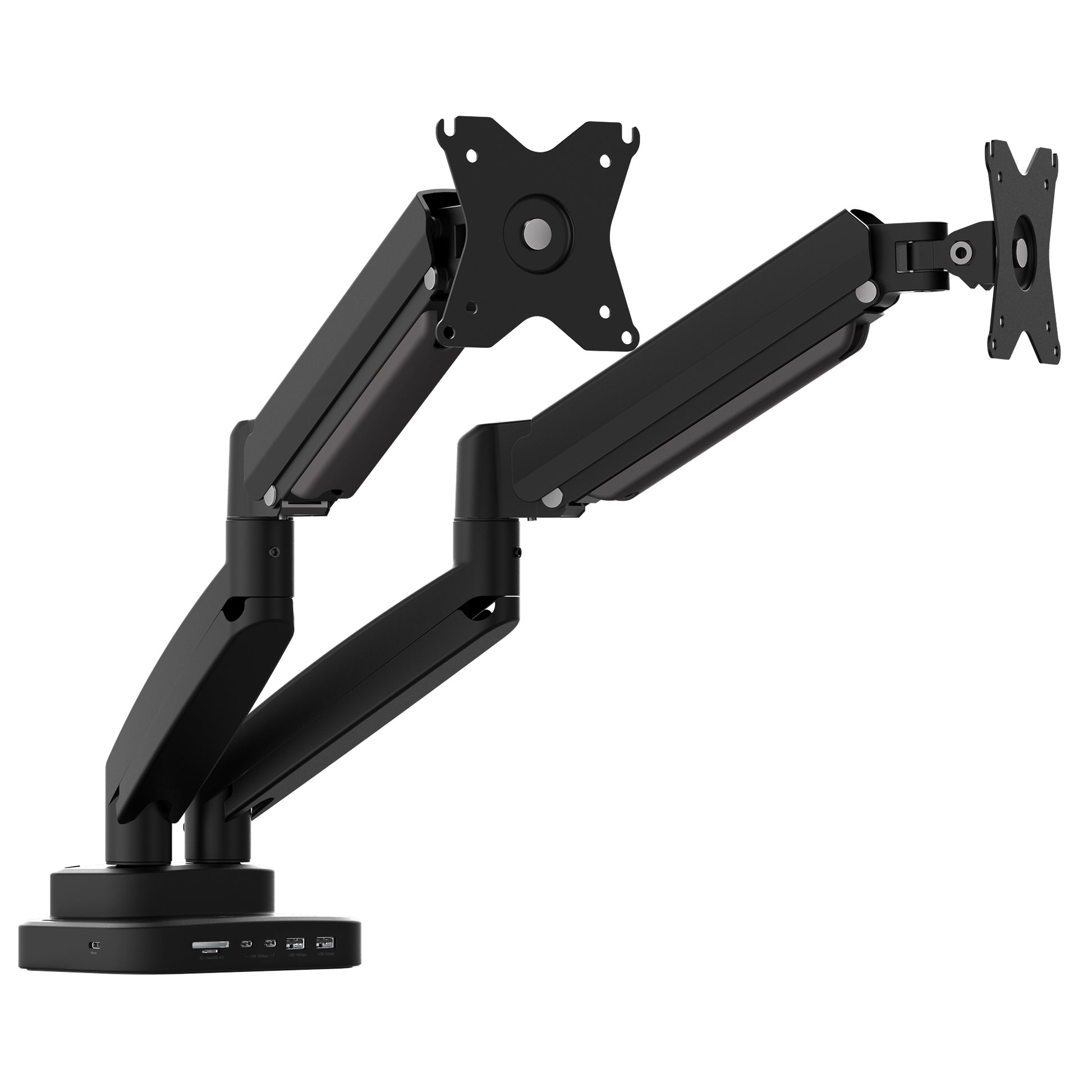

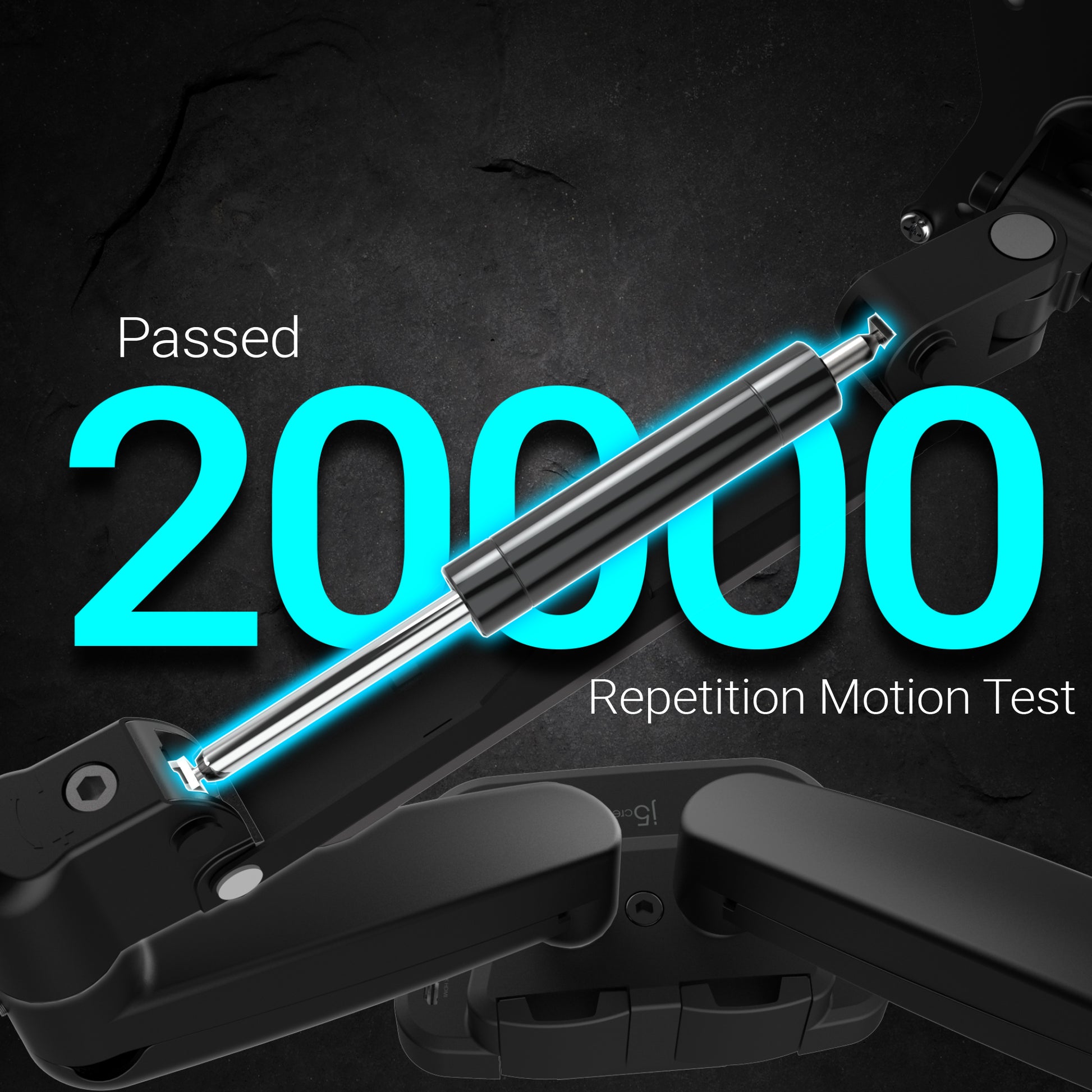

The JTSA302 is a gas spring monitor mount. Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™, Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps 2 x USB-C® 10Gbps, SD™ /microSD ™ 4.0, and up to 100W PD pass through charging. The arm can hold max two 32” screens weighing up to 8kg/17.6 lbs. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Key features

Fully adjustable gas spring dual monitor mount with 10-in-1 dock
Easily adjusts monitors to any height and allows the monitors to swivel 180°, tilt -45° to +90° and rotate 360°. Conveniently set your monitors at optimal angles

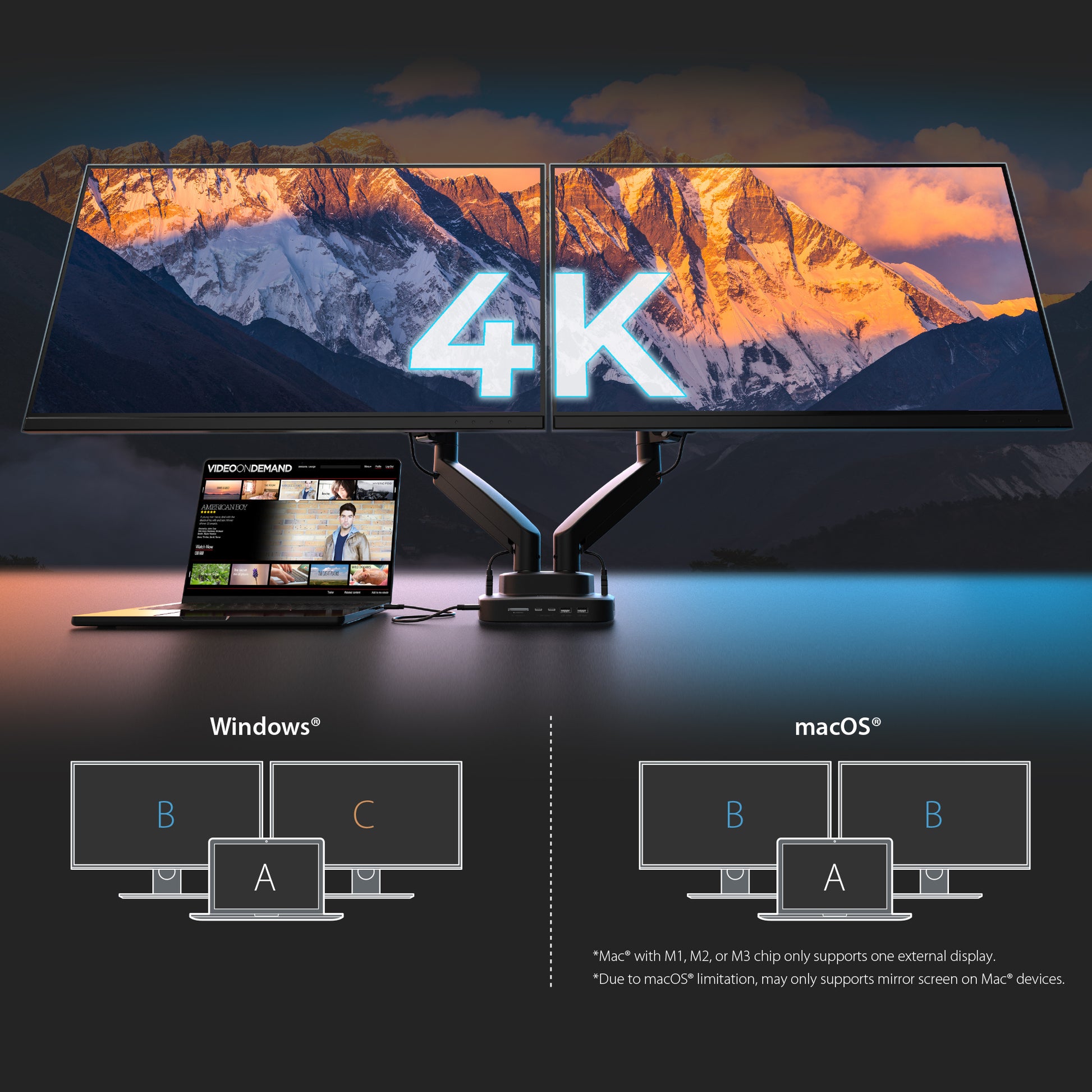

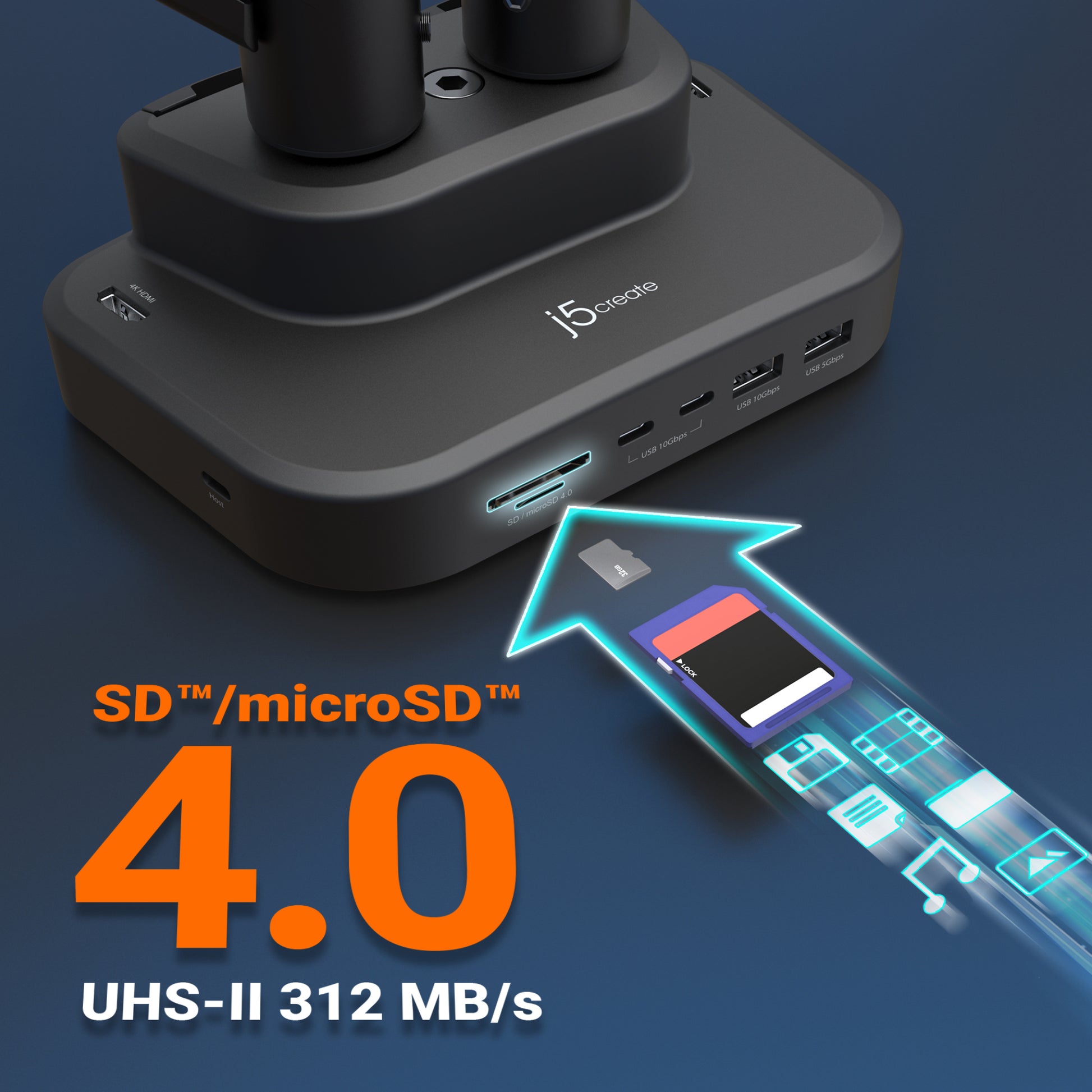

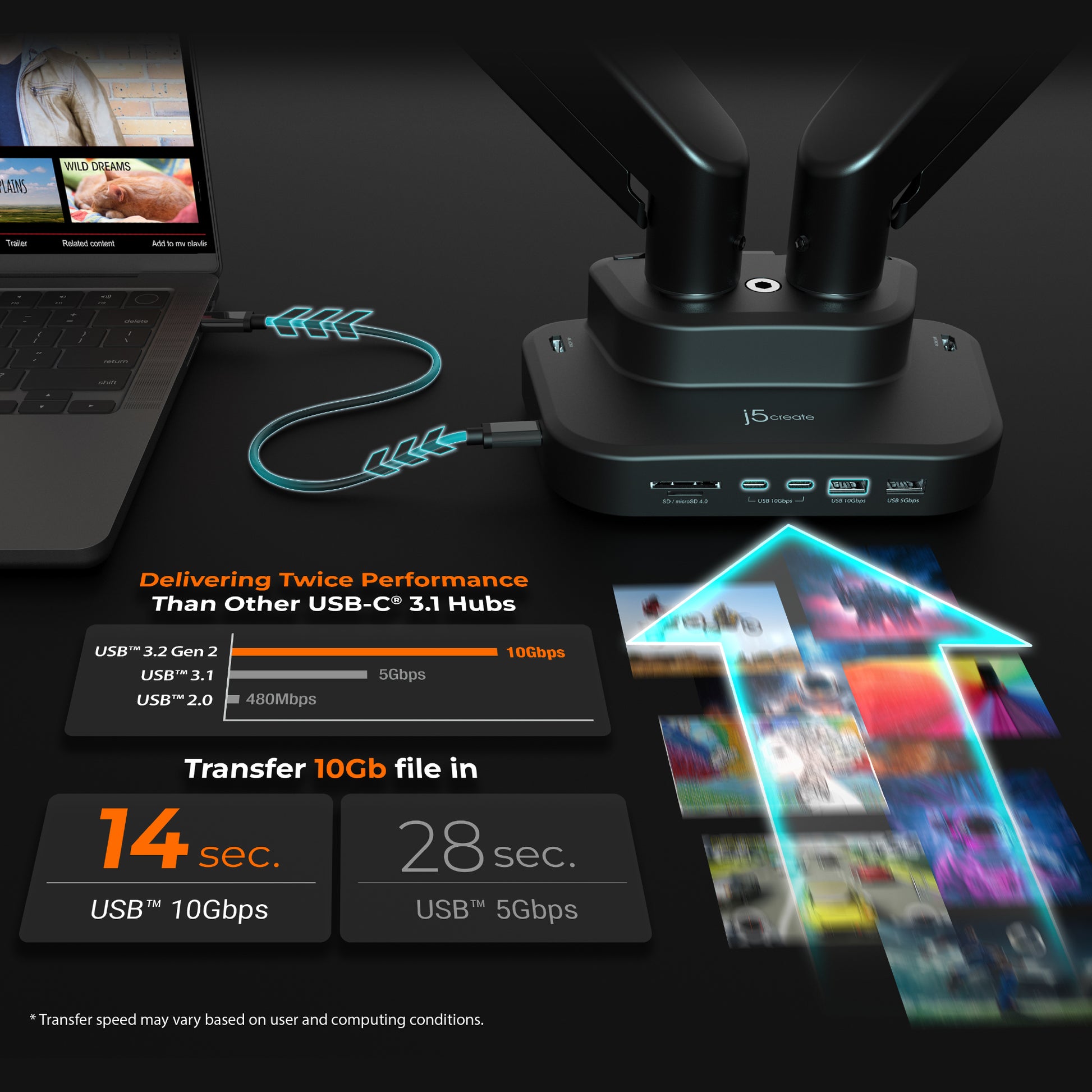

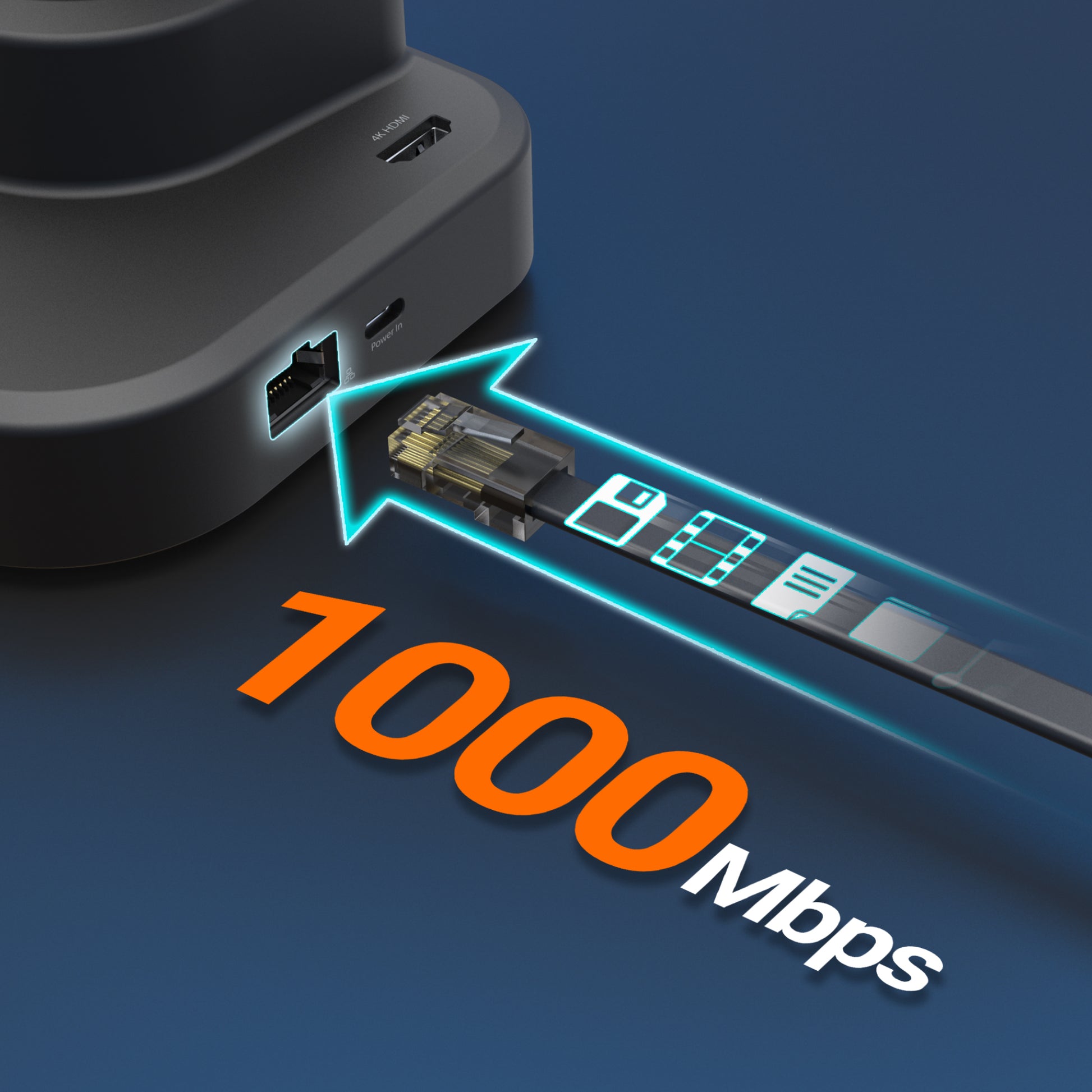

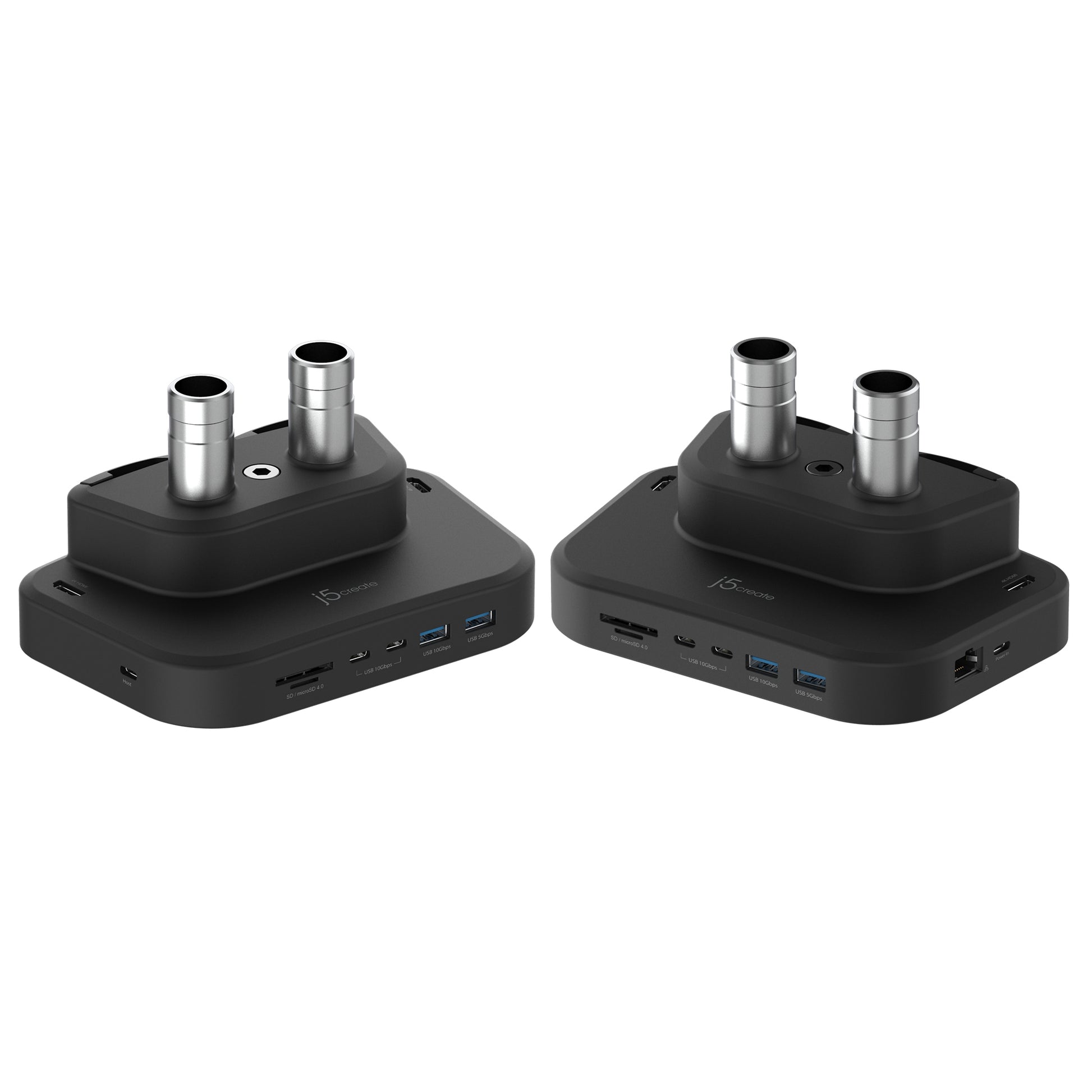

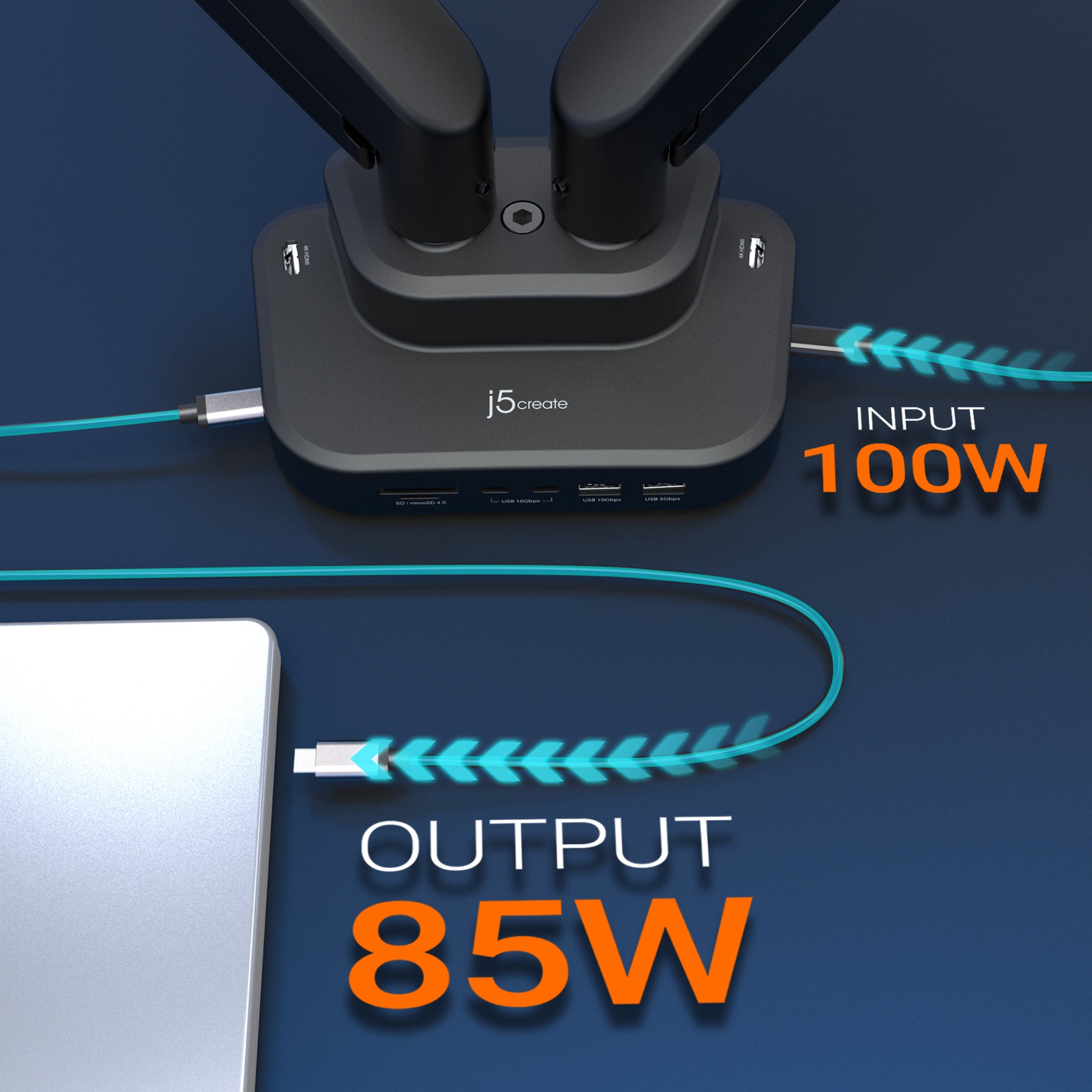

Equipped with a 10-in-1 MST dual-display dock with two 4K60Hz HDMI™ , Gigabit Ethernet, 1 x USB™ Type-A 10Gbps, 1 x USB™ Type-A 5Gbps, 2 x USB-C® 10Gbps, SD™ /microSD™ 4.0, and up to 100W PD pass through charging

Specifications

Mounting
Maximum weight capacity	16 kg
Minimum screen size	43.2 cm (17")
Number of displays supported	2
Maximum weight capacity (per display)	8 kg
Maximum screen size	81.3 cm (32")
Mounting	Clamp/Grommet
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Desk thickness (min)	1 cm
Clamp mount desk thickness (max)	5 cm
Grommet mount desk thickness (max)	5 cm
Ergonomics
Height adjustment	Yes
Adjustable depth	Yes
Tilt adjustment	Yes
Tilt angle range	-45 - 90°
Swivelling	Yes
Swivel angle	180°
Angle of rotation	360°
Cable management	Yes
Design
Housing material	Aluminium, Plastic, Steel
Product colour	Black
Orientation	Landscape/Portrait
Easy to install	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Data transfer rate	10 Gbit/s
HDMI ports quantity	2
Power
Input voltage	20 V
Weight & dimensions
Width	180 mm
Depth	320 mm
Height	465 mm
Weight	3.7 kg
Packaging data
Quantity per pack	1 pc(s)
Package width	243 mm
Package depth	515 mm
Package height	127 mm
Package weight	4.44 kg
Package type	Box
Packaging content
Packaging content	1- JTSA302 Ergonomic Dual-Monitor Mount with Docking Station 1 - USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft) 1- Installation tools & accessories 1 - Quick Installation Guide (QIG)
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Maximum operating temperature	30 °C
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Other features
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Technical details
Compatible operating systems	Windows® macOS®
Display resolution	3840 x 2160 pixels
Logistics data
Master (outer) case width	275 mm
Master (outer) case length	536 mm
Master (outer) case height	145 mm
Products per master (outer) case	1 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088292
Country of origin	China
Master (outer) case net weight	4.8 kg
Export Control Classification Number (ECCN)	EAR99
