J5CREATE

j5create JTSA301 Ergonomic Monitor Mount with Dock, Black

£105.01 GBP

Sale Sold out

Taxes included.

Condition New

The j5create JTSA301 combines an ergonomic, height-adjustable monitor mount with a docking station built into its base, including USB-C and HDMI. One tidy stand lifts your screen and connects your laptop.

j5create JTSA301 Ergonomic Monitor Mount with Dock, Black. Mounting: Clamp/Grommet, Maximum weight capacity: 8 kg, Minimum screen size: 43.2 cm (17"), Maximum screen size: 81.3 cm (32"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: -45 - 90°. Product colour: Black

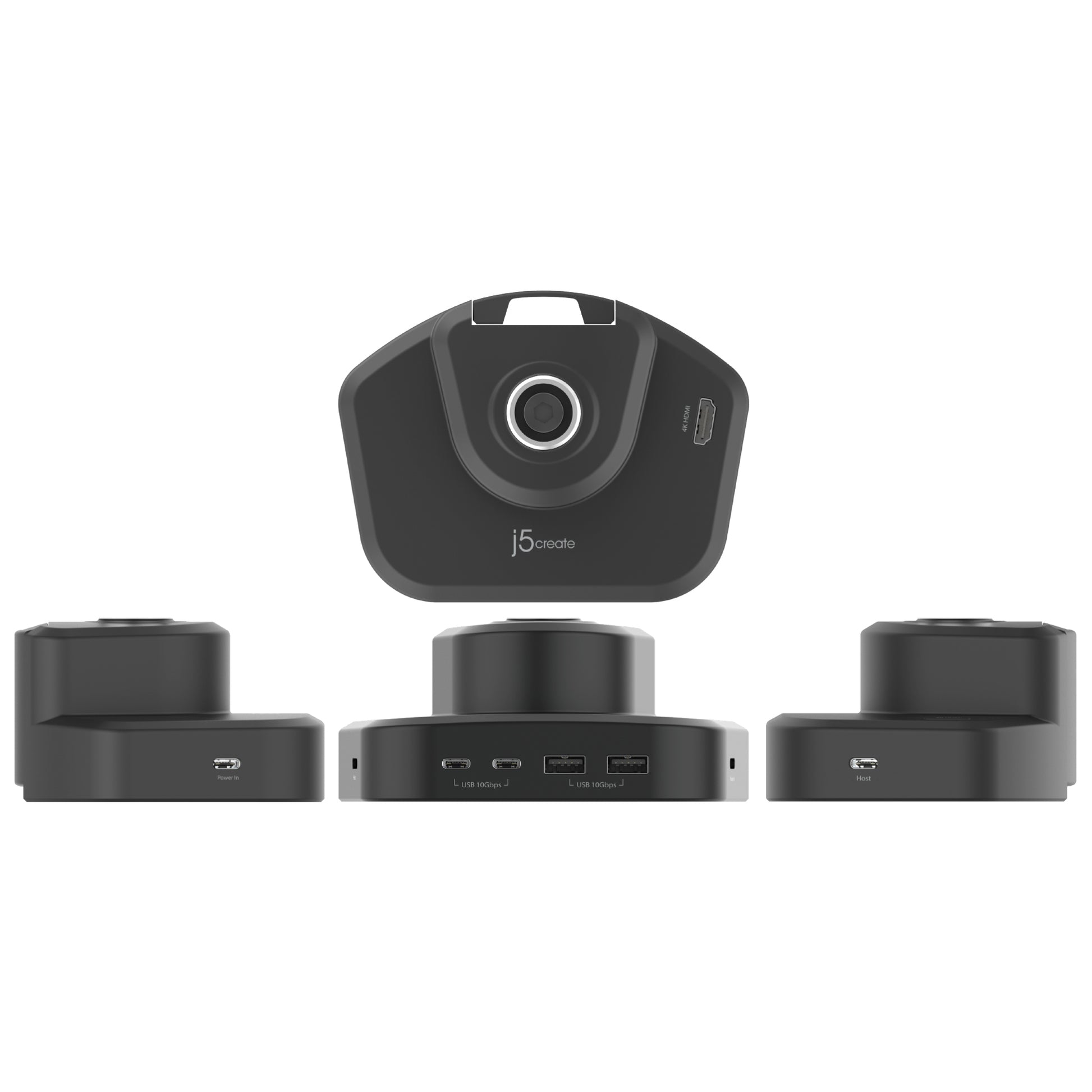

The JTSA301 is a gas spring monitor mount. Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging. The arm can hold max a 32” screen weighting up to 8kg/17.6 lbps. Easily adjust your screen to any height. The gas spring allows the screen to swivel 180°, tilt -45° to +90°and rotate 360°. Conveniently set your monitor at an optimal angle. This monitor mount gives you the ability to create a more efficient workspace, whether you need extra space or a standing desk setup.

Key features

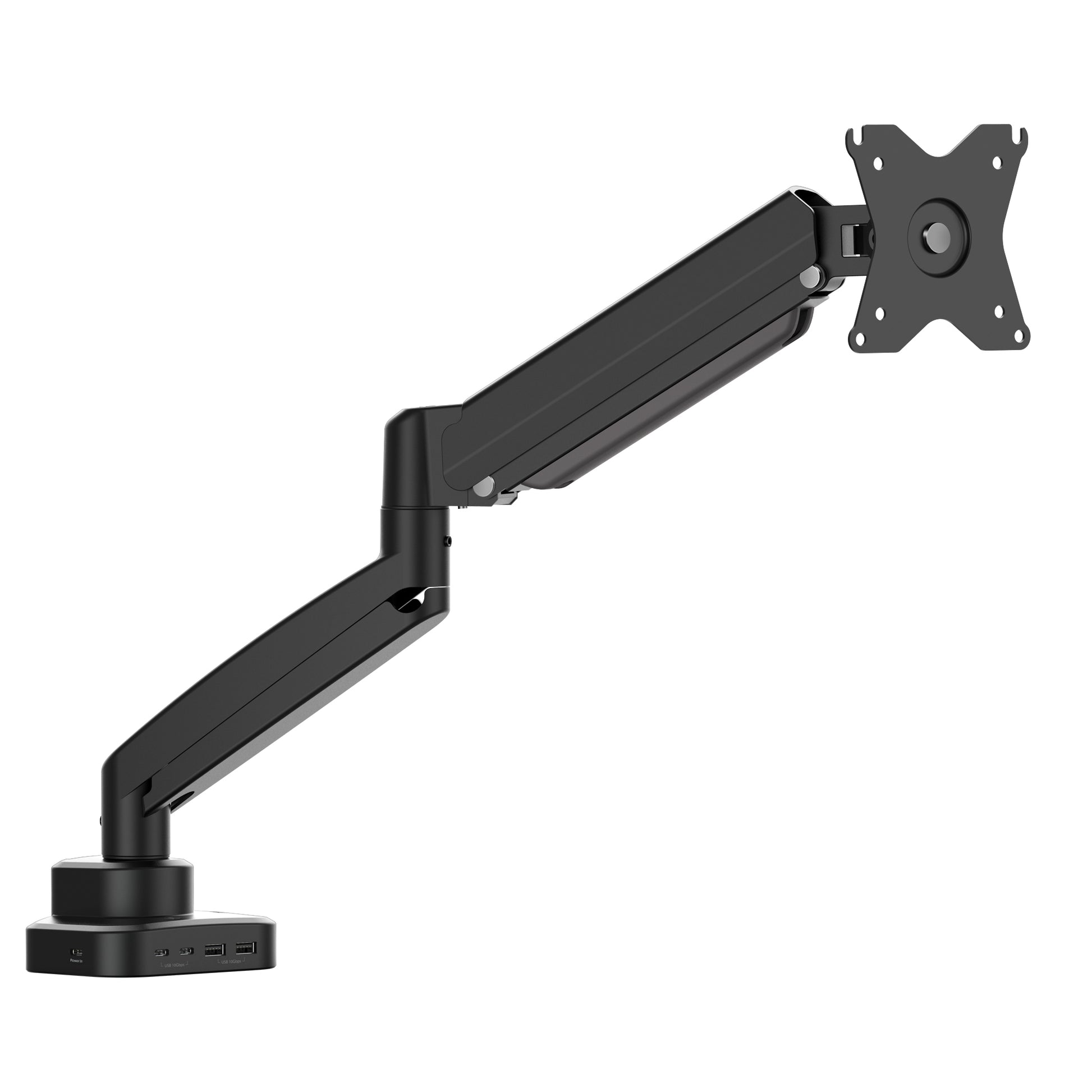

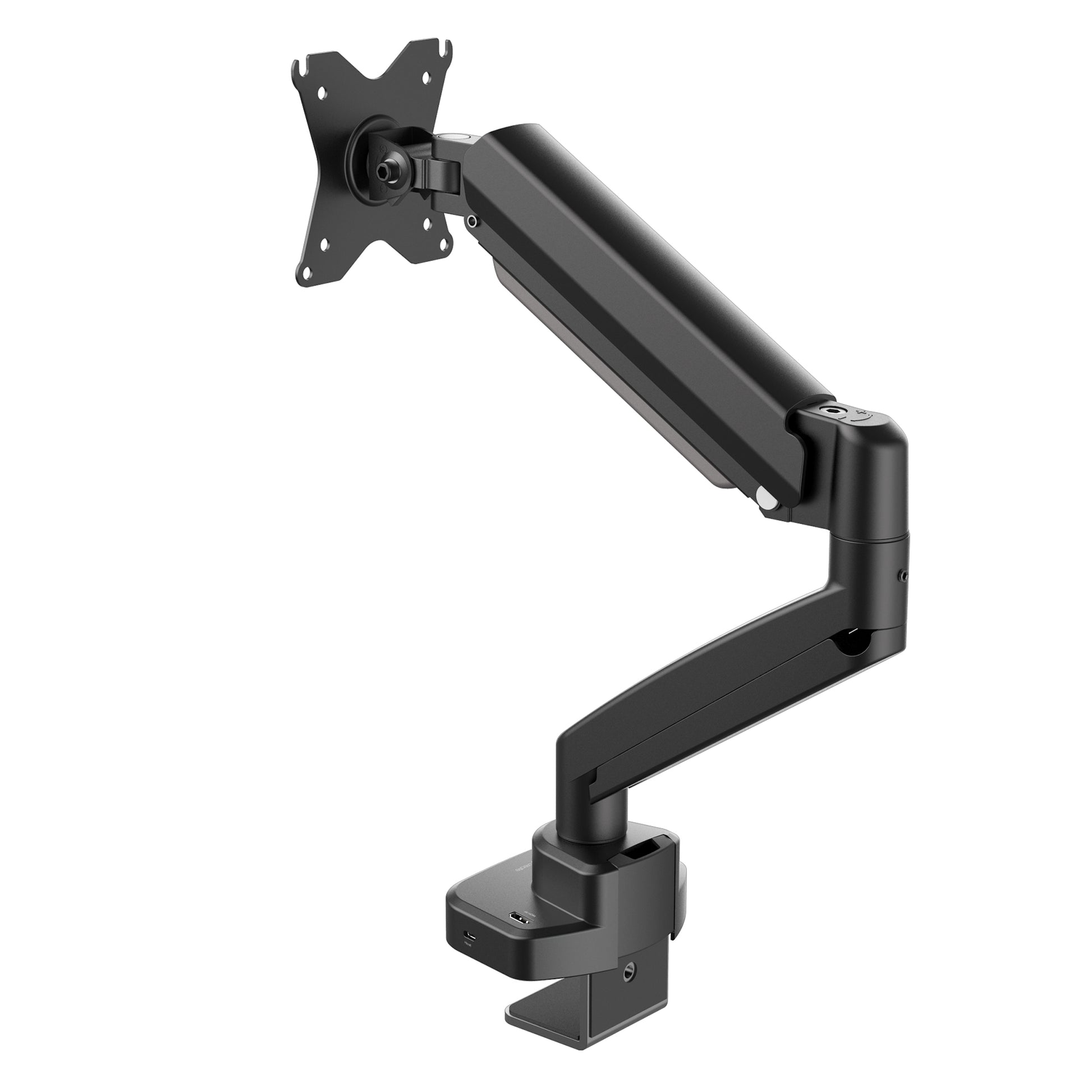

Fully adjustable gas spring monitor mount with multi-function dock

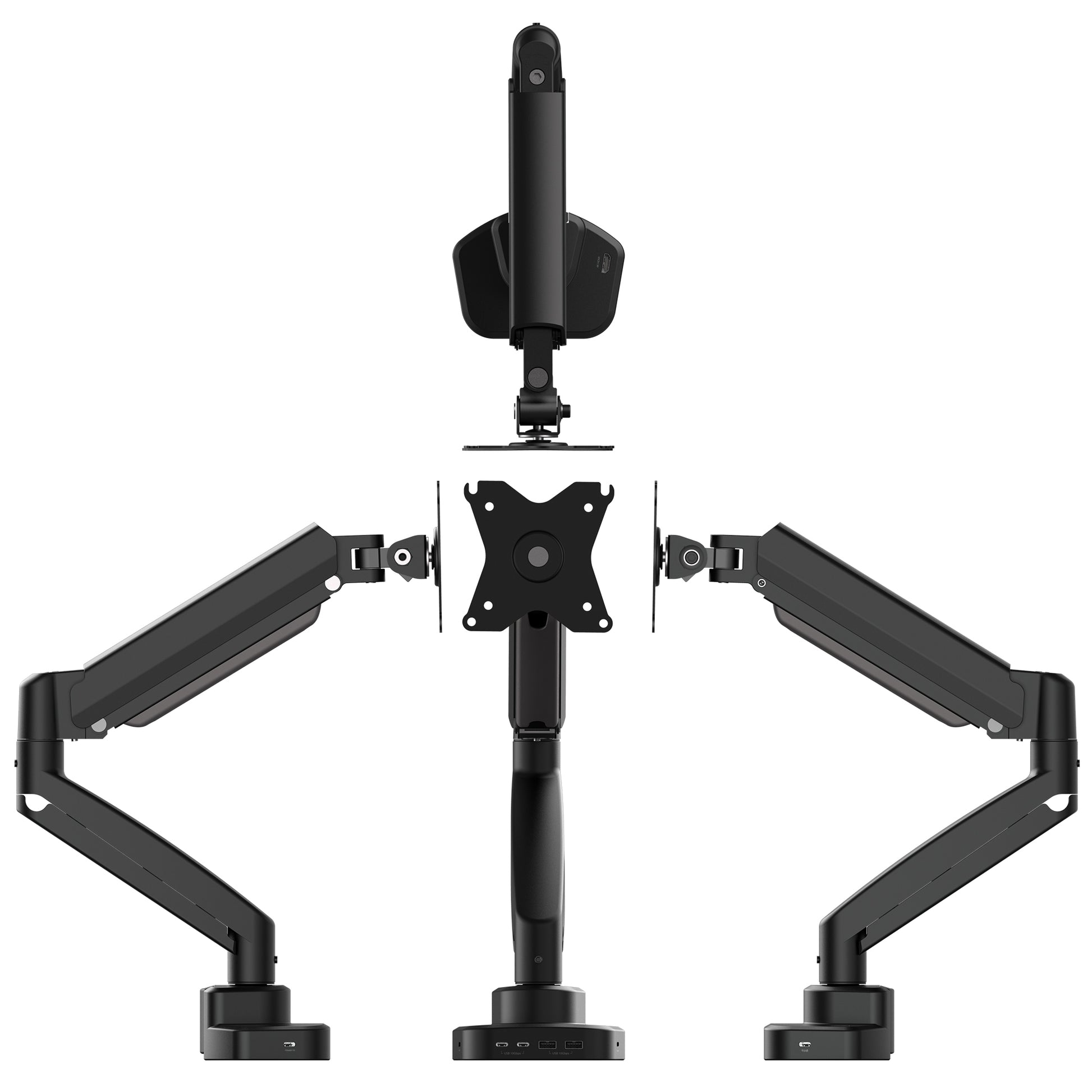

Easily adjusts monitor to any height and allows the screen to swivel 180°, tilt -45° to +90° and rotate 360° Conveniently set your monitor at an optimal angle

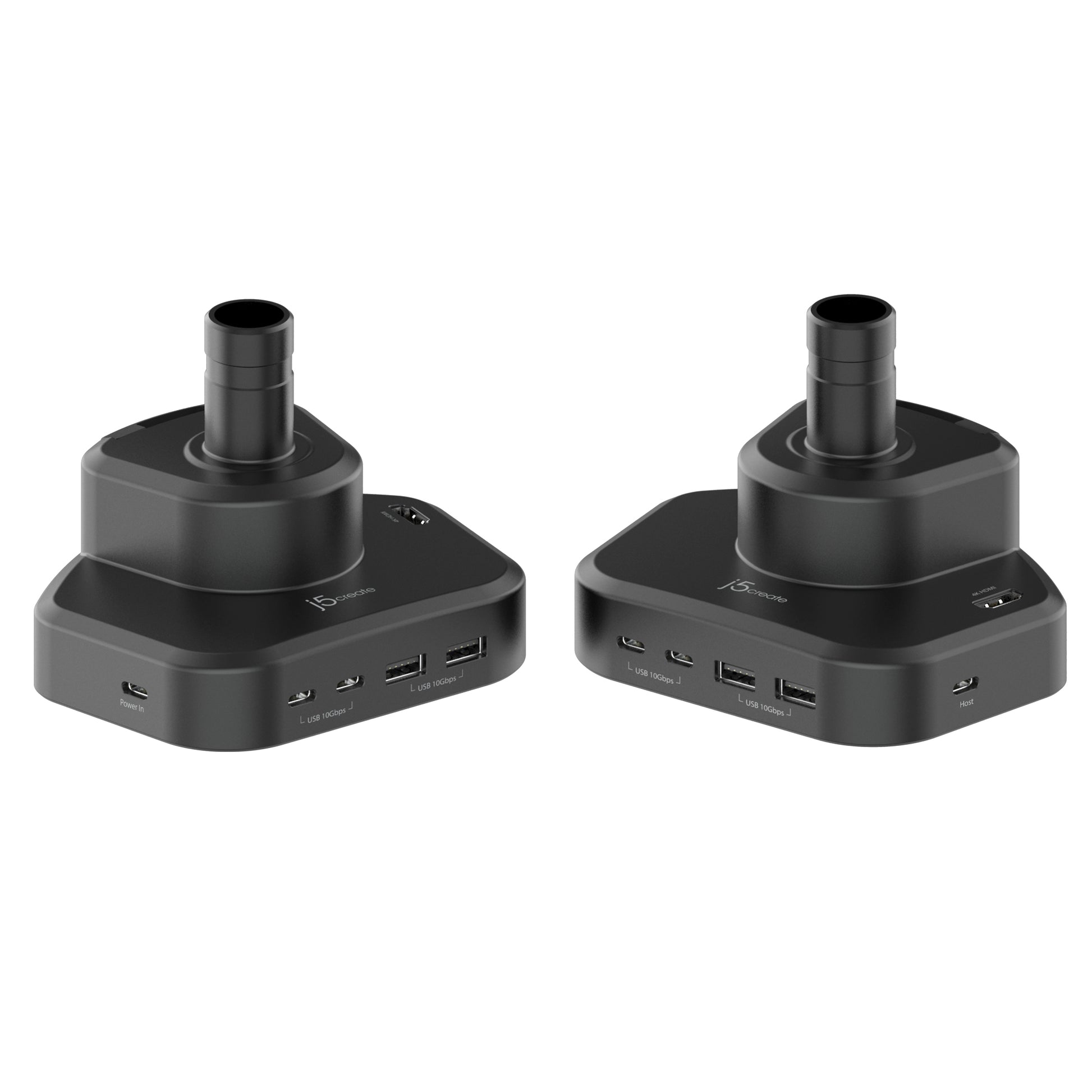

Equipped a 6-in-1 dock with 4K60Hz HDMI™, 2 x USB™ Type-A 10Gbps, 2 x USB-C® 10Gbps, and up to 100W PD pass through charging

Specifications

Mounting
Maximum weight capacity	8 kg
Minimum screen size	43.2 cm (17")
Number of displays supported	1
Maximum screen size	81.3 cm (32")

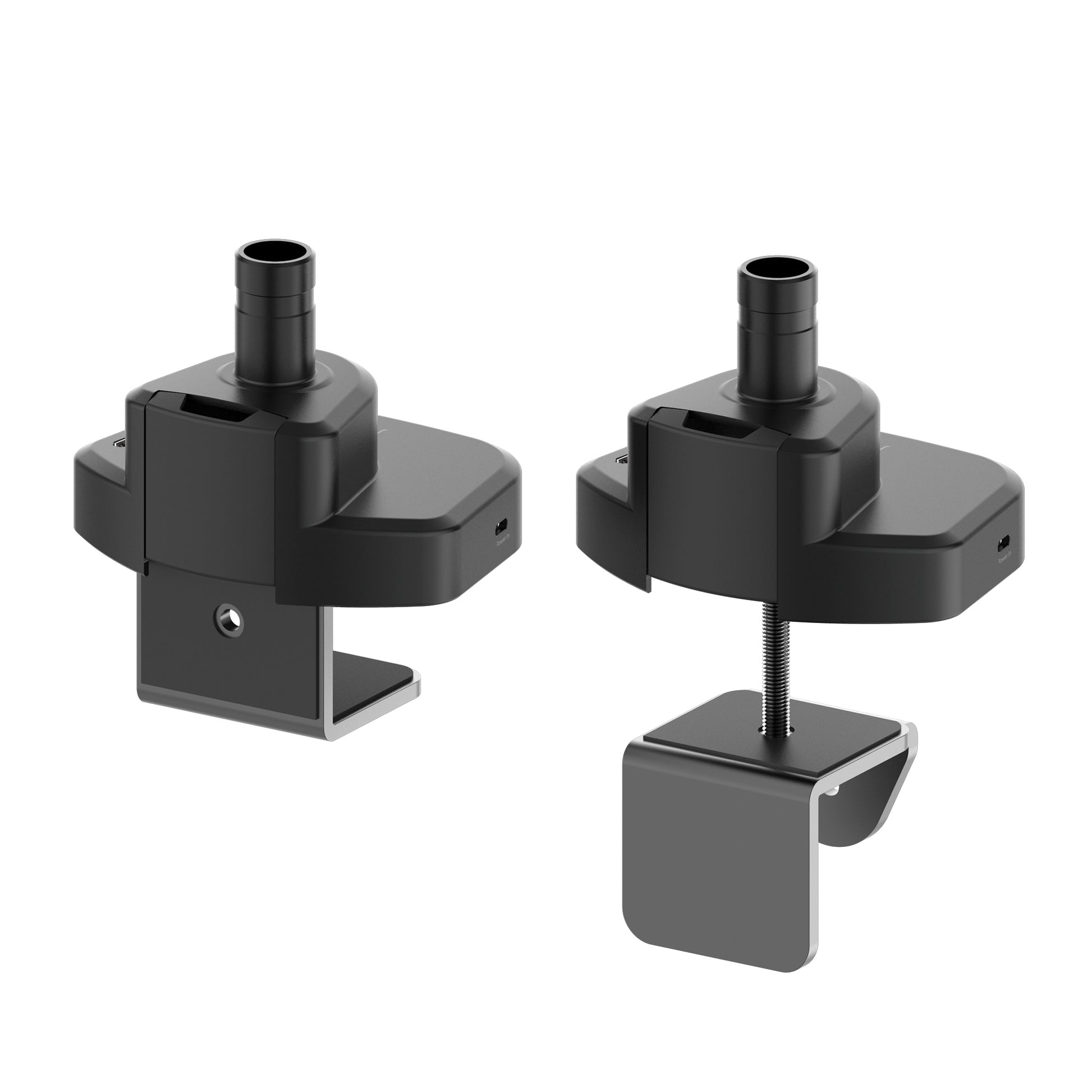

Mounting	Clamp/Grommet
Mounting type	Desk
Minimum VESA mount	75 x 75 mm
Maximum VESA mount	100 x 100 mm
Desk thickness (min)	1 cm
Clamp mount desk thickness (max)	5 cm
Grommet mount desk thickness (max)	5 cm
Ergonomics
Height adjustment	Yes
Adjustable depth	Yes
Tilt adjustment	Yes
Tilt angle range	-45 - 90°
Swivelling	Yes
Swivel angle	180°
Rotating	Yes
Angle of rotation	360°
Cable management	Yes
Design
Housing material	Aluminium, Plastic, Steel
Product colour	Black
Orientation	Landscape/Portrait
Easy to install	Yes
Ports & interfaces
Built-in USB hub	Yes
USB hub version	3.2 Gen 2 (3.1 Gen 2)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Data transfer rate	10 Gbit/s
HDMI ports quantity	1
Power
Input voltage	20 V
Weight & dimensions
Width	130 mm
Depth	320 mm
Height	465 mm
Weight	2.11 kg
Packaging data
Quantity per pack	1 pc(s)
Package width	208 mm
Package depth	465 mm
Package height	106 mm
Package weight	2.74 kg
Package type	Box
Packaging content
Packaging content	1- JTSA301 Ergonomic Monitor Mount with Dock 1 - USB-C® 10Gbps male to male host cable (100 cm / 3.3 ft) 1- Installation tools & accessories 1 - Quick Installation Guide (QIG)
Operational conditions
Operating temperature (T-T)	0 - 30 °C
Maximum operating temperature	30 °C
Operating relative humidity (H-H)	0 - 85%
Storage temperature (T-T)	-10 - 65 °C
Storage relative humidity (H-H)	0 - 85%
Sustainability
Sustainability compliance	Yes
Other features
Warranty period	2 year(s)
Compliance certificates	CE, REACH, RoHS
Technical details
Compatible operating systems	Windows® macOS®
Display resolution	3840 x 2160 pixels
Logistics data
Master (outer) case width	233 mm
Master (outer) case length	486 mm
Master (outer) case height	240 mm
Products per master (outer) case	2 pc(s)
Master (outer) case GTIN (EAN/UPC)	24712795088285
Country of origin	China
Master (outer) case net weight	5.9 kg
Export Control Classification Number (ECCN)	EAR99
