J5CREATE
j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-UK, Black
j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-UK, Black
Regular price
£284.43 GBP
Regular price
Sale price
£284.43 GBP
Taxes included.
Quantity
Couldn't load pickup availability
The j5create JTD568 is a Thunderbolt 4 quad-display docking station that expands a single Type-C connection into up to four monitors, Gigabit Ethernet and USB, with 98W power delivery. It is ideal for multi-screen productivity setups.
j5create JTD568 Thunderbolt™ 4 Quad Display Docking Station-UK, Black. Connectivity technology: Wired, Host interface: Thunderbolt 4, USB Power Delivery up to: 98 W. Ethernet LAN data rates: 10,1000,2500,100 Mbit/s. Product colour: Grey, Colour name: Dark / Space Grey, Compatible memory cards: SD, MicroSD (TransFlash). Power source type: DC, Input current: 6.75 A, Power supply: 135 W. Width: 201 mm, Depth: 43 mm, Height: 109 mm

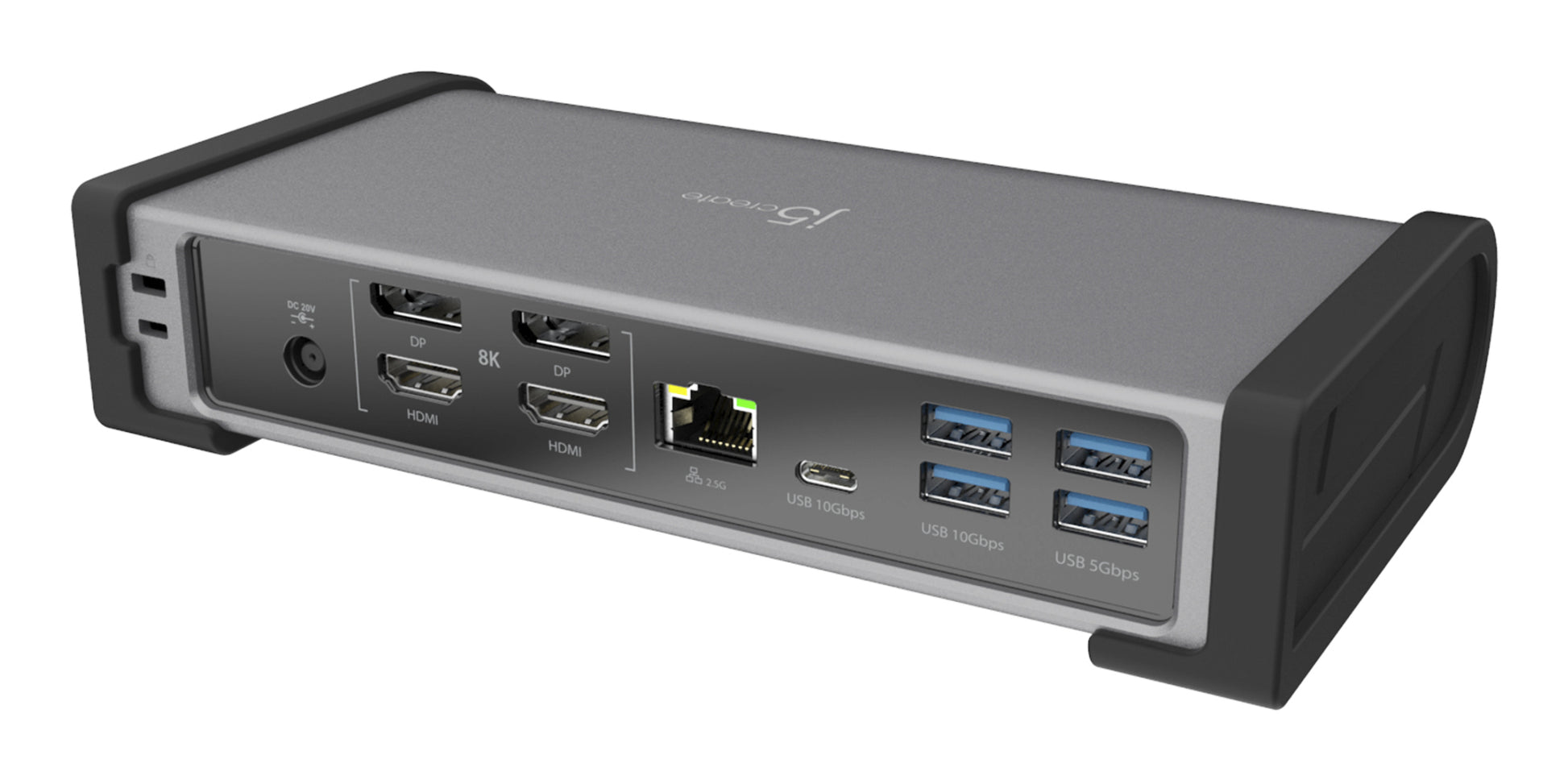

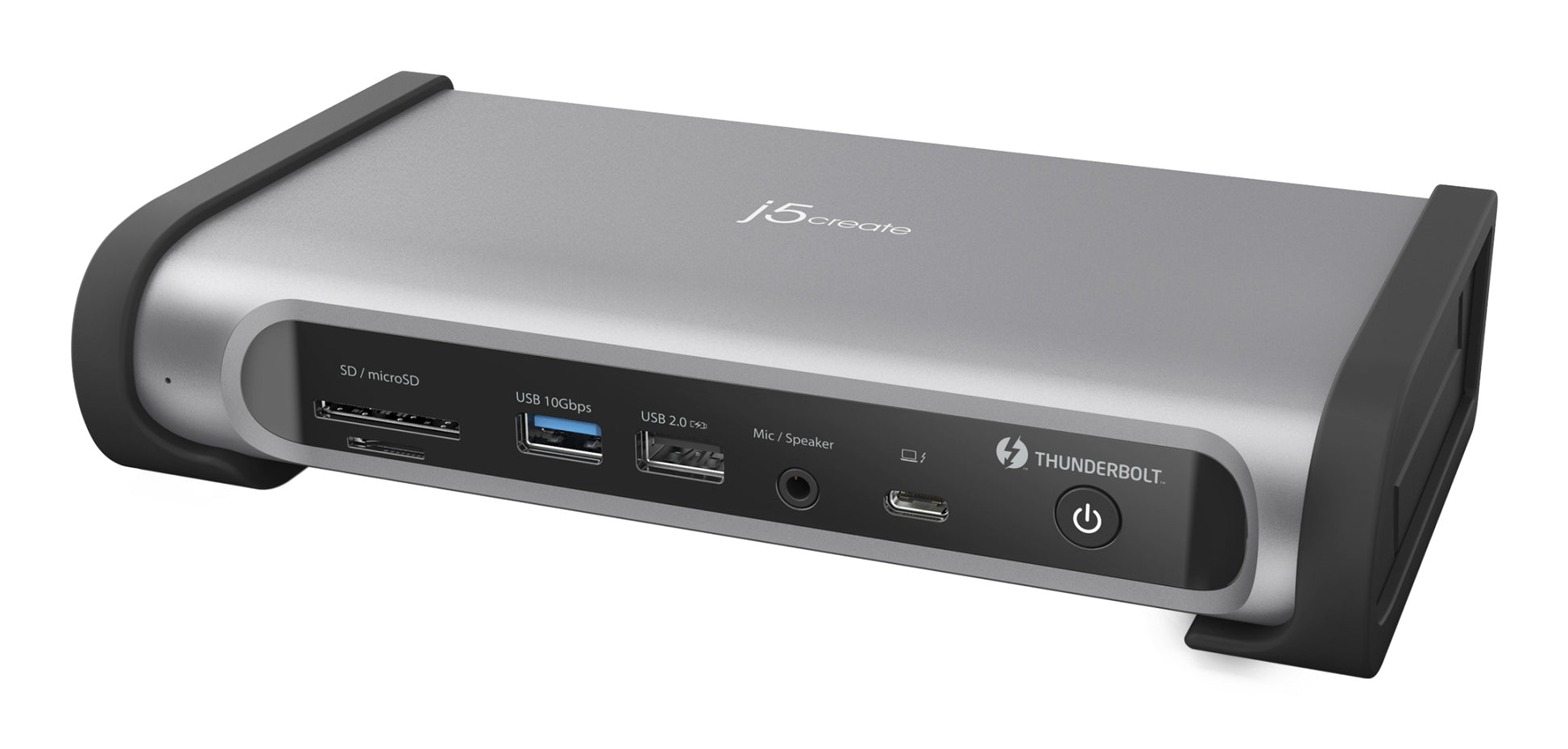

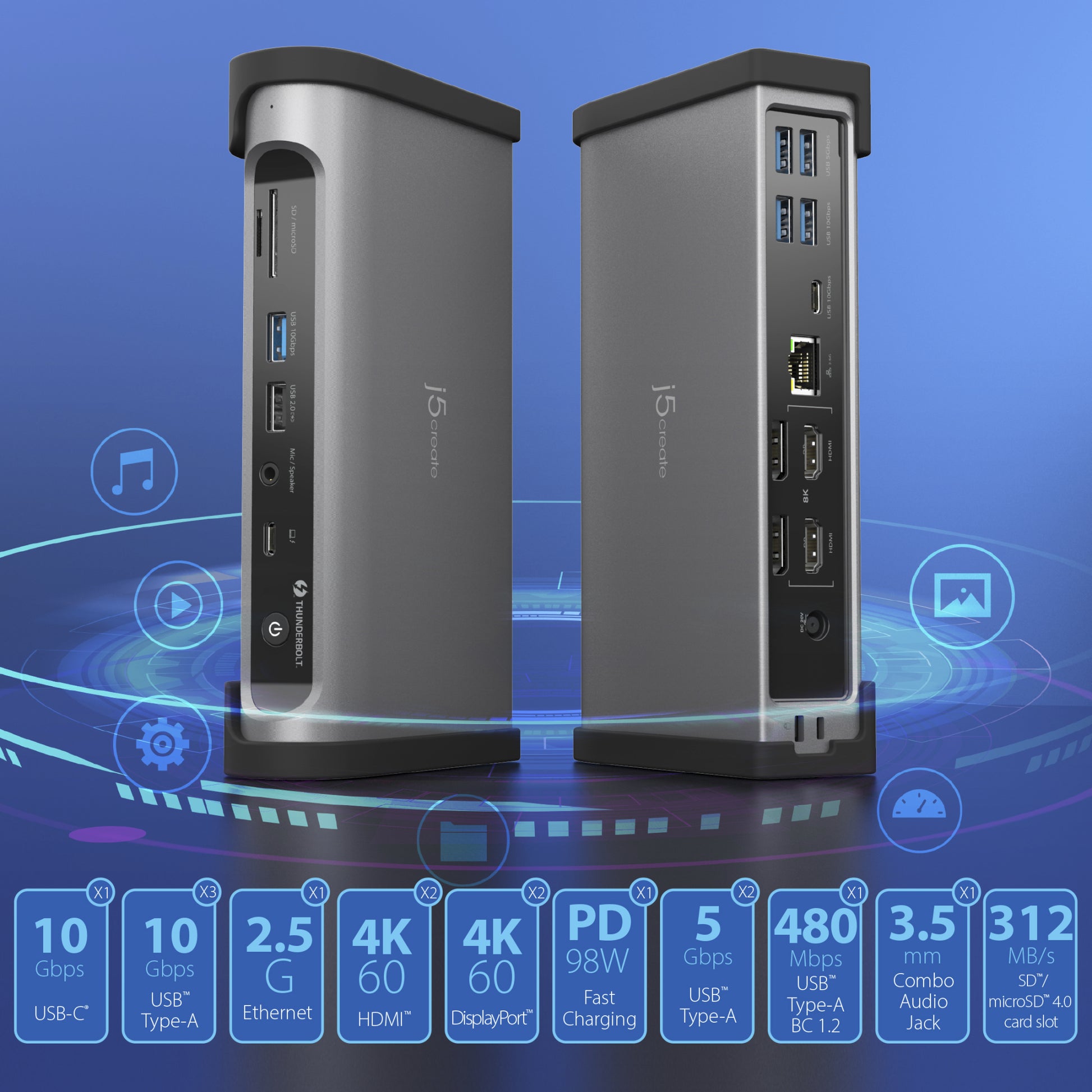

This Thunderbolt™ 4 Quad display Docking Station turns your Windows® laptop or Mac® into a full workstation, with resolution support up to Quad displays at 4K60Hz or Triple display at 4K60Hz or dual display at 5K60 Hz or 8K60Hz on the single display. Supports up to 98W power delivery for providing charging to your laptop. The quad display output and five USB™ 3.2 ports, and a USB-C® 3.2 port, this docking station is perfect for Thunderbolt™ 4 laptop requiring many high-performance ports and high-resolution displays. This Thunderbolt™ 4 docking station is also equipped with an RJ45 2.5 Gigabit Ethernet port, SD™/microSD™ 4.0 memory card reader/writer, and combo audio jack for maximum productivity. All 15 ports are combined into one slim docking station, so you will have all the connections you need to stay productive!
Key features
- Providing the ultimate connectivity for Thunderbolt™ 4 laptops
- Intel® Thunderbolt™ 4 certified for reliability and compatibility
- Providing ultimate connectivity and ultra-high data transfer speeds

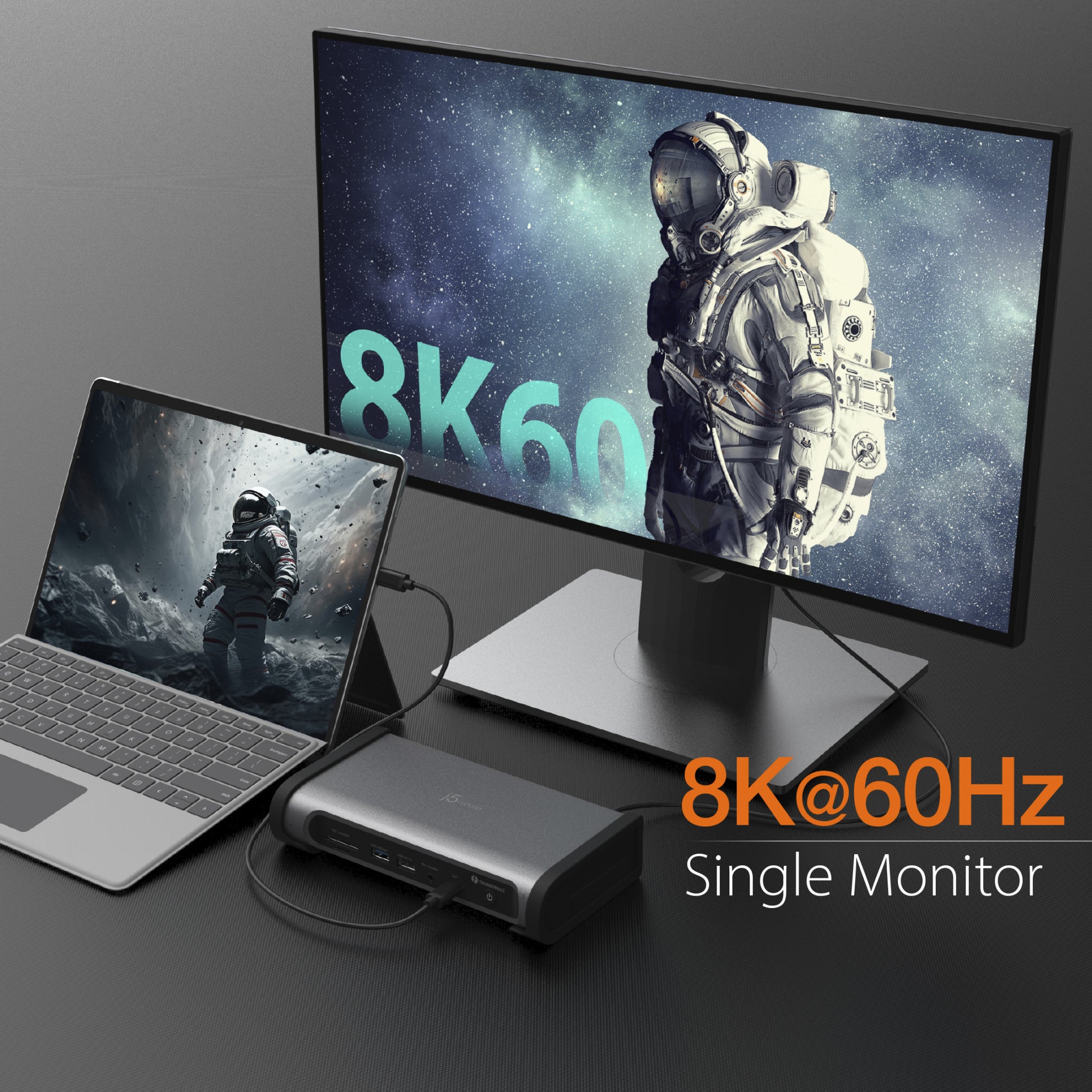

- Supports dual 4K@60Hz displays or one high-resolution 8K display with crystal clear image quality

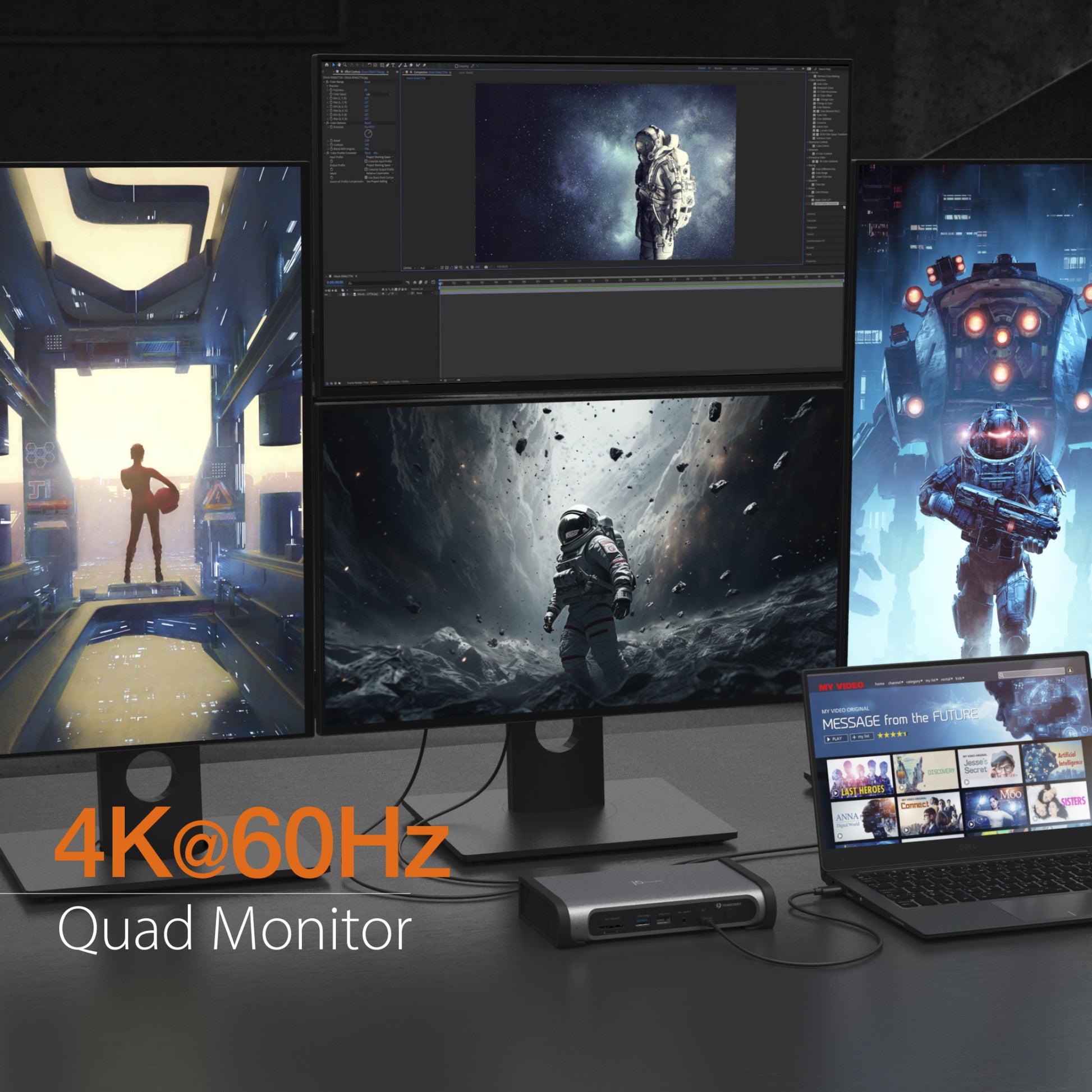

- Supports up to quad or triple 4K displays, dual 5K displays, or a single 8K display with crystal clear image quality
- Perfect for MacBook® and Windows® laptops that support Thunderbolt™ 4

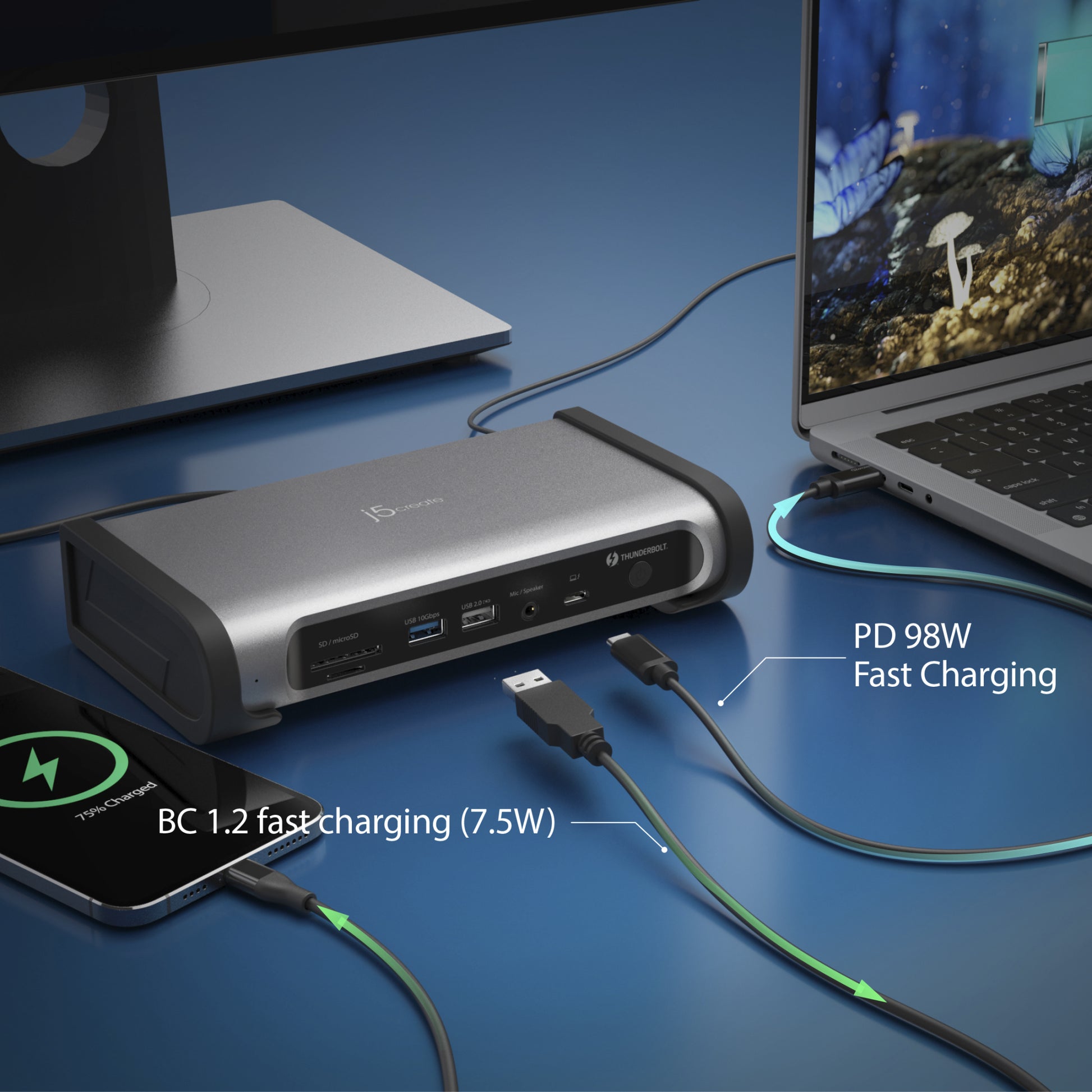

- Power adapter 135W AC adapter with up to 98W PD charge
Specifications
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 98 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Network | |

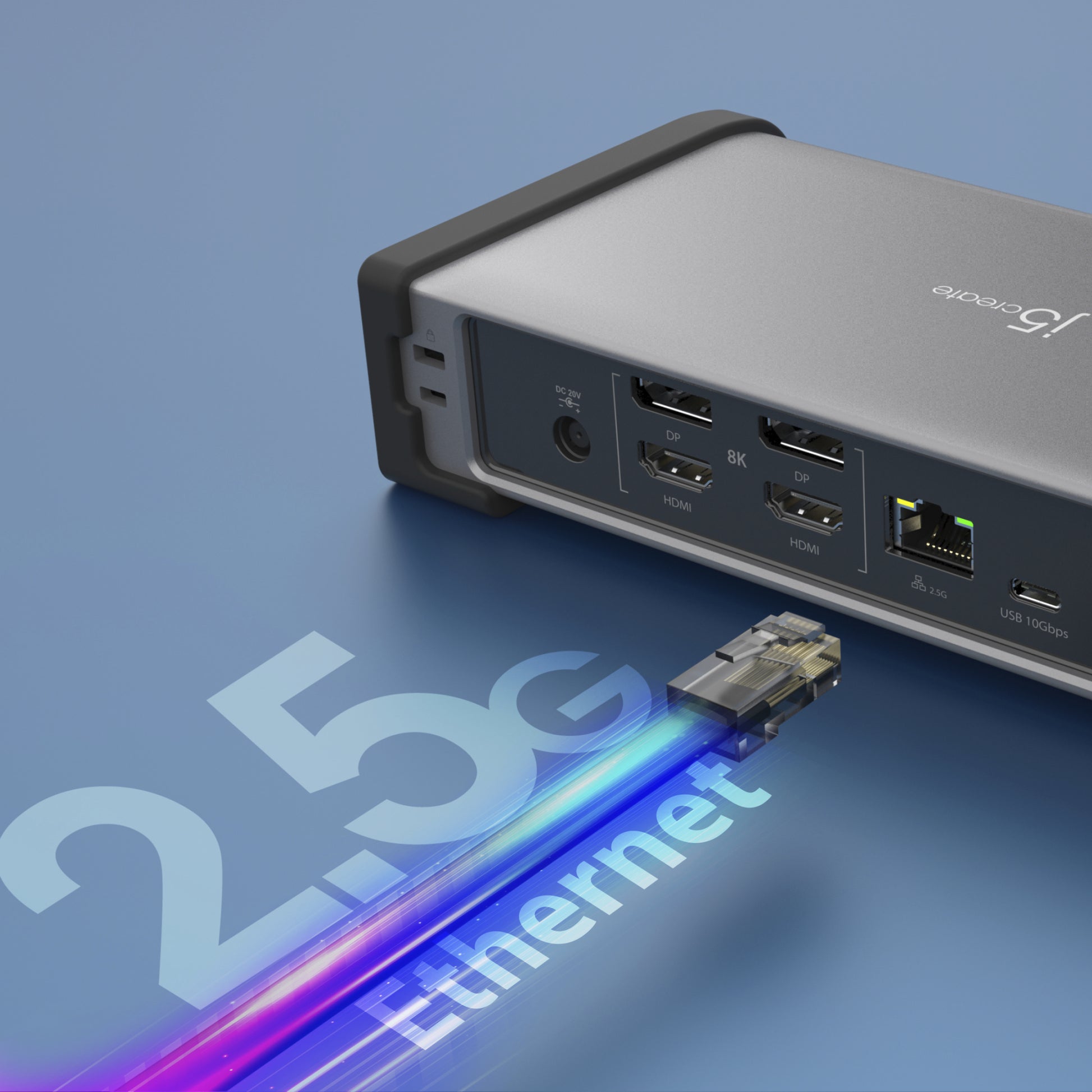

| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,1000,2500,100 Mbit/s |
| Performance | |
| Colour name | Dark / Space Grey |
| Card reader integrated | Yes |
| Compatible memory cards | SD, MicroSD (TransFlash) |
| Data transfer rate | 10 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7860 x 4320 pixels |
| Number of displays supported | 4 |
| Maximum refresh rate | 240 Hz |

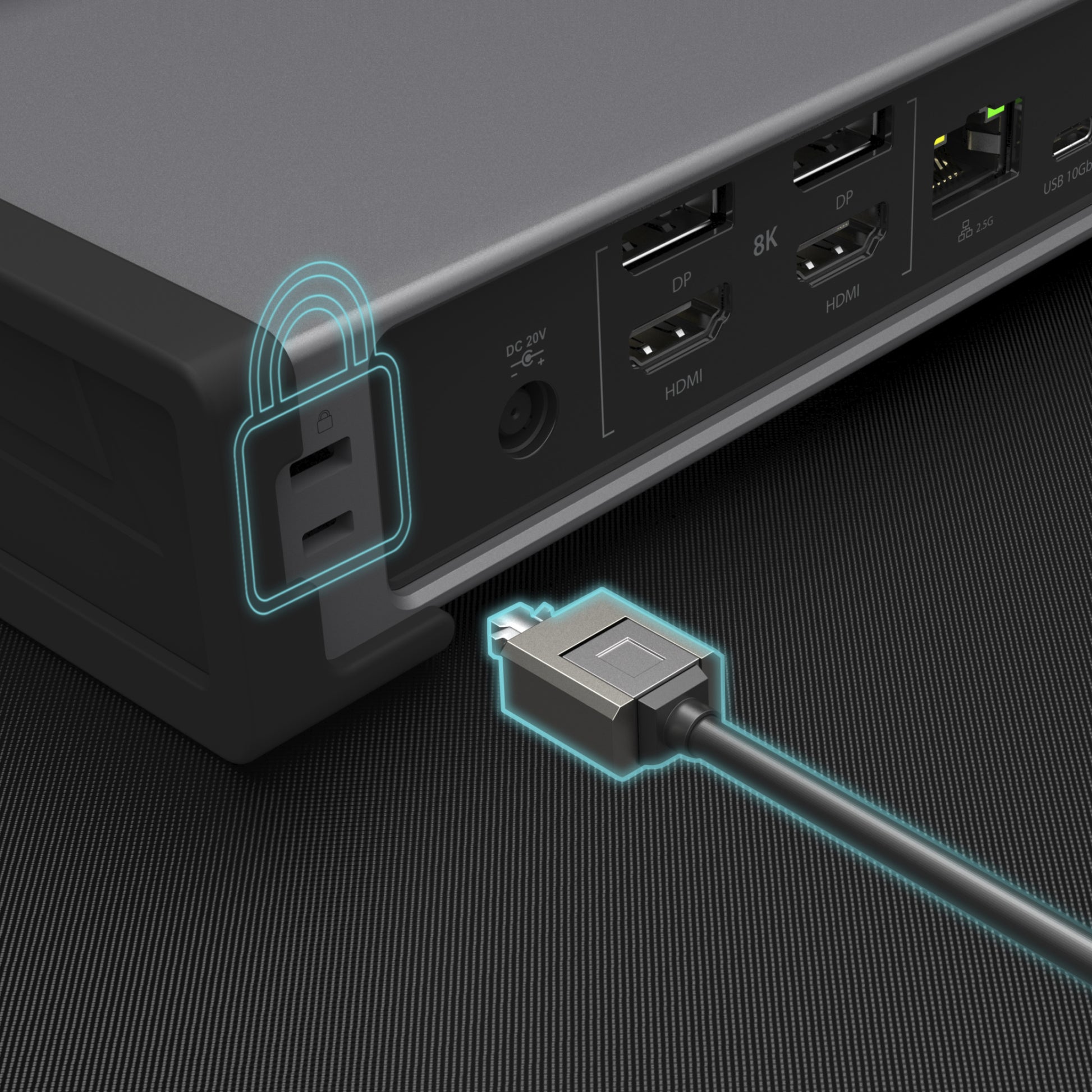

| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Grey |
| On/off switch | Yes |
| LED indicators | Yes |
| Charging function | Yes |
| Housing material | Aluminium |
| Country of origin | Taiwan |
| Power | |
| Power source type | DC |
| Input current | 6.75 A |
| Power supply | 135 W |
| Compatible power plug types | UK |
| Thunderbolt 4 cable length | 0.8 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 48 °C |
| Storage temperature (T-T) | -10 - 65 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Sustainability | |
| Sustainability compliance | Yes |
| Weight & dimensions | |
| Width | 201 mm |
| Depth | 43 mm |
| Height | 109 mm |
| Weight | 681 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 122 mm |
| Package depth | 237 mm |
| Package height | 94 mm |
| Package weight | 1.69 kg |
| Packaging content | |
| Cables included | Thunderbolt |
| AC adapter included | Yes |
| Manual | Yes |
| Packaging content | 1 - JTD568 Thunderbolt™ 4 Quad display Docking Station 1 - 135W AC adapter with up to 98W PD charge 1 - Thunderbolt™ 4 Cable (2.6 ft / 80 cm) 1 - Quick Installation Guide (QIG) |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 24712795088315 |
| Warranty period | 2 year(s) |
| Compliance certificates | CE, REACH, RoHS |
| Logistics data | |
| Products per master (outer) case | 2 pc(s) |
| Master (outer) case width | 207 mm |
| Master (outer) case length | 275 mm |
| Master (outer) case height | 155 mm |
| Export Control Classification Number (ECCN) | EAR99 |
| Master (outer) case net weight | 3.7 kg |
