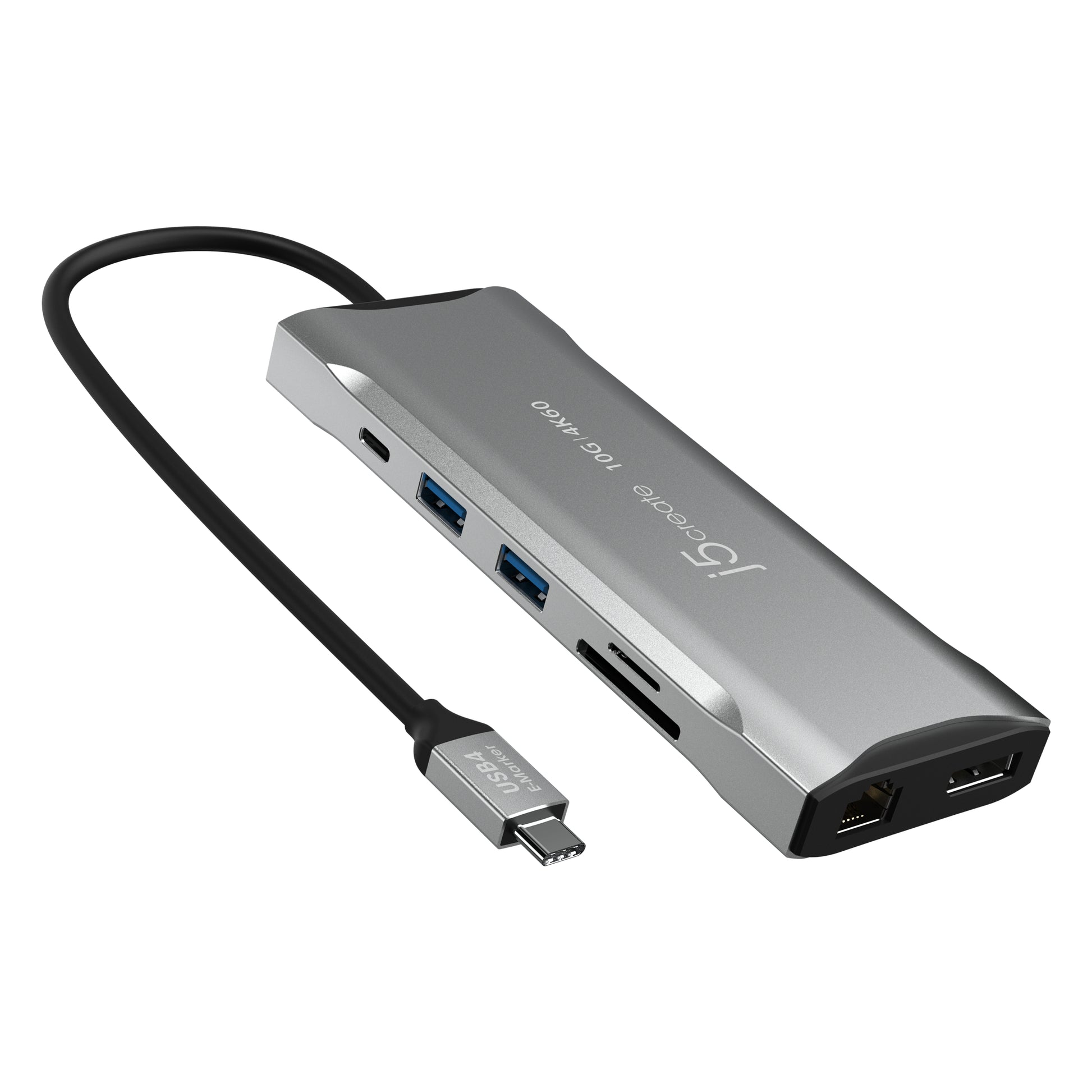

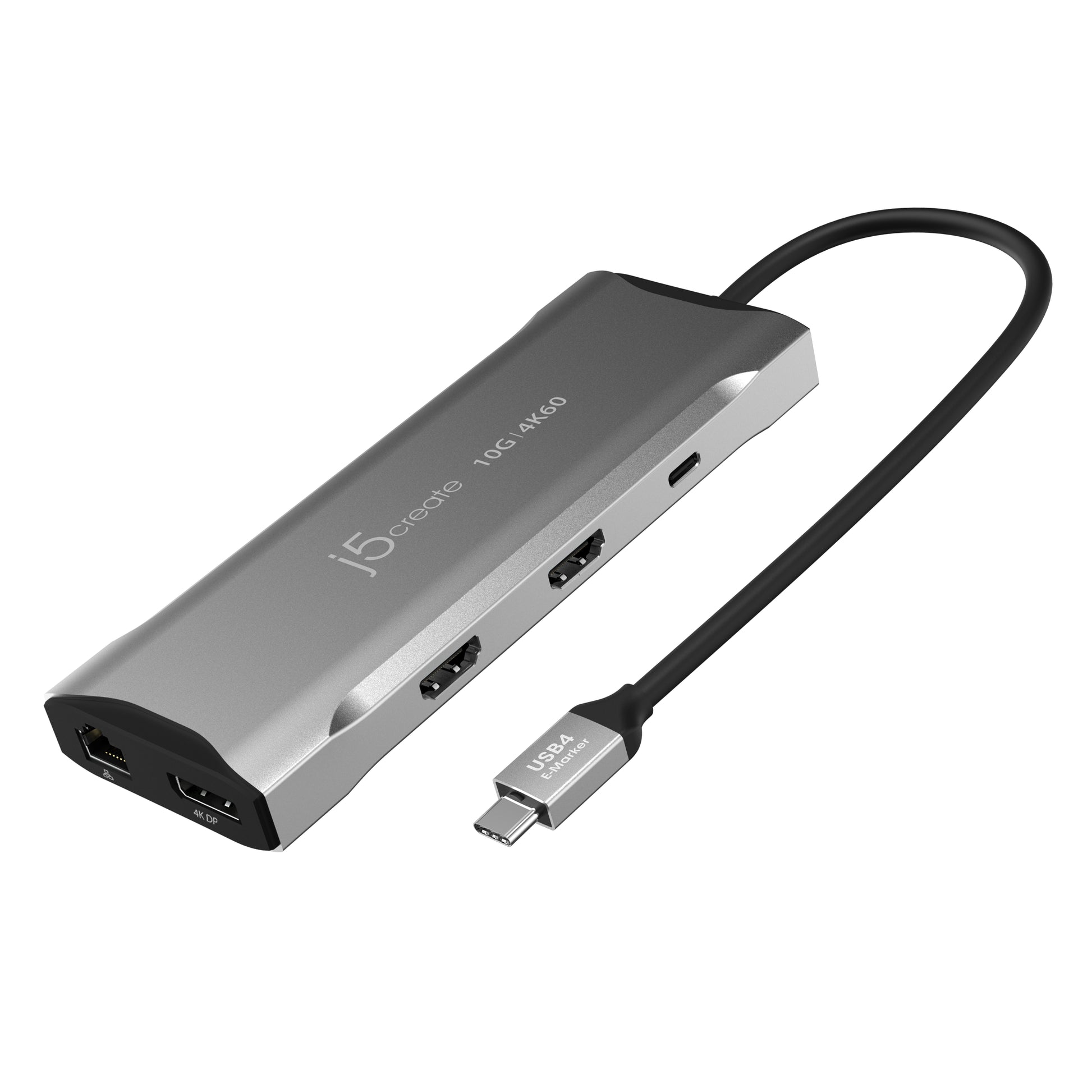

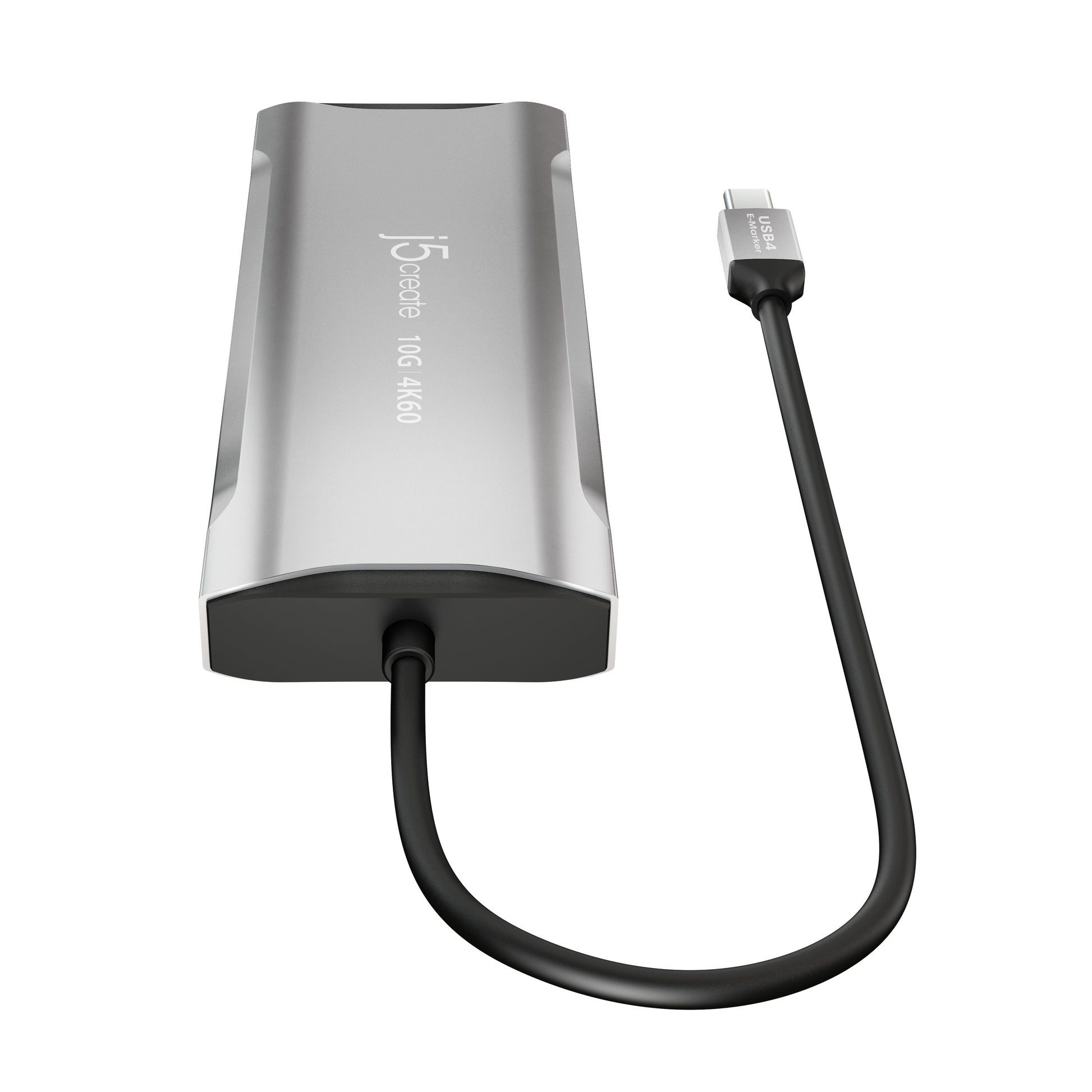

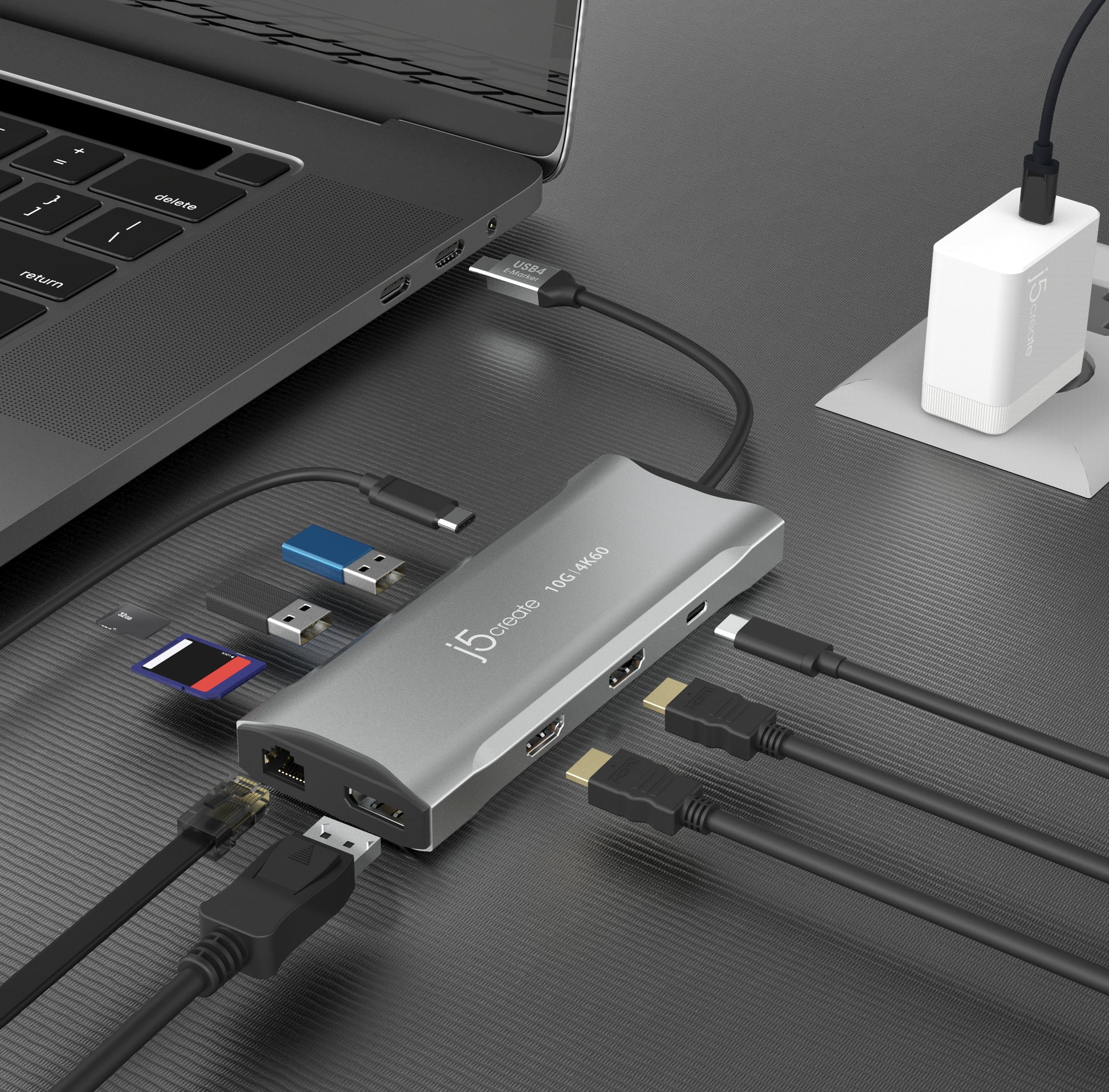

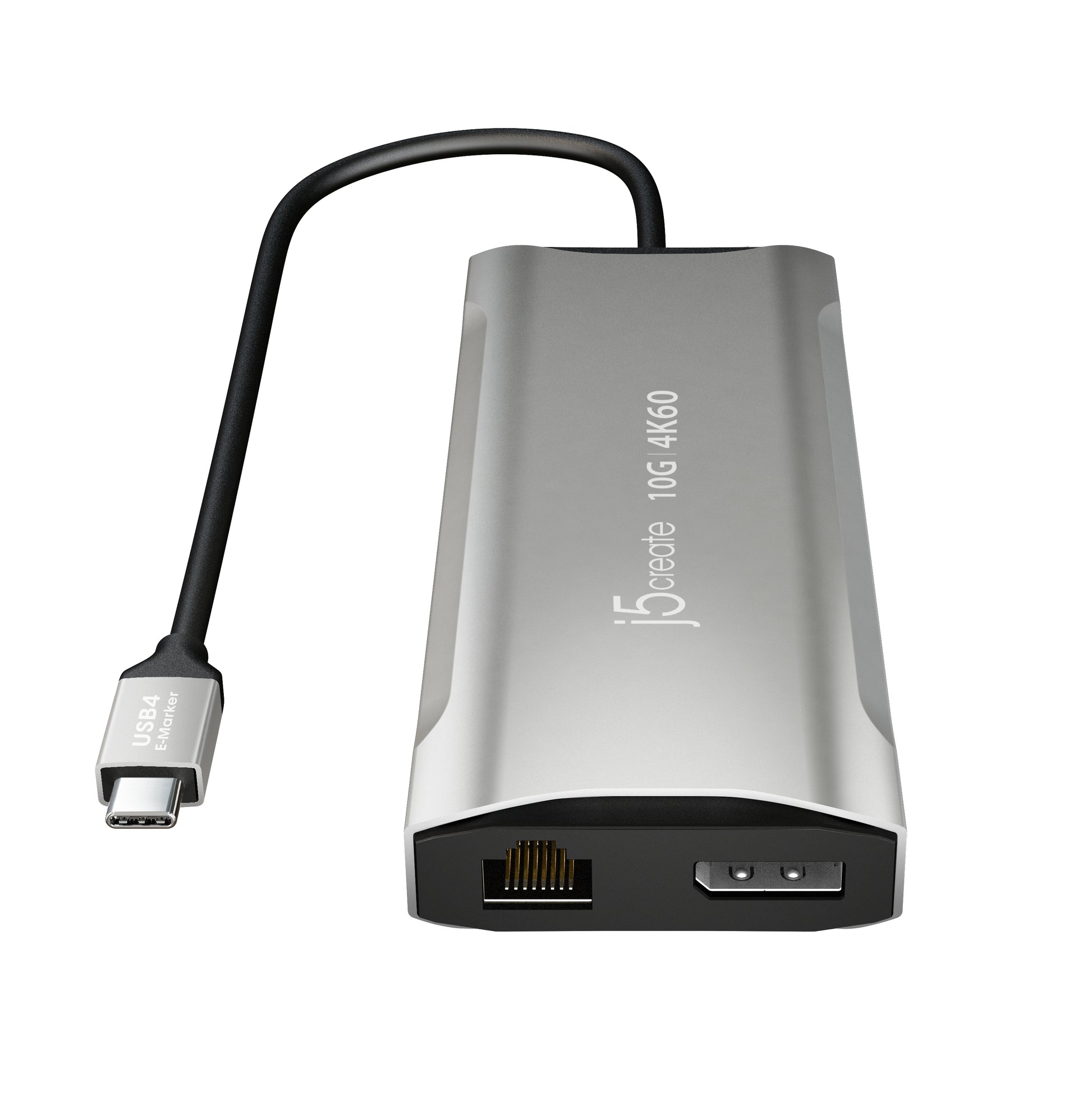

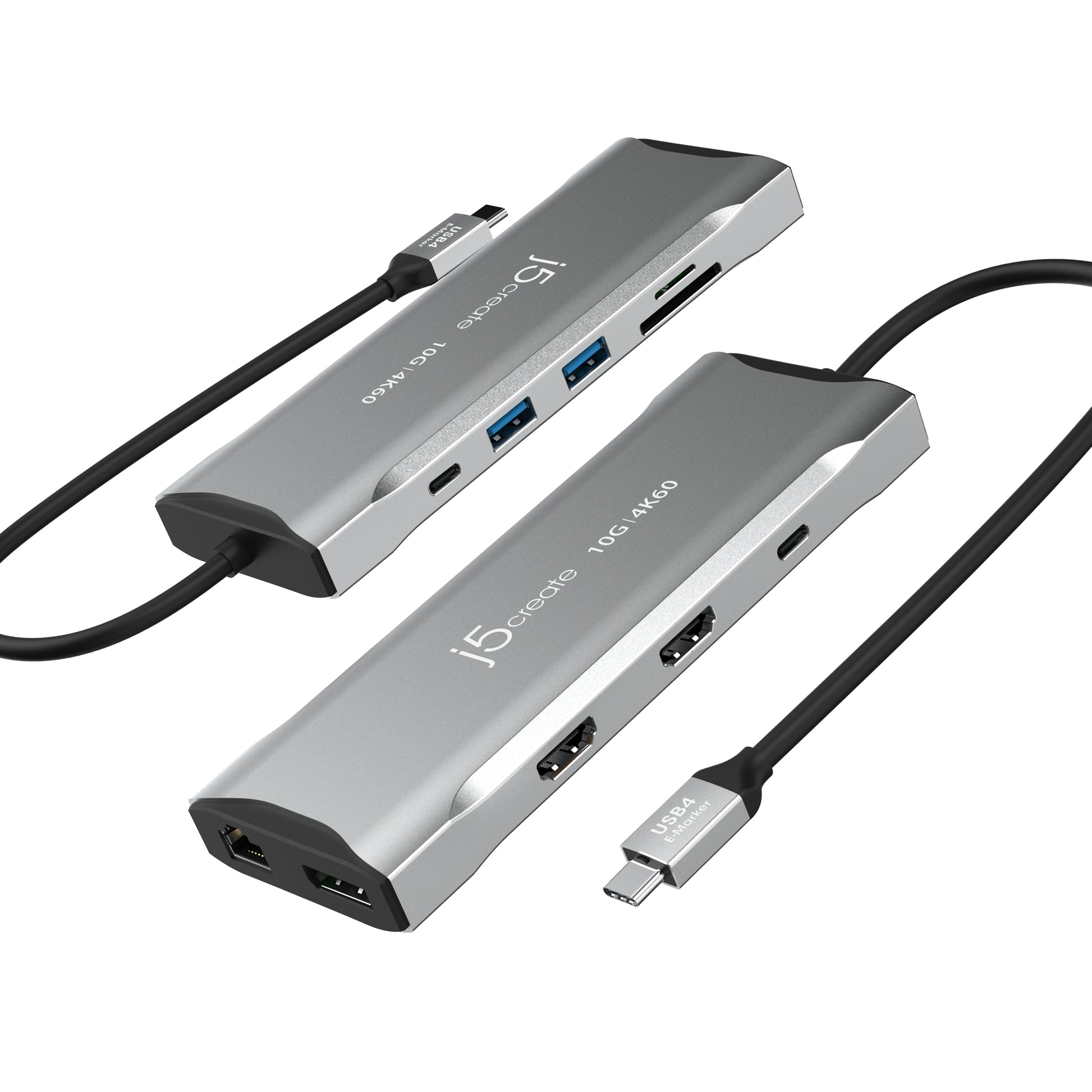

j5create's JCD397 is a pocket-sized USB-C mini dock that adds HDMI, DisplayPort and Ethernet for crisp 4K60 multi-monitor working. One cable connects a laptop to displays and wired networking wherever you sit down.
j5create JCD397-N 4K60 Elite USB-C® Multi-Monitor Mini Dock. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Grey, Colour name: Space Grey, Compatible memory cards: MicroSD (TransFlash), SD. Power source type: USB, Power connector: USB Type-C, Output voltage: 5 V. Width: 55 mm, Depth: 17 mm, Height: 148 mm
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4a |
| Microphone in | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| Colour name | Space Grey |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), SD |
| Data transfer rate | 10 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |

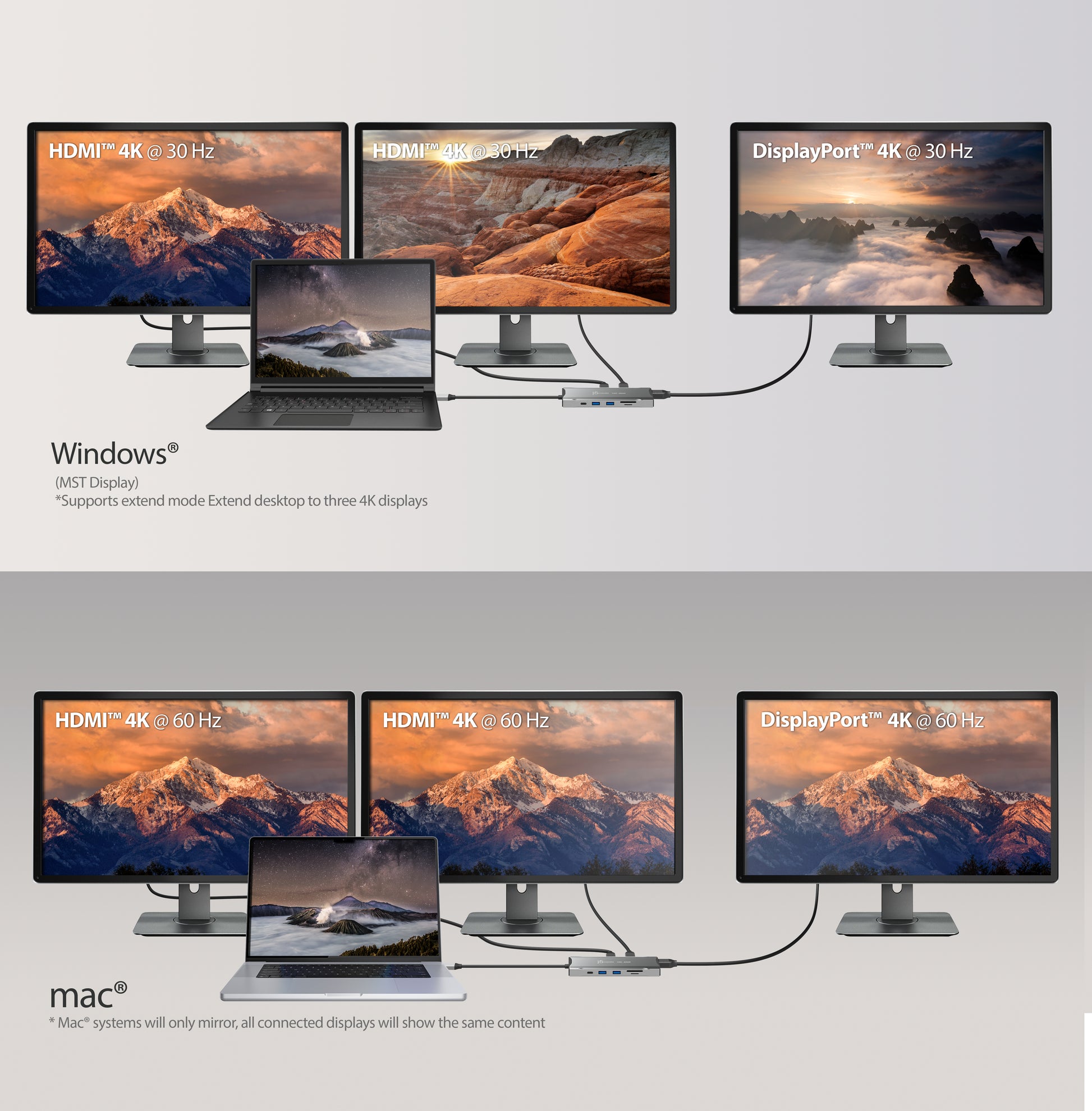

| Number of displays supported | 3 |
| Maximum refresh rate | 240 Hz |
| Product colour | Grey |
| Display modes | Extended, Mirror, Primary display |
| Plug and Play | Yes |
| Charging function | Yes |
| Housing material | Aluminium |
| Country of origin | Taiwan |
| Compatibility | Available USB-C® port that supports DisplayPort™ alternate mode and USB™ Power Delivery 2.0 or 3.0. The host device must support Multi-Stream Transport (MST) and DisplayPort™ 1.4 to achieve triple-monitor configuration. |
| Power | |
| Power source type | USB |
| Power connector | USB Type-C |
| Output voltage | 5 V |
| Output current | 0.79 A |
| Power consumption (typical) | 4.16 W |
| USB cable length | 0.2 m |
| Software | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -17 - 68 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |

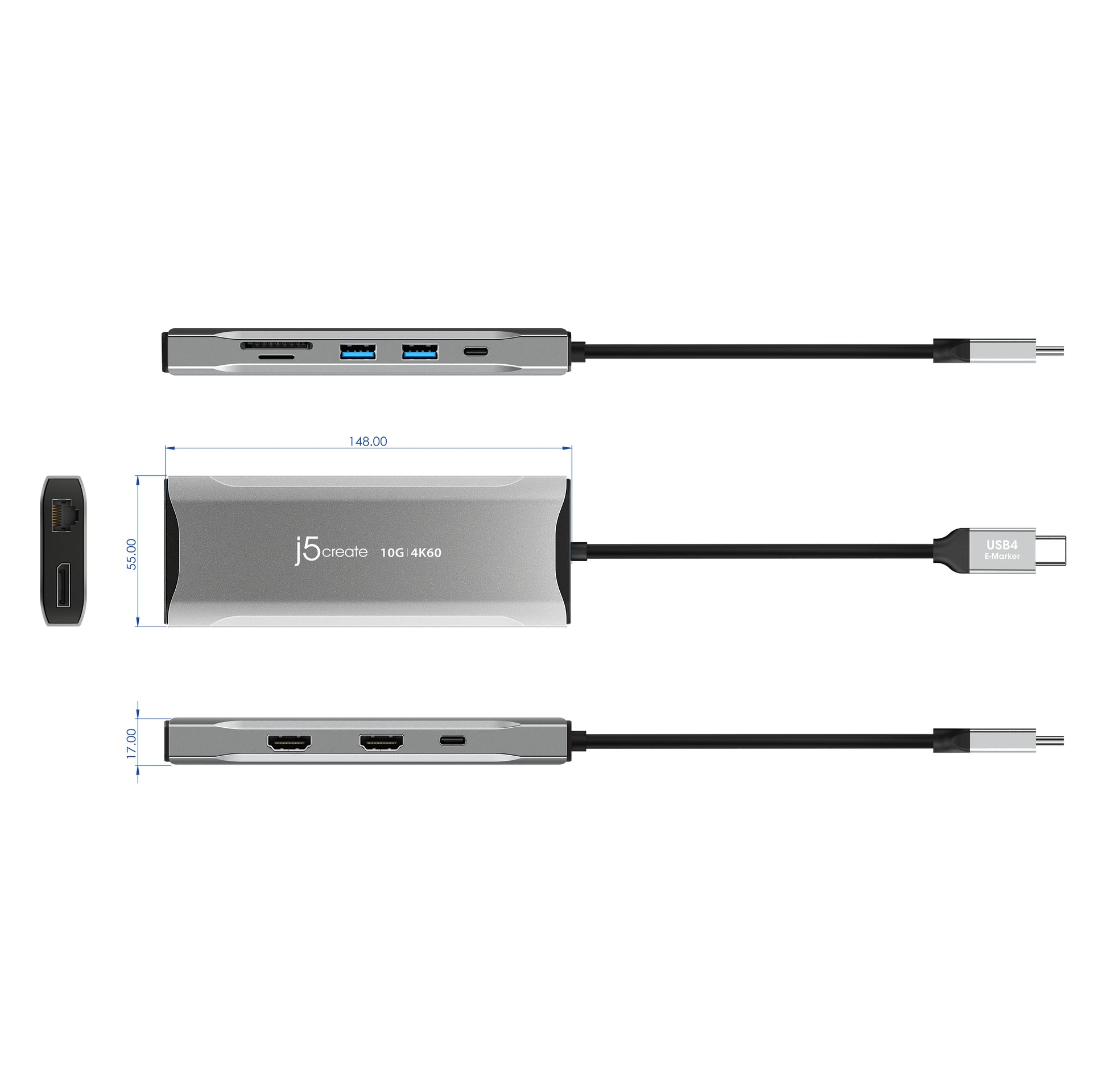

| Width | 55 mm |
| Depth | 17 mm |
| Height | 148 mm |
| Weight | 121.4 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 193 mm |
| Package depth | 125 mm |
| Package height | 22.5 mm |
| Package weight | 151 g |
| Packaging content | |
| Cables included | USB Type-C |
| Quick start guide | Yes |
| Manual | Yes |
| Technical details | |
| Master (outer) case GTIN (EAN/UPC) | 24712795086328 |
| Warranty period | 2 year(s) |
| Logistics data | |
| Products per master (outer) case | 18 pc(s) |
| Master (outer) case width | 226 mm |
| Master (outer) case length | 445 mm |
| Master (outer) case height | 190 mm |
| Master (outer) case gross weight | 3.8 kg |
| Products per shipping (inner) case | 6 pc(s) |
| Export Control Classification Number (ECCN) | EAR99 |
| Shipping (inner) case width | 16.5 cm |
| Shipping (inner) case length | 21.2 cm |
| Shipping (inner) case height | 13.7 cm |
| Shipping (inner) case net weight | 1.06 kg |
| Other features | |
| Special features | Built-in advanced USB-C® E-Mark integrates USB4™, Thunderbolt™ 3 and Thunderbolt™ 4 compatibility, Features a Dual 4K HDMI™ output, DP display output. |
