iiyama TW3226AS-B3P Signage Display Kiosk design 80 cm (31.5") LED Wi-Fi 430 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

iiyama TW3226AS-B3P Signage Display Kiosk design 80 cm (31.5") LED Wi-Fi 430 cd/m² Full HD Black Touchscreen Built-in processor Android 24/7

£678.54 GBP
£678.54 GBP
Sale Sold out
Taxes included.
Condition

The ProLite TW3226AS-B3P is a smart and intuitive 31.5" Touch panel PC, designed for high-traffic environments such as meeting rooms, info points, or hospitality spaces. Its 10-point PCAP touch technology ensures smooth and precise interaction. Powered by Android 14, and equipped with powerful hardware, it allows easy installation of apps directly on the device - making it a all-in-one solution. Thanks to Power over Ethernet (PoE), both power and data are delivered through a single cable, simplifying installation and reducing additional cables. With a built-in quad microphone and 5W speakers, the TW3226AS-B3P delivers seamless, modern interaction in any smart space. Additionally, it integrates effortlessly with iiSignage² , iiyama’s Content Management System (CMS), giving you full control over your messages and advertising, in landscape portrait and face-up position.

Display
Panel type VA
Display number of colours 16.7 million colours
Number of simultaneous touchpoints 10
Touchscreen Yes
Active display area (W x H) 698.4 x 392.8 mm
Display technology LED
Display diagonal 80 cm (31.5")
Display resolution 1920 x 1080 pixels
Display brightness 430 cd/m²
HD type Full HD
Response time 8 ms
Contrast ratio (typical) 4000:1
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Pixel pitch 0.3637 x 0.3637 mm
Display diagonal (metric) 80.1 cm
Native aspect ratio 16:9
Colour depth 8 bit
Touchscreen technology Projected capacitive system
Surface hardness 3H
Multi-touch Yes

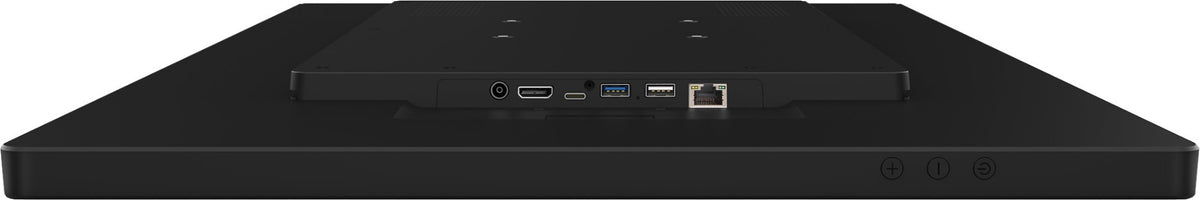

Ports & interfaces
USB connector type USB Type-A, USB Type-C
USB port Yes
HDMI version 1.4
Wi-Fi standards Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi Yes
Microphone in Yes
DisplayPorts quantity 0
DC-in jack Yes
Ethernet LAN Yes
HDMI ports quantity 1
Ethernet LAN data rates 10,100,1000 Mbit/s
DVI port No
Ethernet LAN (RJ-45) ports 1
USB version 3.2 Gen 1 (3.1 Gen 1)
USB ports quantity 3
HDMI input ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
Audio
Number of built-in speakers 2
RMS rated power 10 W
Built-in speaker(s) Yes
Design
Product design Kiosk design
Placement supported Indoor
Orientation Horizontal/Vertical
Product colour Black

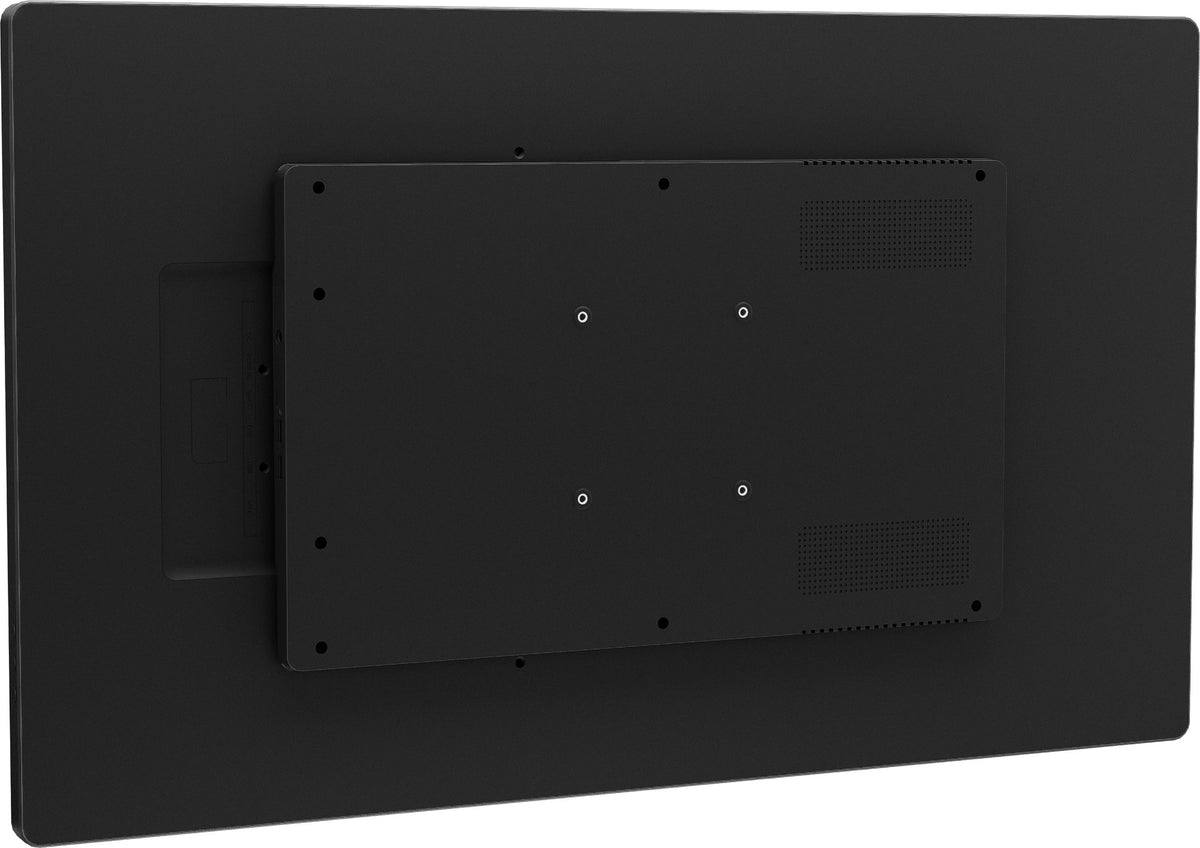

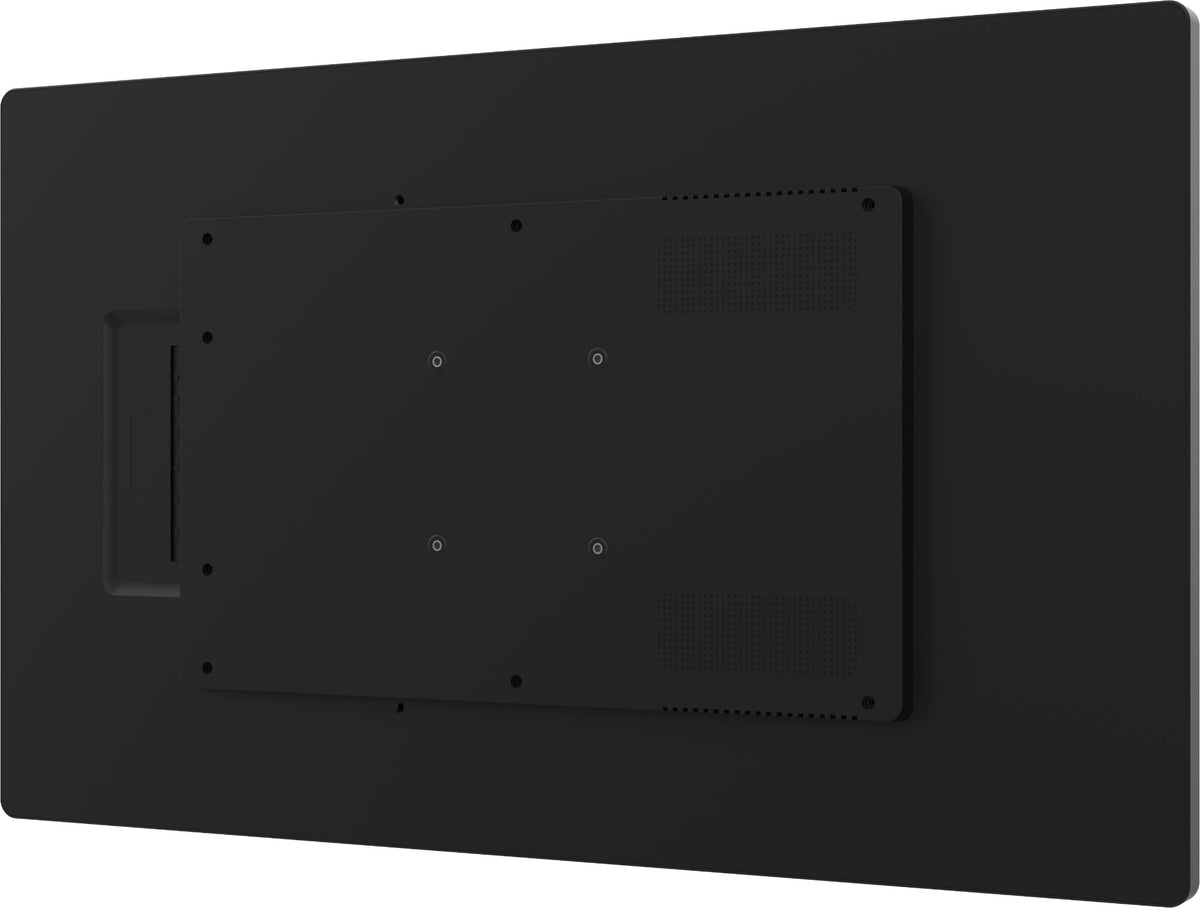

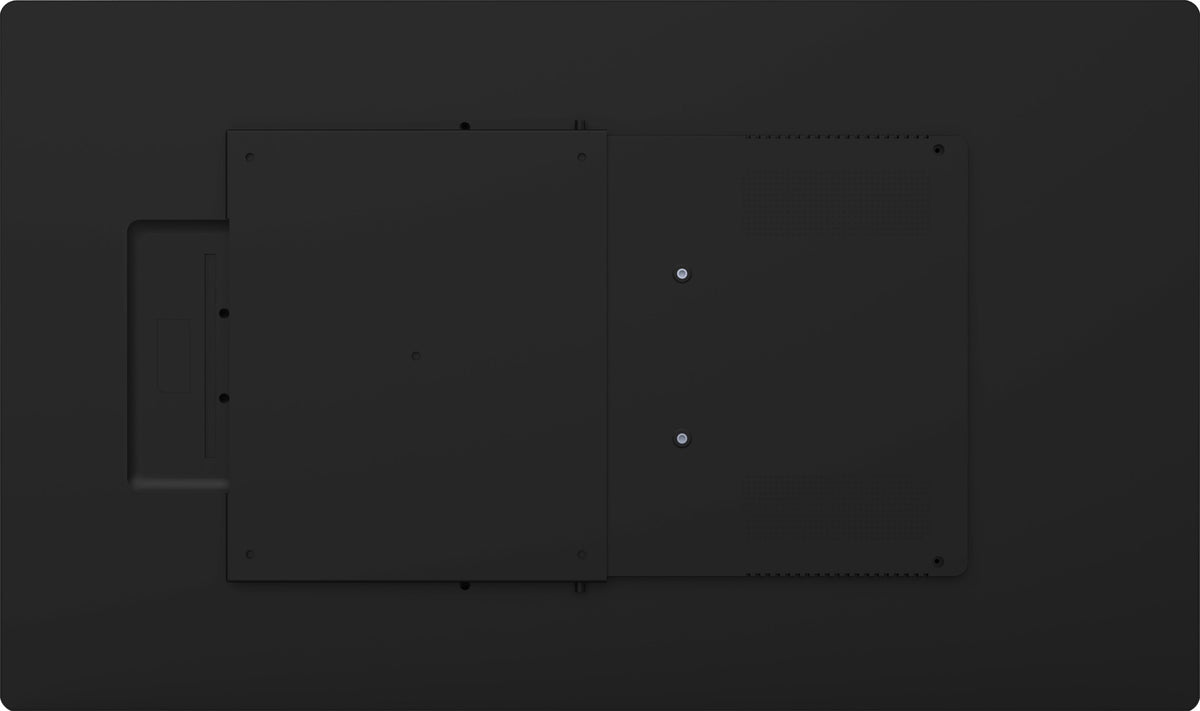

Panel mounting interface 100 x 100 mm
Certification CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
VESA mounting Yes
Bezel colour Black
Performance
Purpose Universal
Operating hours (hours/days) 24/7
Mean time between failures (MTBF) 50000 h
HDCP Yes
Wi-Fi Yes
Power
Power consumption (off) 0.3 W
Power consumption (typical) 36.34 W
Power consumption (standby) 0.5 W
Computer system
Processor cores 8
Processor family ARM Rockchip
Processor model Rockchip RK3576
Operating system installed Android
Internal memory 4 GB
Internal storage capacity 32 GB
Processor manufacturer ARM
Built-in processor Yes
Google applications Google Chrome, Gmail, Google Calendar
On-board graphics card model Mali-G52 MC3
Processor architecture ARM Cortex-A53+Cortex-A72
Operating system version 14
Weight & dimensions
Width (with stand) 735 mm
Height (with stand) 436 mm
Depth (with stand) 35 mm
Width 735 mm
Depth 35 mm
Height 436 mm
Weight 7.7 kg
Weight (with stand) 7.7 kg
Display width 735 mm
Display depth 35 mm
Display height 436 mm
Display weight 7.7 kg
Packaging data
Package width 833 mm
Package depth 126 mm
Package height 508 mm
Package weight 12.4 kg
Quick start guide Yes
Mounting kit Yes
Cables included AC
Packaging content
Quick start guide Yes
Mounting kit Yes
Cables included AC
Power adapter included Yes
Certificates
Certification CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Technical details
VESA mounting Yes
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
USB connector type USB Type-A, USB Type-C
Power supply type External
Panel type VA
Cable management Yes
Brightness 430 cd/m²
Number of simultaneous touchpoints 10
Weight (with stand) 7.7 kg
User controls Power switch, volume/ button +, volume/ button -
Sustainability certificates ErP
Compliance certificates CE, EAC, REACH, RoHS, UKCA, WEEE
Network
Wi-Fi standards Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi Yes
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Thin Client
Processor family ARM Rockchip
Processor model Rockchip RK3576
Operating system installed Android
Internal memory 4 GB
Internal storage capacity 32 GB
Other features
Compatible operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
USB connector type USB Type-A, USB Type-C
Power supply type External
Panel type VA
Cable management Yes
Brightness 430 cd/m²
Number of simultaneous touchpoints 10
Wi-Fi standards Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g, 802.11a, 802.11b
Wi-Fi Yes
Width (with stand) 735 mm
Viewable size, vertical 39.3 cm
Viewable size, horizontal 69.8 cm
Microphone in Yes
Mean time between failures (MTBF) 50000 h
Height (with stand) 436 mm
Display technology LED
Depth (with stand) 35 mm
DC-in jack Yes
Bluetooth version 5.3
Bluetooth Yes
Audio output Mini jack
Quick start guide Yes
AC adapter included Yes
Weight (with stand) 7.7 kg
