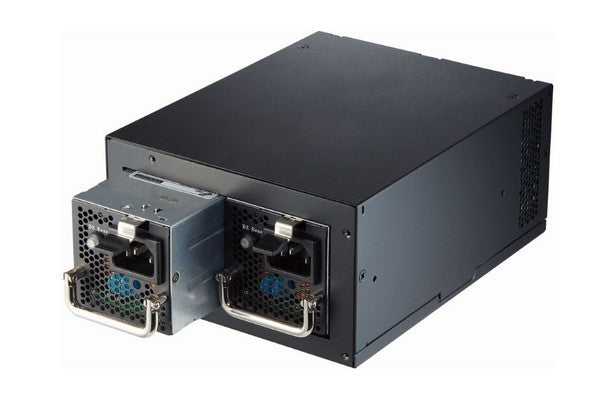

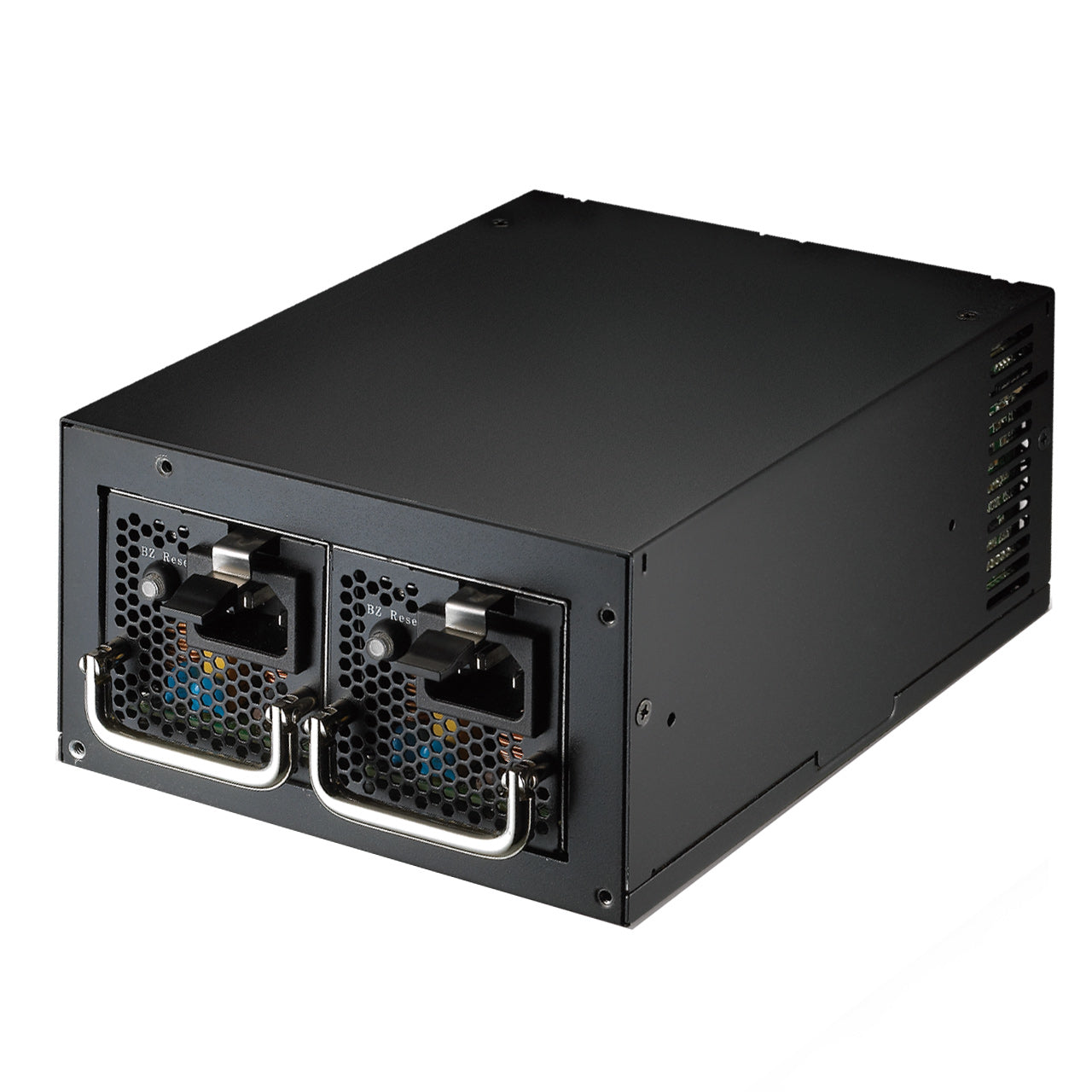

FSP Twins PRO 900W Power supply unit PS2 ATX Redundant ATX Black

FSP Twins PRO 900W Power supply unit PS2 ATX Redundant ATX Black

Regular price £528.00 GBP
Regular price Sale price £528.00 GBP
Sale Sold out
Taxes included.
Condition
Quantity

The FSP Twins PRO 900W is a redundant PS2 ATX power supply with dual hot-swappable modules, so your system keeps running even if one fails. It is built for servers, NAS and workstations where uptime and reliability are essential.

FSP Twins PRO 900W Power supply unit PS2 ATX Redundant ATX Black. Total power: 900 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: Server, Power supply unit (PSU) form factor: PS/2, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 4 cm, Number of fans: 2 fan(s). Cables included: CPU, PCIe, SATA

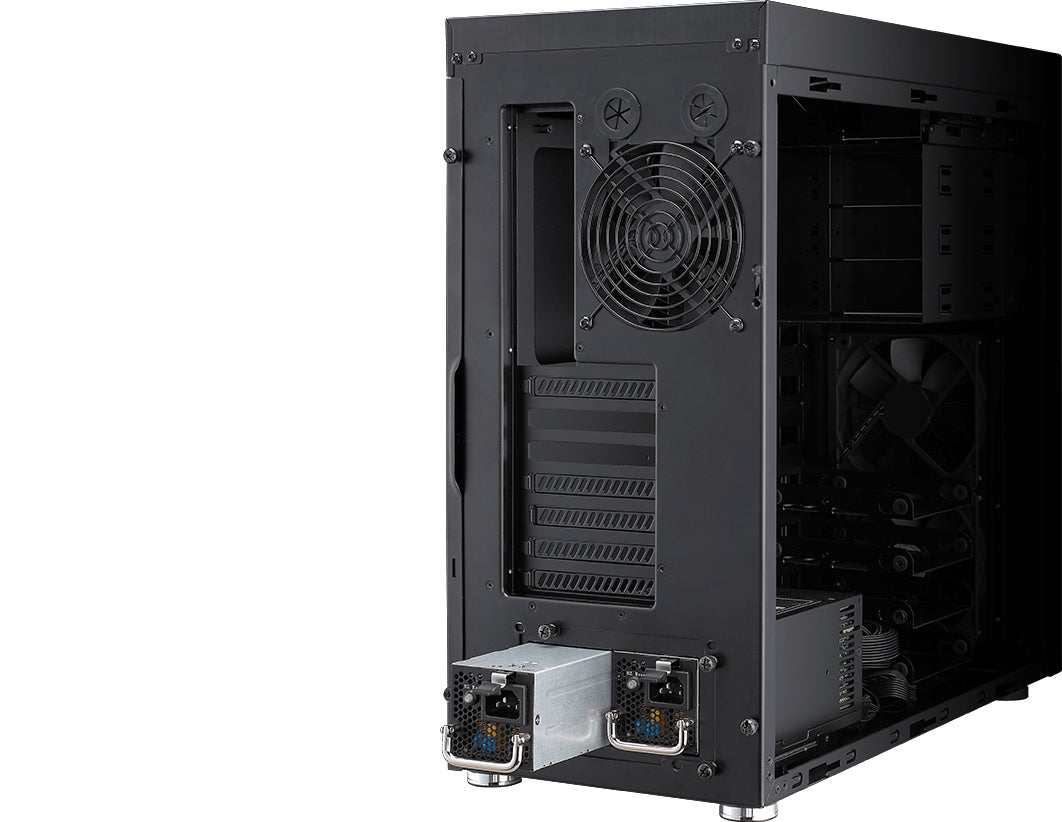

Twins PRO series, a redundant power supply, is designed for standard ATX or PS2 chassis, no front end braket needed, ideal for mail, web or home server. Hot swappable modules design provides stable power supply; when one fails, the other can take over the load immediately. Thus users do not need to worry about any server/PC power off situation.

Redundant system design and built-in hot swappable modules

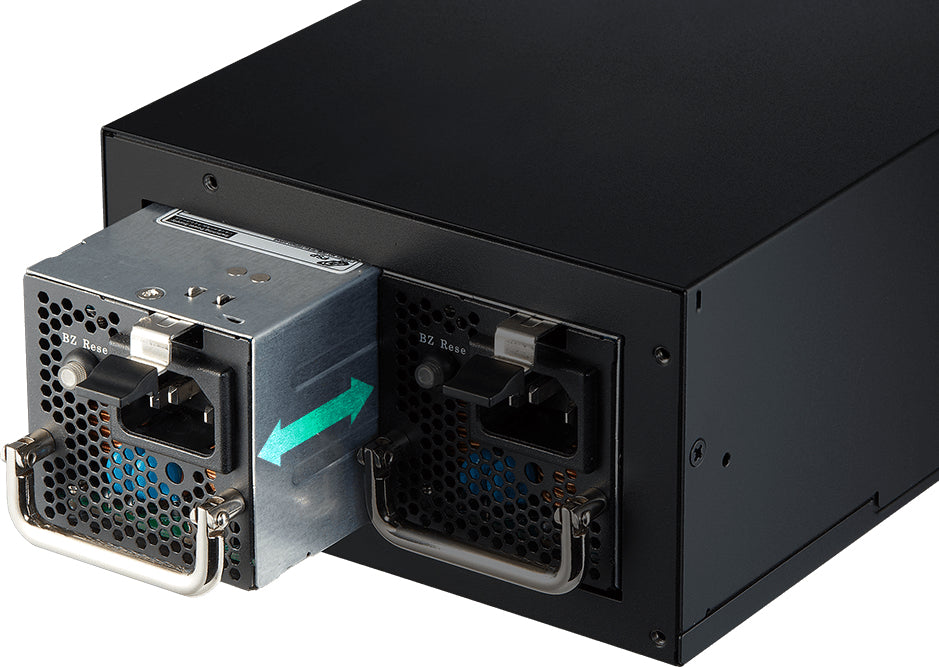

With redundancy in mind, the Twin Pro modular system design is more efficient and operates more quietly by distributing the power load between two hot swappable PSU modules. If one unit fails, the second unit takes control of the power load until a replacement is swapped in. Each unit can be hot swapped and replaced without any system down-time offering a seamless and uninterrupted operation.

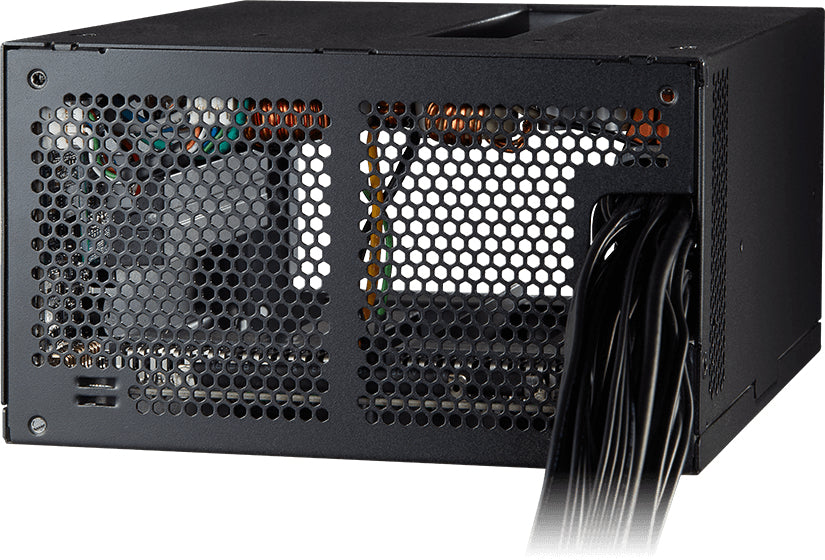

Black ribbon cable design
The round black ribbon cable design helps with heat emission effect and extends the life span of the components. The ribbon cable design also offers a cleaner aesthetic and allows for better cable management in custom build systems.

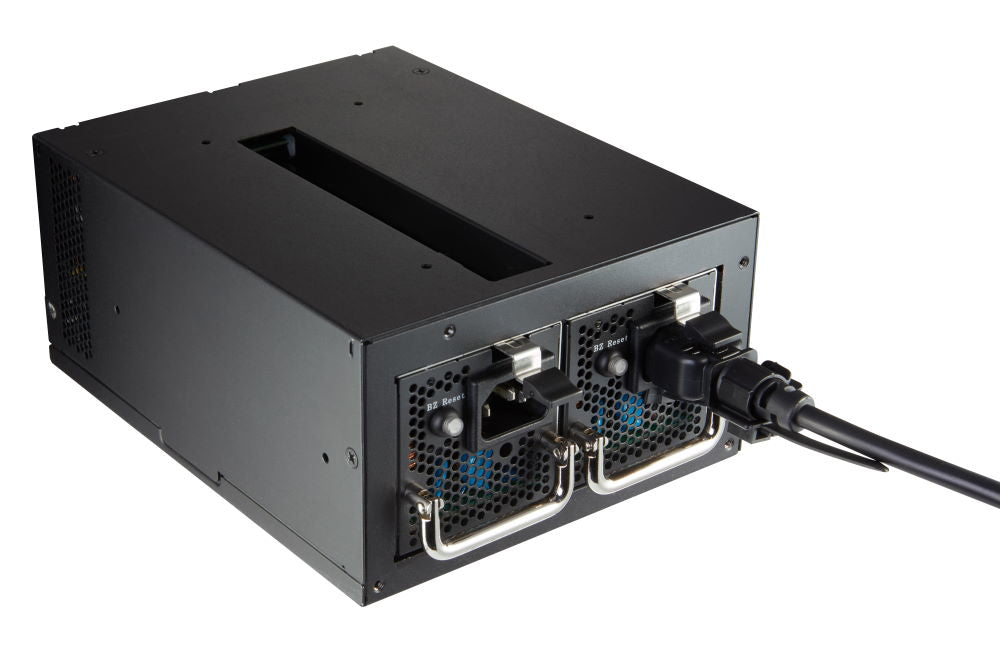

Power cord locking device
The Twins Pro series features a power cord locking device that secures the power cord from acciedntal disconnect helping to ensure stable operation without any system interruptions.

Twins_Pro Power Cord Locking Device
Guardian logoFSP Guardian
Propreitary user interface software that monitors status in real-time
Guardian display
The Twins PRO series can be connected to a USB header and synced with the FSP Guardian software to monitor power input, power output, efficiency, and other internal records in real-time. The FSP Guardian software can warn users when temperatures reaches certain levels by alerting them immediately with warning messages that will update the user with all of the latest information in real-time.

Key features

  • FSP900-50REB
  • ATX PS2 redundant size
  • Efficiency ≧ 90% at typical load
  • Quiet and long-lasting 40mm ball bearing fan
  • Ribbon cables for th need of enthusiasts
  • Powerful single +12V rail design
  • All Japanese electrolytic capacitors
  • Intel Latest CPU ready
  • Full protections OCP, OVP, SCP, OPP, OTP, FFP, UVP

Specifications

Power
Total power 900 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Input current 6 - 10 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 130 W
Combined power (+5V) 130 W
Max output current (+3.3V) 20 A
Max output current (+12V) 75 A
Max output current (+5V) 20 A
Max output current (-12V) 0.5 A
Max output current (+5Vsb) 3 A
Efficiency 90%
Power protection features Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 6
Peripheral (Molex) power connectors (4-pin) 2
PCI Express power connectors (6+2 pin) 4
CPU power connector (4+4 pin) Yes
Cabling type Non-Modular
Performance
80 PLUS certification 80 PLUS Gold
Purpose Server
Power supply unit (PSU) form factor PS/2
Bearing technology DBB
Design
Product colour Black
Fan diameter 4 cm
Number of fans 2 fan(s)
Packaging content
Cables included CPU, PCIe, SATA
Weight & dimensions
Width 150 mm
Depth 190 mm
Height 86 mm
Logistics data
Harmonized System (HS) code 84733020
