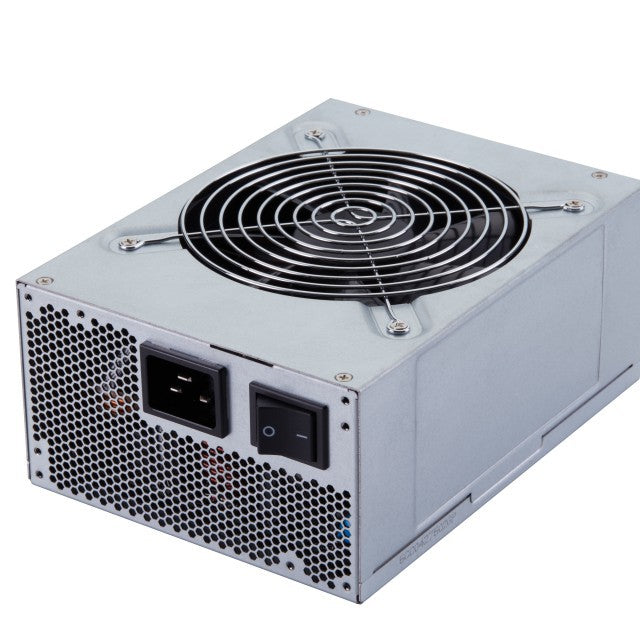

FSP FSP2000-52AGPBI power supply unit 2000 W ATX Silver

FSP FSP2000-52AGPBI power supply unit 2000 W ATX Silver

£394.34 GBP
£394.34 GBP
Sale Sold out
Taxes included.
Condition

The FSP FSP2000-52AGPBI is a 2000W fully modular ATX power supply built for high-end PC and server systems. Its wide input range and modular cabling deliver clean, abundant power for multi-GPU workstations and demanding rigs.

FSP FSP2000-52AGPBI. Total power: 2000 W, AC input voltage: 90 - 264 V, AC input frequency: 47 - 63 Hz. Cabling type: Fully-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Silver, Cooling type: Active. Certification: CB 62368-1 & CB 60950-1

FSP2000-52AGPBI is an industrial level of switching power supply. The power supply comes to offer the total power capacity up to 2000 Watts and uses unique active PFC (Power Factor Correction) circuit design with its high-load electrical components, makes it to be perfectly used in an industrial environment. In addition, with its full range of input and output electrical features, FSP2000-A0AGPBI comes with 16 PCI-E 6+2 pin connectors, the power supply is ideally the best choice for server, workstation, GPGPU, even the mining machine/AI/deep learning applications to use. The product also complies with the latest safety and EMC standards, which is perfectly to meet various regulations worldwide.

Key features

  • 80PLUS Gold
  • Input Circuit 100% High Voltage Tested
  • Up to 16 x PCI-E 6+2 PIN Connectors
  • Full Modular Design, 200mm Length
  • Low Ripple & Noise
  • Output Over Voltage Protection
  • Short Circuit Protection on All Outputs
  • Resettable Power Shut Down
  • 100% Burn-In Test Under 50℃ High Ambient Temperature
  • MTBF: 100K Hours at 25℃ Ambient Temperature
  • 100% Hi-Pot Tested Line Input Fuse Protection

Specifications

Power
Total power 2000 W
AC input voltage 90 - 264 V
AC input frequency 47 - 63 Hz
Input current 6 A
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 150 W
Combined power (+5V) 150 W
Max output current (+3.3V) 25 A
Max output current (+12V) 166.6 A
Max output current (+5V) 25 A
Max output current (-12V) 0.5 A
Max output current (+5Vsb) 4 A
Ports & interfaces
PCI Express power connectors (6+2 pin) 1
Cabling type Fully-Modular
Performance
80 PLUS certification 80 PLUS Gold
Purpose PC/Server
Power supply unit (PSU) form factor ATX
Mean time between failures (MTBF) 100000 h
Design
Product colour Silver
Cooling type Active
Operational conditions
Operating temperature (T-T) 0 - 50 °C
Storage temperature (T-T) -20 - 80 °C
Certificates
Certification CB 62368-1 & CB 60950-1
Weight & dimensions
Width 150 mm
Depth 200 mm
Height 86 mm
