FSP CANNON PRO 2500W Power supply unit ATX ATX3.1 Black

FSP CANNON PRO 2500W Power supply unit ATX ATX3.1 Black

£517.61 GBP
£517.61 GBP
Sold out
Tax included.
The FSP CANNON PRO 2500W is a high-capacity ATX 3.1 power supply built to feed the most demanding multi-GPU rigs and workstations. With huge stable output and modern connectors, it...
17 people are viewing this right now

Availability: Low stock: 5 left

Condition
SKU: 9PA25A0200
Vendor: FSP
Category: Power & UPS
Tags:

Shipping & Returns

Free shipping on orders over £350

We ship all domestic and International orders within 6-8 business days

Materials

The item with the Committed label has a lower environmental impact because it was made with sustainable materials or methods. We are committed to creating items that combine sustainability with style. Made with recycled cashmere and industril by products.

Size Chart

Care Instructions

We advise routinely dusting your items with a gentle cleanser to preserve its look. Periodically, it may need to be softly wet with a mild detergent solution.

View full product details

The FSP CANNON PRO 2500W is a high-capacity ATX 3.1 power supply built to feed the most demanding multi-GPU rigs and workstations. With huge stable output and modern connectors, it is engineered for extreme builds that need serious headroom.

FSP CANNON PRO 2500W Power supply unit ATX ATX3.1 Black. Total power: 2500 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, SATA power cable length: 965 mm, Peripheral (Molex) power cable length: 965 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Fan diameter: 13.5 cm, Number of fans: 1 fan(s). Width: 150 mm, Depth: 200 mm, Height: 86 mm

The Future is Now：ATX 3.1 & PCIe Gen 5.1 Ready
Following the latest ATX 3.1 & PCIe Gen 5.1 regulation, this series supports 2 x total power excursion and 3 x GPU excursion to provide peak performance with modern hardware or future upgrades.

High efficiency in Platinum-certified
Certified by world-class organizations 80 PLUS® 230 EU platinum certification for lower power loss, less heat, and quieter operation.

Ready to Build Your Own AI PC Station
4 x PCIe 12V-2x6 and 3x PCIe 8 pin connectors
Supports four 12V-2x6 connectors and three 6+2 pin connectors, providing the power needed for high-end gaming, rendering, and multi-GPU setups.

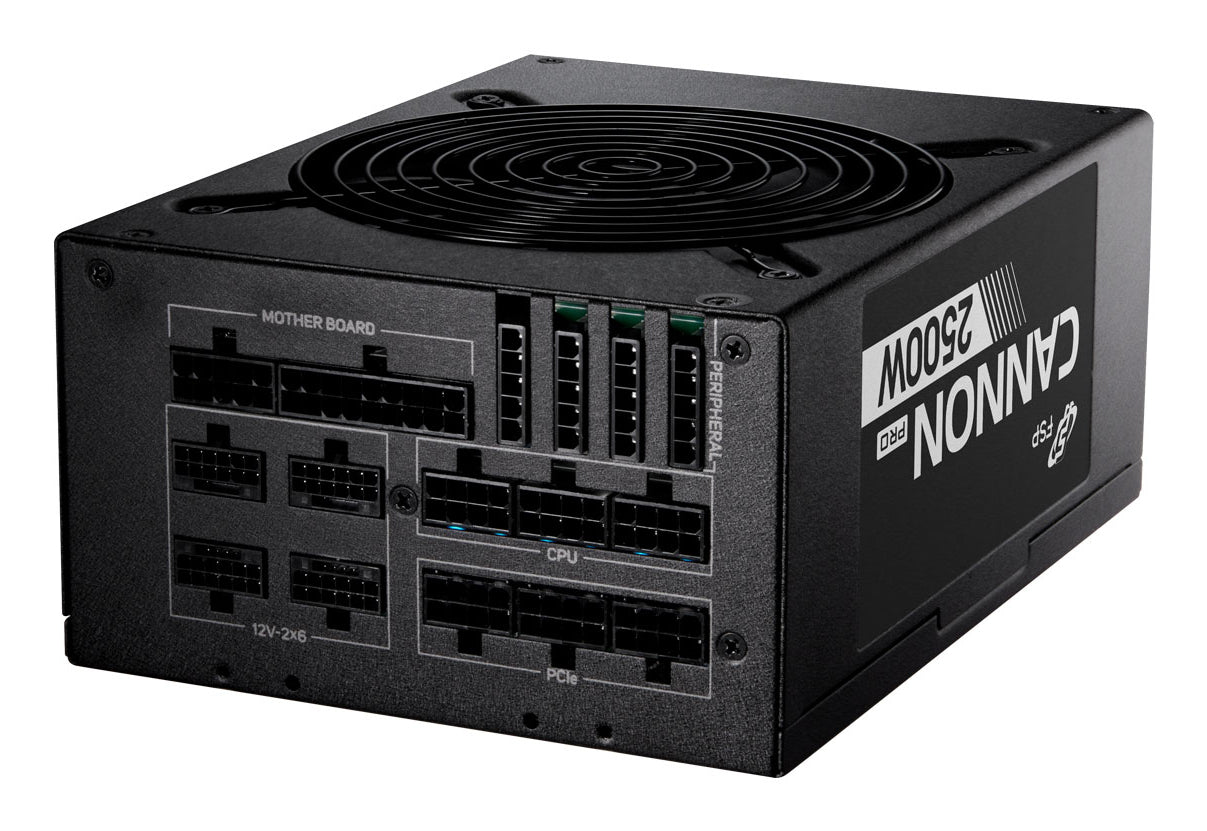

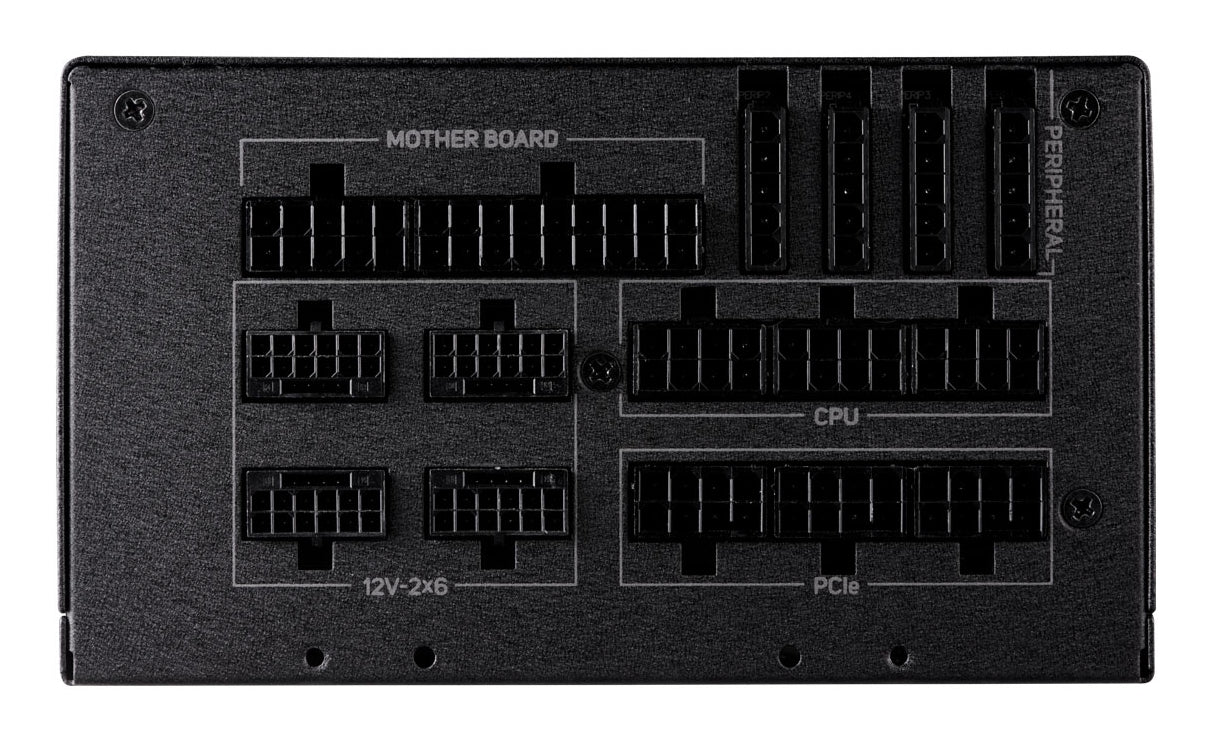

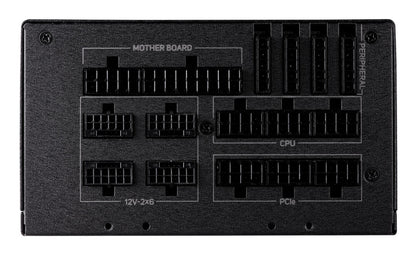

Fully Modular Cabling Design
To make power supply installation easy and allows users to use only the needed cables, improving airflow and reducing system clutter.

+5V & 3.3V DC to DC Circuit Design
Both of +3.3V and +5V DC – DC module combined +12V SR circuit offers supreme efficiency, voltage stability and high system compatibility especially in cross regulation(unbalance load) mode.

105℃ Japanese Bulk Capacitor
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.

Powerhouse Yet Energy-saving
High energy conversion up to 94% and 70% efficiency at 2% loading, with less than 0.5W consumption in standby mode, ensures an energy-efficient, cost-effective system that is also eco-friendly.

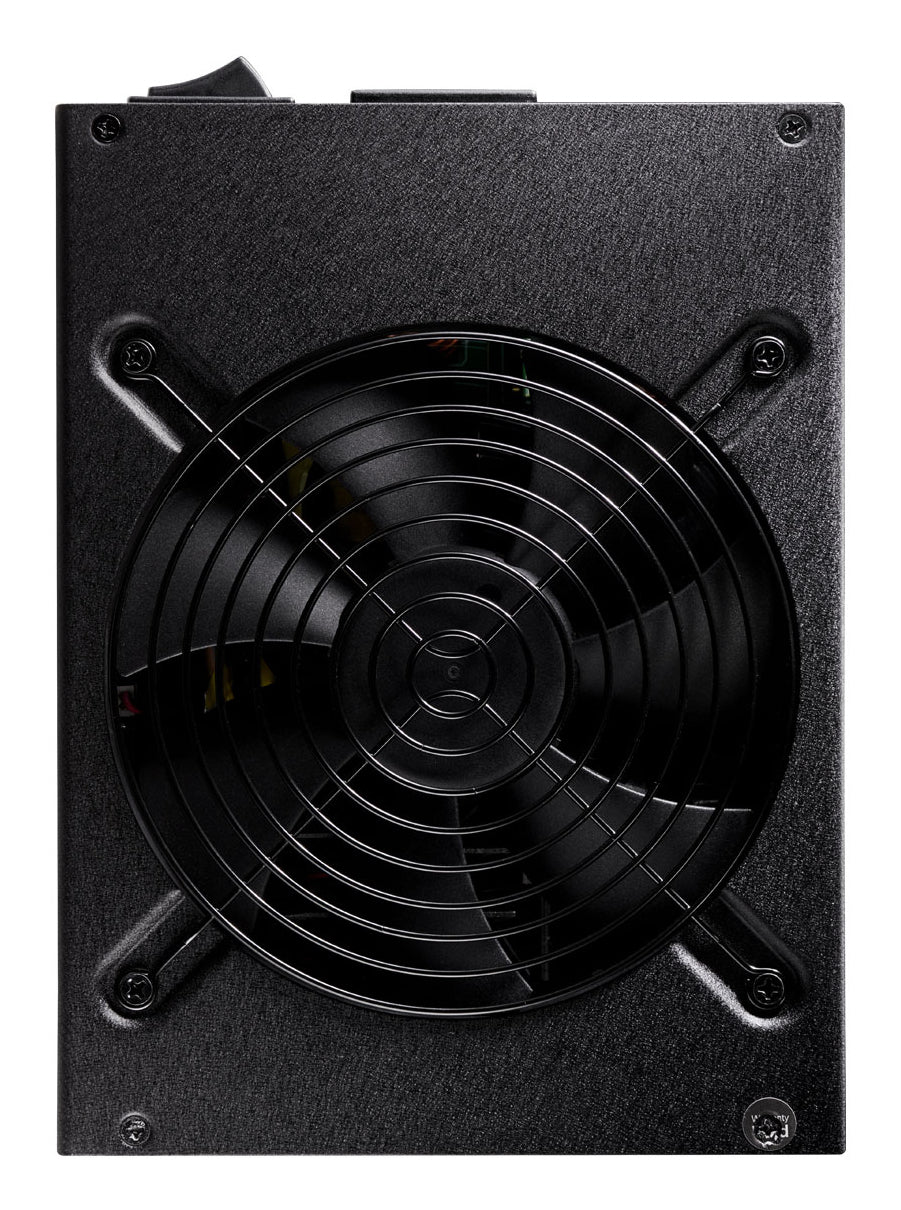

The Premium Quality FDB Fan
Built with optimized thermal solution and an advanced 135mm fluid dynamic bearing fan for cooler components and quieter operation.

Industrial – design: Conformal Coating for Rigorous Computing Environments
Provide power stably under rigorous, high-speed computing environments that need to operate 24 hours a day without interruptions.

Fortress-level Protection
Our comprehensive circuit shields your valuable components from harm.

Key features

  • Efficiency ≧ 94% at typical load
  • 80 PLUS® 230V EU platinum certified
  • Provide 4 native PCIe 12V-2x6 connectors and cables
  • Top-notch topology of full-bridge & LLC converter and synchronous rectifier & DC-DC converters
  • Infineon MOSFETs and SiC diodes for high efficiency and reliability.
  • 420V 105°C Japanese bulk capacitor
  • Quiet and long-lasting 135mm silent fan
  • Fully modular cabling design
  • Off-Wet, off-dust and off-stain conformal coating
  • Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO

Specifications

Power
Total power 2500 W
AC input voltage 200 - 240 V
AC input frequency 50/60 Hz
Input current 15 - 12 A
Power factor 0.9
Power Factor Correction (PFC) type Active
Combined power (+3.3V) 125 W
Combined power (+12V) 2499.6 W
Combined power (+5V) 125 W
Combined power (-12V) 3.6 W
Combined power (+5Vsb) 20 W
Max output current (+3.3V) 25 A
Max output current (+12V) 208.3 A
Max output current (+5V) 25 A
Max output current (-12V) 0.3 A
Max output current (+5Vsb) 4 A
Efficiency 94%
Power protection features No load operation, Over current, Over power, Over voltage, Short circuit, Surge and inrush, Under temperature, Under voltage
Ports & interfaces
Motherboard power connector 20+4 pin ATX
Number of SATA power connectors 8
SATA power cable length 965 mm
Number of SATA power cables 2
Peripheral (Molex) power connectors (4-pin) 4
Peripheral (Molex) power cable length 965 mm
PCI Express power connectors (6+2 pin) 3
PCI Express power connectors (8-pin) 8
CPU power connector (4+4 pin) Yes
ATX power connector (20+4 pin) Yes
Cabling type Fully-Modular
Performance
80 PLUS certification 80 PLUS Platinum
Purpose PC
Power supply unit (PSU) form factor ATX
ATX version 3.1
Bearing technology FDB
Design
Product colour Black
Fan diameter 13.5 cm
Number of fans 1 fan(s)
Fan location Top
On/off switch Yes
Weight & dimensions
Width 150 mm
Depth 200 mm
Height 86 mm
