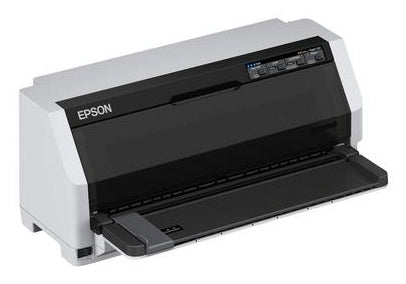

Epson LQ-690IIN

24-pin dot matrix printer
Designed with productivity in mind, the LQ-690IIN is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.

Fast printing:
Print faster and more productively. The LQ-690IIN prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.

High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690IIN as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.

Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and with its network capabilities, the LQ-690IIN is perfect for all your work requirements. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.

Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.

Print quality
Maximum resolution	360 x 180 DPI
Maximum printing width (columns)	106
Colour	No
Printing
Maximum resolution	360 x 180 DPI
Maximum print speed (draft)	366 cps
Maximum print speed (LQ)	121 cps
Maximum number of copies	6 copies
Maximum printing width (columns)	106
Character sets	ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAR864, Roman 8
Built-in barcodes	Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, EAN8, Matrix 2/5, POSTNET, Interleaved 2/5, EAN13, Code 39, Industrial 2/5
Maximum print speed	487 cps
Colour	No
Print speed	HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Print technology
Print head	24-pin
Paper handling
Paper feed	Manual, Pull tractor
Continuous paper thickness range	0.065 - 0.49 mm
Paper tray media types	Envelopes, Roll
Label thickness range	0.16 - 0.19 mm
Single sheet thickness range	0.065 - 0.15 mm
Multi-part paper thickness range	0.12 - 0.49 mm
Features
Product colour	Black, White
Country of origin	Indonesia
Buffer size	128 KB
Sound pressure level (printing)	59 dB
Memory
Buffer size	128 KB
Ports & interfaces
Standard interfaces	Ethernet, Parallel, USB 2.0
Cabling technology	10/100Base-T(X)
Endurance
Print head	24-pin
Print head life	400 million characters
Ribbon life	10 million characters
Mean time between failures (MTBF)	20000 h
Ribbon life (black, draft)	10 million characters
Power
Power consumption (typical)	38 W
Power consumption (standby)	3 W
Weight & dimensions
Package width	333 mm
Package depth	597 mm
Package height	352 mm
Package weight	8.67 kg
Width	480 mm
Depth	301 mm
Height	211 mm
Weight	6.8 kg
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
System requirements
Windows operating systems supported	Yes
Bundled software	Epson Status Monitor
Packaging data
Package width	333 mm
Package depth	597 mm
Package height	352 mm
Package weight	8.67 kg
Quantity per pack	1 pc(s)
Technical details
Number of pins	24
Quantity per pack	1 pc(s)
Products per pallet layer (UK)	6 pc(s)
Products per pallet layer	4 pc(s)
Products per pallet (UK)	36 pc(s)
Country of origin	Indonesia
Bundled software	Epson Status Monitor
Print speed	HighSpeed-Draft: 10 cpi: 487 chars/s, 12 cpi: 529 chars/s, Draft: 10 cpi: 366 chars/s, 12 cpi: 396 chars/s, LQ: 10 cpi: 121 chars/s, 12 cpi: 132 chars/s
Needles	24 Needles
Box contents	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Other features
Print technology	Dot matrix
Country of origin	Indonesia
Fonts included	Bitmap font EPSON Courier (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON Draft (10 CPI, 12 CPI, 15 CPI), Bitmap font EPSON OCR-B (10 CPI), Bitmap font EPSON Orator (10 CPI), Bitmap font EPSON Orator-S (10 CPI), Bitmap font EPSON Prestige (10 CPI, 12 CPI), Bitmap font EPSON Roman (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Sans Serif (10 CPI, 12 CPI, 15 CPI, Proportional), Bitmap font EPSON Script (10 CPI), Bitmap font EPSON Script C (Proportional), Scalable font EPSON Roman, Scalable font EPSON Roman T, Scalable font EPSON Sans Serif, Scalable font EPSON Sans Serif H
Compatible operating systems	Windows 10, Windows 11, Windows 2000, Windows 7, Windows 8, Windows 98, Windows Vista, Windows XP, Windows XP SP3 or later (32-bit), Windows Server 2003 SP2 or later
Products per pallet	24 pc(s)
Needles	24 Needles
Box contents	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Design
Product colour	Black, White
Logistics data
Products per pallet	24 pc(s)
Products per pallet layer (UK)	6 pc(s)
Products per pallet layer	4 pc(s)
Products per pallet (UK)	36 pc(s)
