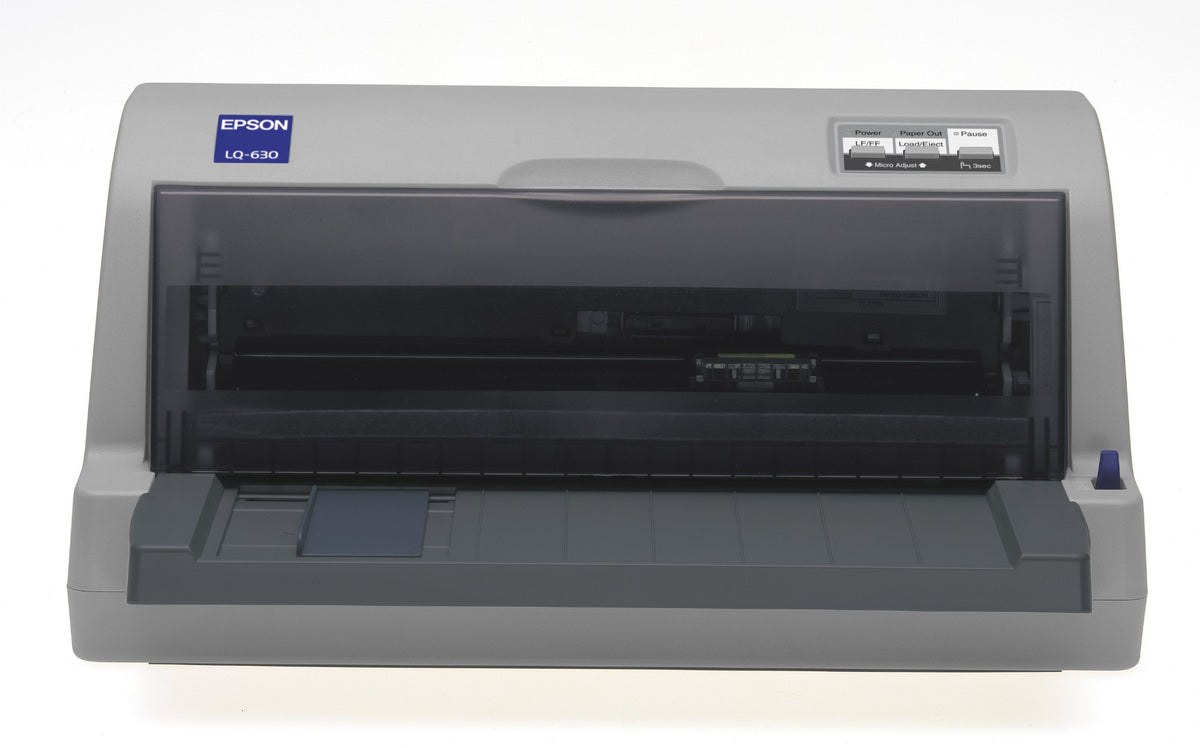

Epson LQ-630

LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer's flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors' surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.

Print quality
Maximum resolution	360 x 180 DPI
Maximum print size	254 x 559 mm
Maximum printing width (columns)	80
Colour	No
Printing
Maximum resolution	360 x 180 DPI
Maximum number of copies	4 copies
Maximum printing width (columns)	80
Built-in barcodes	Code 39, POSTNET, UPC-A, UPC-E
Maximum print speed	360 cps
Colour	No
Print speed	HighSpeed-Draft: 10 cpi: 300 chars/s, 12 cpi: 360 chars/s, Draft: 10 cpi: 225 chars/s, LQ: 10 cpi: 79 chars/s
Print technology
Print head	24-pin
Paper handling
Maximum print size	254 x 559 mm
Paper tray media types	Roll
Features
Product colour	Grey
Country of origin	China
Buffer size	32 KB
Sound pressure level (printing)	57 dB
Memory
Buffer size	32 KB
Ports & interfaces
Standard interfaces	Parallel, USB 2.0
Endurance
Print head	24-pin
Print head life	400 million characters
Ribbon life	2 million characters
Mean time between failures (MTBF)	6000 h
Ribbon life (black, draft)	2 million characters
Power
AC input voltage	220 - 240 V
Power consumption (typical)	20 W
Power consumption (standby)	4.8 W
Weight & dimensions
Package width	310 mm
Package depth	455 mm
Package height	265 mm
Package weight	5.2 kg
Width	386 mm
Depth	306 mm
Height	185 mm
Weight	3.5 kg
Operational conditions
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80%
System requirements
Bundled software	Epson Status Monitor
Packaging data
Package width	310 mm
Package depth	455 mm
Package height	265 mm
Package weight	5.2 kg
Quantity per pack	1 pc(s)
Technical details
Number of pins	24
Quantity per pack	1 pc(s)
Pallet gross width	120 cm
Pallet gross height	100 cm
Products per pallet layer (UK)	7 pc(s)
Products per pallet layer	5 pc(s)
Products per pallet (UK)	49 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2 m
Country of origin	China
Bundled software	Epson Status Monitor
Print speed	HighSpeed-Draft: 10 cpi: 300 chars/s, 12 cpi: 360 chars/s, Draft: 10 cpi: 225 chars/s, LQ: 10 cpi: 79 chars/s
Needles	24 Needles
Box contents	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Other features
Print technology	Dot matrix
Country of origin	China
Compatible operating systems	Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Products per pallet	35 pc(s)
Needles	24 Needles
Box contents	Driver and utilities, Main unit, Power cable, Ribbon, Setup guide, Software (CD), User manual (CD), Warranty document
Design
Product colour	Grey
Logistics data
Products per pallet	35 pc(s)
Pallet gross width	120 cm
Pallet gross height	100 cm
Products per pallet layer (UK)	7 pc(s)
Products per pallet layer	5 pc(s)
Products per pallet (UK)	49 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2 m
