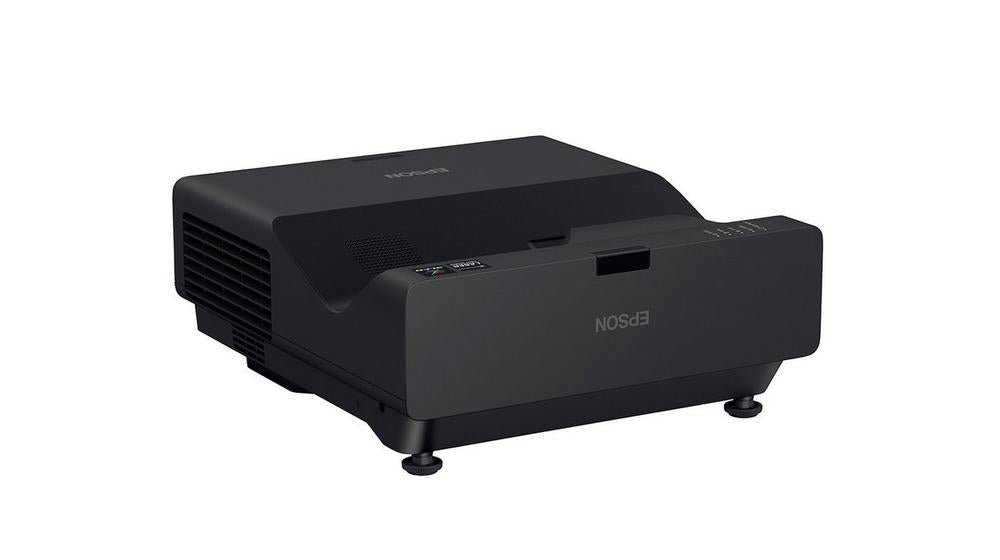

Epson EB-775F

Digital signage solution
The EB-775F is a cost effective way to create large, informative and immersive displays on multiple surfaces and in tight spaces at full HD and up to 4,100 lumens.

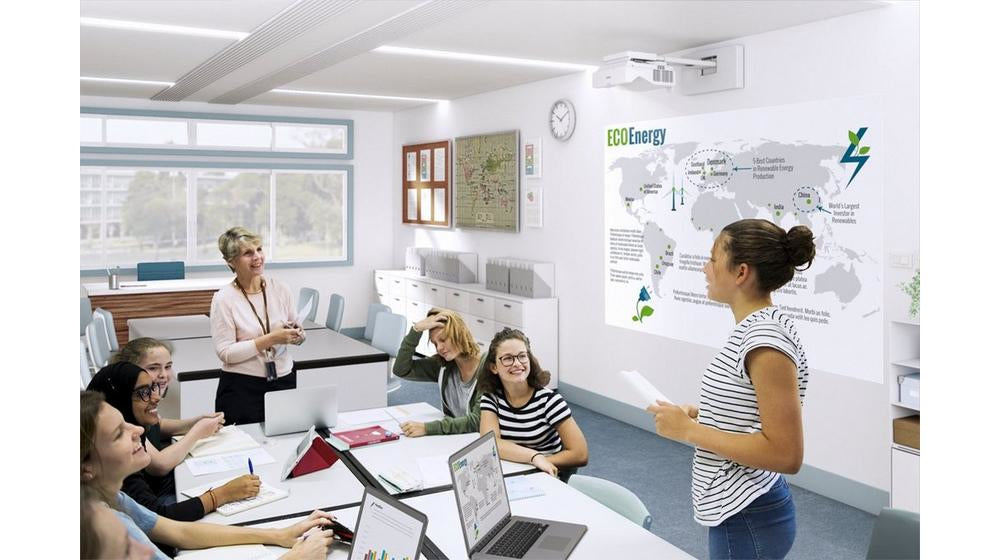

It is designed to display visitor and customer information (e.g. in hospitality, retail and offices), exhibition information - even projecting directly onto exhibits - and boardroom presentations or school lessons.

Create enaging displays
Epson's advanced laser technology makes this a flexible and easy to use digital signage solution. Create enaging displays up to 150" (larger when using 2 devices) at up to 4,100 lumens for easy visibility in bright environments.

Bring any surface to life, discretely
The EB-775F can be installed on wall or ceiling and can project onto almost any surface (even unconventional surfaces such as floor or pillars). It's UST design also makes it ideal for projecting large images in tight spaces. Choose between a black (EB-775F) or white (EB-770F) model to discretely blend it into your environment - it can even be hidden to create floating and borderless displays to surprise and delight audiences.

Robust, reliable and cost effective
Our laser technology is also robust and low maintenance. Offering up to 20,000 hours maintenance-free use and a 5 year warranty, this is a fit-and-forget display solution you can rely on at a cost-effective price.

Flexible playback options
Epson offers free apps for content creation (Epson Creative Projection & Epson Projector Content Management). Content can be played directly from USB (including playlists, videos, and signage content) via the built-in playback feature, or users can upload and playback content wirelessly with built-in Wi-Fi and Miracast.

Projector
Number of colours	1.07 billion colours
Projector native resolution	1080p (1920x1080)
Projection distance (wide)	0 - 0.4 m
Projection distance (tele)	0 - 0.7 m
Native aspect ratio	16:9
Supported aspect ratios	16:9, 21:9
Screen size compatibility	1524 - 3810 mm (60 - 150")
Contrast ratio (typical)	2500000:1
Contrast ratio (dynamic)	5000000:1
Zoom ratio	1.35:1
Zoom capability	Yes
Vertical scan range	192 - 240 Hz
Projector brightness (economic mode)	2800 ANSI lumens
Keystone correction, vertical	±3°
Keystone correction, horizontal	±3°
Projection technology	3LCD
Projector brightness	4100 ANSI lumens
Heat dissipation	895 BTU/h
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Zoom ratio	1.35:1
Zoom capability	Yes
Focus	Manual
Focal length range	3.7 mm
Throw ratio	0.25 - 0.35:1
F-number (relative aperture)	1.6
Scanning frequency
Vertical scan range	192 - 240 Hz
Video
Video processing	10 bit
Video colour modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB
Full HD	Yes
Supported video modes	1080p
Audio
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	16 W
Ports & interfaces
USB 2.0 Type-B ports quantity	1
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	1
Audio (L/R) in	2
Audio (L/R) out	1
Serial interface type	RS-232C
DVI port	No
AC (power) in	Yes
Network
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet LAN (RJ-45) ports	1
Miracast	Yes
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	Black
Security features	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Heat dissipation	895 BTU/h
Control panel	0.61 inch with C2 Fine
Box contents	Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty Documents
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.07 m
Products per pallet layer (UK)	4 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.07 m
Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, Network projection, OSD copy function, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App
Warranty period	5 year(s)
Performance
Market positioning	Presentation
Password protection	Yes
Vertical scan range	192 - 240 Hz
Noise level	37 dB
Noise level (economic mode)	27 dB
Heat dissipation	895 BTU/h
Features
Password protection	Yes
Noise level	37 dB
Noise level (economic mode)	27 dB
Country of origin	Philippines
Multimedia
Built-in speaker(s)	Yes
Number of built-in speakers	1
RMS rated power	16 W
Design
Market positioning	Presentation
Product type	Ultra short throw projector
Cable lock slot type	Kensington
Product colour	Black
Cable lock slot	Yes
Placement	Ceiling, Desktop, Wall
Display
Built-in display	No
Power
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	263 W
Power consumption (standby)	0.5 W
Packaging data
Package width	450 mm
Package depth	485 mm
Package height	320 mm
Package weight	8.67 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Software
Bundled software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Weight & dimensions
Package width	450 mm
Package depth	485 mm
Package height	320 mm
Weight	5.9 kg
Width	356 mm
Depth	395 mm
Height	133 mm
Package weight	8.67 kg
Packaging content
Remote control included	Yes
Quick start guide	Yes
Manual	Yes
Cables included	AC
Bundled software	Epson Creative Projection, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management
Batteries included	Yes
Logistics data
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.07 m
Products per pallet layer (UK)	4 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.07 m
Other features
Supported network protocols	HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Security features	Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Interface	USB 2.0-A (2x), USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Wi-Fi Direct
F-number (relative aperture)	1.6
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Safety wire set, Visualiser camera, WP System - ELPWP10, Wall hanging bracket, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Control panel	0.61 inch with C2 Fine
Box contents	Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty Documents
