Epson EB-770Fi

Agile USTi laser display

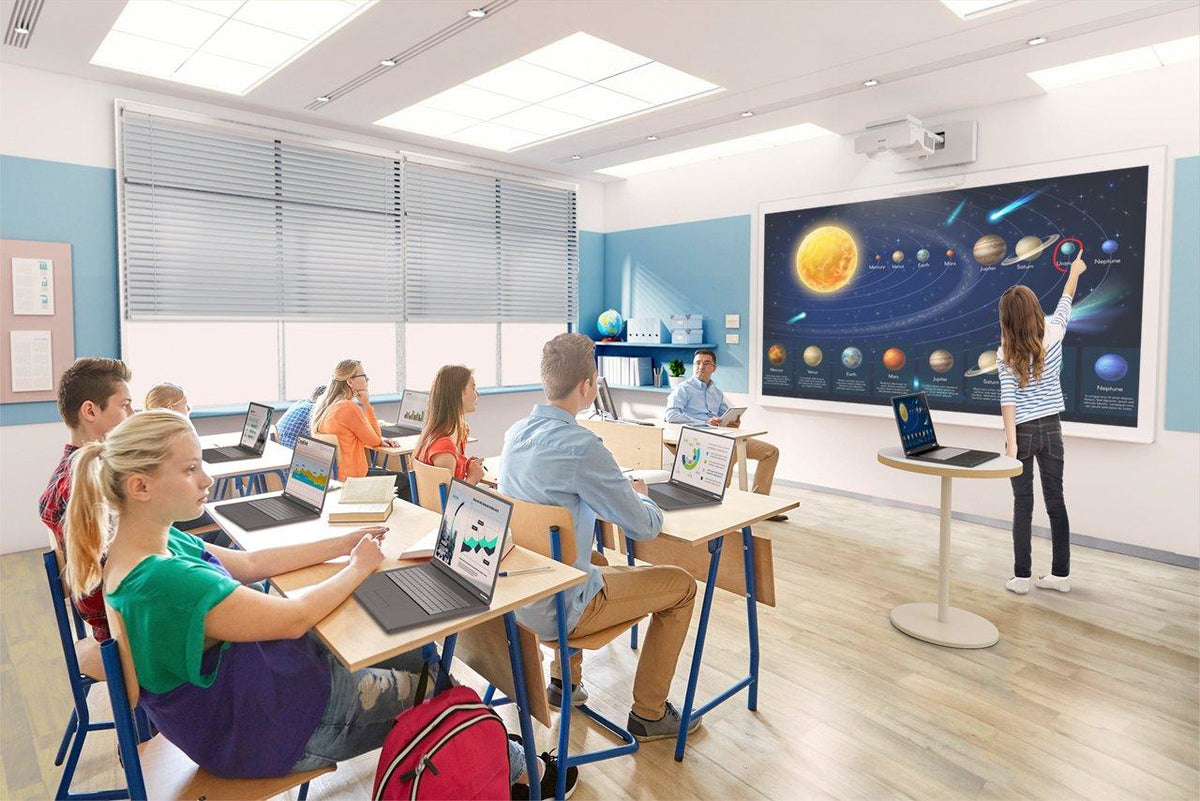

Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.

The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

Interactive display
The EB-770Fi is a step up from the EB-770F, with added interactive features.

Two digital pens to be used on the display simultaeously (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be contolled via the display, projecting documents or objects from a desk for everyone to see in incredible detail.

Bright display up to 100"
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", clearly visible from all angles and at a distance.

Effortless connectivity
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allows participants to effortlessly share content from their PCs or mobile devices.

The experience is immersive and user-friendly
The ultra short throw lens allows safe, unobtrusive positioning above the display, enabling presenters free access to interact without casting shadows.

Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles; and presenters are not subjected to LCD panel direct blue light radiation.

Projector
Number of colours	1.07 billion colours
Projector native resolution	1080p (1920x1080)
Native aspect ratio	16:9
Screen size compatibility	1524 - 2540 mm (60 - 100")
Contrast ratio (typical)	2500000:1
Contrast ratio (dynamic)	5000000:1
Zoom ratio	1.35:1
Zoom capability	Yes
Vertical scan range	192 - 240 Hz
Projector brightness (economic mode)	2800 ANSI lumens
Keystone correction, vertical	±3°
Keystone correction, horizontal	±3°
Projection technology	3LCD
Projector brightness	4100 ANSI lumens
Heat dissipation	895 BTU/h
Lamps
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Light source
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
Lens system
Fixed focal length	3.7 mm
Zoom ratio	1.35:1
Zoom capability	Yes
Focus	Manual
Focal length range	3.7 mm
Throw ratio	0.25 - 0.35:1
F-number (relative aperture)	1.6
Scanning frequency
Vertical scan range	192 - 240 Hz
Video
Video processing	10 bit
Video colour modes	Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB
Analog signal format system	Not supported
Full HD	Yes
3D	No
Audio
Built-in speaker(s)	Yes
RMS rated power	16 W
Ports & interfaces
USB 2.0 Type-B ports quantity	2
VGA (D-Sub) ports quantity	2
HDMI ports quantity	3
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	4
Composite video in	0
Microphone in	Yes
Serial interface type	RS-232C
DVI port	No
Component video (YPbPr/YCbCr) in	0
USB 2.0 Type-A ports quantity	2
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Ethernet LAN (RJ-45) ports	1
Storage
Card reader integrated	No
Sound emission
Noise level	37 dB
Noise level (economic mode)	27 dB
Technical details
Product colour	White
Security features	Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Heat dissipation	895 BTU/h
Control panel	0.62 inch with C2 Fine
Box contents	2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.1 m
Products per pallet layer (UK)	4 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.1 m
Other features	21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code
Performance
Market positioning	Presentation
Password protection	Yes
Vertical scan range	192 - 240 Hz
Noise level	37 dB
Noise level (economic mode)	27 dB
Heat dissipation	895 BTU/h
Features
Interactive	Yes
Interactive input supported	Interactive pen/Touch
Password protection	Yes
Noise level	37 dB
Noise level (economic mode)	27 dB
Country of origin	Philippines
Multimedia
Built-in speaker(s)	Yes
RMS rated power	16 W
Design
Market positioning	Presentation
Product type	Ultra short throw projector
Cable lock slot type	Kensington
Product colour	White
Cable lock slot	Yes
Placement	Ceiling, Desktop, Wall
Power
AC adapter output voltage	100 - 240 V
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power source	AC
Power consumption (typical)	197 W
Power consumption (standby)	0.5 W
Power consumption (PowerSave)	199 W
Packaging data
Package width	450 mm
Package depth	485 mm
Package height	325 mm
Package weight	9.15 kg
Security
Cable lock slot type	Kensington
Cable lock slot	Yes
Software
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	10 - 90%
Weight & dimensions
Package width	450 mm
Package depth	485 mm
Package height	325 mm
Weight	6 kg
Width	356 mm
Depth	395 mm
Height	133 mm
Package weight	9.15 kg
Packaging content
Remote control included	Yes
Cables included	AC, USB
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Batteries included	Yes
Logistics data
Products per pallet	12 pc(s)
Quantity per pack	1 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.1 m
Products per pallet layer (UK)	4 pc(s)
Products per pallet layer	2 pc(s)
Products per pallet (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.1 m
Other features
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security features	Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
Interface	USB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touch interface (optional)
F-number (relative aperture)	1.6
Option type	Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01
Control panel	0.62 inch with C2 Fine
Box contents	2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document
