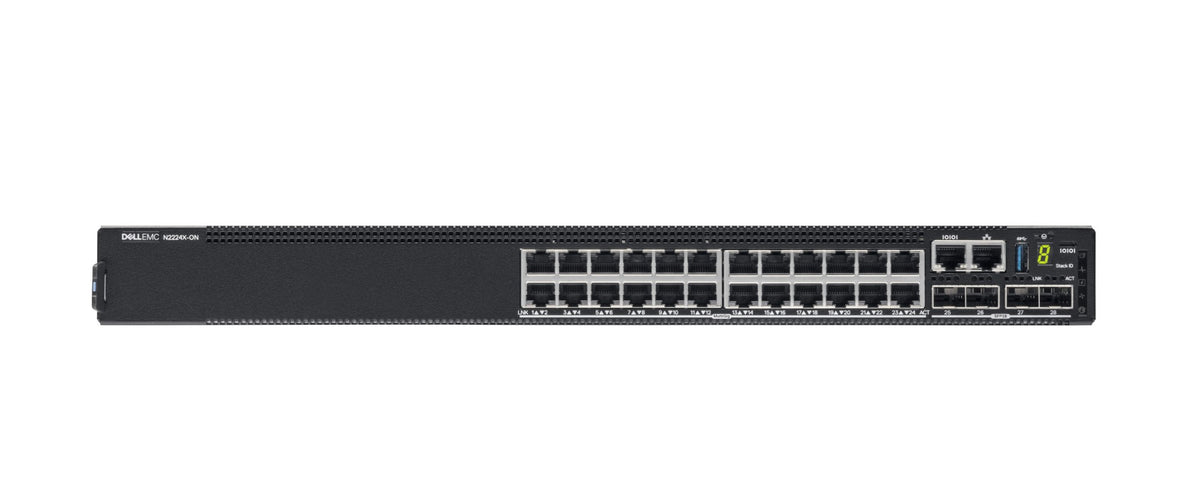

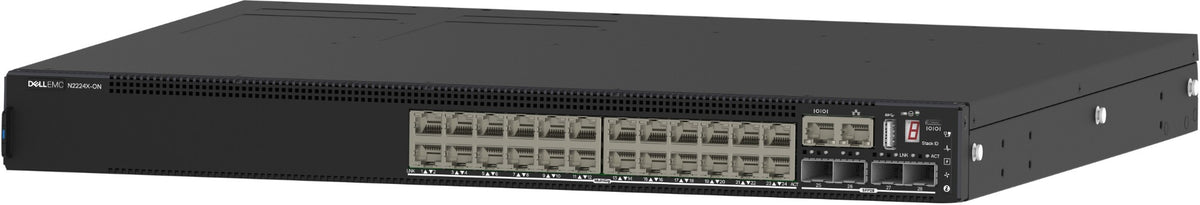

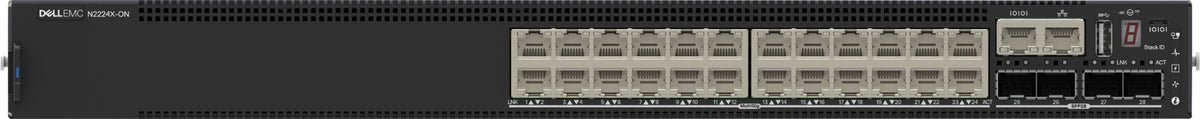

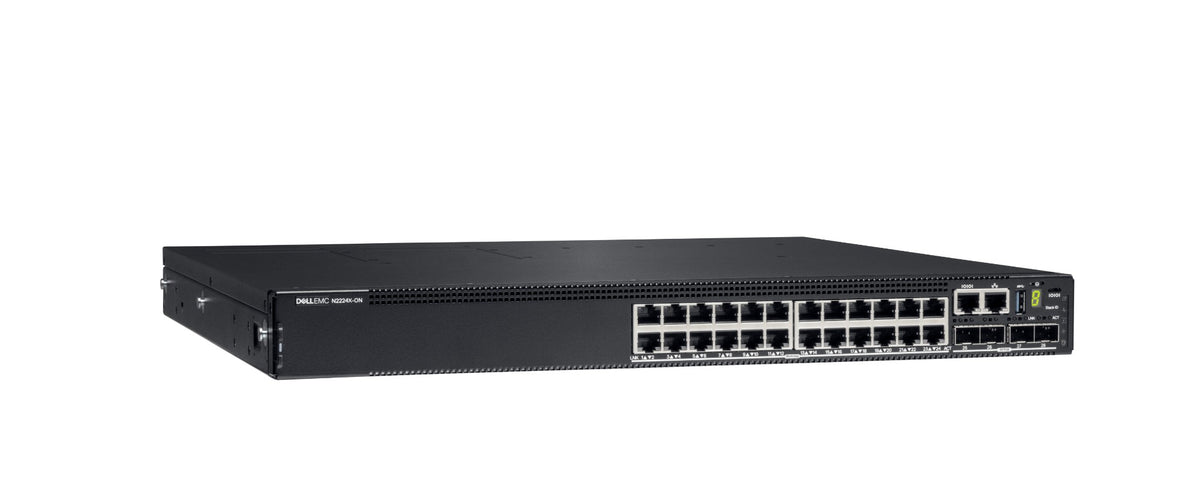

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black

Modernize your campus access network
Purpose-built industry’s first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.

Management features
Switch type	Managed
Multicast support	Yes
Switch layer	L3
Ports & interfaces
QSFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Gigabit Ethernet (copper) ports quantity	24
USB 2.0 ports quantity	1
SFP28 ports quantity	4
Network
Active link detection	Yes
Full duplex	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Port mirroring	Yes
Number of VLANs	4096
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Broadcast storm control	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
IGMP snooping	Yes
Data transmission
Packet buffer memory	4 MB
MAC address table	32000 entries
Switching capacity	160 Gbit/s
Forwarding rate	667 Mpps
Number of VLANs	4096
Security
IGMP snooping	Yes
Access Control List (ACL)	Yes
Authentication type	RADIUS
Multicast features
Multicast support	Yes
Design
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Power
Power supply included	Yes
Power consumption (typical)	550 W
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 65 °C
Storage relative humidity (H-H)	0 - 85%
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Heat dissipation	812 BTU/h
Virtual LAN features
VLAN support	Yes
Number of VLANs	4096
Weight & dimensions
Width	434.1 mm
Depth	400.1 mm
Height	43.4 mm
Weight	6.49 kg
Performance
Packet buffer memory	4 MB
Stackable	Yes
Auto-negotiation	Yes
Harmonized System (HS) code	85176990
Technical details
Form factor	1U
Product colour	Black
Stackable	Yes
Rack mounting	Yes
Memory
Packet buffer memory	4 MB
Logistics data
Harmonized System (HS) code	85176990
