Cudy

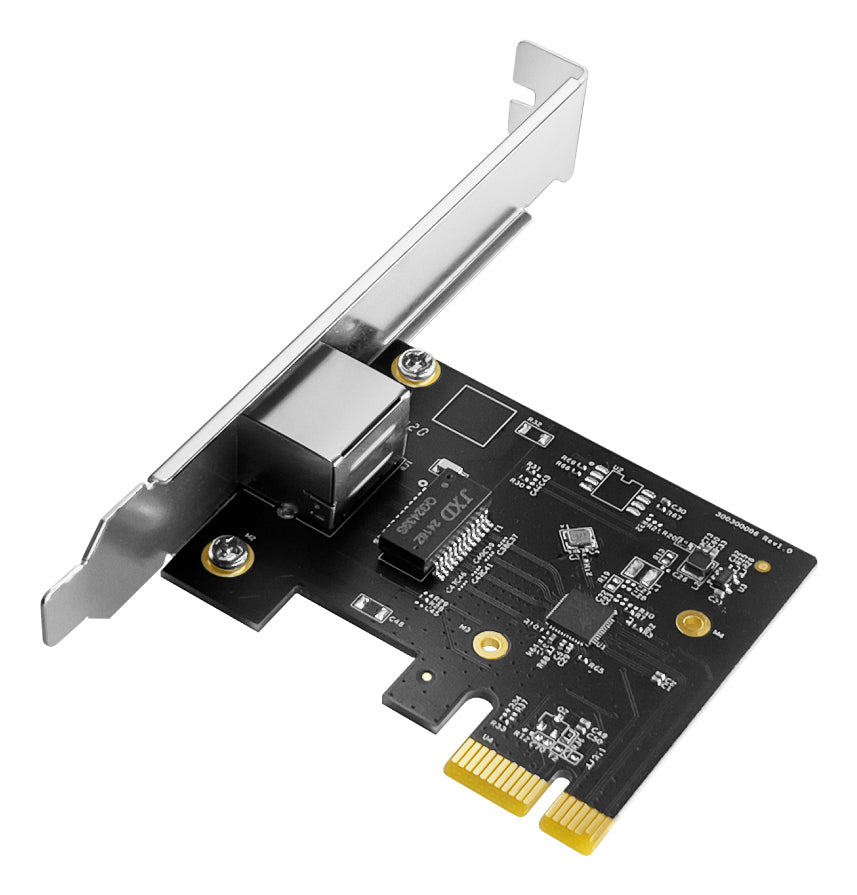

Cudy PE25 network card Internal Ethernet 2500 Mbit/s
Cudy PE25 network card Internal Ethernet 2500 Mbit/s
Regular price
£26.09 GBP
Regular price
Sale price
£26.09 GBP
Taxes included.
SKU:PE25
Quantity
Couldn't load pickup availability
Blazing 2.5G Networking for Peak Performance
Experience ultra-fast 2.5G speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE25 supports auto-negotiation across 10/100/1000/2.5G, delivering reliable, high-performance connectivity for demanding tasks.
Upgrade in One Step to 2.5G Lightning-Fast Network
Requires a PCI-E x4/x8/x16 Slot
Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.
Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.
Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.
Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.
Experience ultra-fast 2.5G speeds for seamless downloads, server hosting, and smooth media editing on NAS. PE25 supports auto-negotiation across 10/100/1000/2.5G, delivering reliable, high-performance connectivity for demanding tasks.
Upgrade in One Step to 2.5G Lightning-Fast Network
Requires a PCI-E x4/x8/x16 Slot
Saves Power Automatically
EEE (Energy-Efficient Energy) feature automatically set adapter into a low-power idle state when there is little or no data traffic.
Flow Control
Prevents packet loss and data drops when transmission rates reach 2.5 Gbps, crucial for maintaining reliability in server operations and surveillance systems.
Wake on LAN
Allows user to wake up their PC or server remotely via network with Wake on LAN.
Standard/Low-Profile Bracket
Suitable for standard towered PC, low-profile server, and rack-mounted server installation.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Card form factor | Full-height (low-profile) |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 2500 Mbit/s |
| Technical details | |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Mean time between failures (MTBF) | 376212 h |
| Network | |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 2.5GBase-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| LAN controller | Realtek RTL8125-BG |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T, 1000BASE-TX |
| Maximum data transfer rate | 2500 Mbit/s |
| Flow control support | Yes |
| Design | |
| Internal | Yes |
| PCI Card form factor | Full-height (low-profile) |
| Mean time between failures (MTBF) | 376212 h |
| LED indicators | Activity, Link, Speed |
| Component for | PC/Server |
| Software | |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11 |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Activity, Link, Speed |
| System requirements | |
| Server operating systems supported | Windows Server 2012, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11 |
| Linux operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width | 64 mm |
| Depth | 56 mm |
| Height | 15 mm |
| Weight | 37.2 g |
| Packaging data | |
| Low-profile bracket | Yes |
| Package type | Box |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Low-profile bracket | Yes |
| Package type | Box |
| Performance | |
| Server operating systems supported | Windows Server 2012, Windows Server 2022 |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows 11 |
| Linux operating systems supported | Yes |
| Mean time between failures (MTBF) | 376212 h |
| Other features | |
| Flow control support | Yes |
