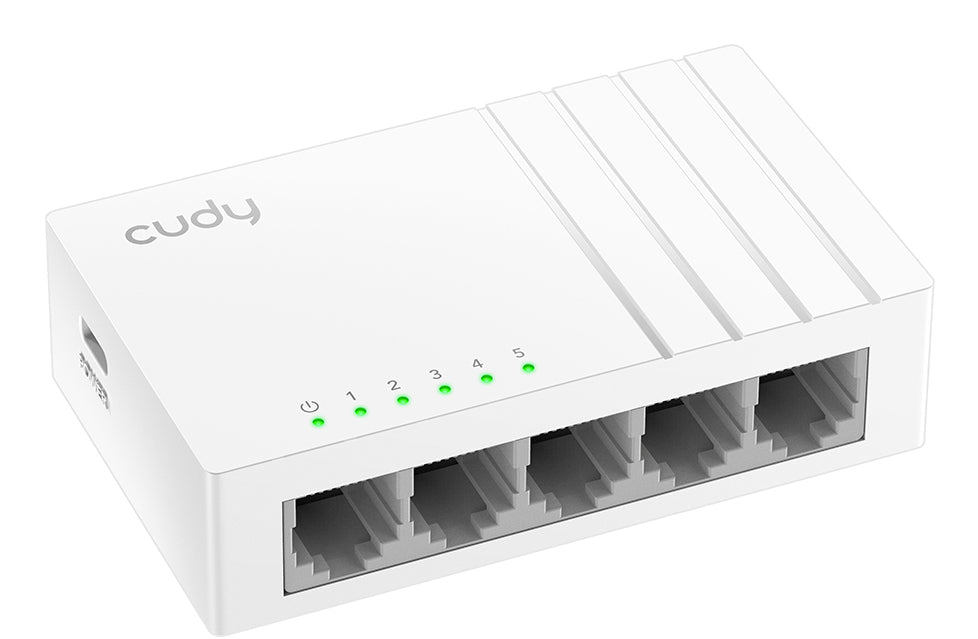

Cudy GS105U network switch Unmanaged Gigabit Ethernet (10/100/1000) White

Flexible USB-C Powering

No Sockets Nearby? No Worries
No power sockets nearby? Use the USB port on your PC/TV/router/printer to power the switch and expand the connection with ease.

A Moving Network Hub
Do maintenance and troubleshooting more easily with a power bank-powered switch. It can operate for a full day with a 10,000 mAh power bank.

Reliable Transimitting
A packet buffer prevents packet loss and improves the reliability of your network.

Extra Transmission Distance
140 meters of Gigabit transmission adding 40% longer distance compared to a standard switch, simplifies wiring for larger premises.

Saves Power
Reduce power consumption when Ethernet ports are idle, saving the electricity expenses on networking facilities.

Wall Mounting
Provides two mounting holes on the bottom of the casing, catering to wall-mounting placement scenarios.

Compact Size. Modern Design.

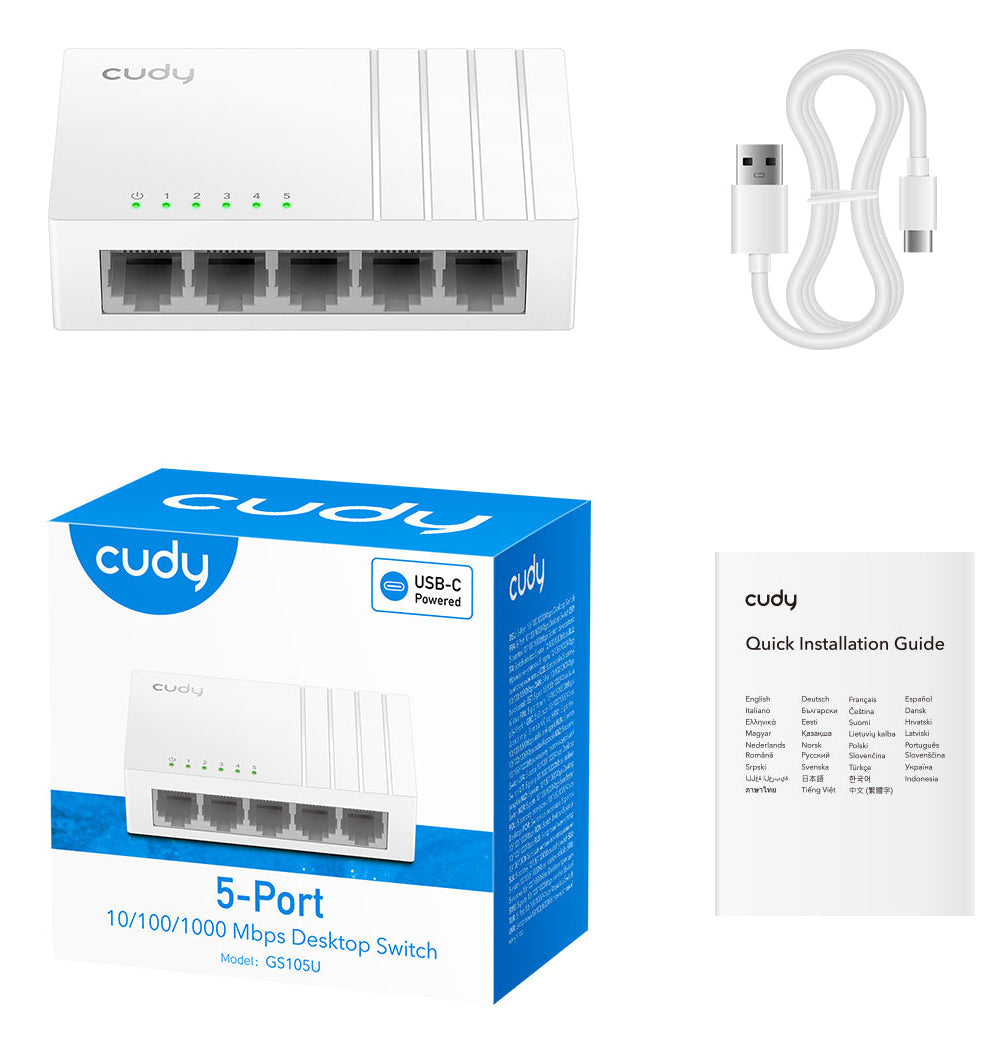

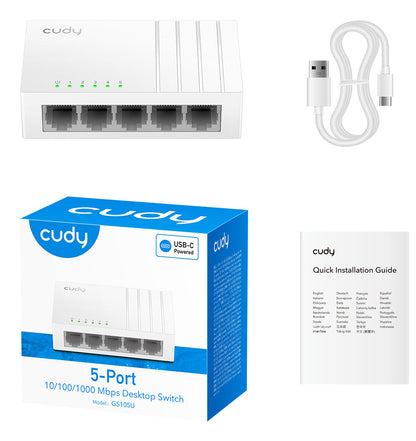

Compact enough to fit in most home network distribution boxes. The wave line white casing casts a modern aesthetic. The retail package comes with a USB-A to USB-C power cable.

Expand Network for More Devices
Connect Office Computers to Wired Network
Boost Home Devices with Stable Ethernet

A mini Ethernet switch powered by USB-C, ideal for sharing a wired network on a desktop, wall, or in a distribution box.

Management features
Switch type	Unmanaged
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Power connector	USB
USB Type-C ports quantity	1
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Network
Cable types supported	Cat3, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
Networking standards	IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
VLAN support	Yes
Flow control support	Yes
10G support	No
Data transmission
Jumbo frames	15000
Packet buffer memory	0.375 MB
MAC address table	2048 entries
Switching capacity	10 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes
Forwarding rate	7.44 Mpps
Design
Wall mountable	Yes
Product colour	White
Housing material	Plastic
Rack mounting	No
Power
Power consumption (max)	2 W
Power supply included	Yes
DC input voltage	5 V
Power source	USB
Power connector	USB
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Virtual LAN features
VLAN support	Yes
Weight & dimensions
Width	88 mm
Depth	52.5 mm
Height	24 mm
Weight	53 g
Packaging content
Quick start guide	Yes
Cables included	USB Type-A to USB Type-C
Packaging data
Package width	92 mm
Package depth	89 mm
Package height	48 mm
Package weight	124 g
Quick start guide	Yes
Cables included	USB Type-A to USB Type-C
Performance
Packet buffer memory	0.375 MB
Technical details
Product colour	White
Housing material	Plastic
Rack mounting	No
Memory
Packet buffer memory	0.375 MB
